Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

18 part groups · 3 illustrations

Illustrations

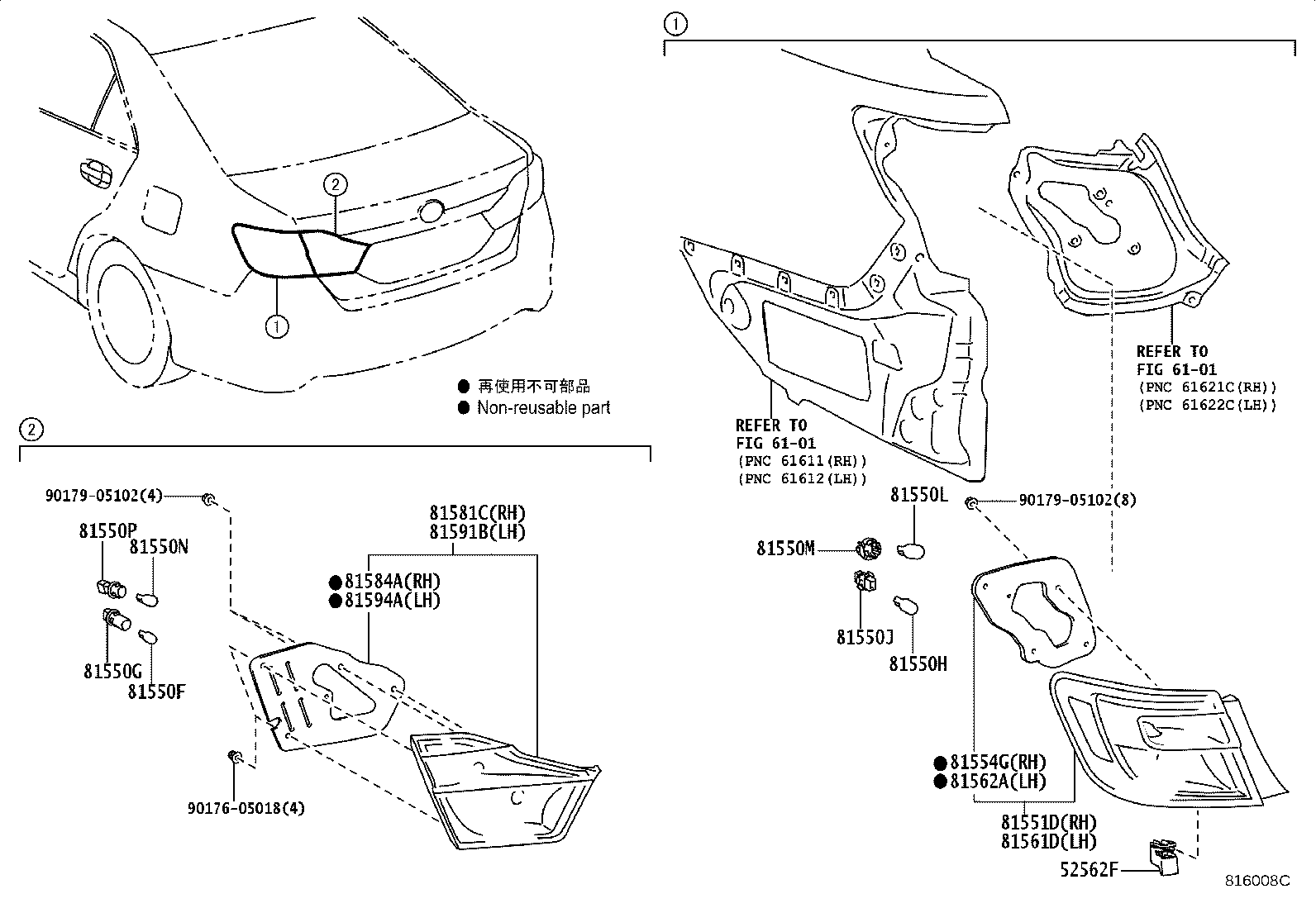

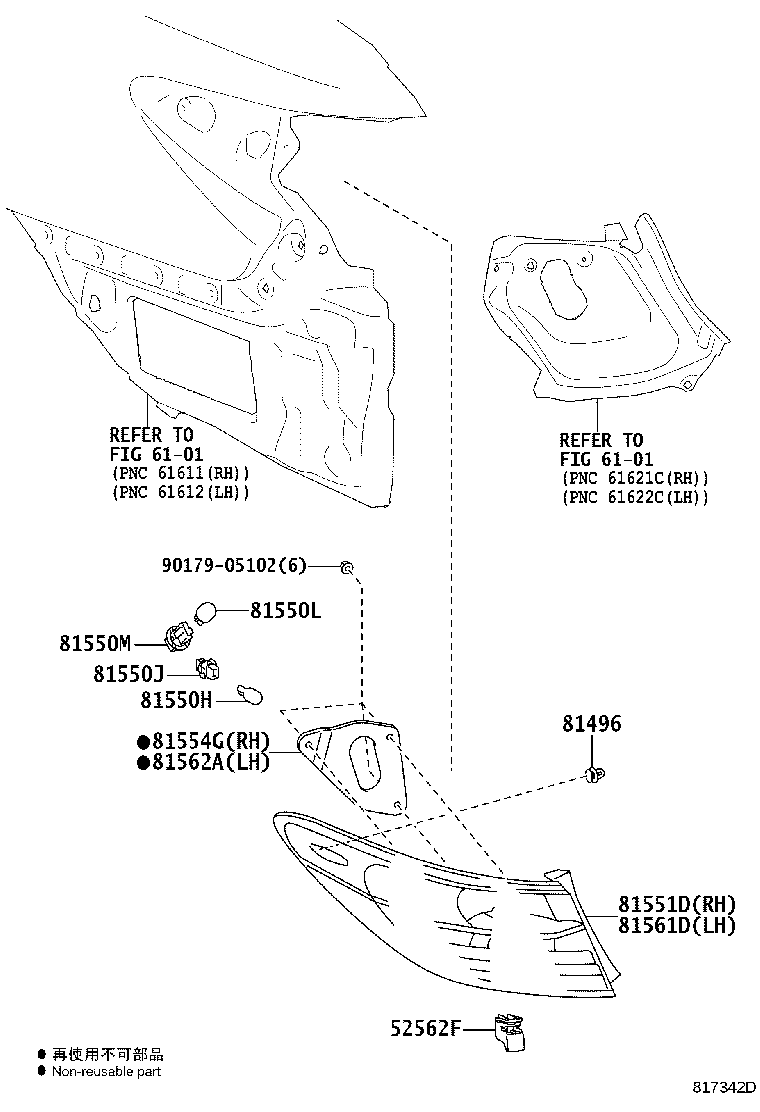

Figure 815909C 815909C 2011-10 → 2015-04 Figure 816008C 816008C 2012-02 → — Figure 817342D 817342D 2015-04 → —

Part groups

PNCDescription
52562F Retainer, Rear Bumper, Upper Side
81496 Guide, Rear Combination Lamp
81550F Bulb, Taillamp
81550G Socket, Taillamp
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554G Gasket, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81581C Lens And Body, Rear Lamp, RH
81584A Gasket, Rear Lamp RH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
