Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 4 illustrations

Illustrations

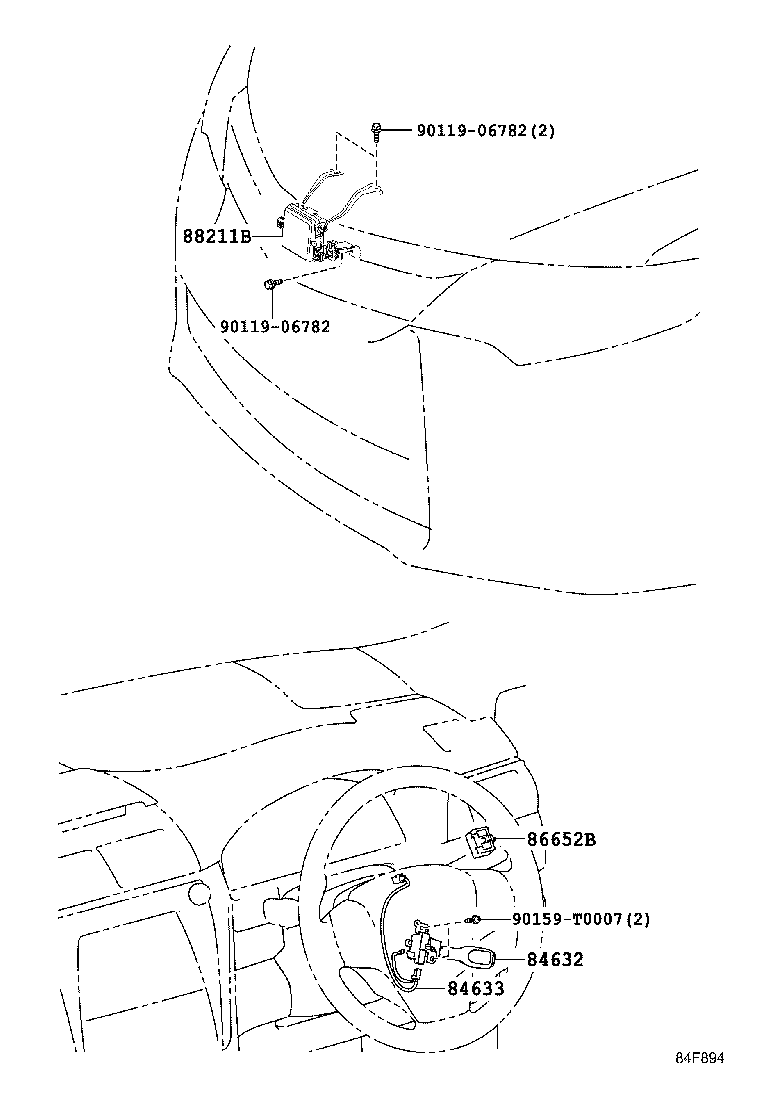

Figure 84C685 84C685 2011-10 → 2012-11 Figure 84C685 84C685 2011-10 → 2015-04 Figure 84C685 84C685 2011-10 → — Figure 84F894 84F894 2015-04 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
86652B Buzzer, Skid Control
88211B Sensor Assy, Millimeter Wave Radar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
