Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 9 illustrations

Illustrations

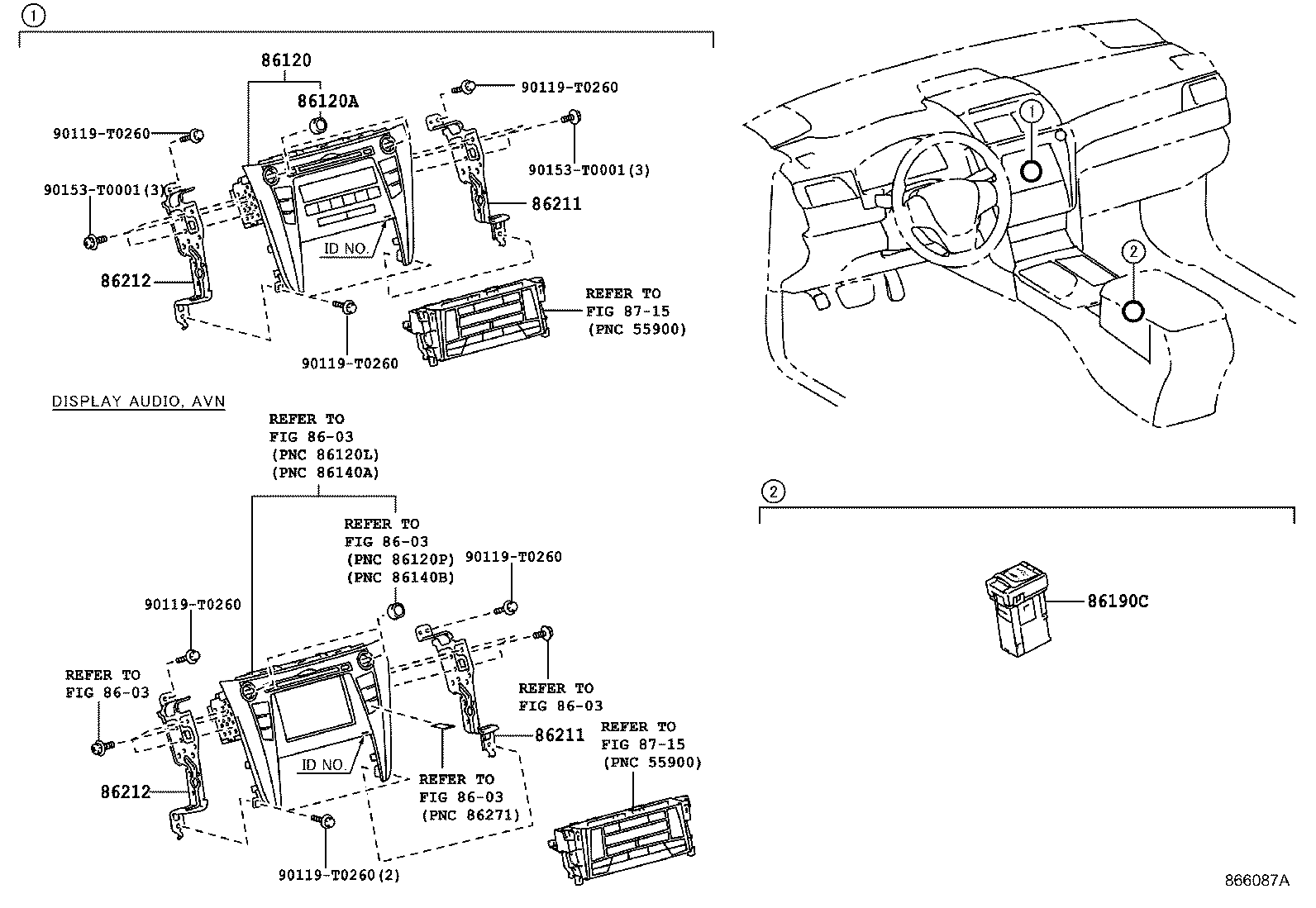

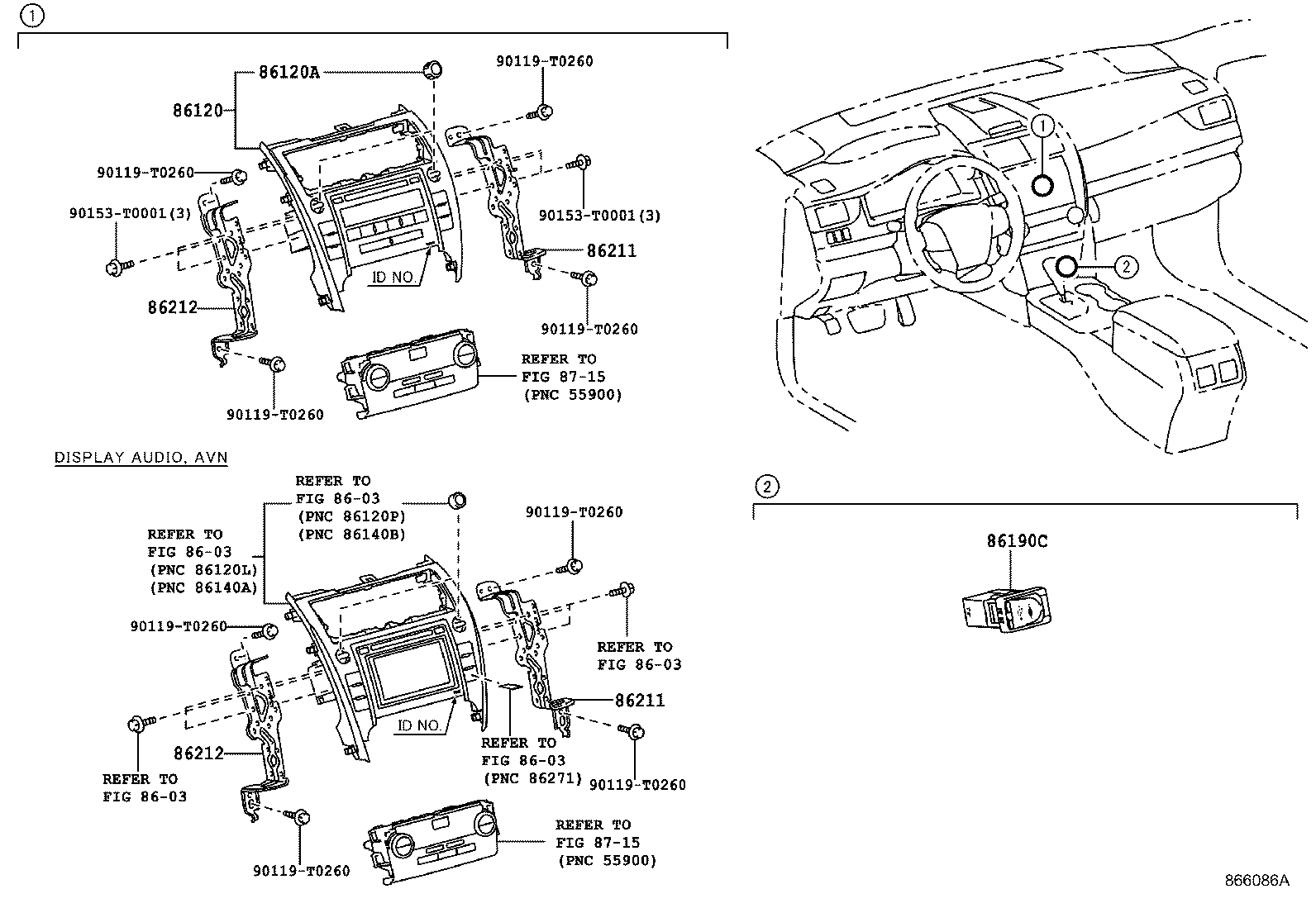

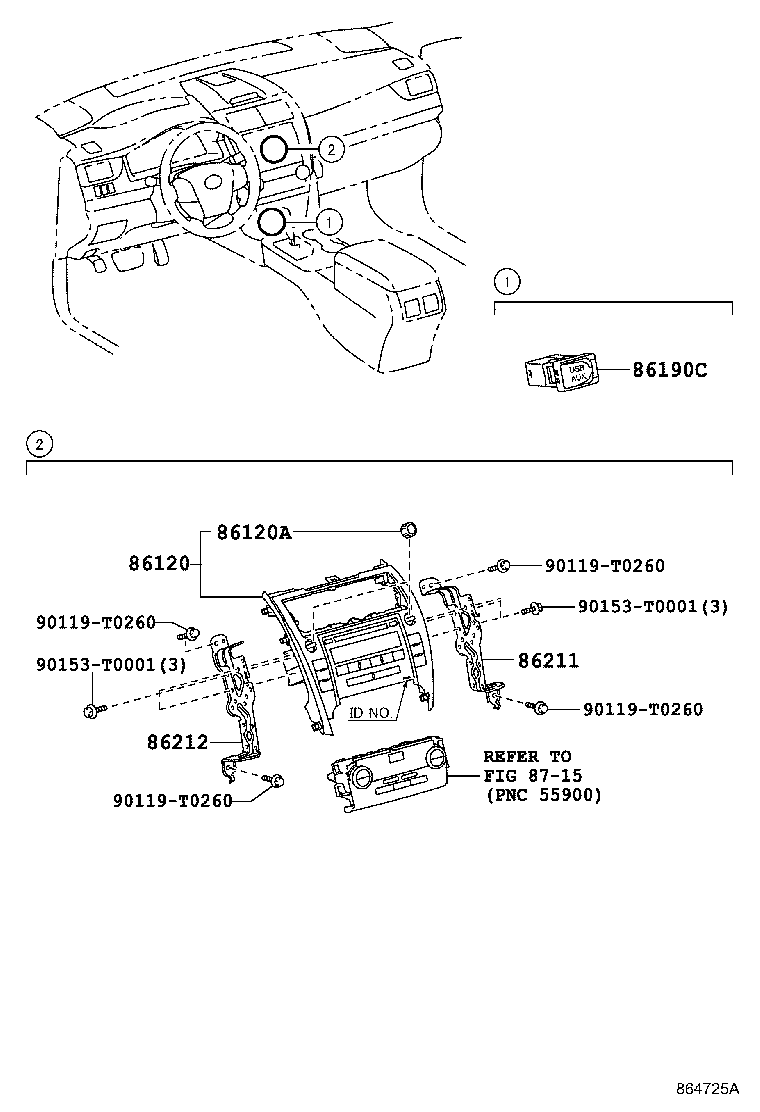

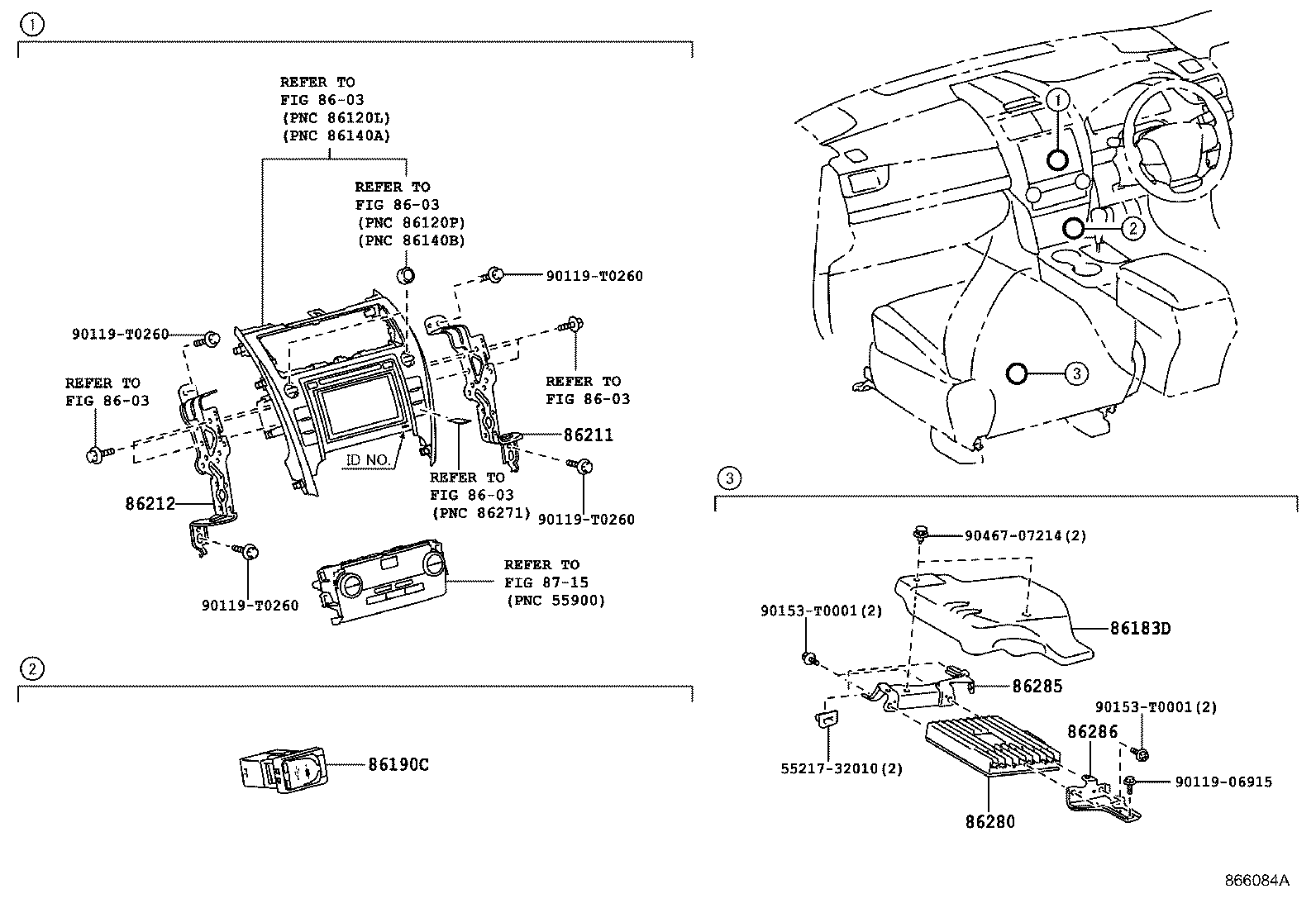

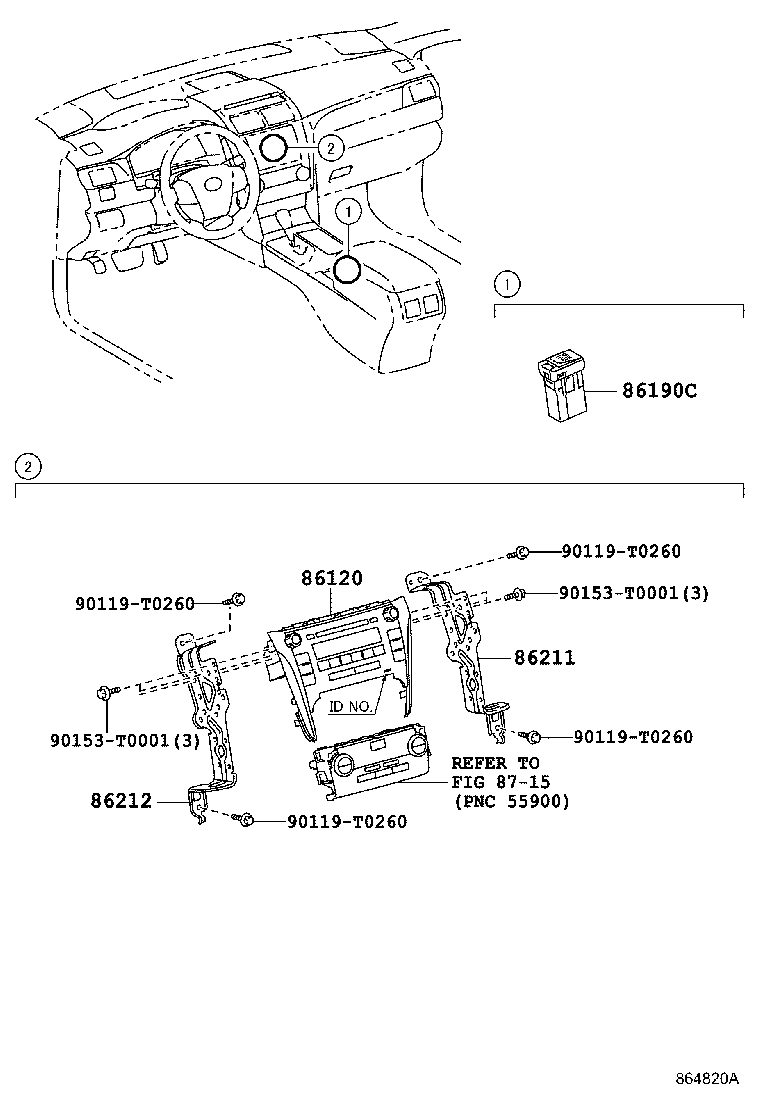

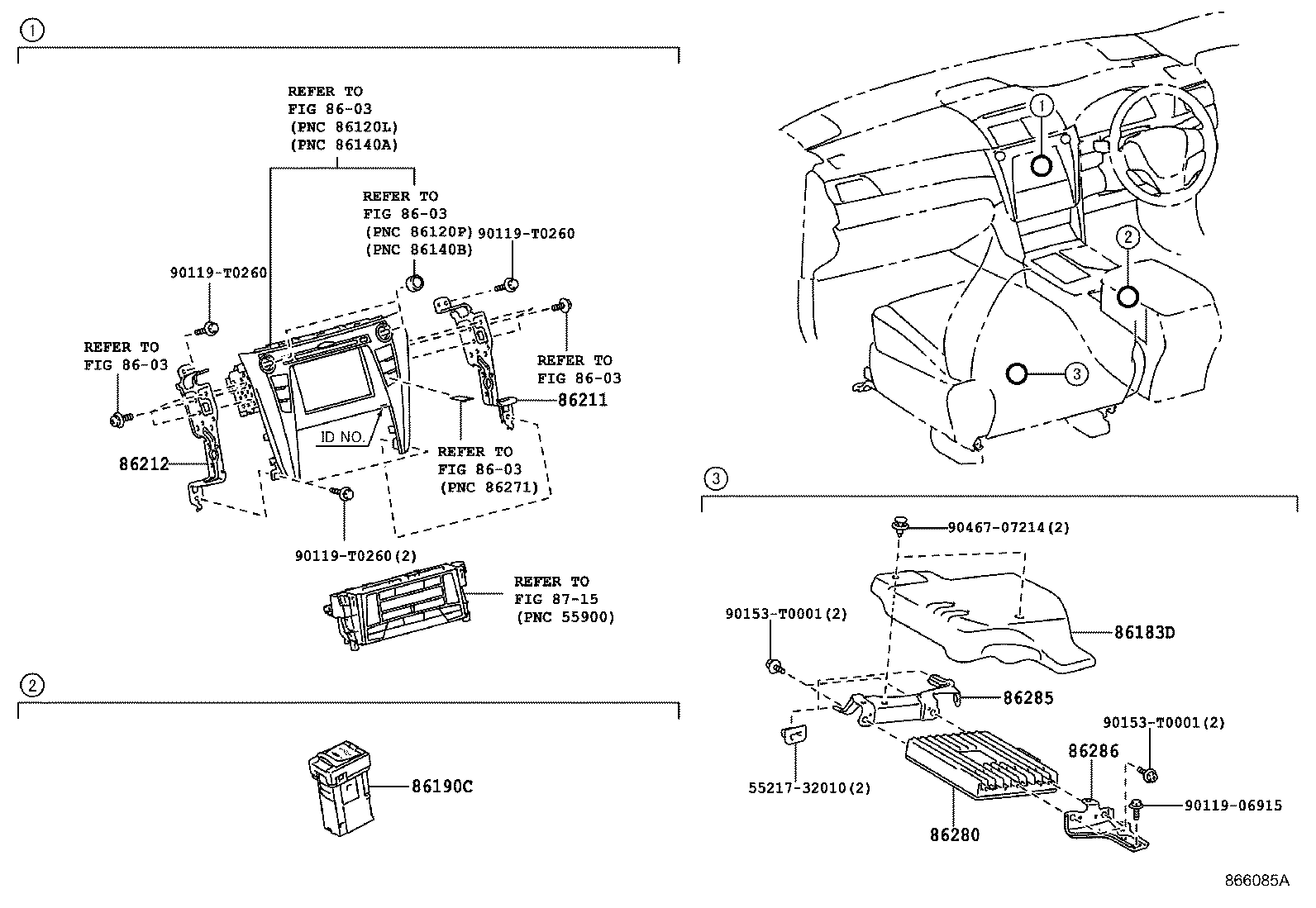

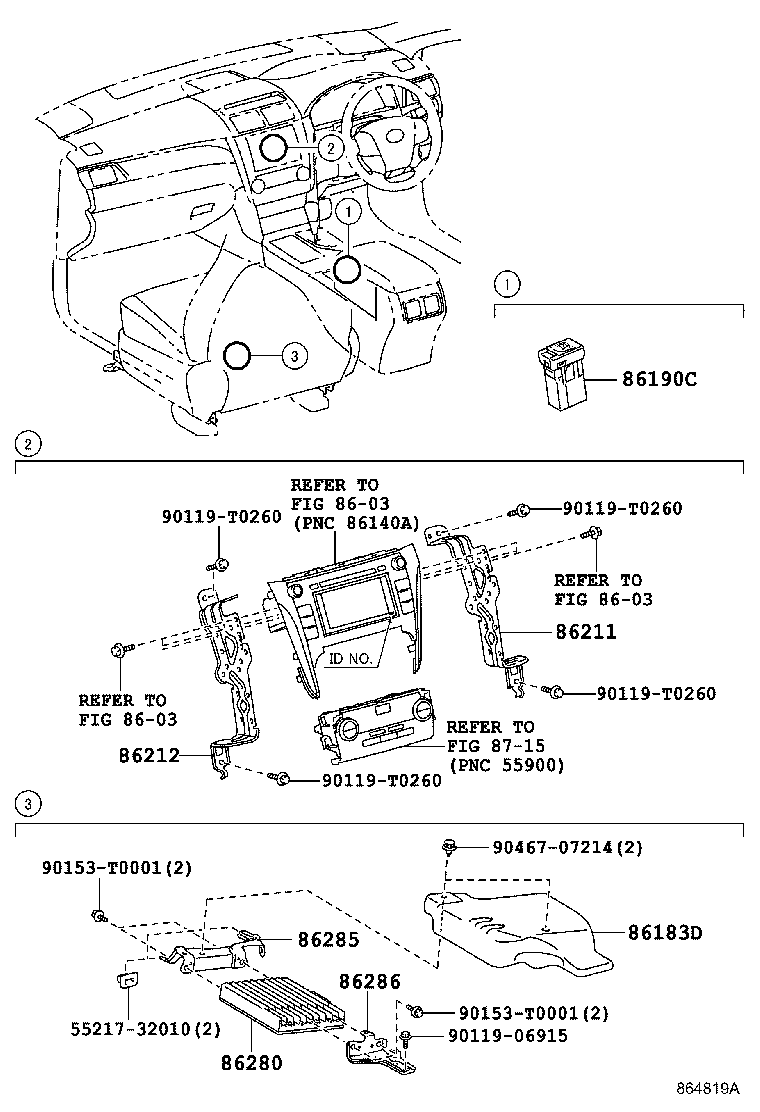

Figure 864726A 864726A 2011-10 → 2015-04 Figure 866084A 866084A 2015-04 → — Figure 864725A 864725A 2011-10 → 2015-04 Figure 866086A 866086A 2015-04 → — Figure 864819A 864819A 2012-02 → 2014-05 Figure 866085A 866085A 2015-04 → — Figure 864820A 864820A 2012-02 → 2015-04 Figure 866087A 866087A 2015-04 → — Figure 864724A 864724A 2011-10 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
