Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 3 illustrations

Illustrations

Figure 864728A

864728A 2011-10 → 2015-04

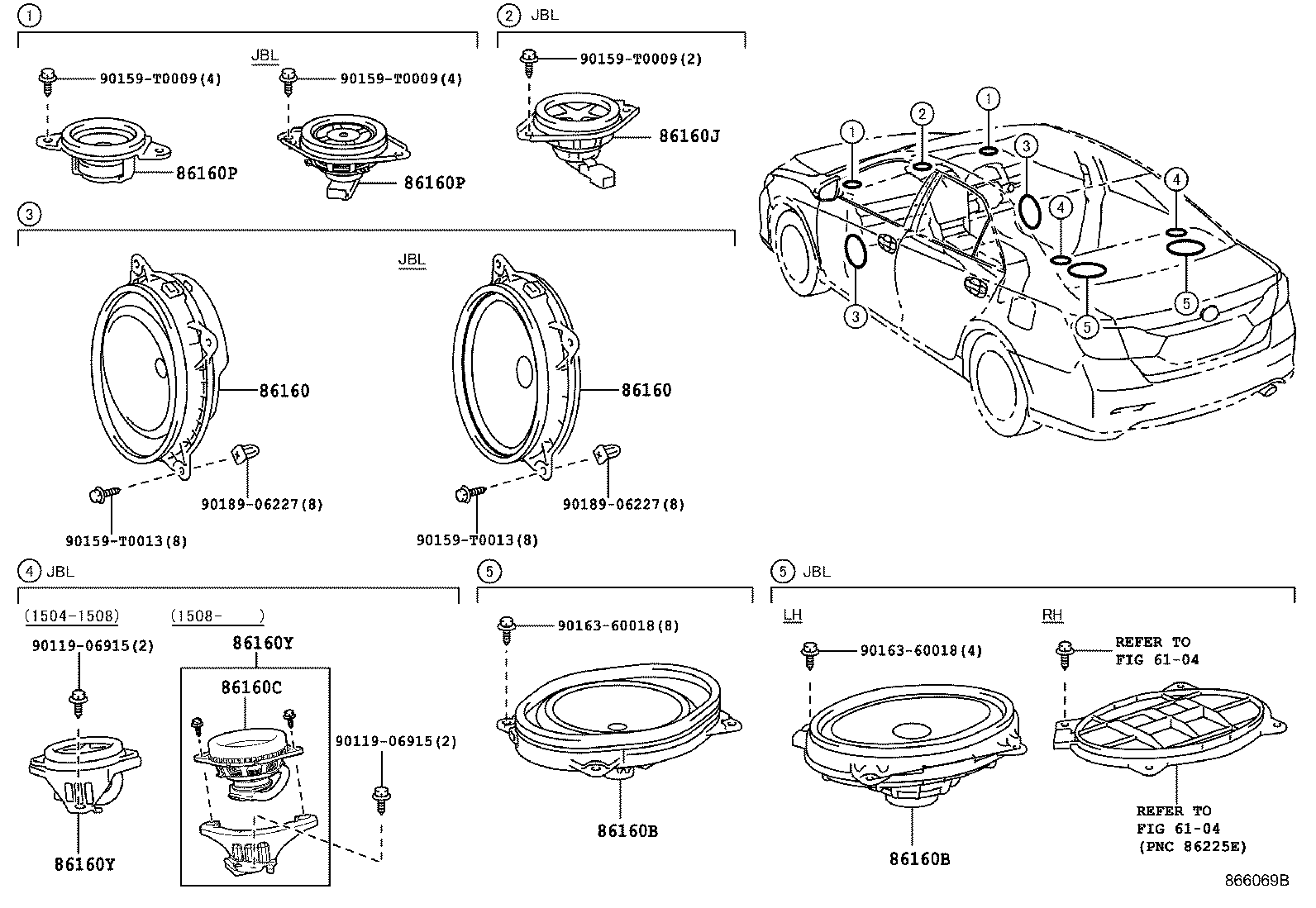

Figure 866069B

866069B 2015-04 → —

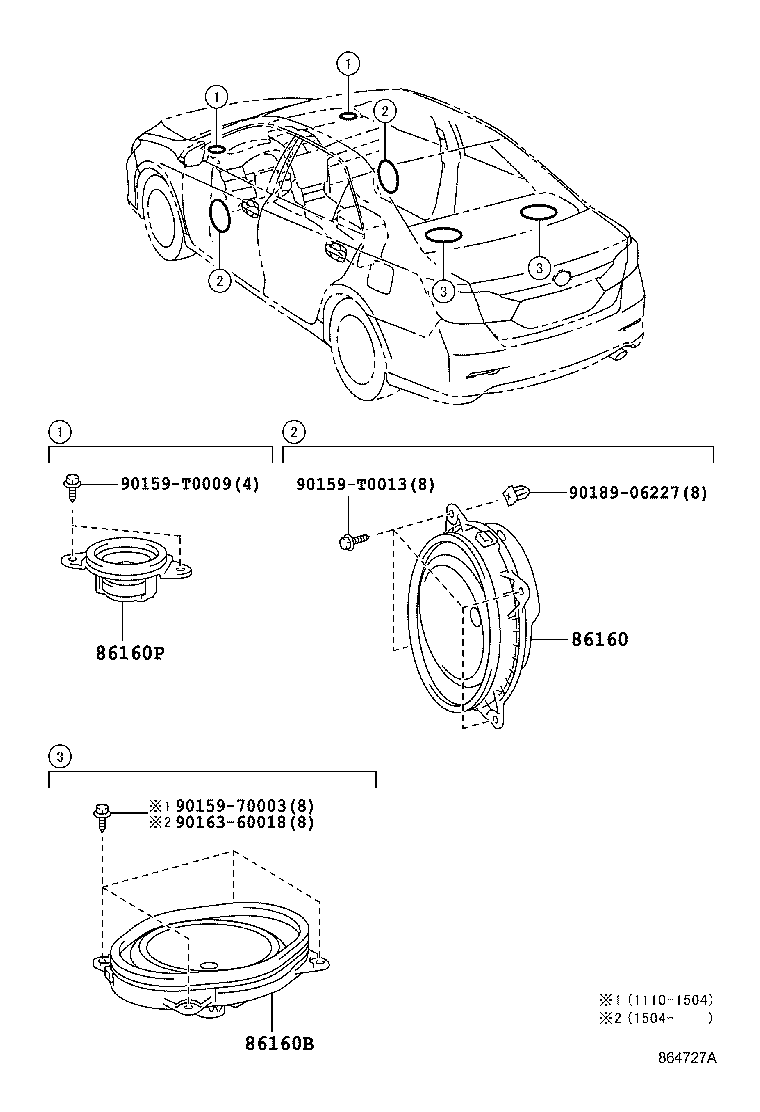

Figure 864727A

864727A 2011-10 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160C	Speaker Set, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2
86160Y	Speaker Assy, Rear NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
