Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 8 illustrations

Illustrations

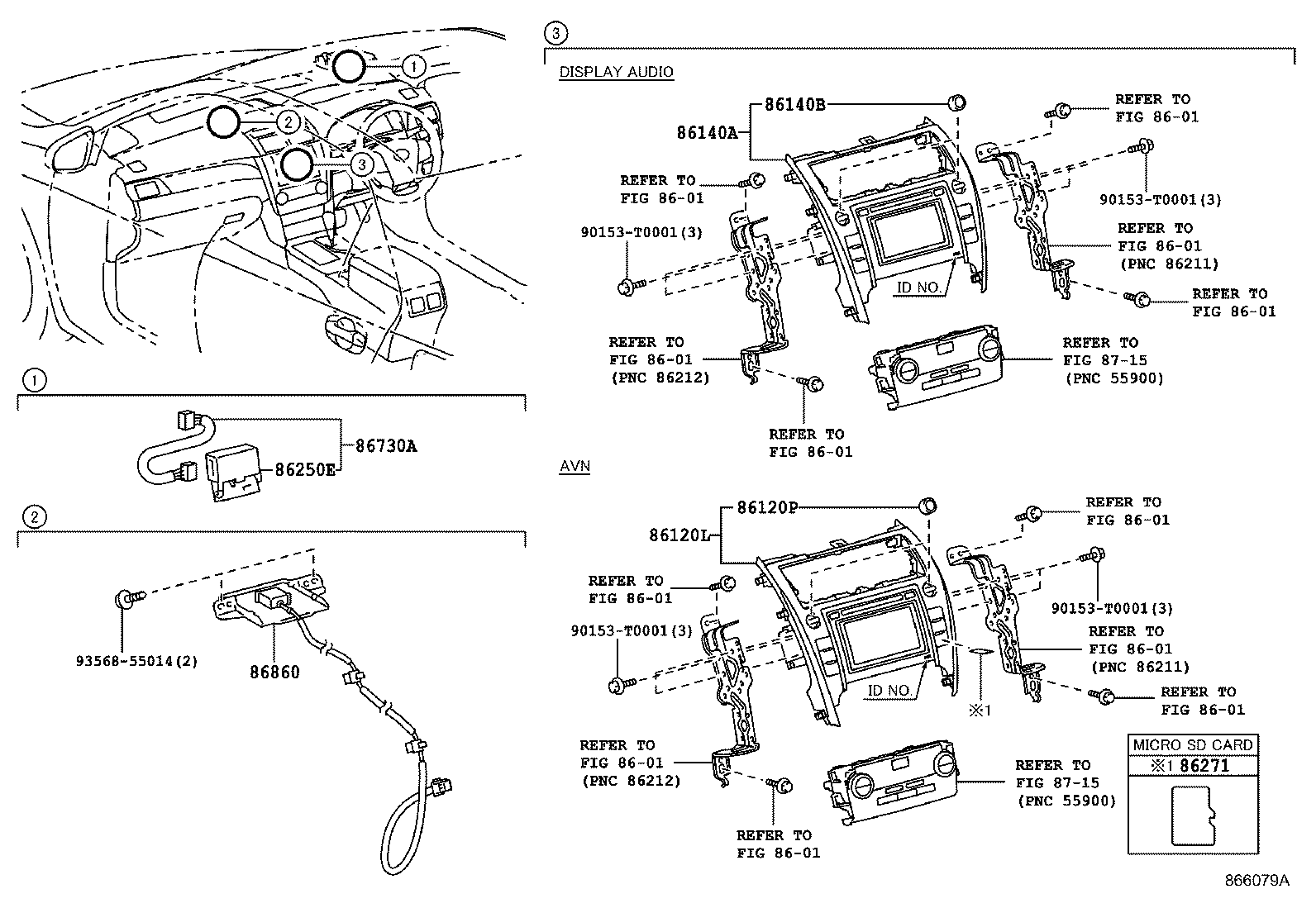

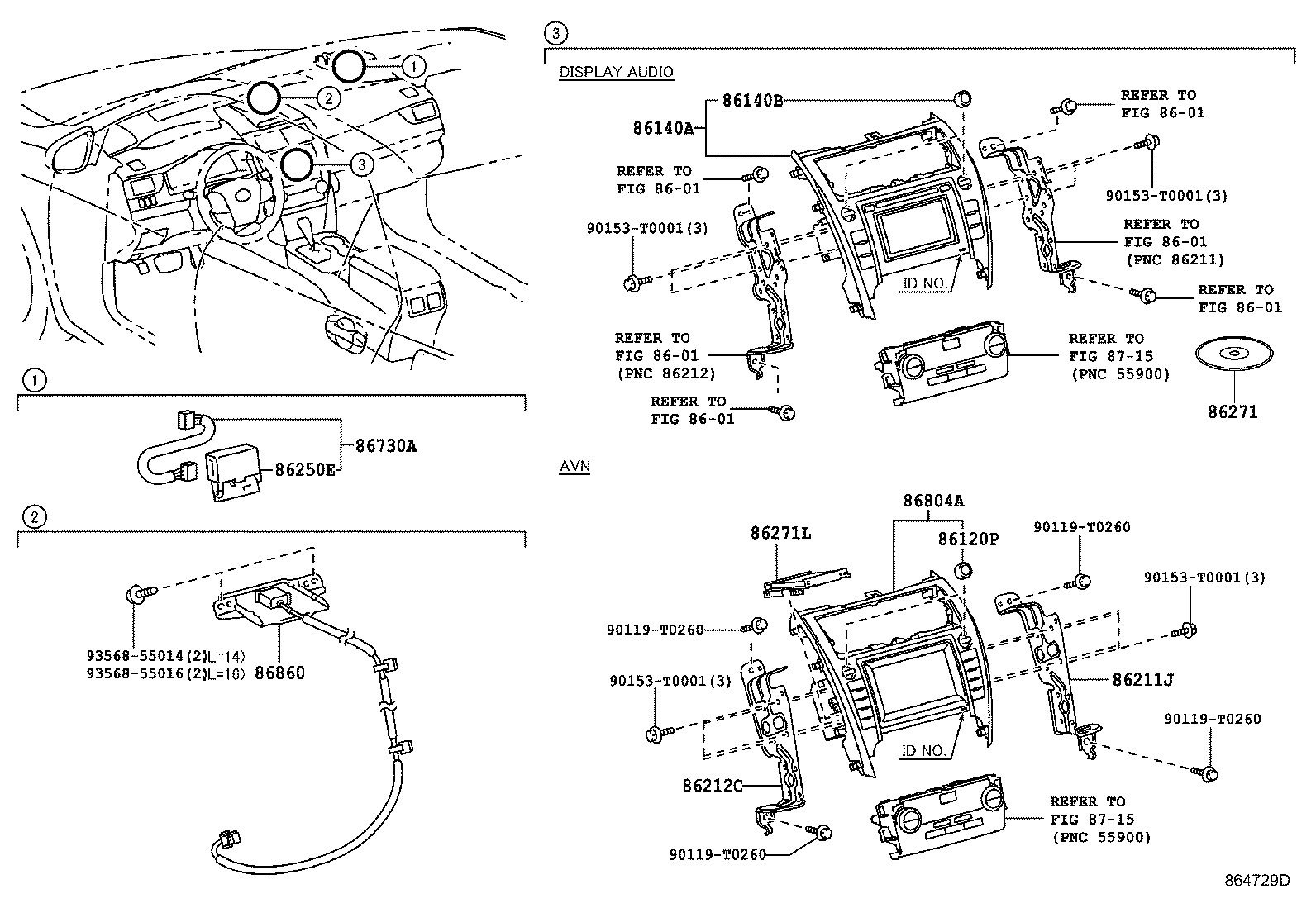

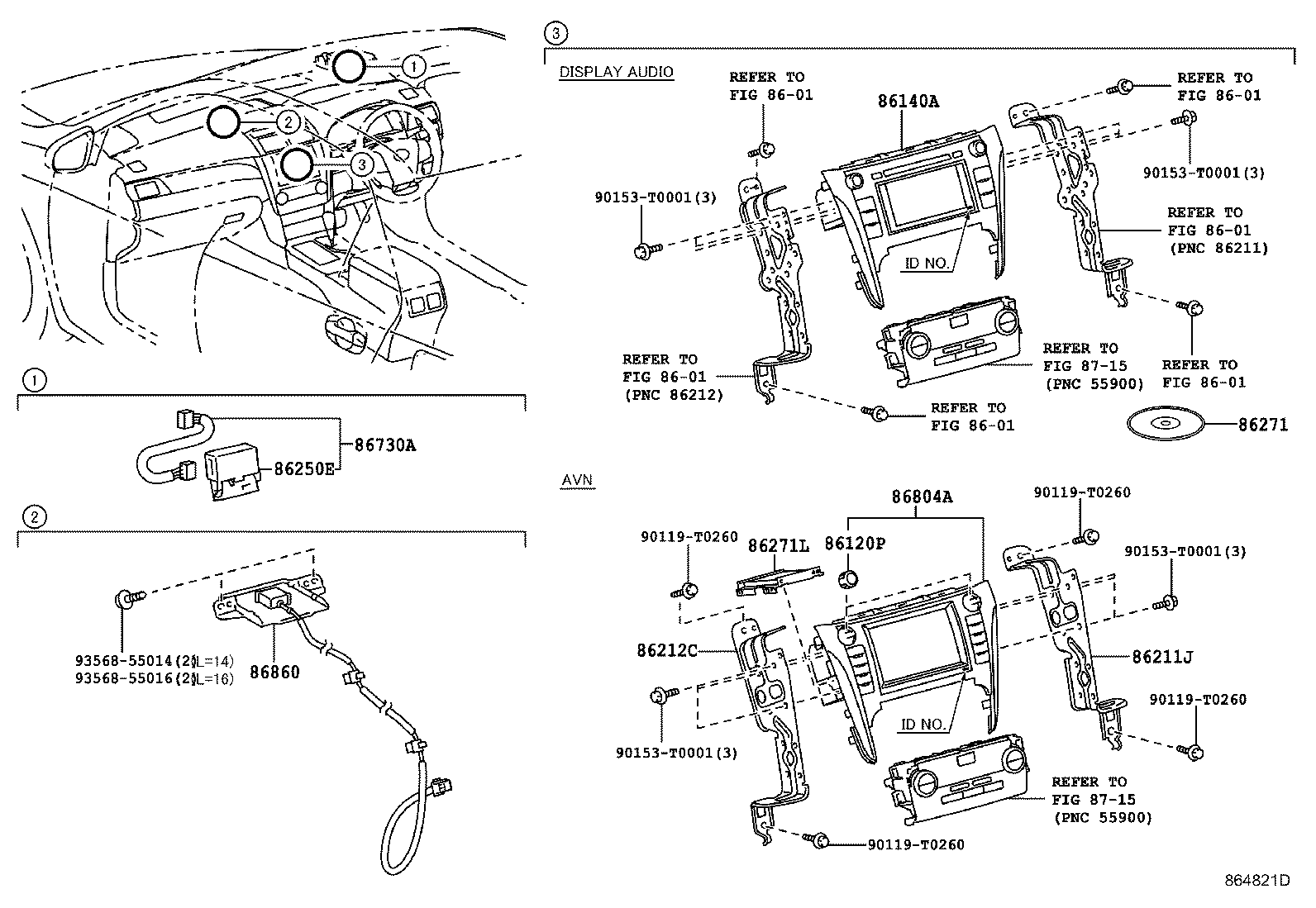

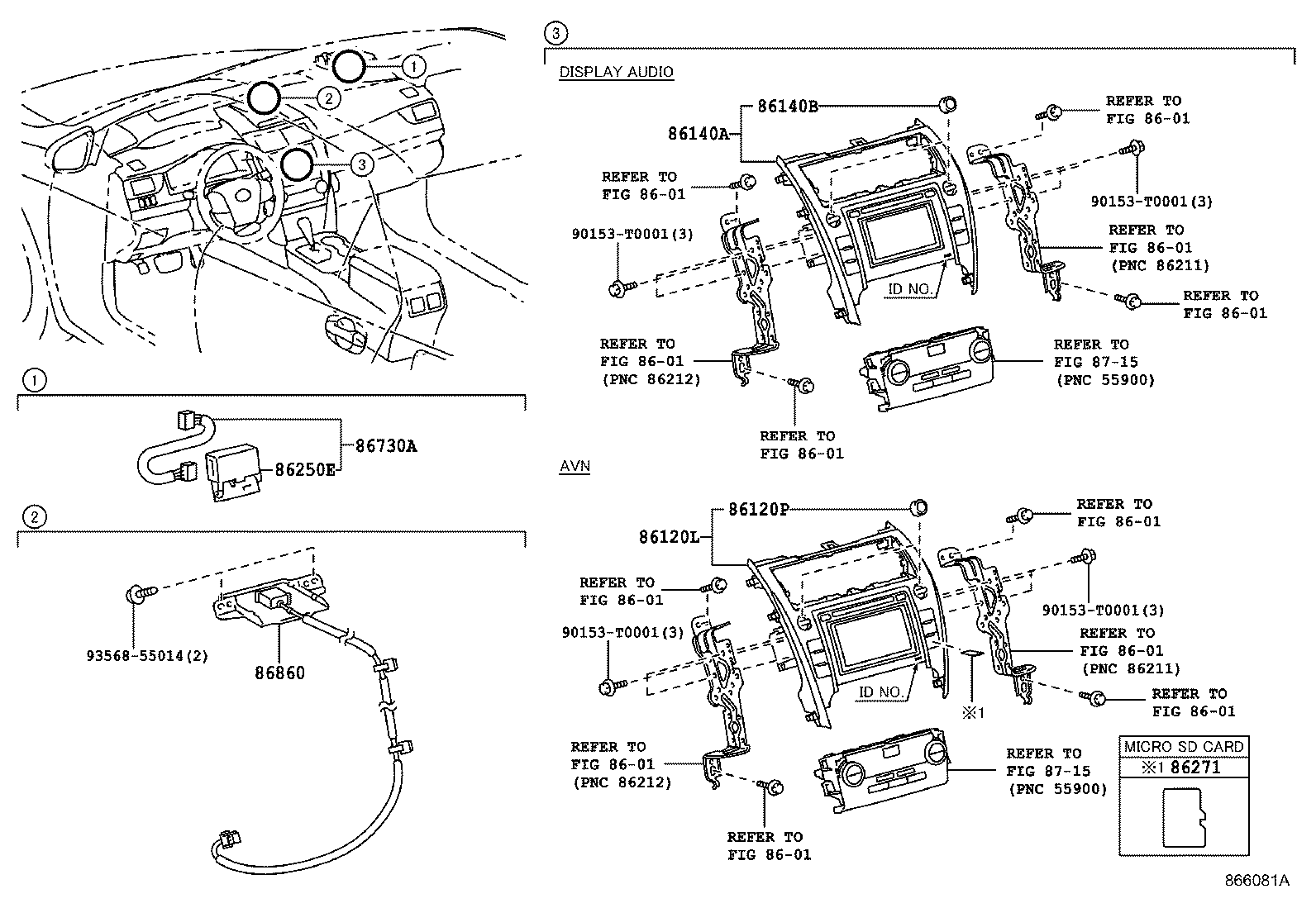

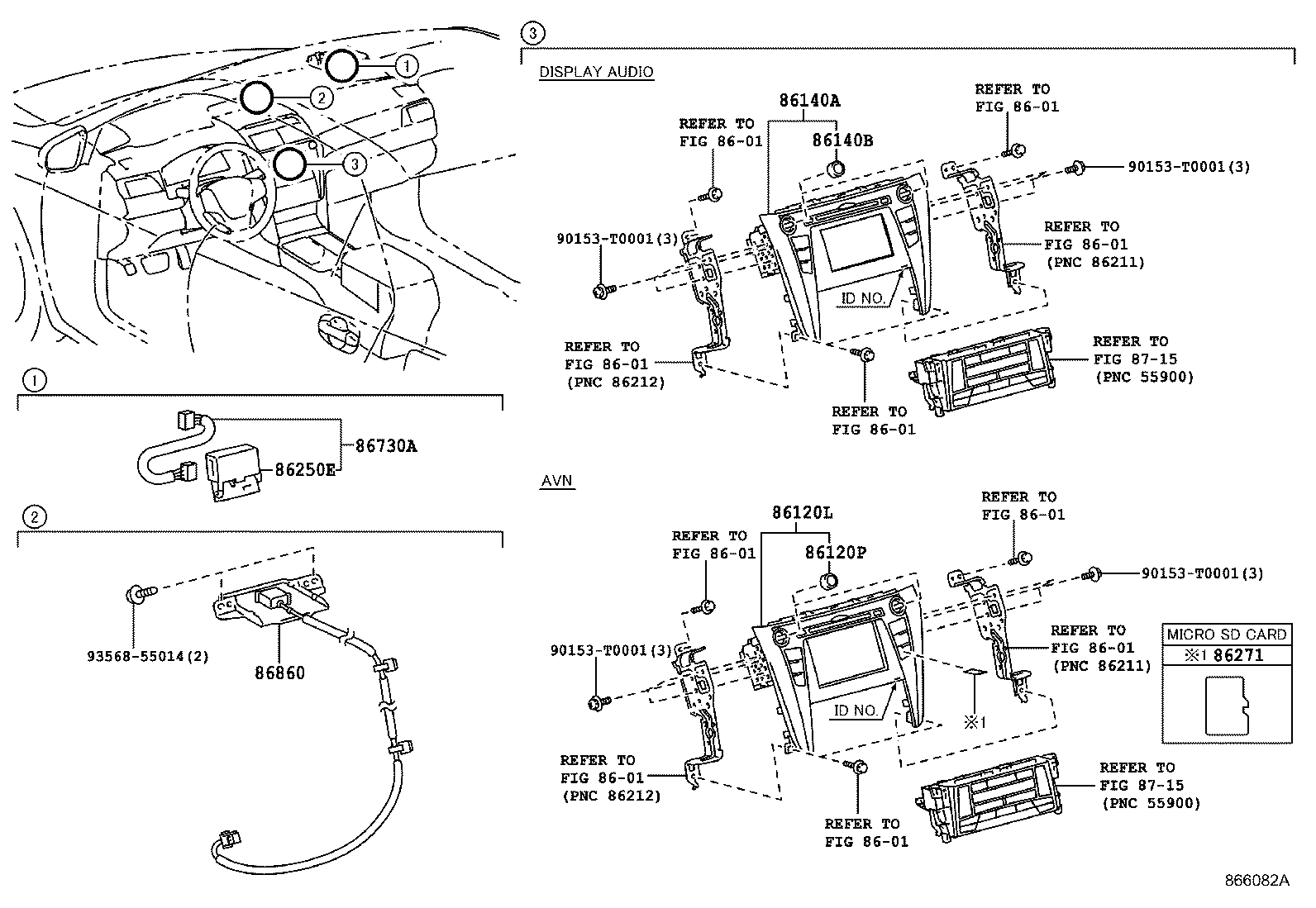

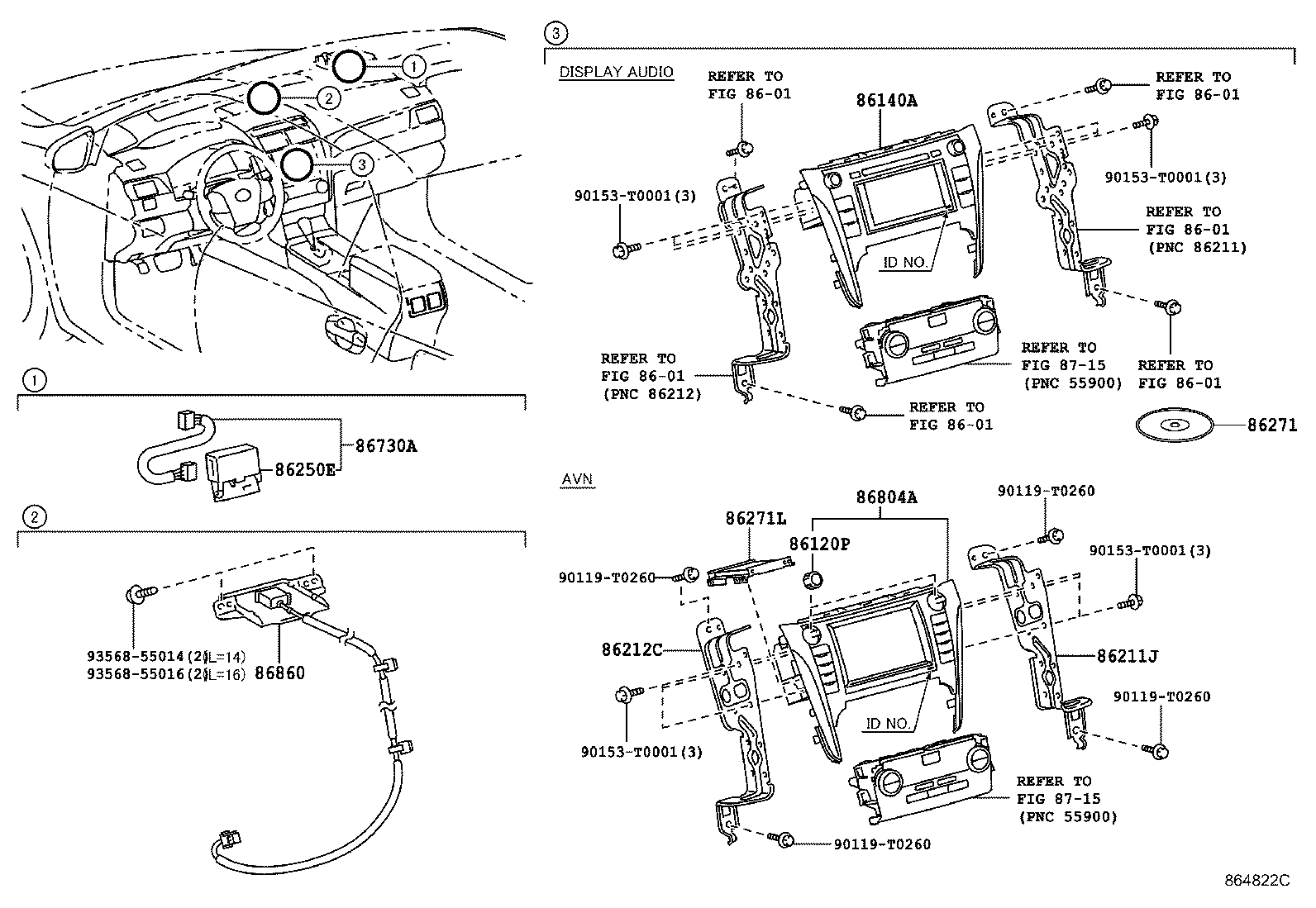

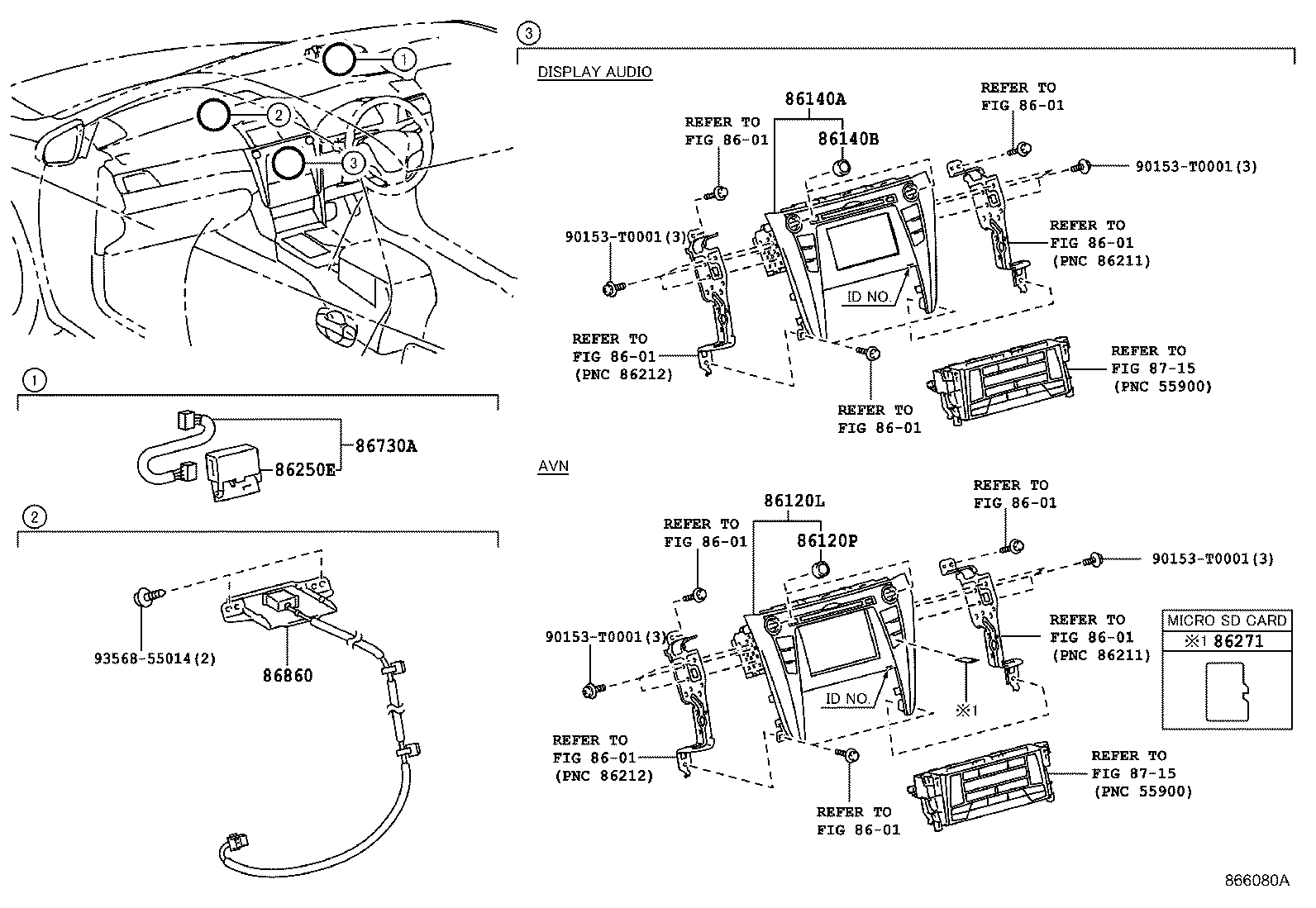

Figure 864734E 864734E 2011-10 → 2015-04 Figure 866079A 866079A 2015-04 → — Figure 864729D 864729D 2011-10 → 2015-04 Figure 866081A 866081A 2015-04 → — Figure 864821D 864821D 2012-02 → 2015-04 Figure 866080A 866080A 2015-04 → — Figure 864822C 864822C 2012-02 → 2015-04 Figure 866082A 866082A 2015-04 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
