Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 8 illustrations

Illustrations

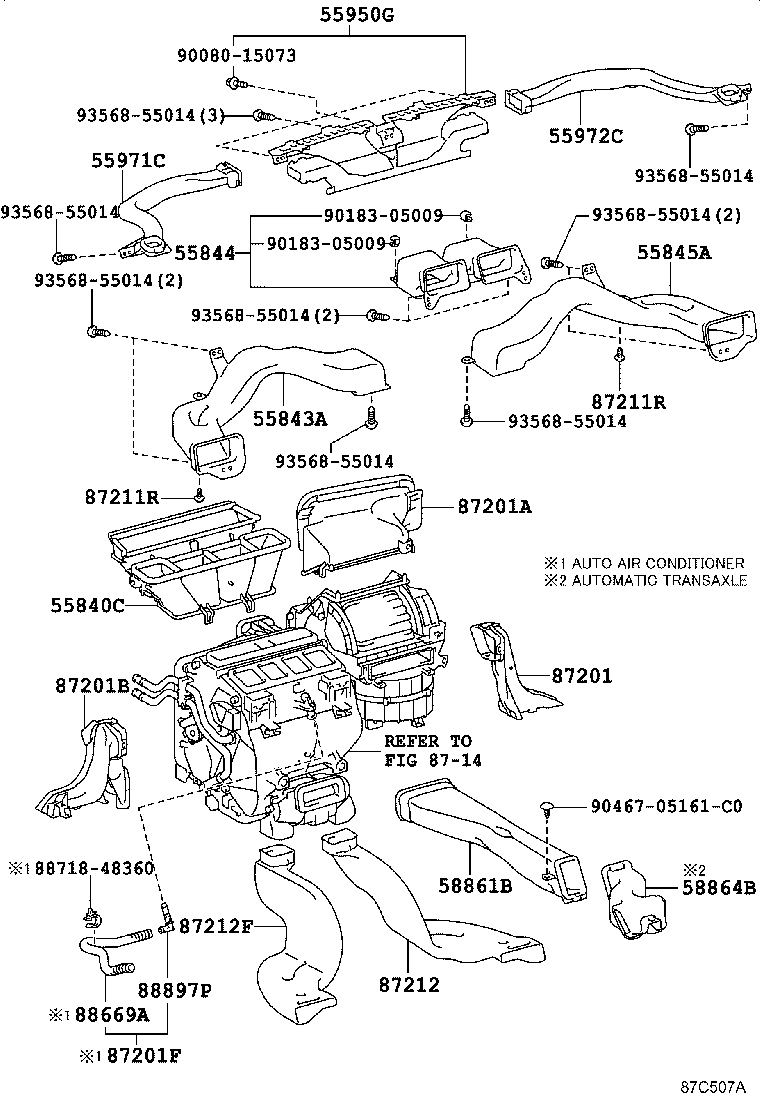

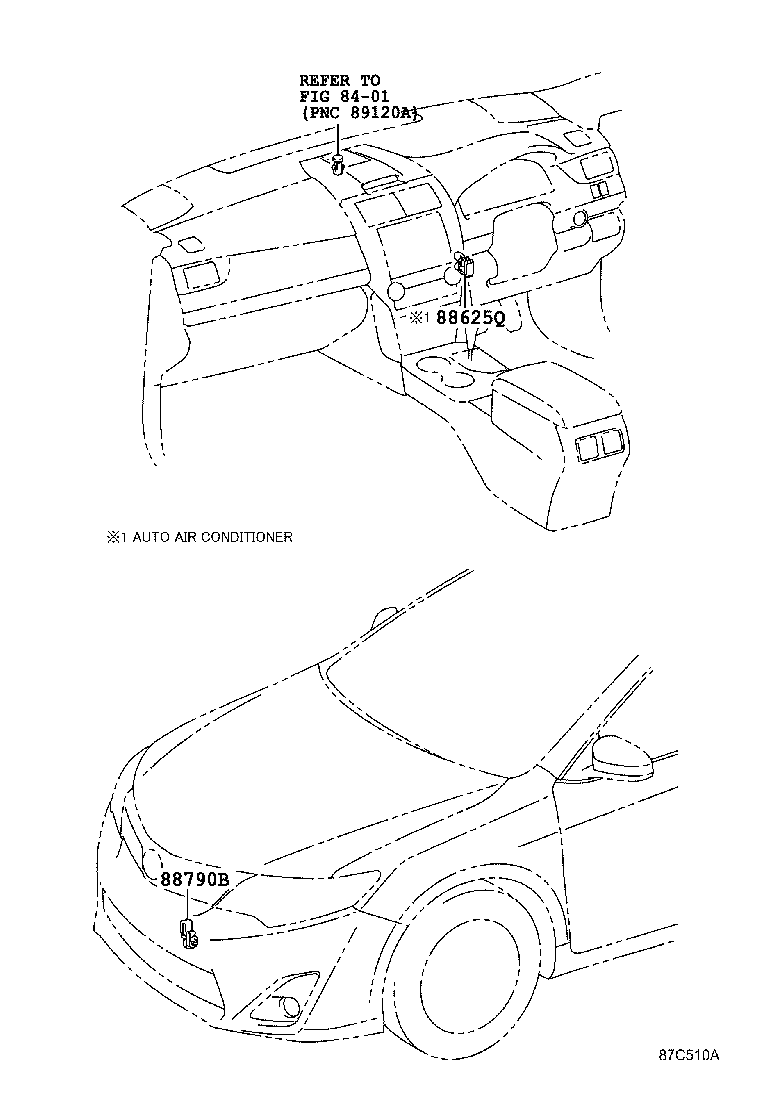

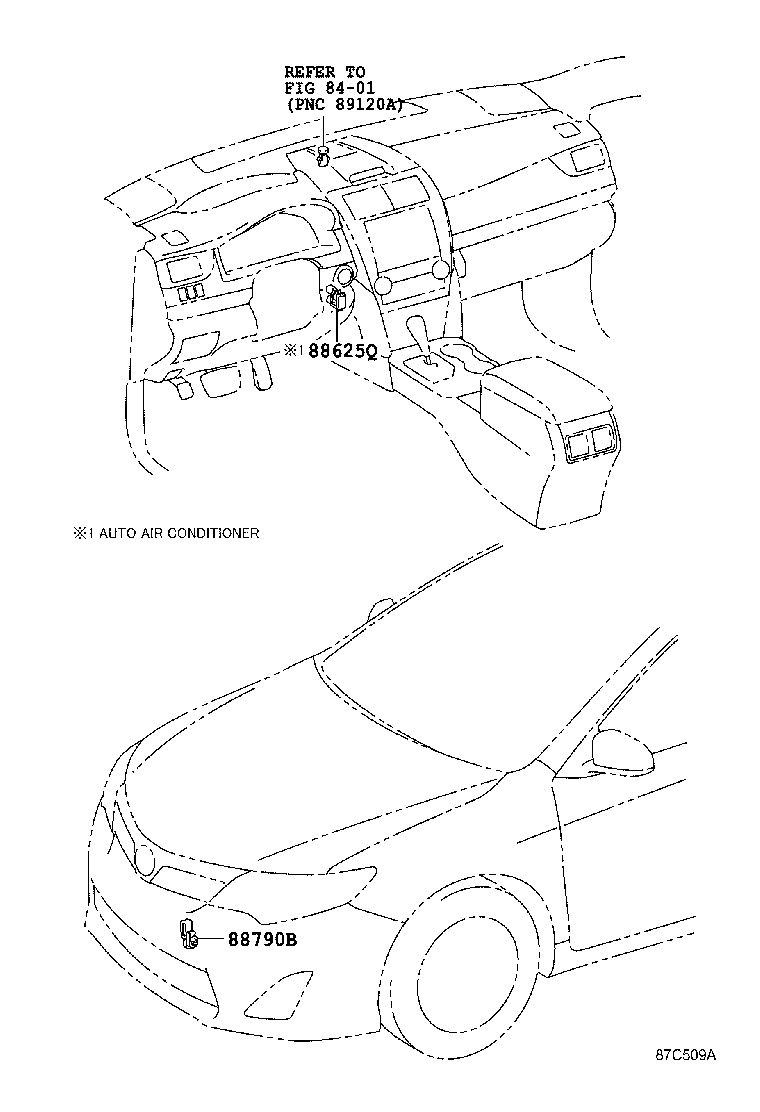

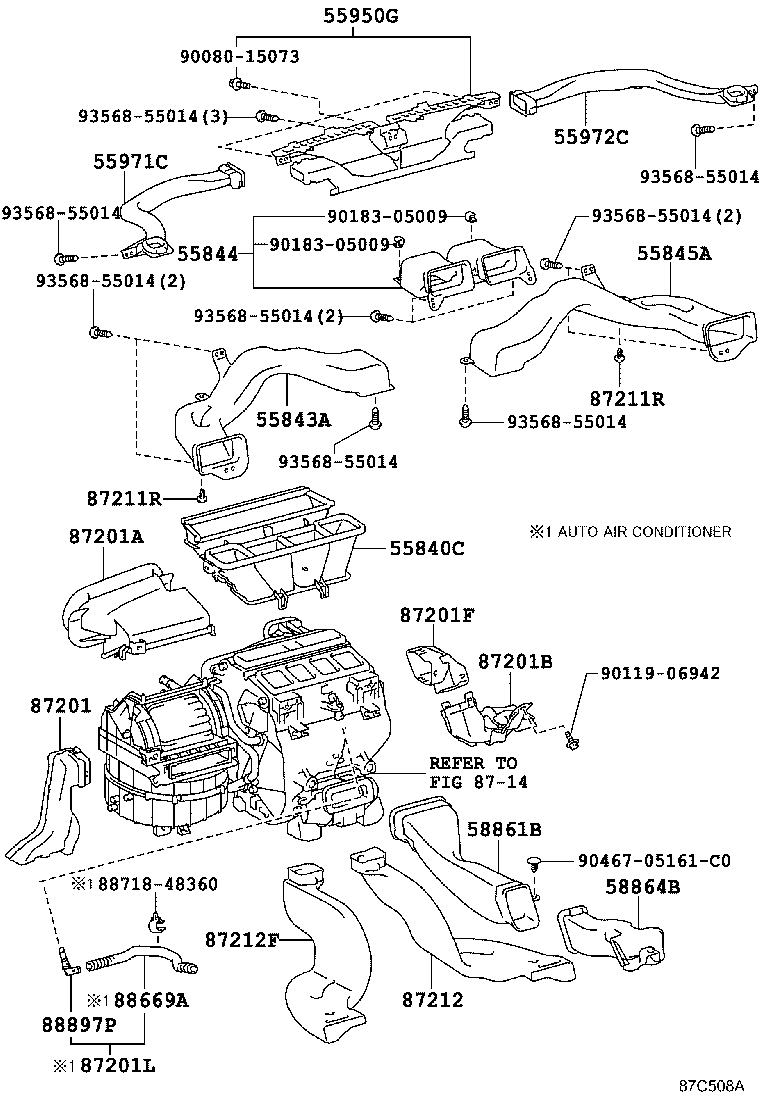

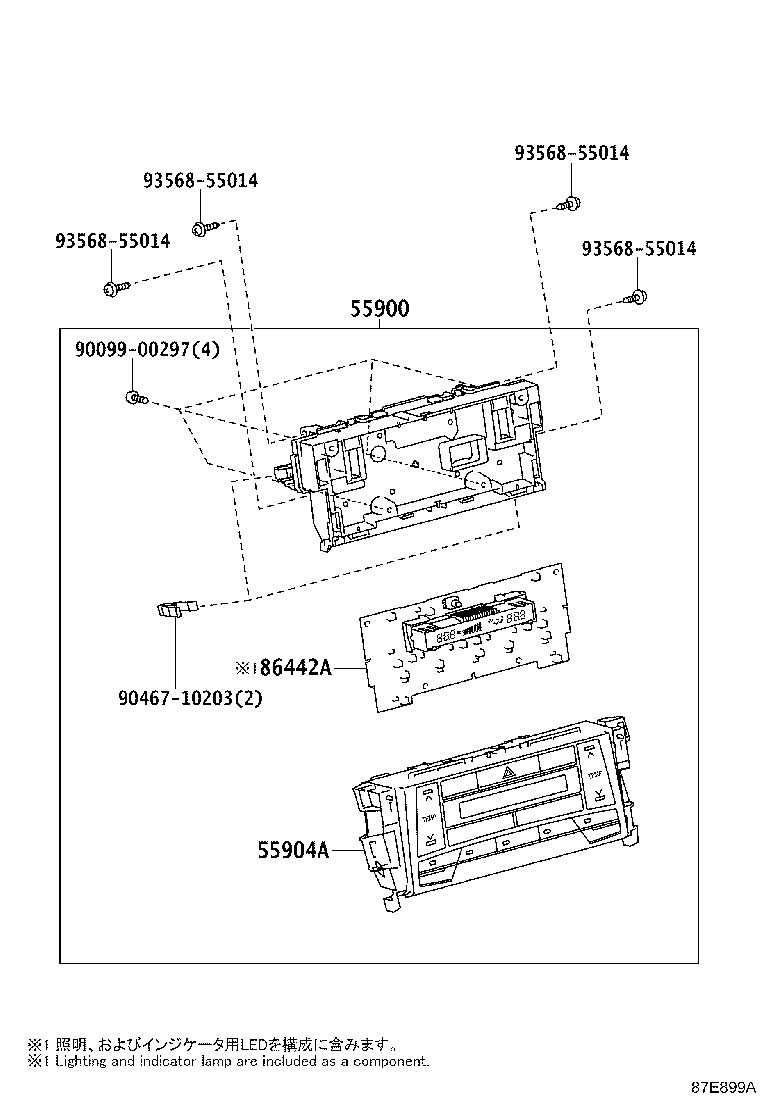

Figure 87C505A 87C505A 2011-10 → — Figure 87C506B 87C506B 2011-10 → 2015-04 Figure 87C506B 87C506B 2011-10 → — Figure 87E899A 87E899A 2015-04 → — Figure 87C507A 87C507A 2011-10 → — Figure 87C508A 87C508A 2011-10 → — Figure 87C509A 87C509A 2011-10 → — Figure 87C510A 87C510A 2011-10 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
86442A Board, Heater Control Switch
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
