Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

Figure 87C511B

87C511B 2011-10 → —

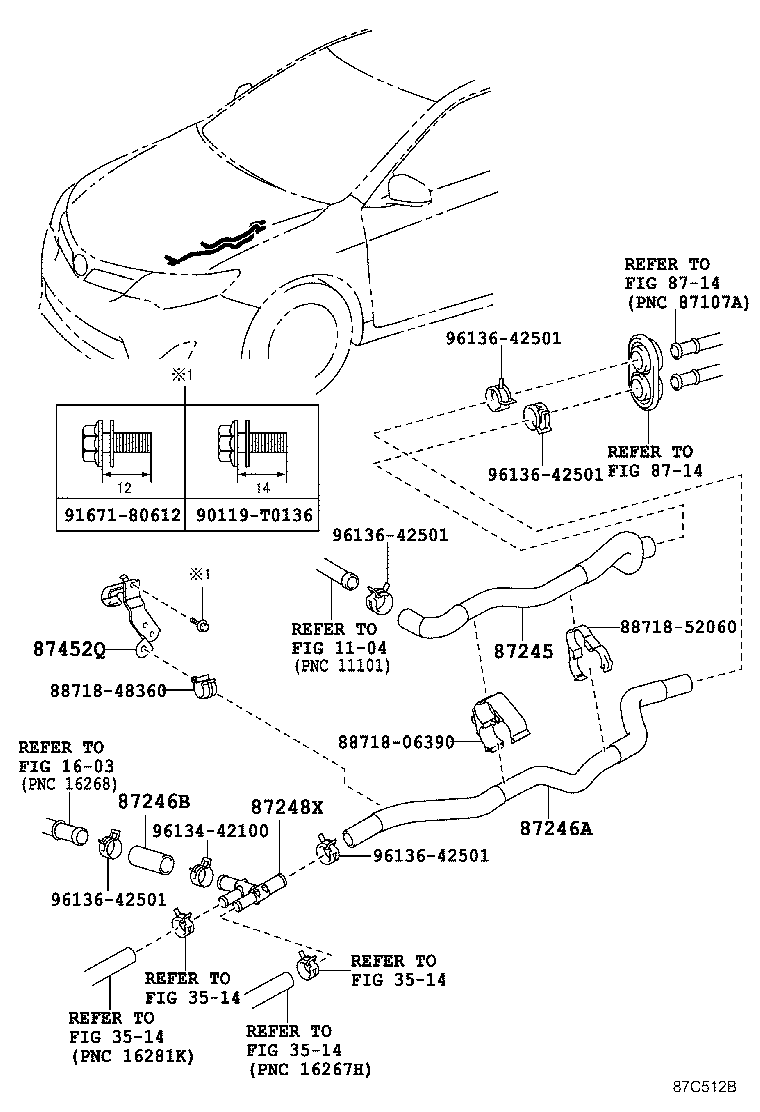

Figure 87C512B

87C512B 2011-10 → —

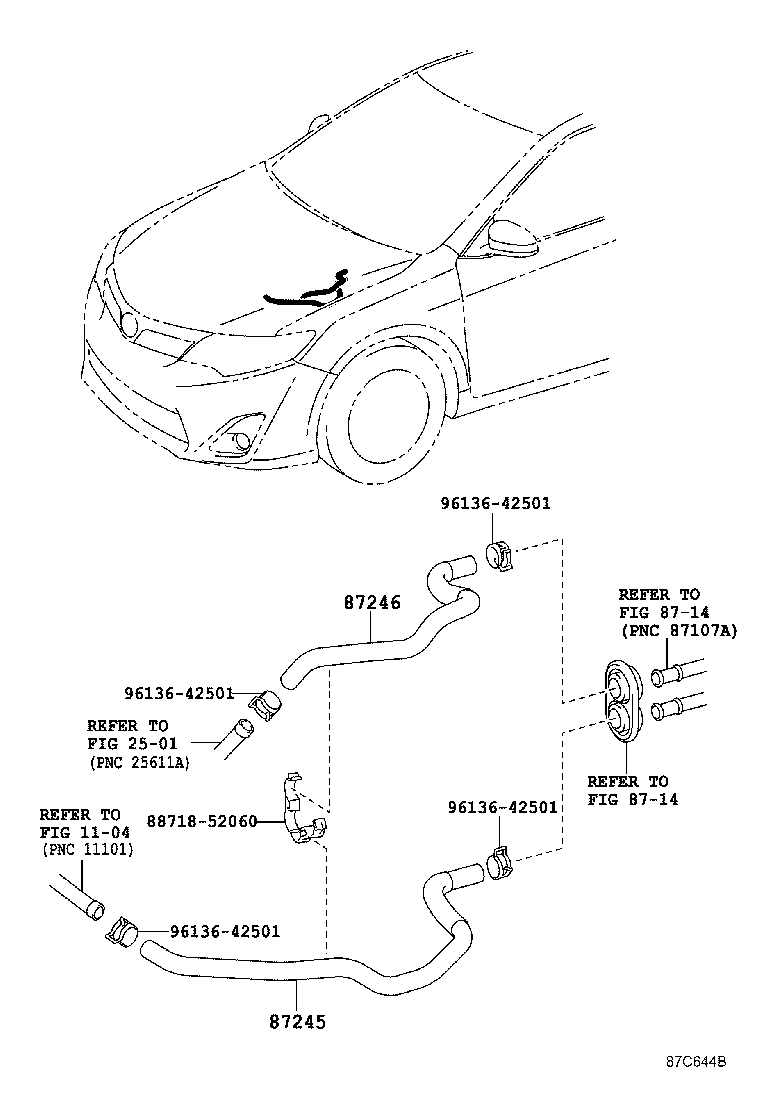

Figure 87C644B

87C644B 2012-01 → —

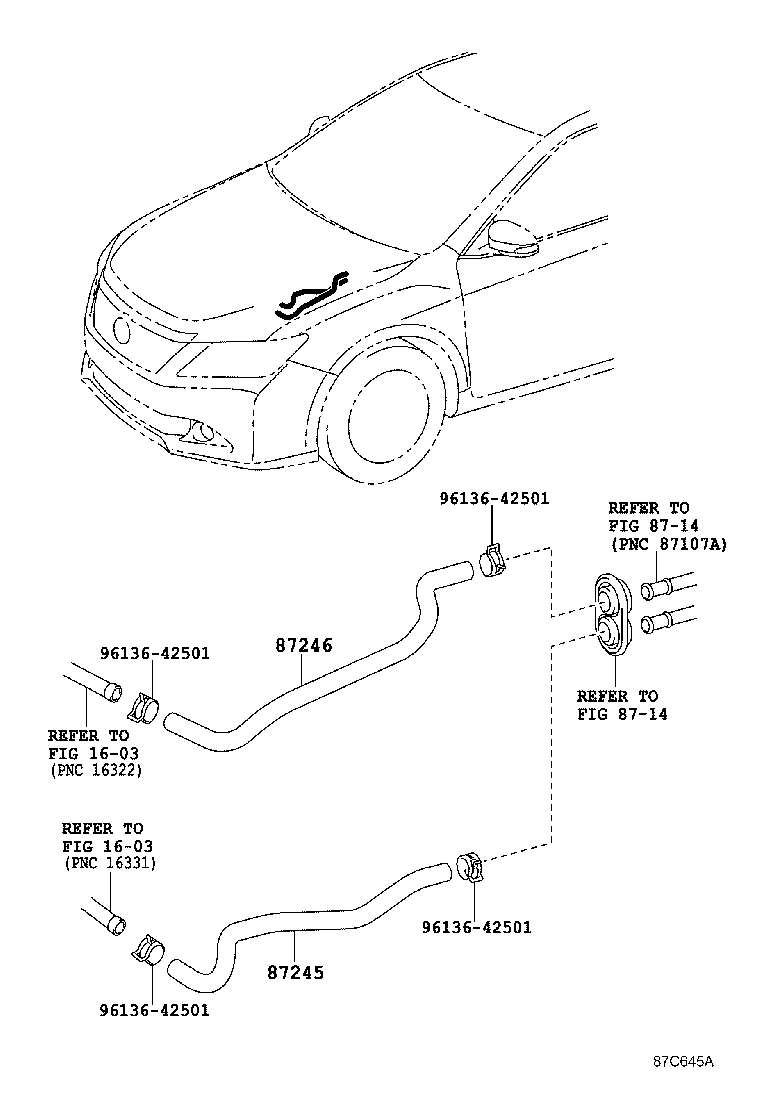

Figure 87C645A

87C645A 2012-02 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248X	Pipe, Heater Water
87452Q	Bracket, Heater, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
