Toyota Camry/Aurion/HV(ARL)
2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General
Supported model
Data version 2018-04

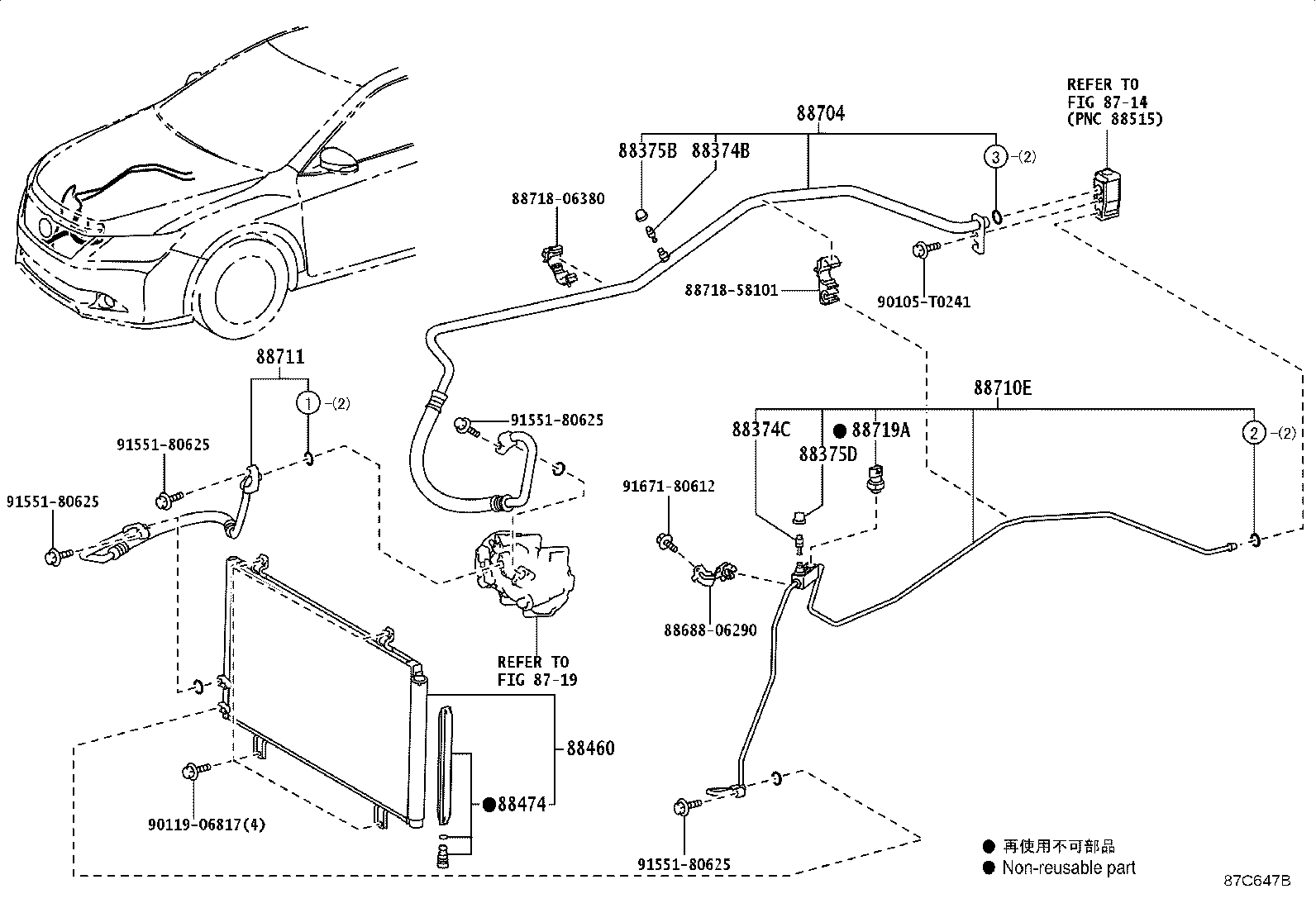

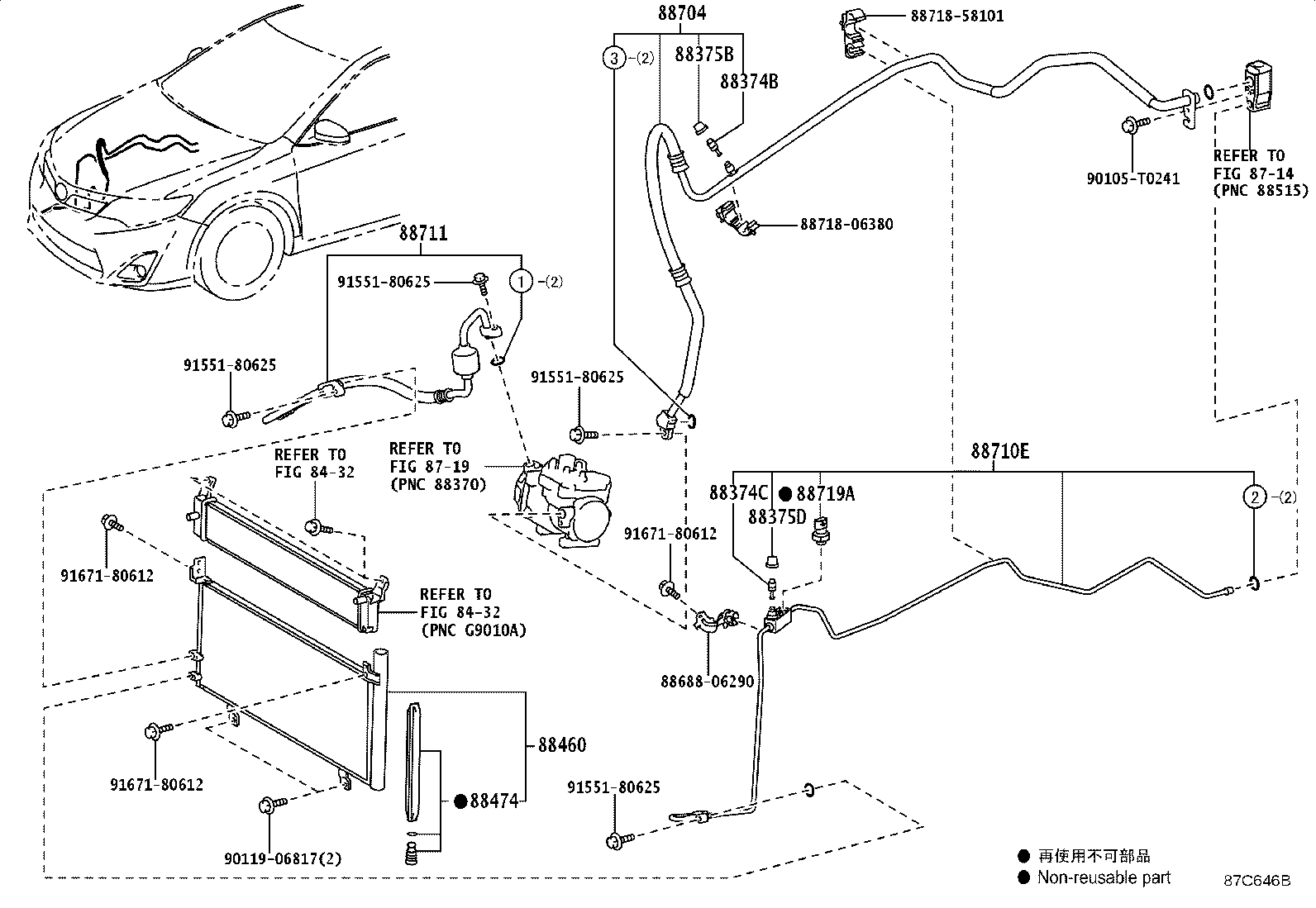

Heating & Air Conditioning - Cooler Piping
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88704 | Hose Sub-assy, Suction |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
