Toyota Venza
2013-03 → 2015-06 · chassis AGV1# · catalogue 286330 · General
Supported model
Data version 2015-12

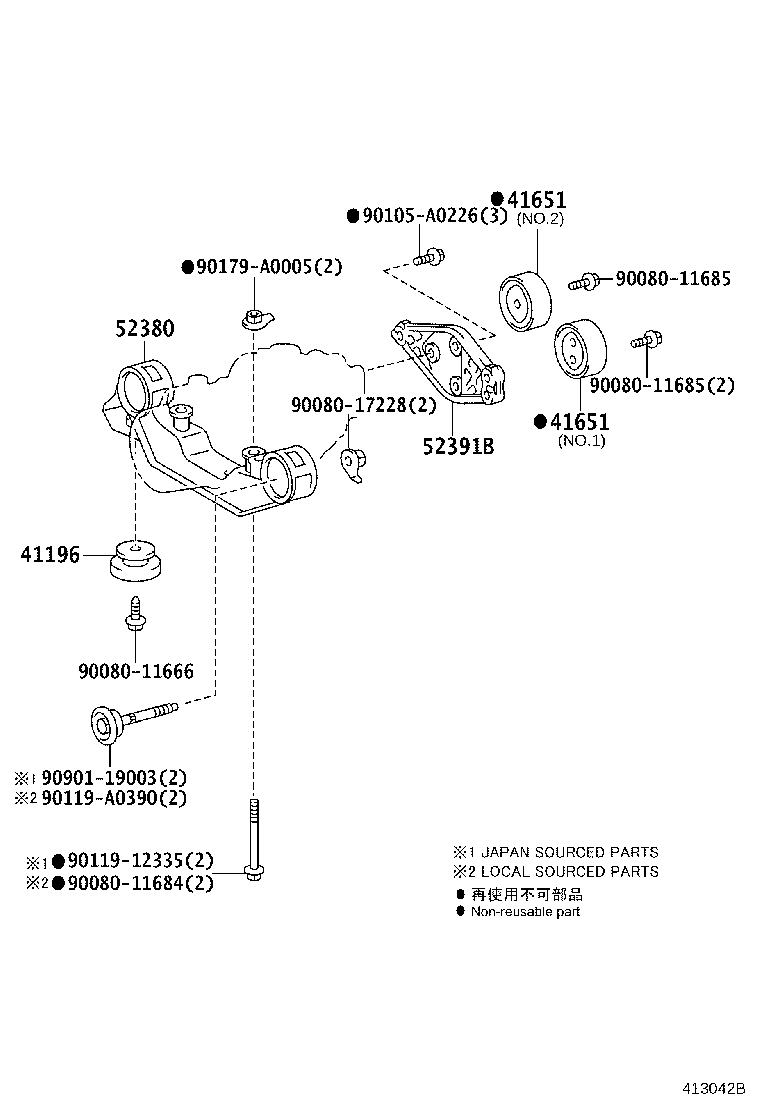

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41196 — Damper, Rear Differential Dynamic | ||||
| 41196-01010 |
Damper, Rear Differential Dynamic
2013-03 → 2015-06
ended
|
AGV15 | — | |
| 41651 — Cushion, Rear Differential Mount, NO.1 | ||||
| 41651-01020 note |
Cushion, Rear Differential Mount, NO.1
2013-04 → 2015-06
ended
|
AGV15 | — | |
| 41651-33030 note |
Cushion, Rear Differential Mount, NO.1
2013-04 → 2015-06
ended
|
AGV15 | — | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-73010 |
Support, Rear Differential, NO.1
2013-03 → 2015-06
ended
|
AGV15 | — | |
| 52391B — Support, Differential | ||||
| 52391-33020 |
Support, Differential
2013-04 → 2015-06
ended
|
AGV15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
