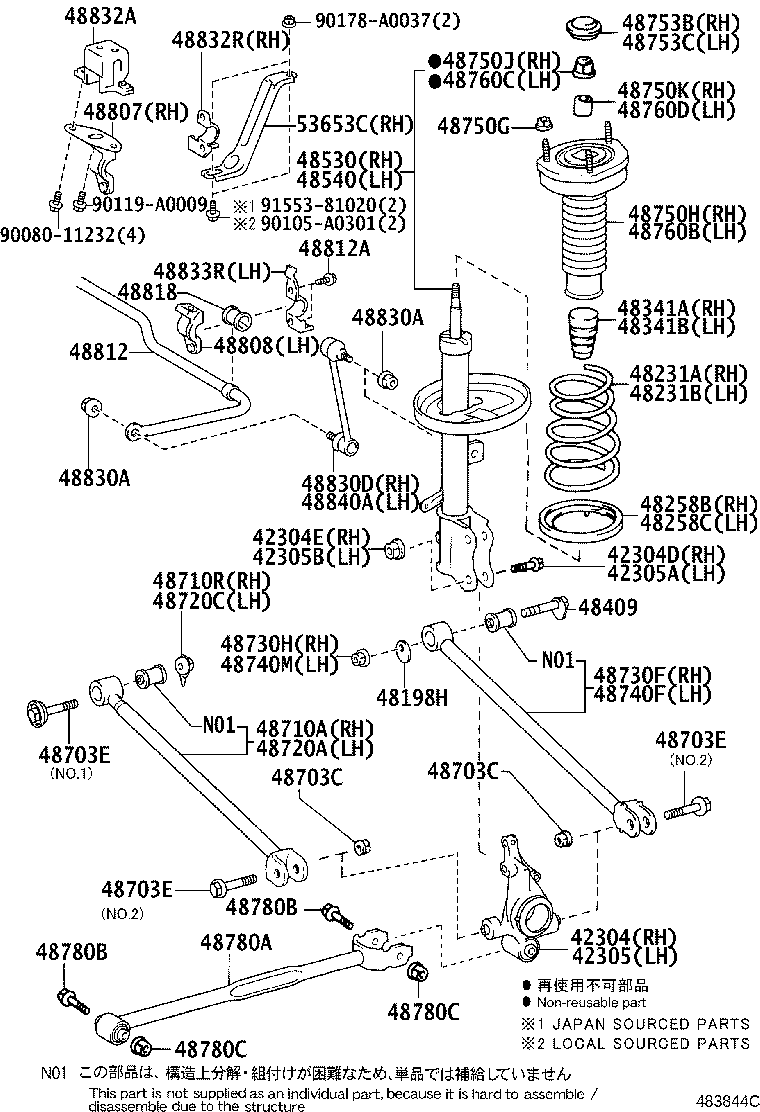

Exploded illustration 483844C 48832A — BRACKET, REAR STABILIZER BAR, NO.1 (2 parts) 53653C — BRACE, REAR SUSPENSION, LOWER RH (1 parts) 48832R — BRACKET, REAR STABILIZER BAR, NO.1 RH (1 parts) 48833R — BRACKET, REAR STABILIZER BAR, NO.1 LH (1 parts) 48807 — BRACKET, REAR STABILIZER BAR, RH (1 parts) 48808 — BRACKET, REAR STABILIZER BAR, LH (1 parts) 9008011232 — not listed in this catalogue 9155381020 — not listed in this catalogue 90178A0037 — not listed in this catalogue 90119A0009 — not listed in this catalogue 48818 — BUSH, STABILIZER, REAR (2 parts) 48812A — BOLT, STABILIZER REAR BAR (1 parts) 48812 — BAR, STABILIZER, REAR (2 parts) 48830D — LINK ASSY, REAR STABILIZER, RH (1 parts) 48840A — LINK ASSY, REAR STABILIZER, LH (1 parts) 48750G — NUT(FOR REAR SUSPENSION SUPPORT) (1 parts) 48750J — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) (1 parts) 48760C — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) (1 parts) 48753B — COVER, REAR SUSPENSION SUPOPORT, NO.1 RH (1 parts) 48753C — COVER, REAR SUSPENSION SUPOPORT, NO.1 LH (1 parts) 48750K — COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) (1 parts) 48760D — COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) (1 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (1 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (1 parts) 48341A — BUMPER, REAR SPRING, NO.1 RH (1 parts) 48341B — BUMPER, REAR SPRING, NO.1 LH (1 parts) 48231A — SPRING, COIL, REAR RH (2 parts) 48231B — SPRING, COIL, REAR LH (2 parts) 48258B — INSULATOR, REAR COIL SPRING, LOWER RH (1 parts) 48258C — INSULATOR, REAR COIL SPRING, LOWER LH (1 parts) 42304D — BOLT (FOR REAR AXLE CARRIER RH) (1 parts) 42305A — BOLT (FOR REAR AXLE CARRIER LH) (1 parts) 48409 — CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST (1 parts) 42304E — NUT (FOR REAR AXLE CARRIER RH) (1 parts) 48710R — NUT(FOR REAR SUSPENSION ARM NO.1 RH) (1 parts) 48720C — NUT(FOR REAR SUSPENSION ARM NO.1 LH) (1 parts) 48730H — NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) (1 parts) 48740M — NUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) (1 parts) 48703E — BOLT(FOR REAR SUSPENSION ARM) (4 parts) 42305B — NUT (FOR REAR AXLE CARRIER LH) (1 parts) 48198H — CAM, CAMBER ADJUST, NO.2 (1 parts) 48730F — ARM ASSY, REAR SUSPENSION, NO.2 RH (2 parts) 48740F — ARM ASSY, REAR SUSPENSION, NO.2 LH (2 parts) 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (2 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (2 parts) 48780A — ROD ASSY, STRUT, REAR (2 parts) 48780B — BOLT(FOR STRUT ROD) (1 parts) 48780B — BOLT(FOR STRUT ROD) (1 parts) 48780C — NUT(FOR STRUT ROD) (1 parts) 48780C — NUT(FOR STRUT ROD) (1 parts) 42304 — CARRIER SUB-ASSY, REAR AXLE, RH (2 parts) 42305 — CARRIER SUB-ASSY, REAR AXLE, LH (2 parts) 48703E — BOLT(FOR REAR SUSPENSION ARM) (4 parts) 48703C — NUT(FOR REAR SUSPENSION ARM) (1 parts) 48703C — NUT(FOR REAR SUSPENSION ARM) (1 parts) 48703E — BOLT(FOR REAR SUSPENSION ARM) (4 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (1 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (1 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (2 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (2 parts) 90105A0301 — not listed in this catalogue
483844C · 56 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
42304 — Carrier Sub-assy, Rear Axle, RH
42304-0T010 Carrier Sub-assy, Rear Axle, RH
2013-03 → 2015-06 ended
AGV10 —
42304-0T020 Carrier Sub-assy, Rear Axle, RH
2013-03 → 2015-06 ended
AGV15 —
42304D — Bolt (FOR REAR AXLE CARRIER RH)
90105-A0052 Bolt (FOR REAR AXLE CARRIER RH)
2013-03 → 2015-06 ended
AGV1# —
42304E — Nut (FOR REAR AXLE CARRIER RH)
90178-A0027 Nut (FOR REAR AXLE CARRIER RH)
2013-03 → 2015-06 ended
AGV1# —
42305 — Carrier Sub-assy, Rear Axle, LH
42305-0T010 Carrier Sub-assy, Rear Axle, LH
2013-03 → 2015-06 ended
AGV10 —
42305-0T020 Carrier Sub-assy, Rear Axle, LH
2013-03 → 2015-06 ended
AGV15 —
42305A — Bolt (FOR REAR AXLE CARRIER LH)
90105-A0052 Bolt (FOR REAR AXLE CARRIER LH)
2013-03 → 2015-06 ended
AGV1# —
42305B — Nut (FOR REAR AXLE CARRIER LH)
90178-A0027 Nut (FOR REAR AXLE CARRIER LH)
2013-03 → 2015-06 ended
AGV1# —
48198H — Cam, Camber Adjust, NO.2
48198-48010 Cam, Camber Adjust, NO.2
2013-03 → 2015-06 ended
AGV15 —
48231A — Spring, Coil, Rear RH
48231-0T050 Spring, Coil, Rear RH
2013-03 → 2015-06 ended
AGV10 —
48231-0T060 Spring, Coil, Rear RH
2013-03 → 2015-06 ended
AGV15 —
48231B — Spring, Coil, Rear LH
48231-0T050 Spring, Coil, Rear LH
2013-03 → 2015-06 ended
AGV10 —
48231-0T060 Spring, Coil, Rear LH
2013-03 → 2015-06 ended
AGV15 —
48258B — Insulator, Rear Coil Spring, Lower RH
48258-0T030 Insulator, Rear Coil Spring, Lower RH
2013-03 → 2015-06 ended
AGV1# —
48258C — Insulator, Rear Coil Spring, Lower LH
48258-0T030 Insulator, Rear Coil Spring, Lower LH
2013-03 → 2015-06 ended
AGV1# —
48341A — Bumper, Rear Spring, NO.1 RH
48341-48050 Bumper, Rear Spring, NO.1 RH
2013-03 → 2015-06 ended
AGV1# —
48341B — Bumper, Rear Spring, NO.1 LH
48341-48050 Bumper, Rear Spring, NO.1 LH
2013-03 → 2015-06 ended
AGV1# —
48409 — Cam Sub-assy, Rear Suspension Toe Adjust
48409-0E010 Cam Sub-assy, Rear Suspension Toe Adjust
2013-03 → 2015-06 ended
AGV15 —
48530 — Absorber Assy, Shock, Rear RH
48530-A9896 note Absorber Assy, Shock, Rear RH
2013-03 → 2015-06 ended
AGV10 —
48530-A9897 note Absorber Assy, Shock, Rear RH
2013-03 → 2015-06 ended
AGV15 —
48540 — Absorber Assy, Shock, Rear LH
48540-A9896 note Absorber Assy, Shock, Rear LH
2013-03 → 2015-06 ended
AGV10 —
48540-A9897 note Absorber Assy, Shock, Rear LH
2013-03 → 2015-06 ended
AGV15 —
48703C — Nut(FOR REAR SUSPENSION ARM)
90080-17223 Nut(FOR REAR SUSPENSION ARM)
2013-03 → 2015-06 ended
AGV1# —
48703E — Bolt(FOR REAR SUSPENSION ARM)
90080-11672 note Bolt(FOR REAR SUSPENSION ARM)
2013-03 → 2015-06 ended
AGV15 —
90080-11672 note Bolt(FOR REAR SUSPENSION ARM)
2013-03 → 2015-06 ended
AGV10 —
90080-11674 note Bolt(FOR REAR SUSPENSION ARM)
2013-03 → 2015-06 ended
AGV10 —
90119-A0015 note Bolt(FOR REAR SUSPENSION ARM)
2013-03 → 2015-06 ended
AGV15 —
48710A — Arm Assy, Rear Suspension, NO.1 RH
48710-48060 Arm Assy, Rear Suspension, NO.1 RH
2013-03 → 2015-06 ended
AGV10 —
48710-48070 Arm Assy, Rear Suspension, NO.1 RH
2013-03 → 2015-06 ended
AGV15 —
48710R — Nut(FOR REAR SUSPENSION ARM NO.1 RH)
90080-17228 Nut(FOR REAR SUSPENSION ARM NO.1 RH)
2013-03 → 2015-06 ended
AGV15 —
48720A — Arm Assy, Rear Suspension, NO.1 LH
48710-48060 Arm Assy, Rear Suspension, NO.1 LH
2013-03 → 2015-06 ended
AGV10 —
48710-48070 Arm Assy, Rear Suspension, NO.1 LH
2013-03 → 2015-06 ended
AGV15 —
48720C — Nut(FOR REAR SUSPENSION ARM NO.1 LH)
90080-17228 Nut(FOR REAR SUSPENSION ARM NO.1 LH)
2013-03 → 2015-06 ended
AGV15 —
48730F — Arm Assy, Rear Suspension, NO.2 RH
48730-73010 Arm Assy, Rear Suspension, NO.2 RH
2013-03 → 2015-06 ended
AGV10 —
48730-73020 Arm Assy, Rear Suspension, NO.2 RH
2013-03 → 2015-06 ended
AGV15 —
48730H — Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
90178-A0001 Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)
2013-03 → 2015-06 ended
AGV15 —
48740F — Arm Assy, Rear Suspension, NO.2 LH
48730-48160 Arm Assy, Rear Suspension, NO.2 LH
2013-03 → 2015-06 ended
AGV15 —
48740-0E050 Arm Assy, Rear Suspension, NO.2 LH
2013-03 → 2015-06 ended
AGV10 —
48740M — Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
90178-A0001 Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)
2013-03 → 2015-06 ended
AGV15 —
48750G — Nut(FOR REAR SUSPENSION SUPPORT)
90080-17225 Nut(FOR REAR SUSPENSION SUPPORT)
2013-03 → 2015-06 ended
AGV1# —
48750H — Support Assy, Rear Suspension, RH
48750-73010 Support Assy, Rear Suspension, RH
2013-03 → 2015-06 ended
AGV1# —
48750J — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90080-17217 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2013-03 → 2015-06 ended
AGV1# —
48750K — Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-15027 Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2013-03 → 2015-06 ended
AGV1# —
48753B — Cover, Rear Suspension Supoport, NO.1 RH
48753-06011 Cover, Rear Suspension Supoport, NO.1 RH
2013-03 → 2015-06 ended
AGV1# —
48753C — Cover, Rear Suspension Supoport, NO.1 LH
48753-06011 Cover, Rear Suspension Supoport, NO.1 LH
2013-03 → 2015-06 ended
AGV1# —
48760B — Support Assy Rear Suspension, LH
48760-73010 Support Assy Rear Suspension, LH
2013-03 → 2015-06 ended
AGV1# —
48760C — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90080-17217 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2013-03 → 2015-06 ended
AGV1# —
48760D — Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-15027 Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2013-03 → 2015-06 ended
AGV1# —
48780A — Rod Assy, Strut, Rear
48780-48070 Rod Assy, Strut, Rear
2013-03 → 2015-06 ended
AGV10 —
48780-48081 Rod Assy, Strut, Rear
2013-03 → 2015-06 ended
AGV15 —
48780B — Bolt(FOR STRUT ROD)
90080-11695 Bolt(FOR STRUT ROD)
2013-03 → 2015-06 ended
AGV1# —
48780C — Nut(FOR STRUT ROD)
90178-A0011 Nut(FOR STRUT ROD)
2013-03 → 2015-06 ended
AGV1# —
48807 — Bracket, Rear Stabilizer Bar, RH
48832-0E040 Bracket, Rear Stabilizer Bar, RH
2013-03 → 2015-06 ended
AGV15 —
48808 — Bracket, Rear Stabilizer Bar, LH
48832-0E020 Bracket, Rear Stabilizer Bar, LH
2013-03 → 2015-06 ended
AGV15 —
48812 — Bar, Stabilizer, Rear
48805-0T011 Bar, Stabilizer, Rear
2013-03 → 2015-06 ended
AGV15 —
48812-0T010 Bar, Stabilizer, Rear
2013-03 → 2015-06 ended
AGV10 —
48812A — Bolt, Stabilizer Rear Bar
90080-11675 Bolt, Stabilizer Rear Bar
2013-03 → 2015-06 ended
AGV15 —
48818 — Bush, Stabilizer, Rear
48818-06150 Bush, Stabilizer, Rear
2013-03 → 2015-06 ended
AGV15 —
48818-0T010 Bush, Stabilizer, Rear
2013-03 → 2015-06 ended
AGV10 —
48830A — Nut(FOR REAR STABILIZER LINK)
90080-17227 Nut(FOR REAR STABILIZER LINK)
2013-03 → 2015-06 ended
AGV1# —
48830D — Link Assy, Rear Stabilizer, RH
48830-06030 Link Assy, Rear Stabilizer, RH
2013-03 → 2015-06 ended
AGV1# —
48832A — Bracket, Rear Stabilizer Bar, NO.1
48832-0E010 Bracket, Rear Stabilizer Bar, NO.1
2013-03 → 2015-06 ended
AGV10 —
48832-0E060 Bracket, Rear Stabilizer Bar, NO.1
2013-03 → 2015-06 ended
AGV15 —
48832R — Bracket, Rear Stabilizer Bar, NO.1 RH
48832-0T010 Bracket, Rear Stabilizer Bar, NO.1 RH
2013-03 → 2015-06 ended
AGV15 —
48833R — Bracket, Rear Stabilizer Bar, NO.1 LH
48833-0T010 Bracket, Rear Stabilizer Bar, NO.1 LH
2013-03 → 2015-06 ended
AGV15 —
48840A — Link Assy, Rear Stabilizer, LH
48830-06030 Link Assy, Rear Stabilizer, LH
2013-03 → 2015-06 ended
AGV1# —
53653C — Brace, Rear Suspension, Lower RH
53653-0T010 Brace, Rear Suspension, Lower RH
2013-03 → 2015-06 ended
AGV15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
