Toyota Venza

2013-03 → 2015-06 · chassis AGV1# · catalogue 286330 · General

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

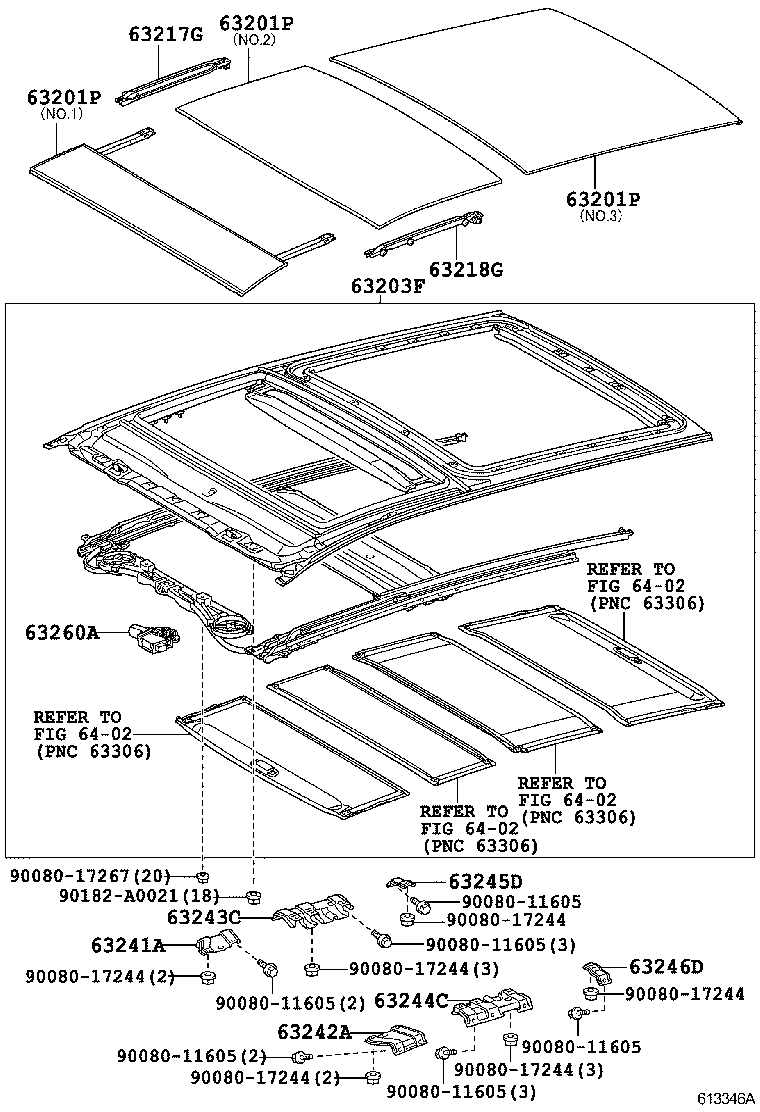

Exploded illustration 613346C 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 63201P — GLASS SUB-ASSY, SLIDING ROOF (3 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (3 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (3 parts) 63203F — HOUSING SUB-ASSY, SLIDING ROOF (2 parts) 63217G — GARNISH, SLIDING ROOF SIDE, RH (1 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (1 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (1 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (1 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (1 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (1 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (1 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (1 parts) 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (1 parts) 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 9008011605 — not listed in this catalogue 90182A0021 — not listed in this catalogue 9008017267 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue 9008017244 — not listed in this catalogue
613346C · 13 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
63201P — Glass Sub-assy, Sliding Roof
63201-0T010 note Glass Sub-assy, Sliding Roof
2013-03 → 2015-06 ended
AGV1# —
63201-0T020 note Glass Sub-assy, Sliding Roof
2013-03 → 2015-06 ended
AGV1# —
63201-0T030 note Glass Sub-assy, Sliding Roof
2013-03 → 2015-06 ended
AGV1# —
63203F — Housing Sub-assy, Sliding Roof
63203-0T010-A0 note Housing Sub-assy, Sliding Roof
2013-03 → 2015-06 ended
AGV1# —
63203-0T010-B0 note Housing Sub-assy, Sliding Roof
2013-03 → 2015-06 ended
AGV1# —
63217G — Garnish, Sliding Roof Side, RH
63217-33060 Garnish, Sliding Roof Side, RH
2013-03 → 2015-06 ended
AGV1# —
63218G — Garnish, Sliding Roof Side, LH
63218-33050 Garnish, Sliding Roof Side, LH
2013-03 → 2015-06 ended
AGV1# —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-0T010 Bracket, Sliding Roof Housing Front Mounting, RH
2013-03 → 2015-06 ended
AGV1# —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-0T010 Bracket, Sliding Roof Housing Front Mounting, LH
2013-03 → 2015-06 ended
AGV1# —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-0T010 Bracket, Sliding Roof Housing Center Mounting, RH
2013-03 → 2015-06 ended
AGV1# —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-0T010 Bracket, Sliding Roof Housing Center Mounting, LH
2013-03 → 2015-06 ended
AGV1# —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-0T010 Bracket, Sliding Roof Housing Rear Mounting, RH
2013-03 → 2015-06 ended
AGV1# —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63245-0T010 Bracket, Sliding Roof Housing Rear Mounting, LH
2013-03 → 2015-06 ended
AGV1# —
63260A — Gear Sub-assy, Sliding Roof Drive
63260-0T010 Gear Sub-assy, Sliding Roof Drive
2013-03 → 2015-06 ended
AGV1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
