Toyota Venza
2013-03 → 2015-06 · chassis AGV1# · catalogue 286330 · General
Supported model
Data version 2015-12

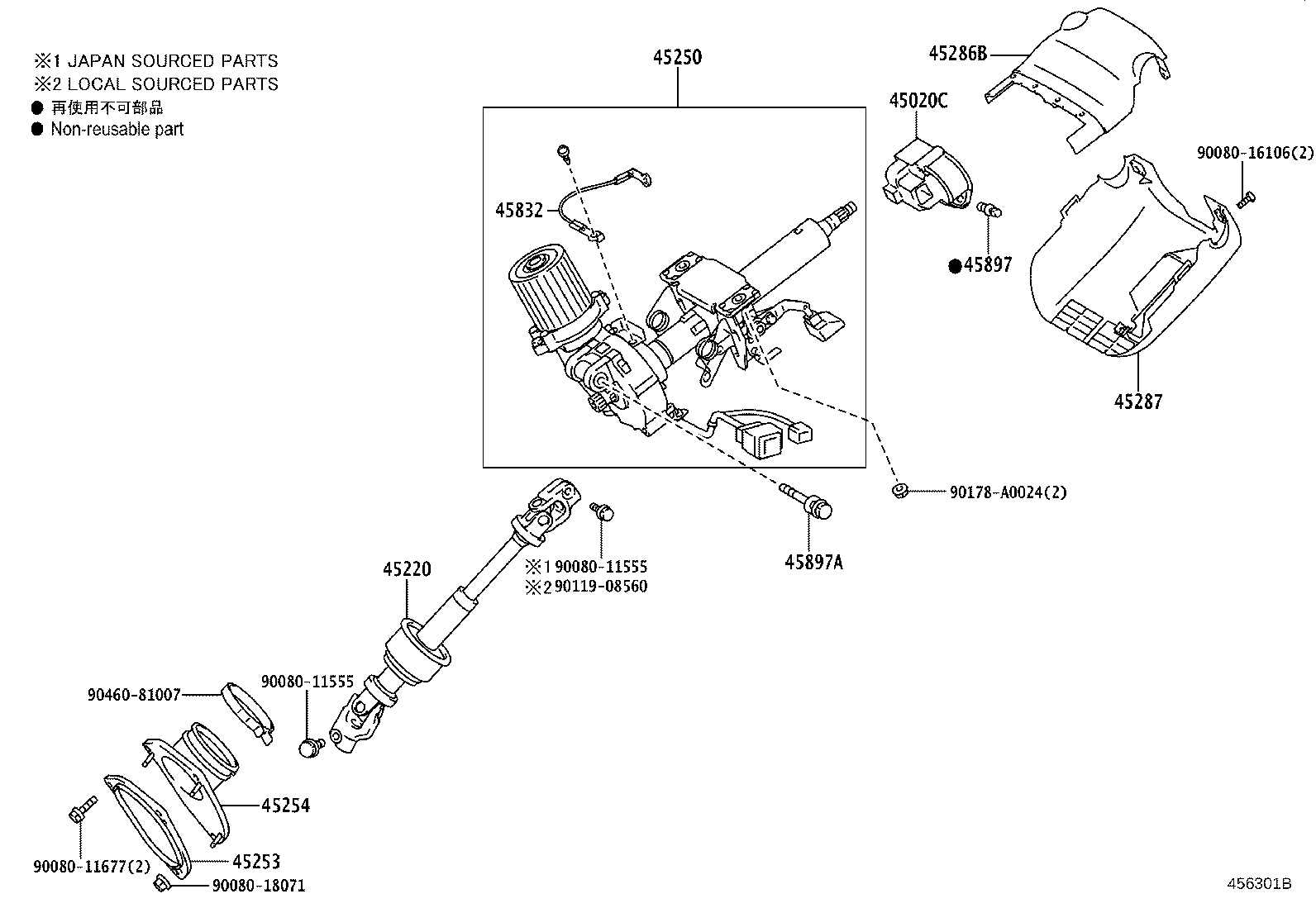

Steering Column & Shaft
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020 | Bracket Assy, Steering Column Upper W/Switch |
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45220 | Shaft Assy, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45253 | Cover, Steering Column Hole |
| 45254 | Shield, Steering Column Hole |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45832 | Cable, Tilt Steering Support Bond |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
