Toyota Venza

2013-03 → 2015-06 · chassis AGV1# · catalogue 286330 · General

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

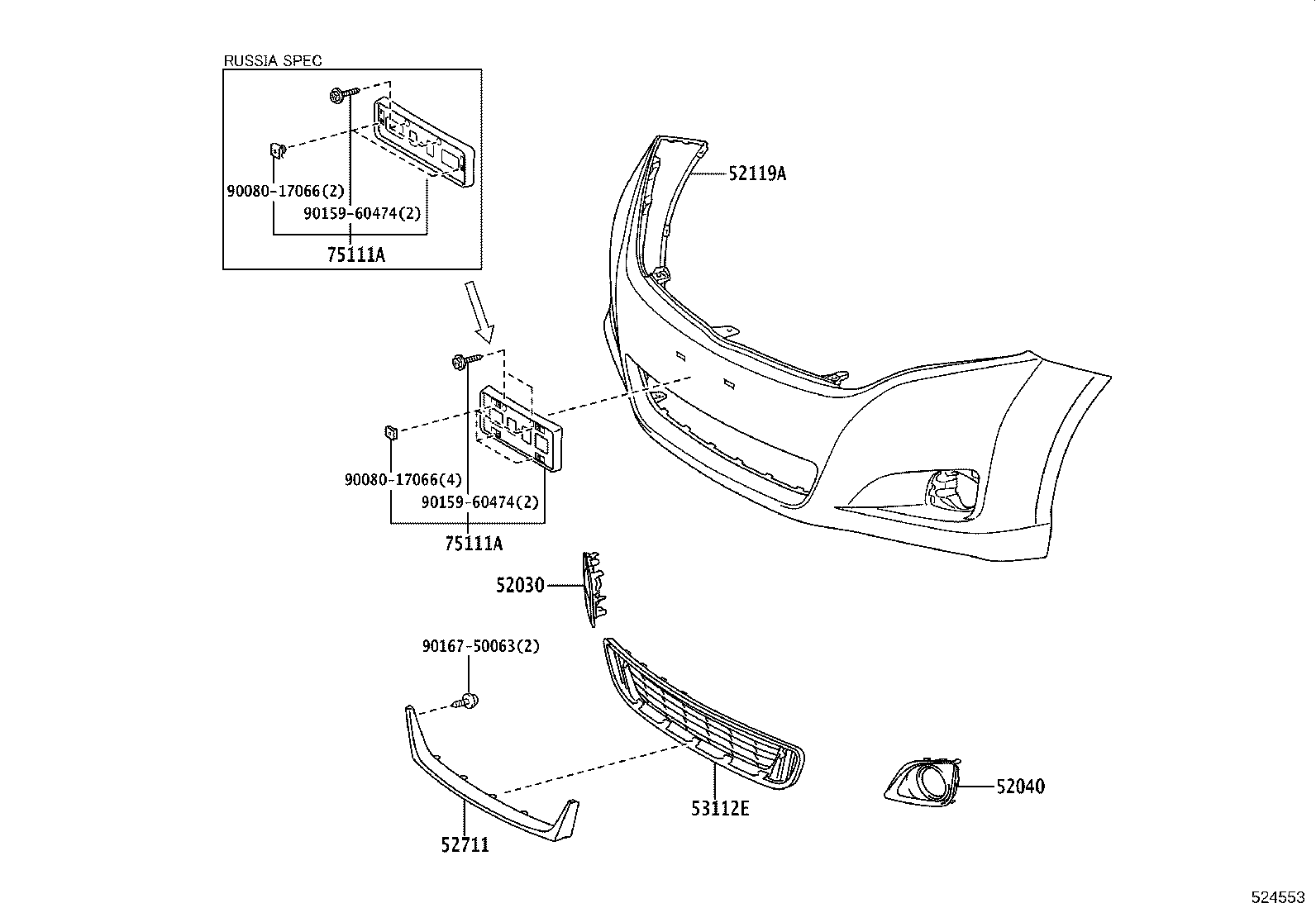

Figure 522799D 522799D 2013-03 → — Figure 524553 524553 2013-03 → —

Part groups

PNCDescription
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52119A Cover, Front Bumper
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
