Toyota Venza

2013-03 → 2015-06 · chassis AGV1# · catalogue 286330 · General

Supported model Data version 2015-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

87 part groups · 8 illustrations

Illustrations

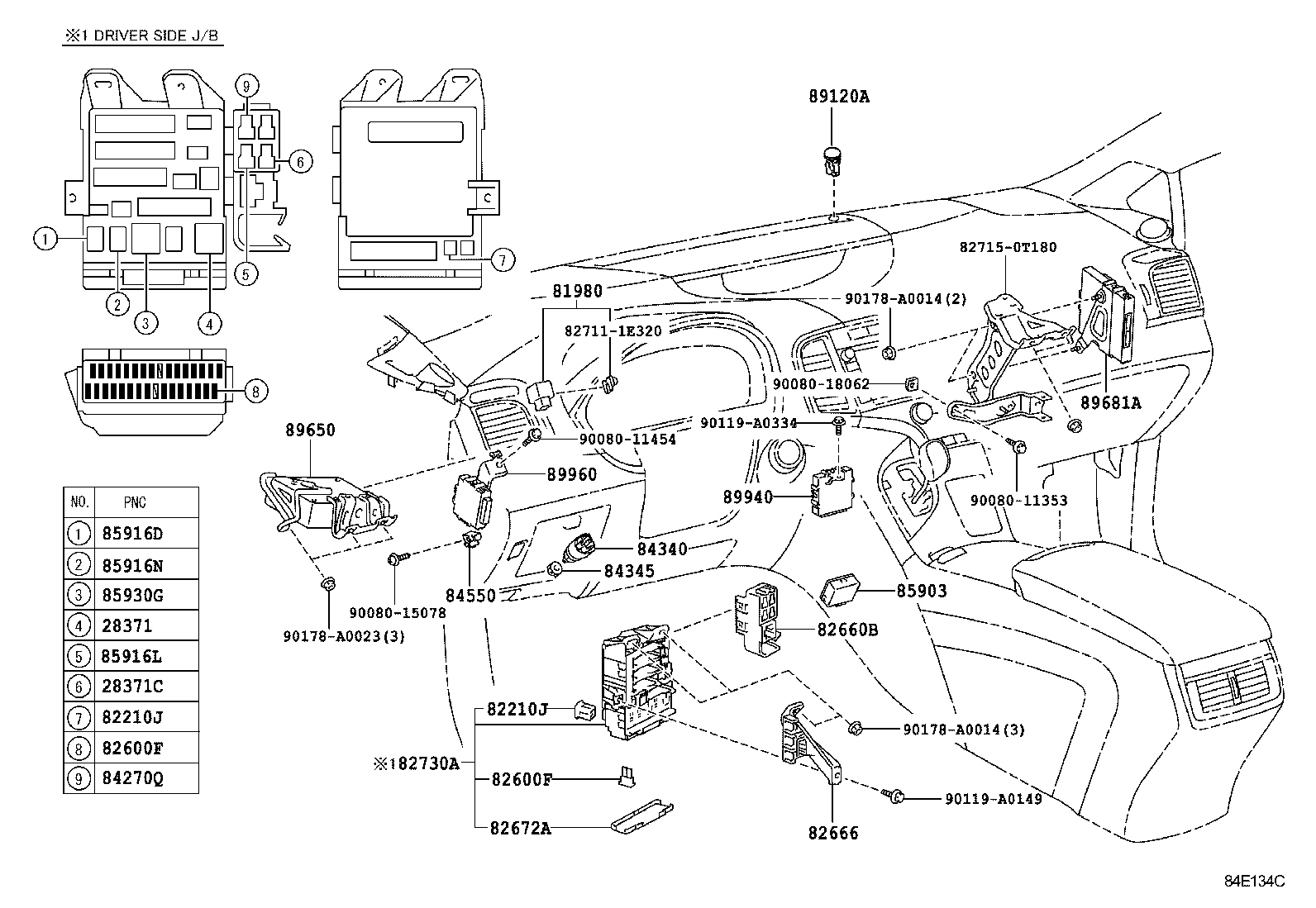

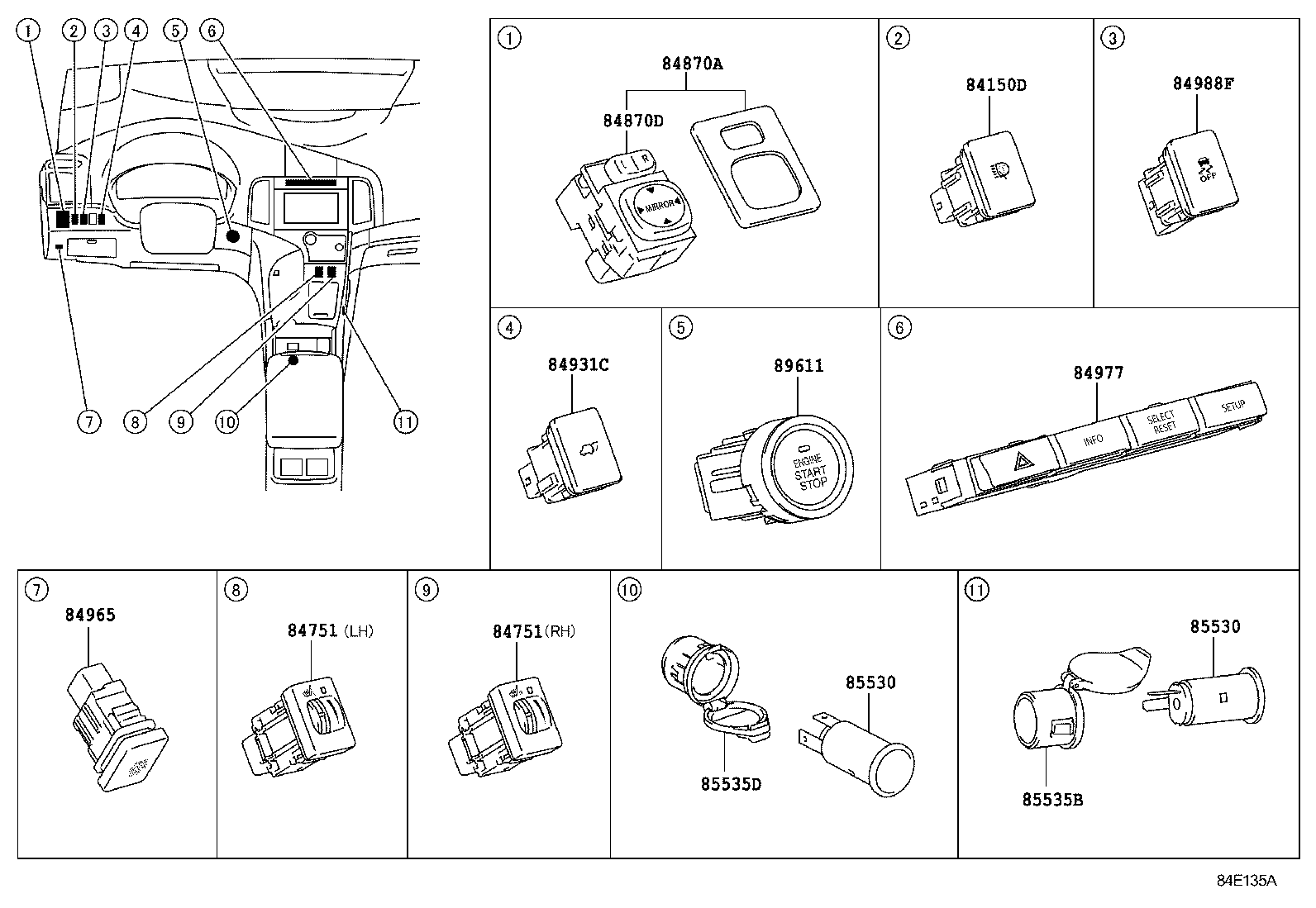

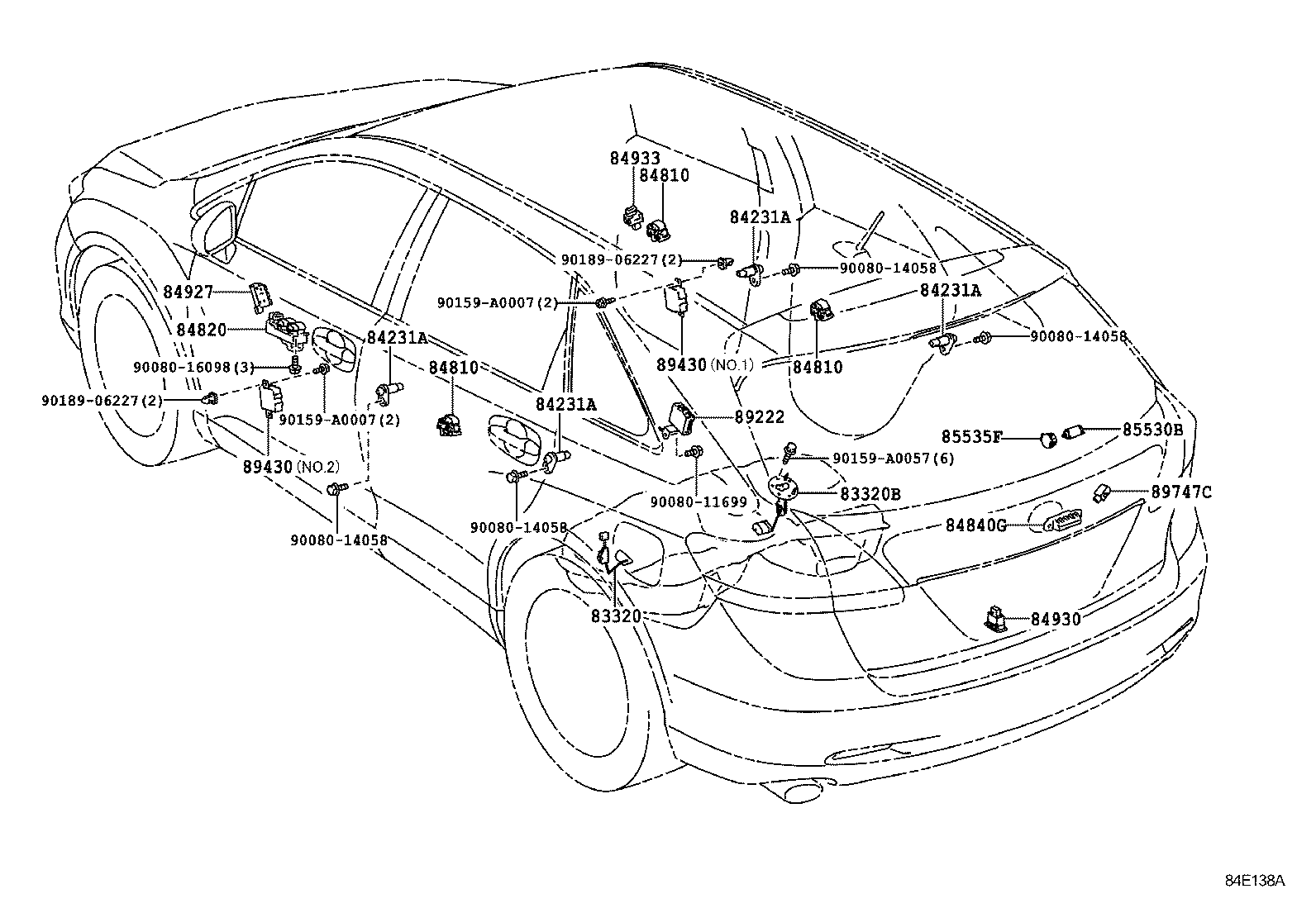

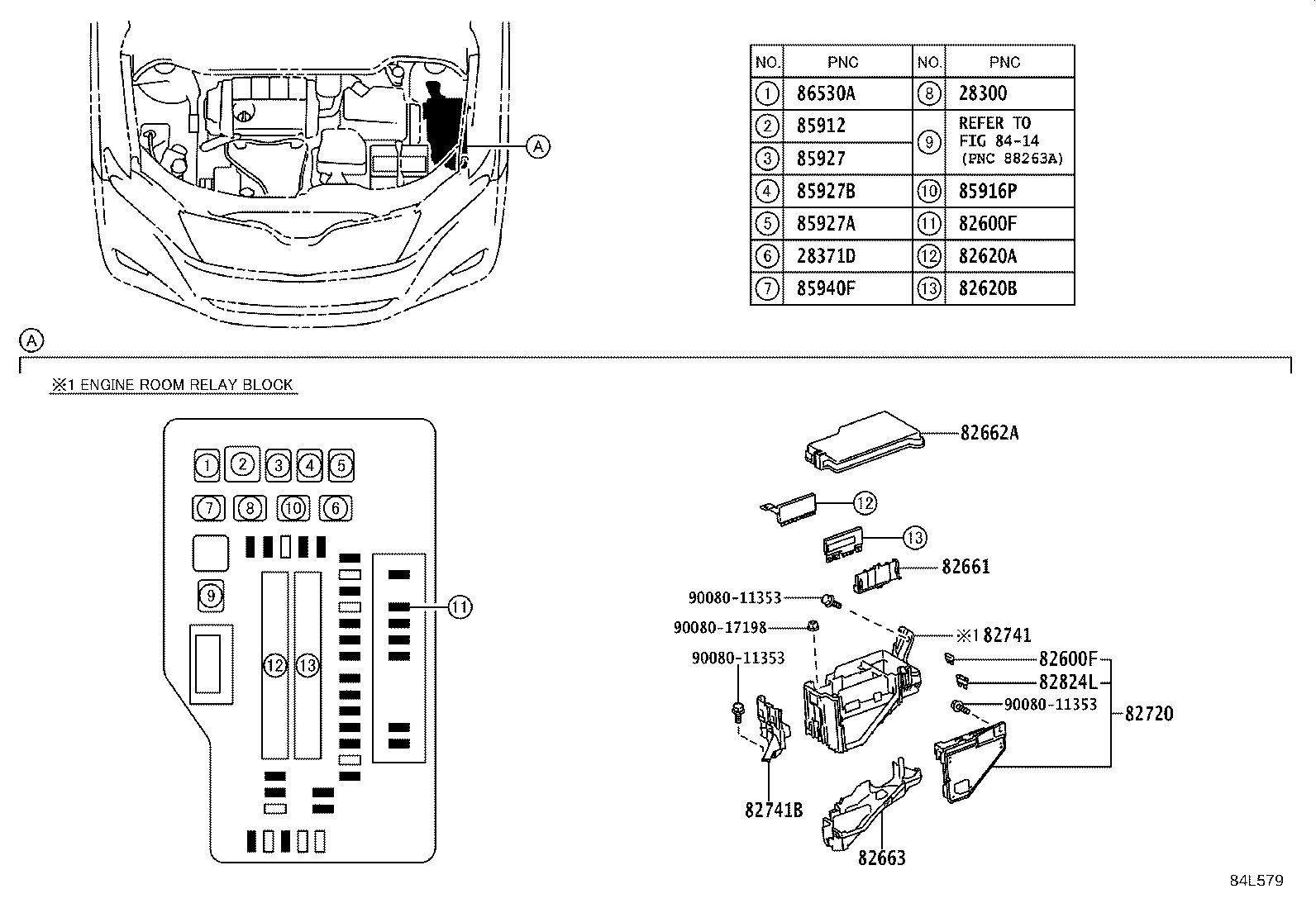

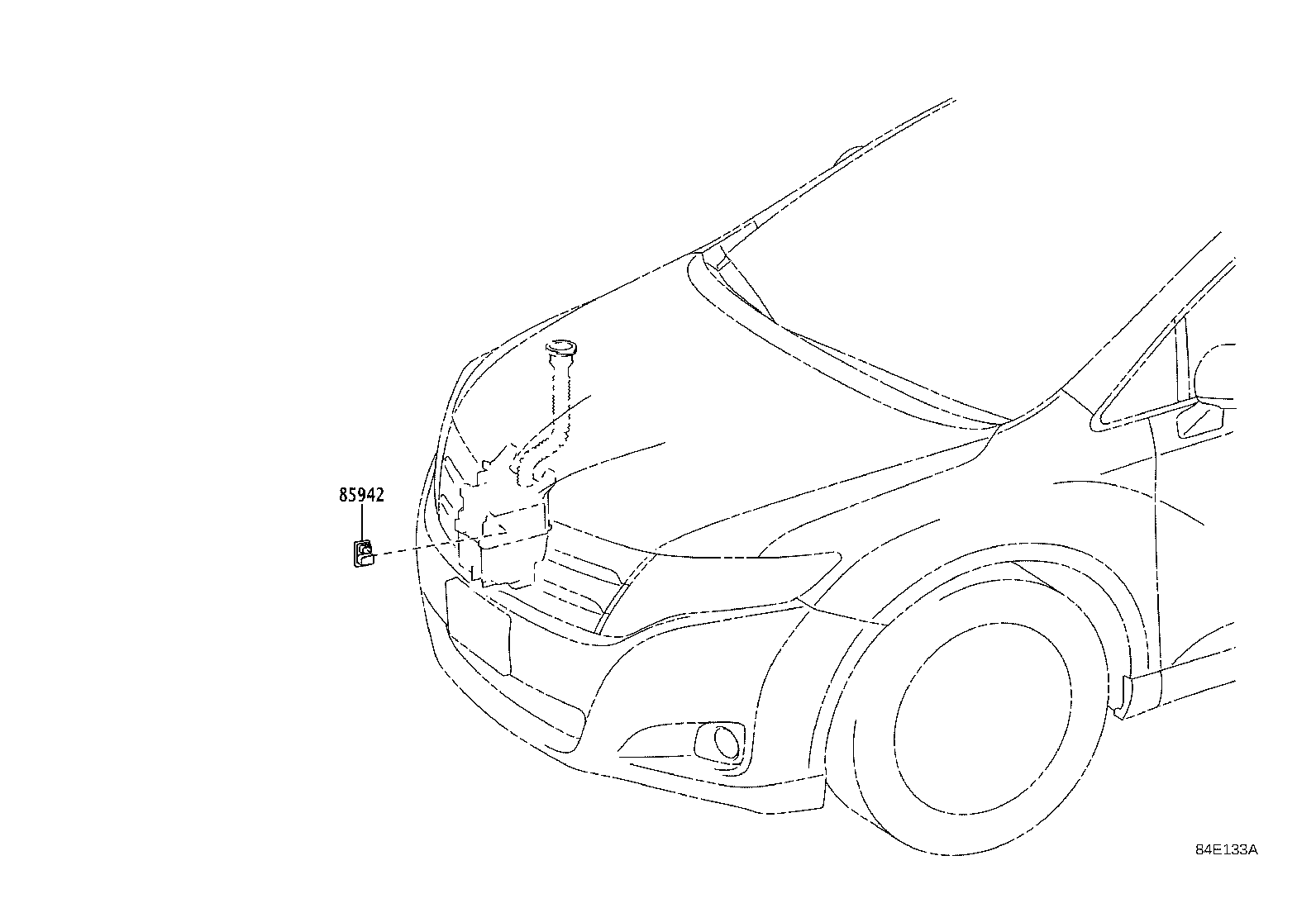

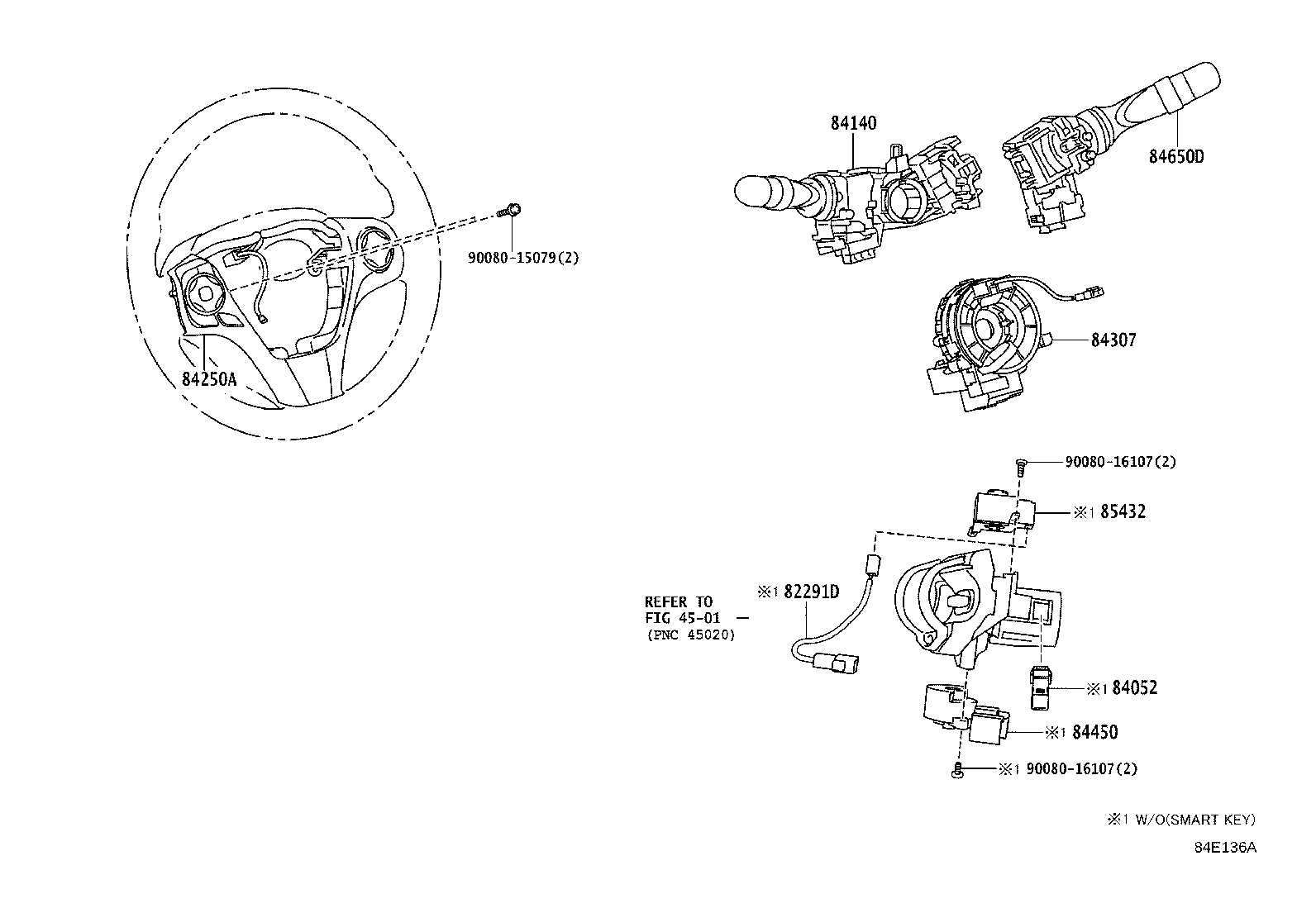

Figure 84E132B 84E132B 2013-02 → — Figure 84E133A 84E133A 2013-02 → — Figure 84L579 84L579 2013-02 → — Figure 84E134C 84E134C 2013-02 → — Figure 84E135A 84E135A 2013-02 → — Figure 84E136A 84E136A 2013-02 → — Figure 84E137 84E137 2013-02 → — Figure 84E138A 84E138A 2013-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28371D Relay, Ignition, NO.3
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82291D Wire, TO Solenoid
82600F Fuse, Fuse Block
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82666 Holder, Connector
82672A Cover, Junction Block
82720 Block Assy, Engine Room Junction
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84070 Computer & Switch Assy, Position Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84231A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84933 Switch, Door Lock Unlock
84965 Switch, Power Back Door Main
84977 Switch, Drive Monitor
84988F Switch, Traction Control
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85535B Cover, Power Outlet Socket, NO.1
85535D Cover, Power Outlet Socket, Center
85535F Cover, Power Outlet Socket, Rear
85903 Computer Sub-assy, Shift Lock Control
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85940F Relay Assy, Windshield Deicer
85942 Relay, Headlamp Cleaner Control
86530A Relay, Horn
89120A Sensor, Automatic Light Control
89222 Computer, Multiplex Network Door, Front RH
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89747C Buzzer, Power Slide Back Door Warning
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
