Toyota Camry (ASIA)
2024-10 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 287230 · General
Supported model
Data version 2024-12

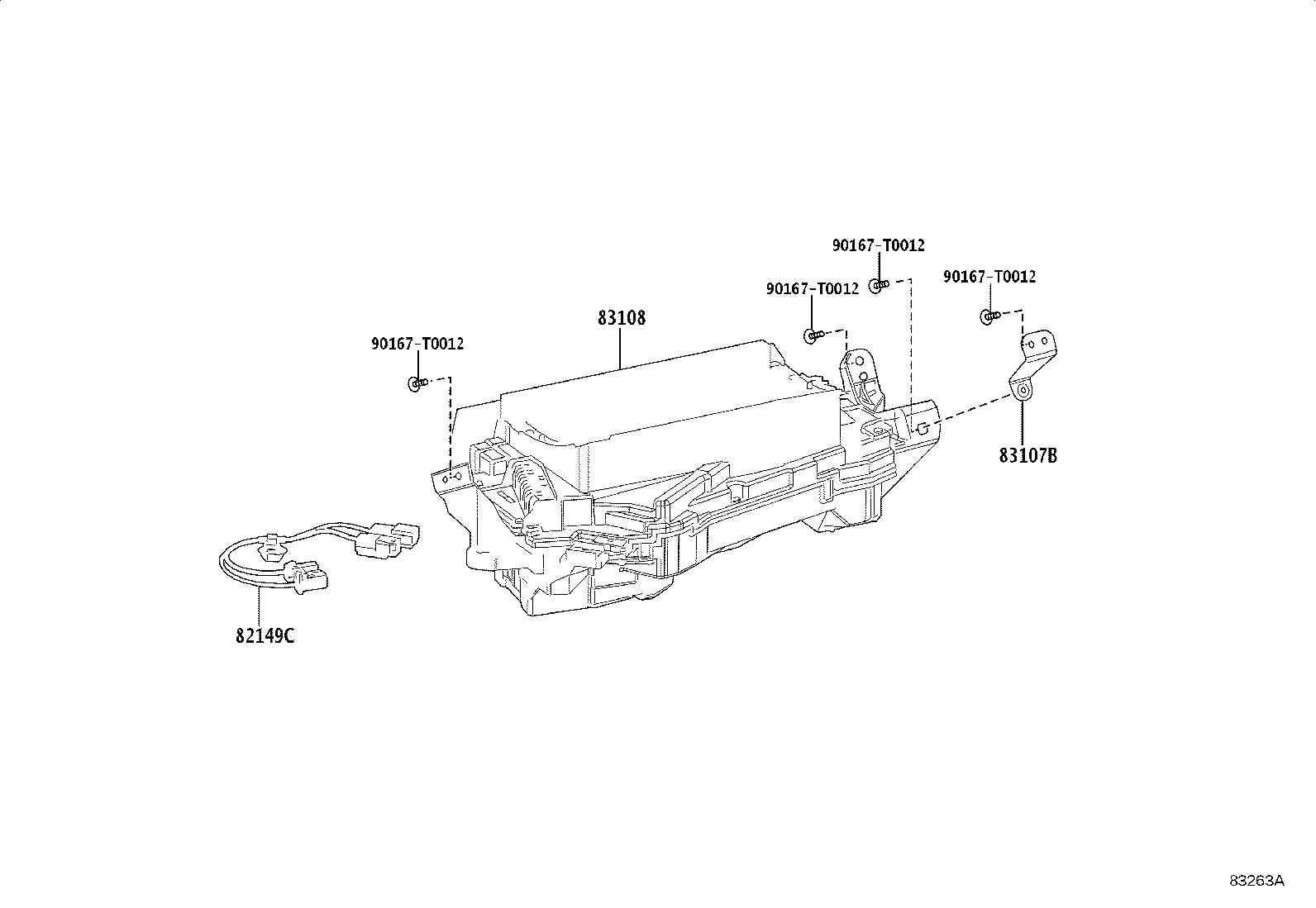

Meter
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82149C | Wire, Meter Mirror |
| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |
| 83107B | Bracket Sub-assy, Meter, NO.2 |
| 83108 | Mirror Sub-assy, Meter |
| 83138G | Glass, Combination Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
