Toyota Camry/Hybrid (ASIA)
2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General
Supported model
Data version 2021-11

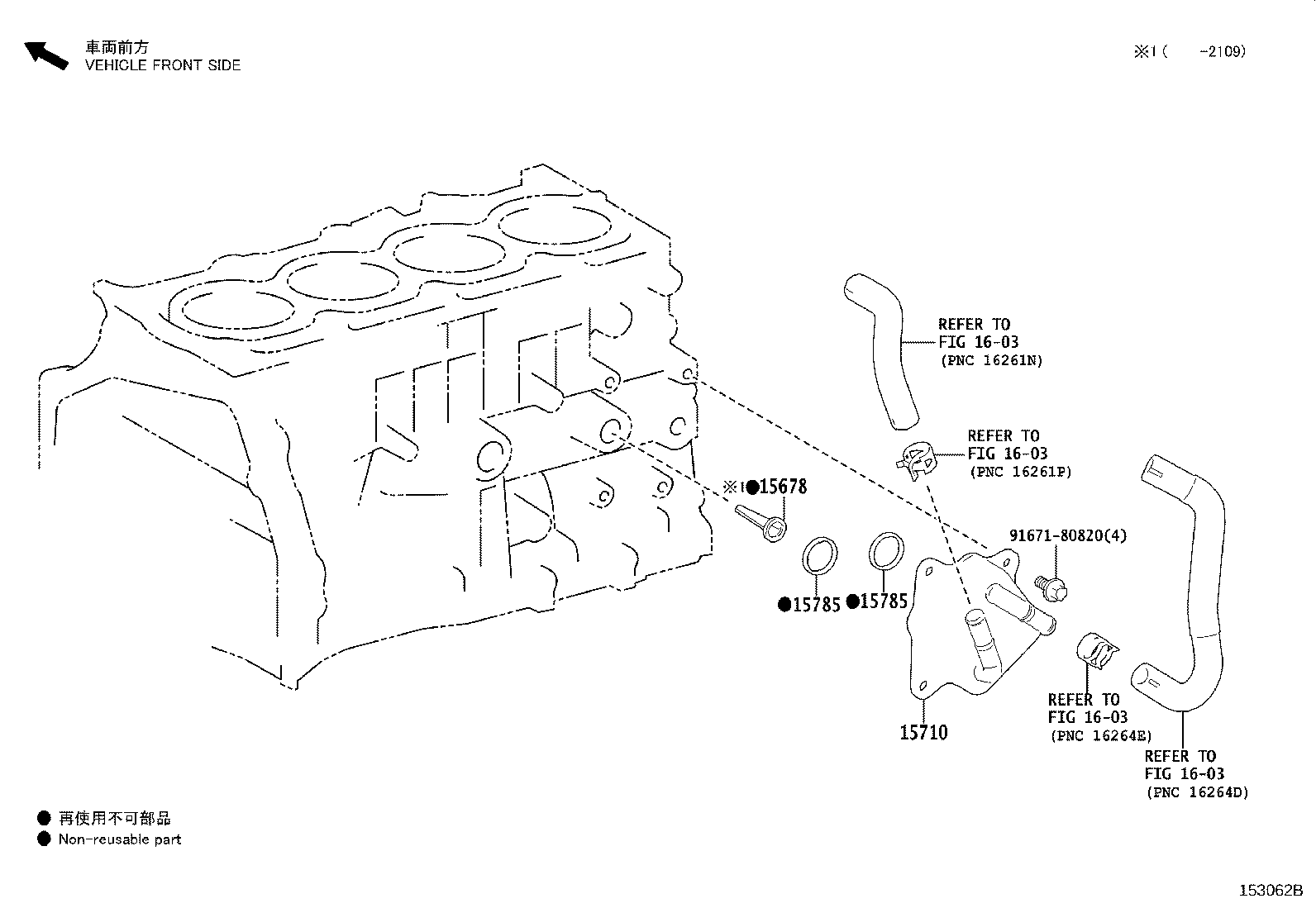

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15678 — Filter, Oil Control Valve | ||||
| 15678-25010 |
Filter, Oil Control Valve
2018-12 → 2021-09
ended
|
A25AFXS AXVH71 IND | — | |
| 15710 — Cooler Assy, Oil | ||||
| 15710-25010 |
Cooler Assy, Oil
2018-12 → 2021-12
ended
|
A25AFXS AXVH71 IND | — | |
| 15710-36010 |
Cooler Assy, Oil
2018-10 → 2021-10
ended
|
6AR# ASV71 | — | |
| 15710-25010 note |
Cooler Assy, Oil
2021-11 → —
|
A25AFKS AXVA70 25Q | — | |
| 15710-25010 note |
Cooler Assy, Oil
2021-11 → —
|
A25AFKS AXVA70 25Q | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-25010 |
Gasket, Oil Cooler
2018-12 → 2021-12
ended
|
A25AFXS AXVH71 IND | — | |
| 15785-36010 |
Gasket, Oil Cooler
2018-10 → 2021-10
ended
|
6AR# ASV71 | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2021-11 → —
|
A25AFKS AXVA70 25Q | — | |
| 15785-25010 note |
Gasket, Oil Cooler
2021-11 → —
|
A25AFKS AXVA70 25Q | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
