Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

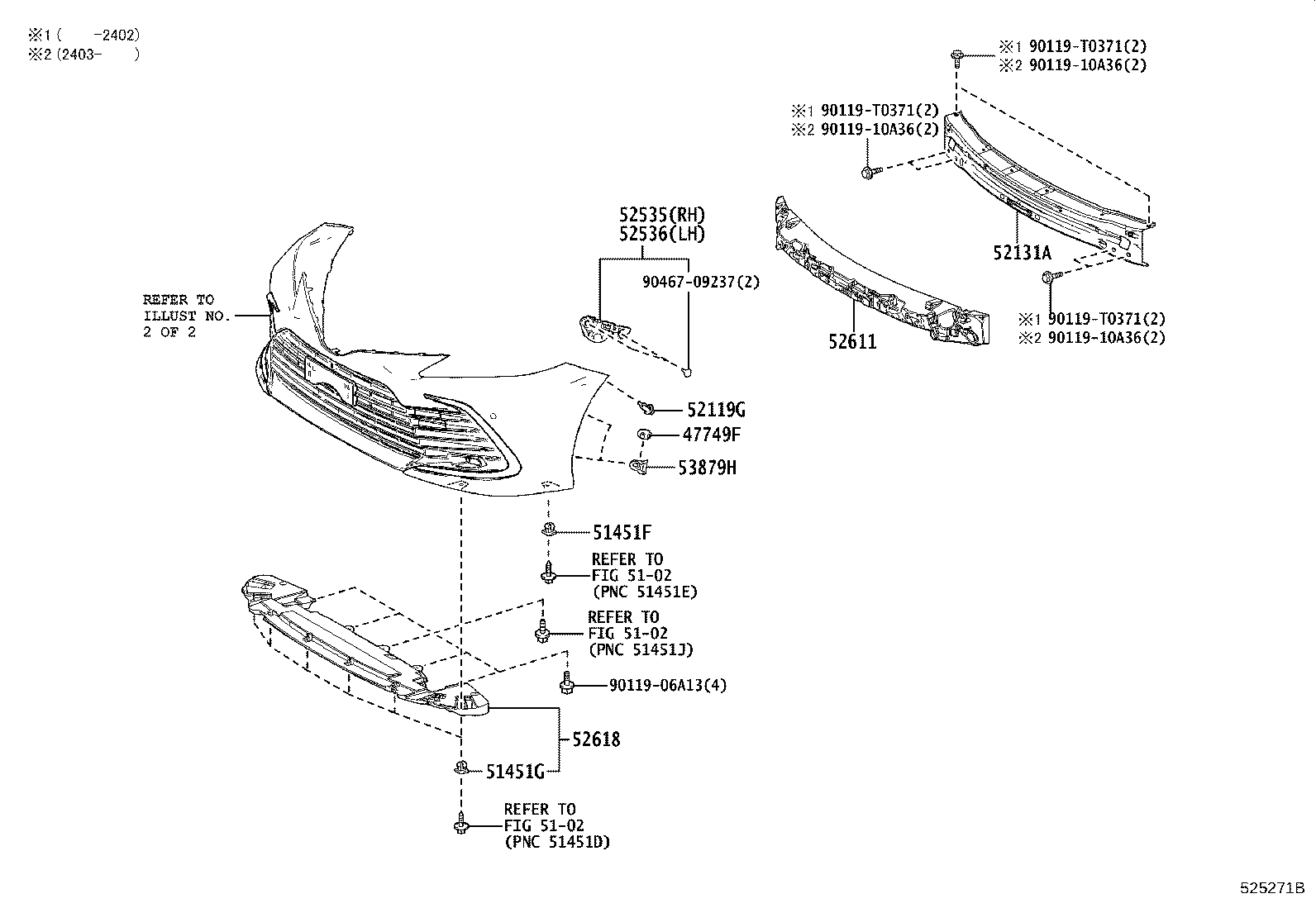

Exploded illustration 525271B 47749F — CLIP, PIN HOLD (3 parts) 52119G — CLIP, NO.1 (6 parts) 52131A — REINFORCEMENT, FRONT BUMPER (4 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 53879H — RETAINER, FRONT FENDER LINER (3 parts) 9011910A36 — not listed in this catalogue 51451F — GROMMET, NO.1 (7 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (3 parts) 51451G — GROMMET, NO.2 (6 parts) 9011906A13 — not listed in this catalogue 52535 — RETAINER, FRONT BUMPER SIDE, RH (3 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (3 parts) 9046709237 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 90119T0371 — not listed in this catalogue 9011910A36 — not listed in this catalogue 90119T0371 — not listed in this catalogue 9011910A36 — not listed in this catalogue 90119T0371 — not listed in this catalogue
525271B · 10 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
47749F — Clip, Pin Hold
47749-33030 Clip, Pin Hold
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
47749-33030 Clip, Pin Hold
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
47749-33030 Clip, Pin Hold
2021-11 → —
AXVA70,AXVH71,MXVA71 —
51451F — Grommet, NO.1
90189-06237 note Grommet, NO.1
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90189-06237 note Grommet, NO.1
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90189-T0024 note Grommet, NO.1
2021-08 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90189-T0024 note Grommet, NO.1
2021-08 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90189-06193 note Grommet, NO.1
2021-12 → —
AXVH71 IND —
90189-06237 note Grommet, NO.1
2021-11 → —
AXVA70,AXVH71,MXVA71 TH —
90189-T0024 note Grommet, NO.1
2021-11 → —
AXVA70,AXVH71,MXVA71 —
51451G — Grommet, NO.2
90189-06237 note Grommet, NO.2
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90189-06237 note Grommet, NO.2
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90189-T0024 note Grommet, NO.2
2021-08 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90189-T0024 note Grommet, NO.2
2021-08 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90189-06237 note Grommet, NO.2
2021-11 → —
AXVA70,AXVH71,MXVA71 —
90189-T0024 note Grommet, NO.2
2021-11 → —
AXVA70,AXVH71,MXVA71 —
52119G — Clip, NO.1
90467-05170 note Clip, NO.1
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90467-05170 note Clip, NO.1
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90467-T0047 note Clip, NO.1
2021-08 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
90467-T0047 note Clip, NO.1
2021-08 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
90467-05170 note Clip, NO.1
2021-11 → —
AXVA70,AXVH71,MXVA71 —
90467-T0047 note Clip, NO.1
2021-11 → —
AXVA70,AXVH71,MXVA71 —
52131A — Reinforcement, Front Bumper
52131-06210 Reinforcement, Front Bumper
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
52131-06210 Reinforcement, Front Bumper
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
52131-06210 Reinforcement, Front Bumper
2021-11 → 2023-11 ended
AXVA70,AXVH71,MXVA71 —
52131-06211 Reinforcement, Front Bumper
2023-12 → —
AXVA70,AXVH71,MXVA71 —
52535 — Retainer, Front Bumper Side, RH
52535-06240 Retainer, Front Bumper Side, RH
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
52535-06240 Retainer, Front Bumper Side, RH
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
52535-06240 Retainer, Front Bumper Side, RH
2021-11 → —
AXVA70,AXVH71,MXVA71 —
52536 — Retainer, Front Bumper Side, LH
52536-06240 Retainer, Front Bumper Side, LH
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
52536-06240 Retainer, Front Bumper Side, LH
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
52536-06240 Retainer, Front Bumper Side, LH
2021-11 → —
AXVA70,AXVH71,MXVA71 —
52611 — Absorber, Front Bumper Energy
52611-06490 Absorber, Front Bumper Energy
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
52611-06490 Absorber, Front Bumper Energy
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
52611-06600 Absorber, Front Bumper Energy
2021-11 → —
AXVA70,AXVH71,MXVA71 —
52618 — Absorber, Front Bumper, Lower
52618-06070 Absorber, Front Bumper, Lower
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
52618-06070 Absorber, Front Bumper, Lower
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
52618-06070 Absorber, Front Bumper, Lower
2021-11 → —
AXVA70,AXVH71,MXVA71 —
53879H — Retainer, Front Fender Liner
53879-33030 Retainer, Front Fender Liner
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
53879-33030 Retainer, Front Fender Liner
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
53879-33030 Retainer, Front Fender Liner
2021-11 → —
AXVA70,AXVH71,MXVA71 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
