Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

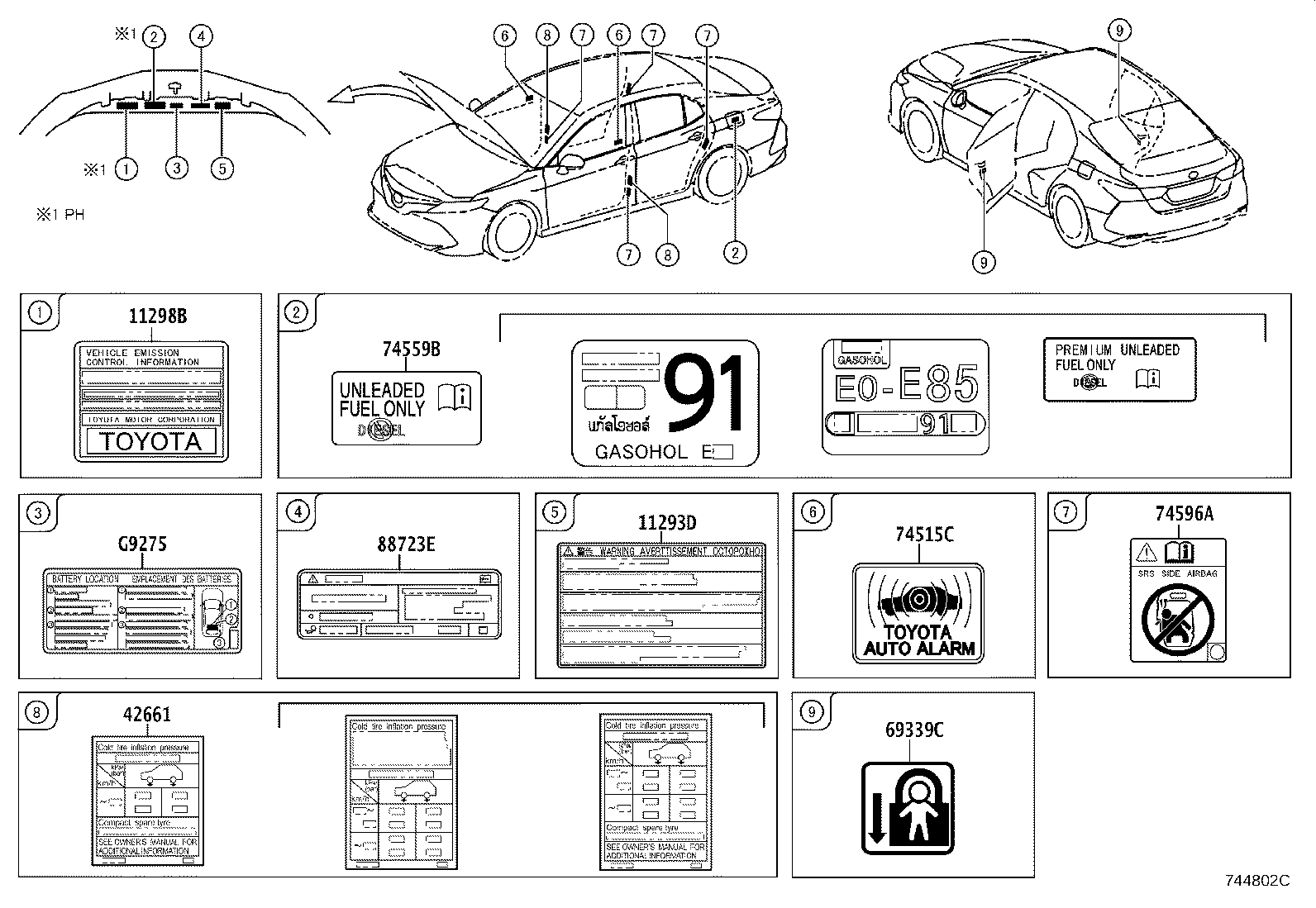

Exploded illustration 744802C 69339C — LABEL, CHILD PROTECTOR INFORMATION (5 parts) 74596A — LABEL, SIDE AIRBAG CAUTION (2 parts) 42661 — LABEL, TIRE PRESSURE INFORMATION (10 parts) 11298B — LABEL, EMISSION CONTROL INFORMATION (3 parts) 88723E — LABEL, COOLER SERVICE CAUTION (11 parts) G9275 — LABEL, BATTERY CAUTION, NO.1 (3 parts) 11293D — LABEL, ENGINE CAUTION (2 parts) 74515C — LABEL, THEFT WARNING INFORMATION (2 parts) 74559B — LABEL, FUEL INFORMATION (11 parts)
744802C · 9 callouts Full size ↗
49 parts on this figure
Part number Description Fitment Price
11293D — Label, Engine Caution
11293-36070 Label, Engine Caution
2018-10 → 2021-12 ended
A25AFXS AXVH71 RHD (IND,TH) —
11293-36070 Label, Engine Caution
2018-10 → 2021-10 ended
A25AFXS AXVH71 IDN —
11298B — Label, Emission Control Information
11298-36161 Label, Emission Control Information
2018-10 → 2021-10 ended
2ARFE ASV70 PH —
11298-25181 Label, Emission Control Information
2021-11 → —
A25AFXS AXVH71 LHD —
11298-25181 note Label, Emission Control Information
2021-11 → —
A25AFXS AXVH71 LHD —
42661 — Label, Tire Pressure Information
42661-06C10 Label, Tire Pressure Information
2018-10 → 2021-10 ended
ASV70 (25Q,25V) (MA,PH,VN);AXVA70,AXVH71 (25,25G,HBD) +1 —
42661-06C10 note Label, Tire Pressure Information
2018-10 → 2021-10 ended
ASV70 25V IDN —
42661-06C20 Label, Tire Pressure Information
2018-10 → 2021-10 ended
ASV70 IDN;ASV7#,AXVH71 (20,20G,25G,HBDG,HBDV) (MA,PH,TH,VN) —
42661-33C80 Label, Tire Pressure Information
2018-12 → 2021-12 ended
AXVH71 IND —
42661-06C10 Label, Tire Pressure Information
2021-11 → —
AXVH71 LHD;AXVA70,MXVA71 20Q,25,25Q —
42661-06C10 note Label, Tire Pressure Information
2021-11 → —
AXVH71 RHD HBDV —
42661-06C20 Label, Tire Pressure Information
2021-11 → —
MXVA71 20G —
42661-06D70 Label, Tire Pressure Information
2021-11 → —
AXVA70 25E —
42661-06D80 Label, Tire Pressure Information
2021-11 → —
AXVA70,AXVH71 RHD (25G,25V,HBDG,HBDV) —
42661-33J70 Label, Tire Pressure Information
2021-12 → —
AXVH71 IND —
69339C — Label, Child Protector Information
69339-06060 Label, Child Protector Information
2018-10 → 2021-10 ended
AXVA70,AXVH71 TH —
69339-06060 Label, Child Protector Information
2018-10 → 2021-12 ended
AXVH71 IND —
69339-06060 Label, Child Protector Information
2018-10 → —
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
69339-06060 Label, Child Protector Information
2021-11 → —
AXVA70,AXVH71,MXVA71 TH —
69339-0K010 Label, Child Protector Information
2021-12 → —
AXVH71 IND —
74515C — Label, Theft Warning Information
74515-0K020 Label, Theft Warning Information
2018-10 → 2021-10 ended
ASV7#,AXVH71 (20,20G,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
74515-0K020 Label, Theft Warning Information
2018-10 → 2021-12 ended
AXVA70,AXVH71 RHD (25,25G,HBD,HBDG,HBDV) (IND,TH) —
74559B — Label, Fuel Information
74559-02030 Label, Fuel Information
2018-10 → 2021-10 ended
ASV71,AXVA70 (20G,25G) TH —
74559-02050 Label, Fuel Information
2018-10 → 2021-10 ended
AXVH71 TH —
74559-20140 Label, Fuel Information
2018-10 → 2021-10 ended
ASV71 VN;ASV7#,AXVH71 (20,25G,25Q,25V,HBD) (IDN,MA,PH,TH,VN) —
74559-20140 Label, Fuel Information
2018-10 → 2021-12 ended
AXVA70,AXVH71 (25,HBD) (IND,TH) —
74559-60030 Label, Fuel Information
2018-10 → 2021-10 ended
ASV71 MA —
74559-60030 note Label, Fuel Information
2018-10 → 2021-10 ended
ASV71 20 —
74559-02030 Label, Fuel Information
2021-11 → —
AXVA70 25E,25G —
74559-02050 Label, Fuel Information
2021-11 → —
AXVH71 RHD TH —
74559-20140 Label, Fuel Information
2021-11 → —
AXVH71 LHD;AXVA70,AXVH71,MXVA71 20G,20Q,25,25Q,25V,HBD —
74559-20140 note Label, Fuel Information
2021-11 → —
AXVH71 RHD HBDV —
74559-20140 note Label, Fuel Information
2021-11 → —
AXVH71 RHD HBDV —
74596A — Label, Side Airbag Caution
74596-0K010 Label, Side Airbag Caution
2018-10 → 2021-01 ended
ASV7#,AXVA70,AXVH71 (20,20G,25,25G,25Q,25V,HBD,HBDG) (IDN,MA,PH,TH,VN) —
74596-0K010 Label, Side Airbag Caution
2018-10 → 2021-01 ended
AXVH71 (HBD,HBDV) (IND,TH) —
88723E — Label, Cooler Service Caution
88723-06170 Label, Cooler Service Caution
2018-10 → 2021-10 ended
ASV71,AXVA70 (20G,25G) TH —
88723-06190 Label, Cooler Service Caution
2018-10 → 2021-10 ended
AXVH71 TH —
88723-06240 Label, Cooler Service Caution
2018-10 → 2021-10 ended
AXVA70 25;ASV71 MA,VN;ASV7# 20,25G,25Q,25V —
88723-06250 Label, Cooler Service Caution
2018-10 → 2021-10 ended
AXVH71 IDN —
88723-06250 Label, Cooler Service Caution
2018-10 → 2021-12 ended
AXVH71 IND —
88723-06170 Label, Cooler Service Caution
2021-11 → —
AXVA70 25E,25G —
88723-06190 Label, Cooler Service Caution
2021-11 → —
AXVH71 RHD TH —
88723-06240 Label, Cooler Service Caution
2021-11 → —
AXVA70,MXVA71 20G,20Q,25,25Q,25V —
88723-06250 Label, Cooler Service Caution
2021-11 → —
AXVH71 IND;AXVH71 LHD —
88723-06250 note Label, Cooler Service Caution
2021-11 → —
AXVH71 RHD HBDV —
88723-06250 note Label, Cooler Service Caution
2021-11 → —
AXVH71 RHD HBDV —
G9275 — Label, Battery Caution, NO.1
G9275-12010 Label, Battery Caution, NO.1
2018-10 → 2021-10 ended
AXVH71 IDN —
G9275-12010 Label, Battery Caution, NO.1
2018-10 → 2021-12 ended
AXVH71 RHD (IND,TH) —
G9275-12010 Label, Battery Caution, NO.1
2021-11 → —
AXVH71 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
