Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 5 illustrations

Illustrations

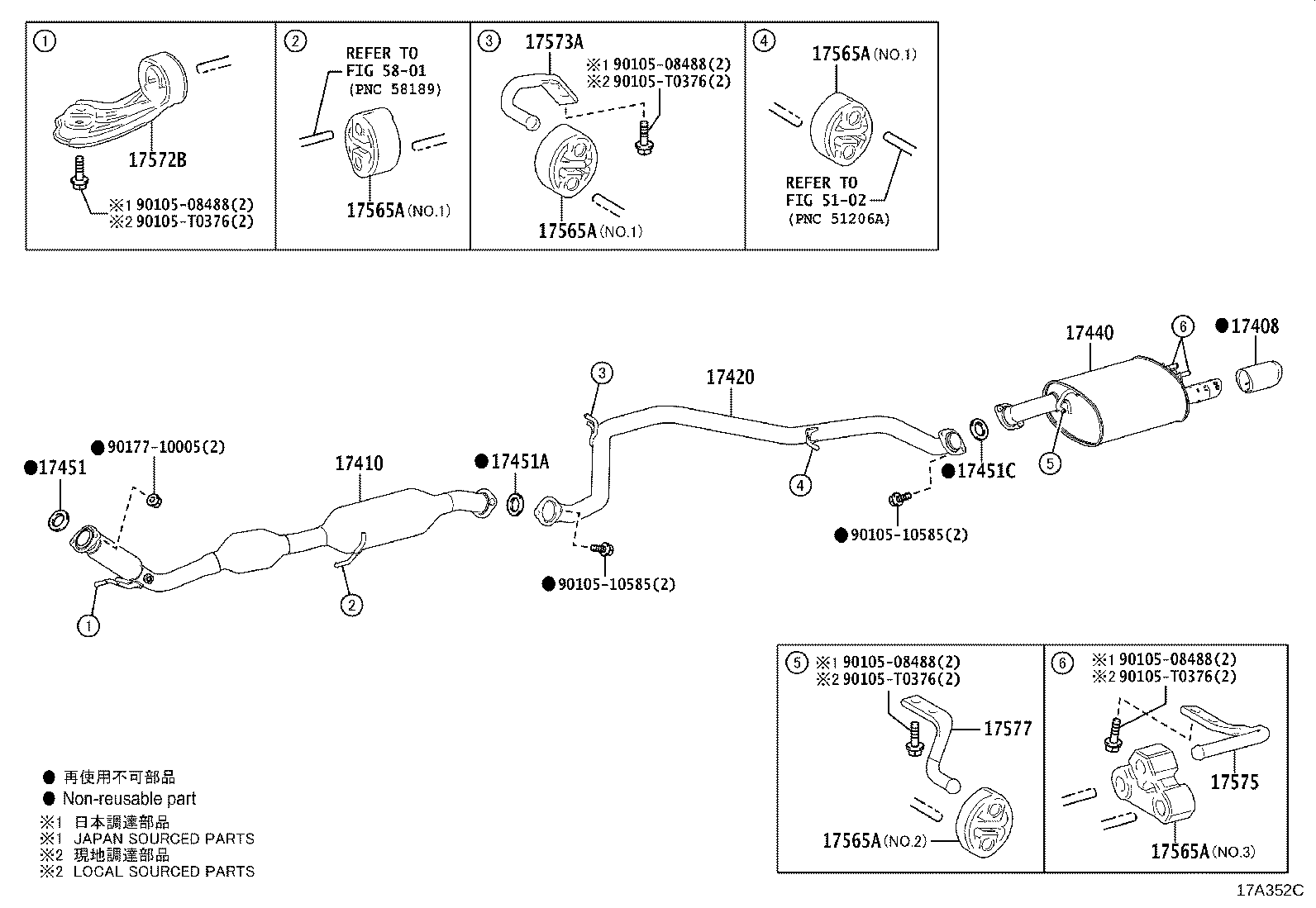

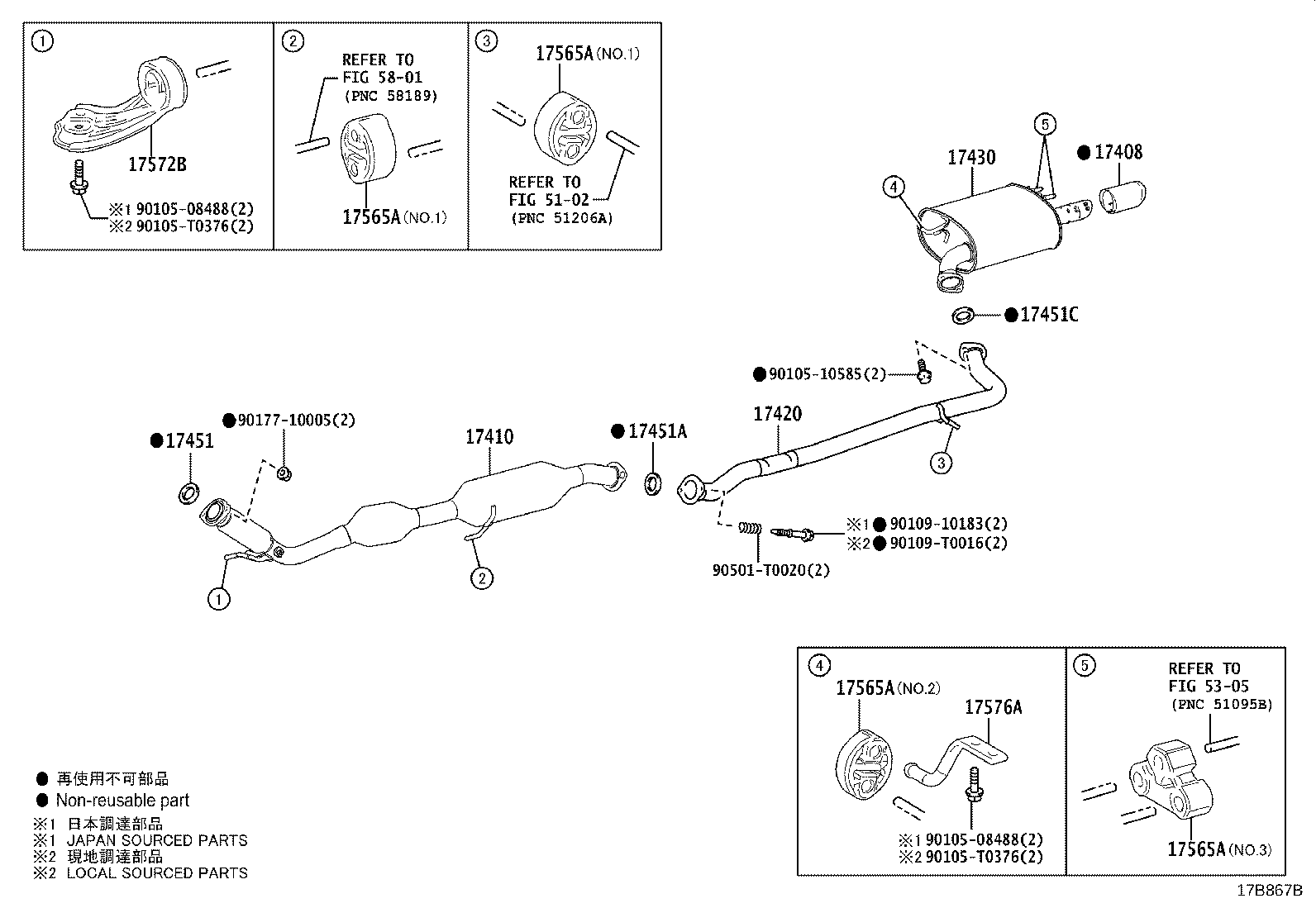

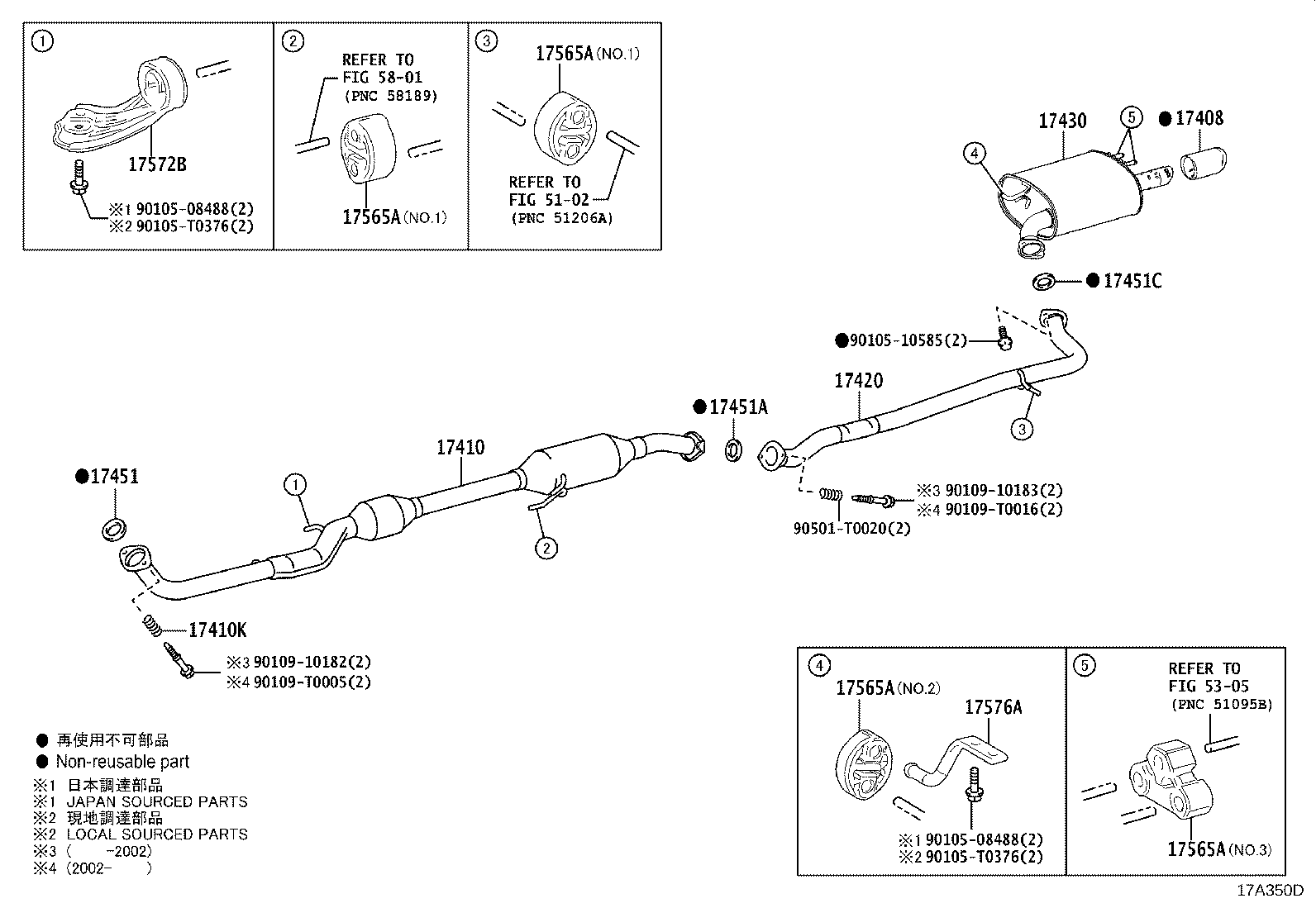

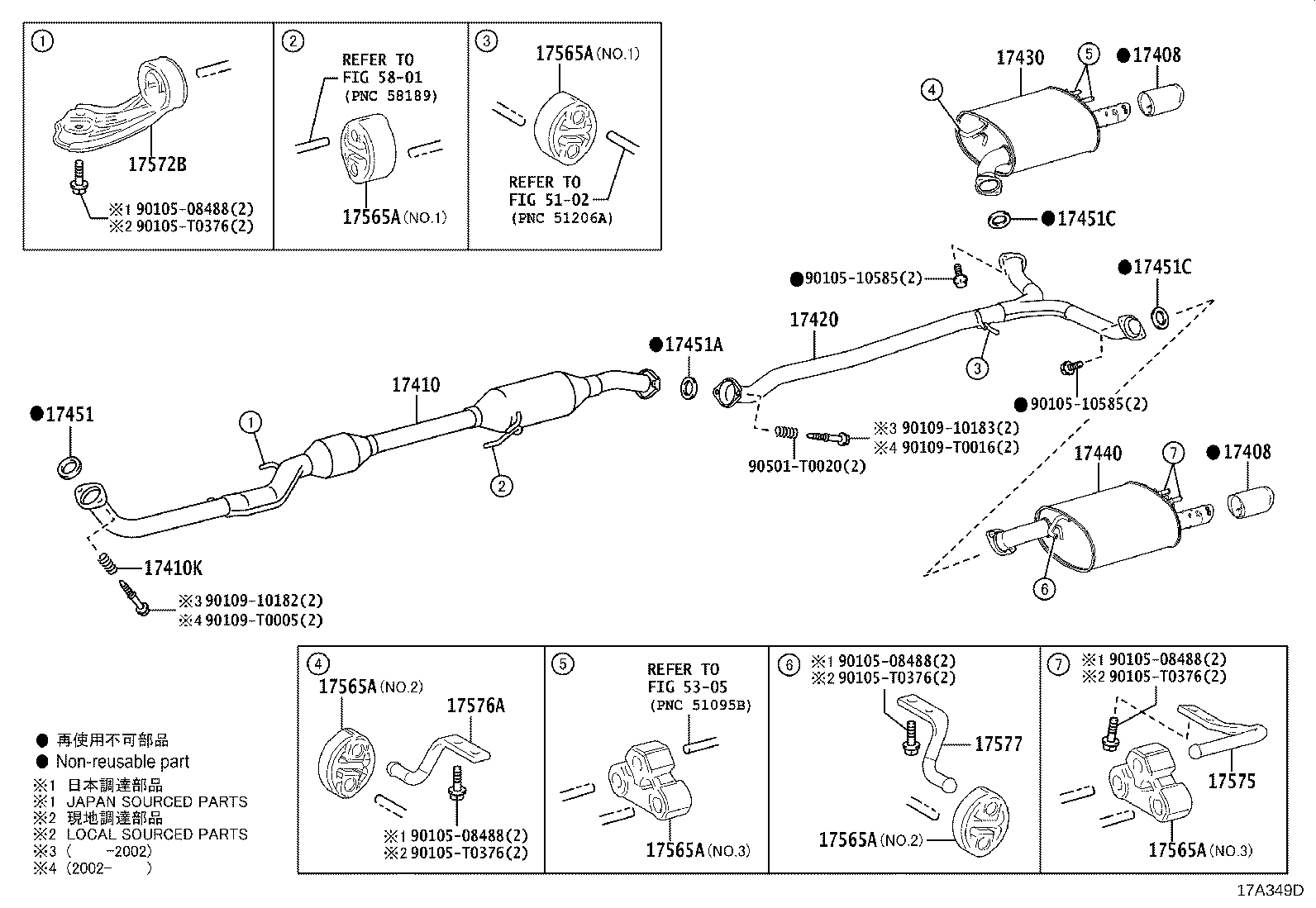

Figure 17A351C 17A351C 2018-10 → — Figure 17A352C 17A352C 2018-10 → — Figure 17A349D 17A349D 2018-10 → — Figure 17A350D 17A350D 2018-10 → — Figure 17B867B 17B867B 2021-10 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410K Spring, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
