Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

14 part groups · 3 illustrations

Illustrations

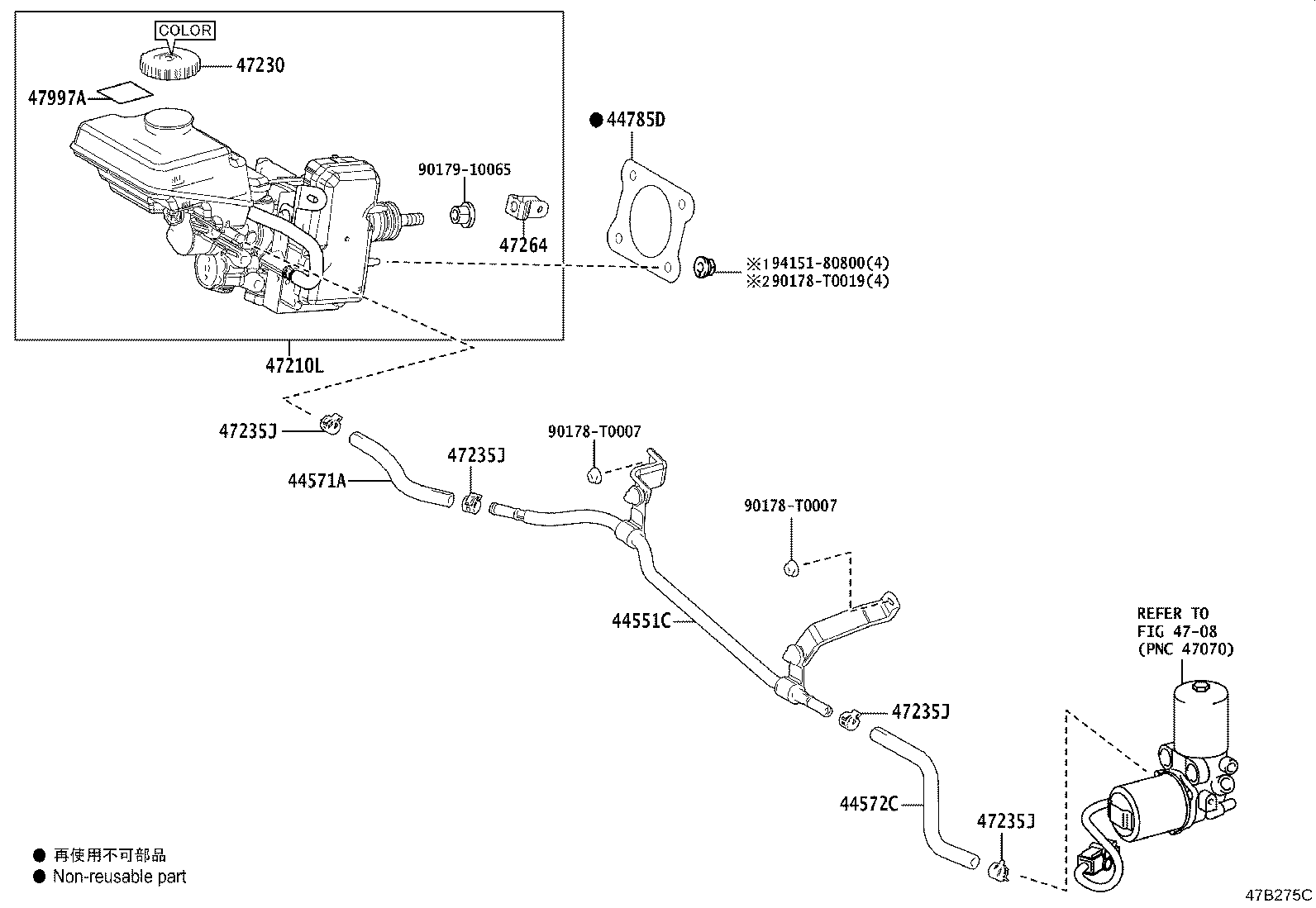

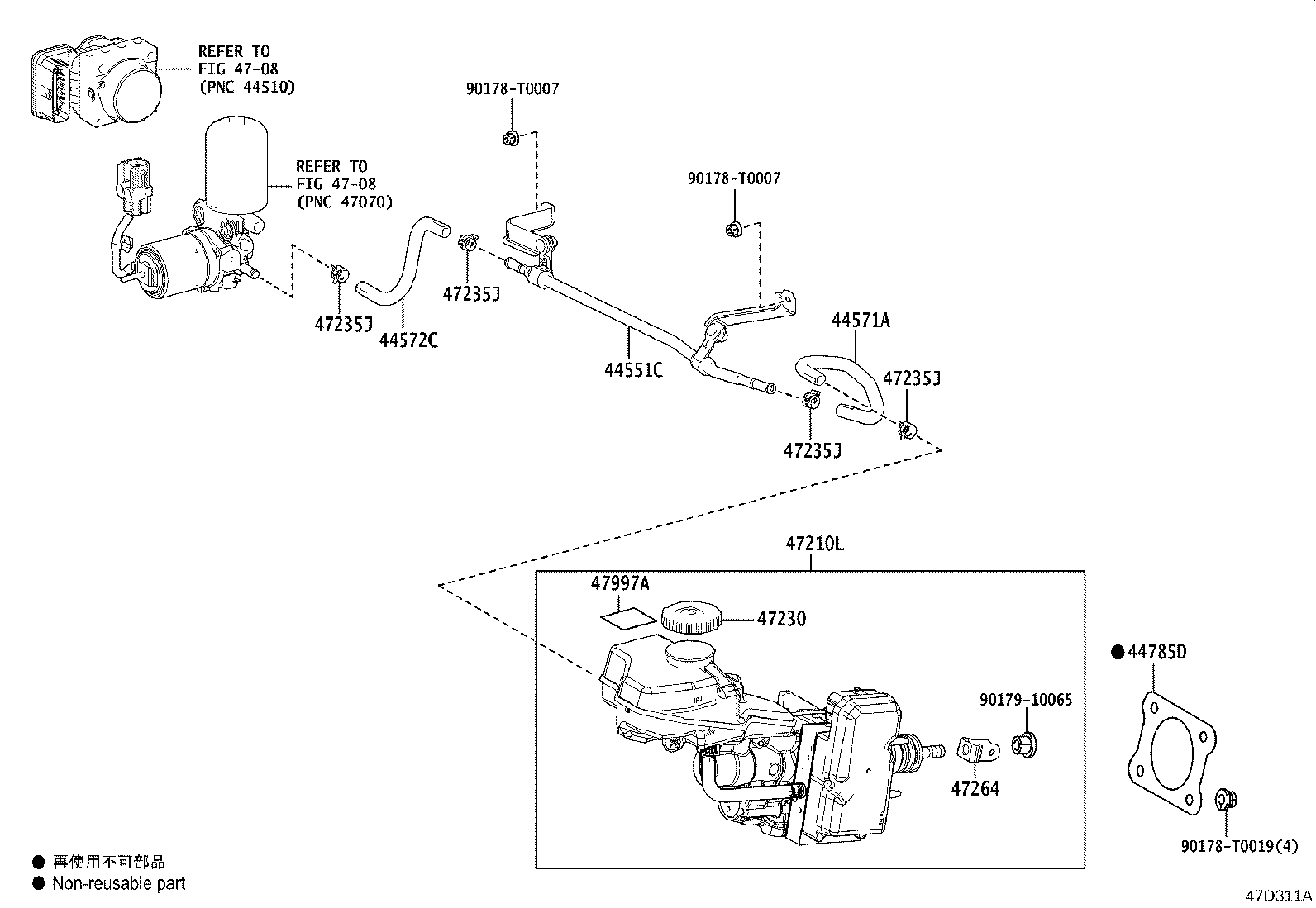

Figure 47B274B 47B274B 2018-10 → — Figure 47B275C 47B275C 2018-10 → — Figure 47D311A 47D311A 2021-10 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44571A Hose, Brake Actuator, NO.1
44572C Hose, Brake Actuator, NO.2
44785D Gasket, Brake Master Cylinder
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47235J Clip(FOR RESERVOIR HOSE NO.2)
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47997A Label, Accumulator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
