Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

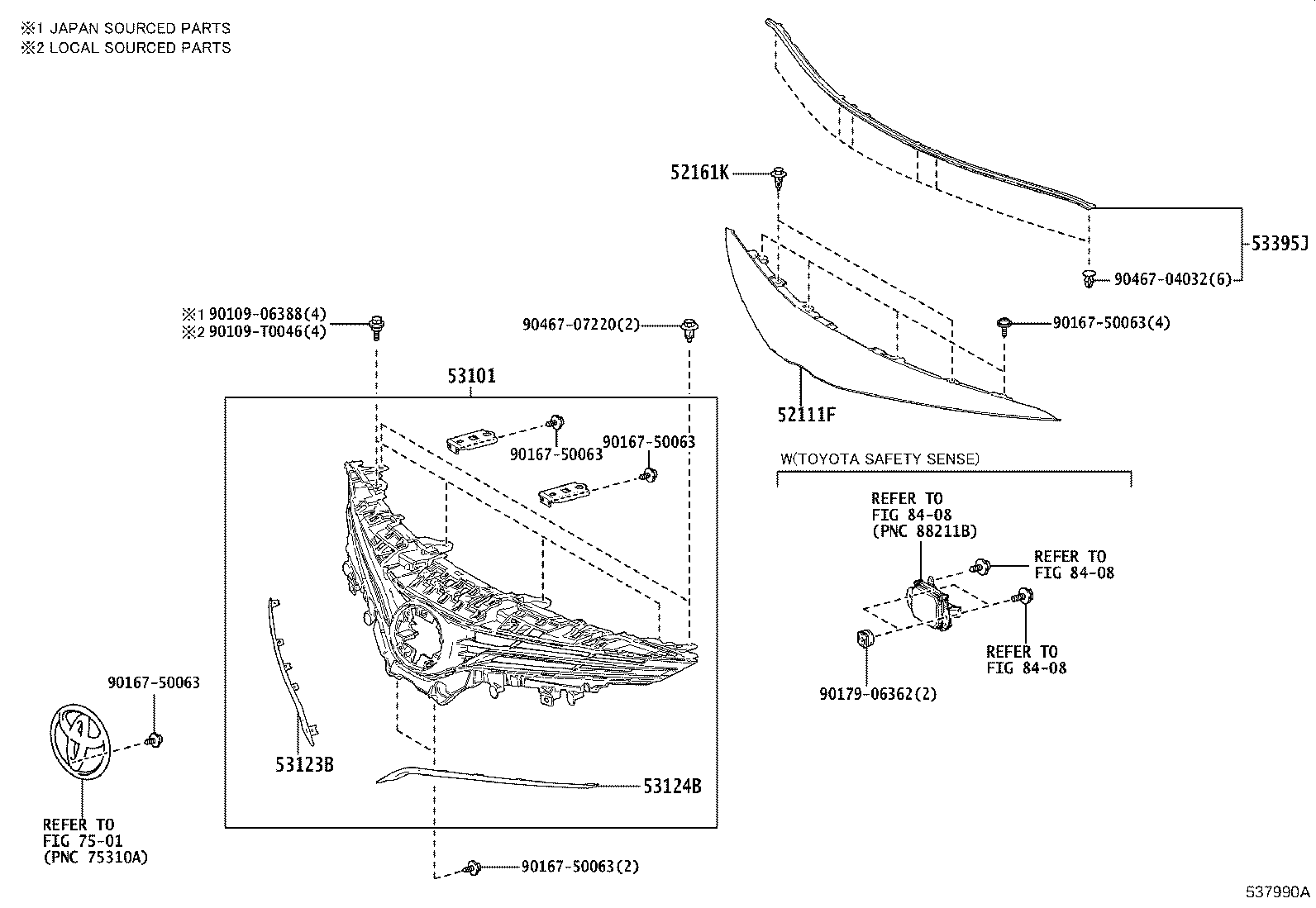

Figure 535694A 535694A 2018-10 → 2021-10 Figure 535694A 535694A 2018-10 → 2021-12 Figure 537990A 537990A 2021-11 → — Figure 537990A 537990A 2021-12 → —

Part groups

PNCDescription
52111F Bar, Front Bumper, Center
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53395J Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
