Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

48 part groups · 42 illustrations

Illustrations

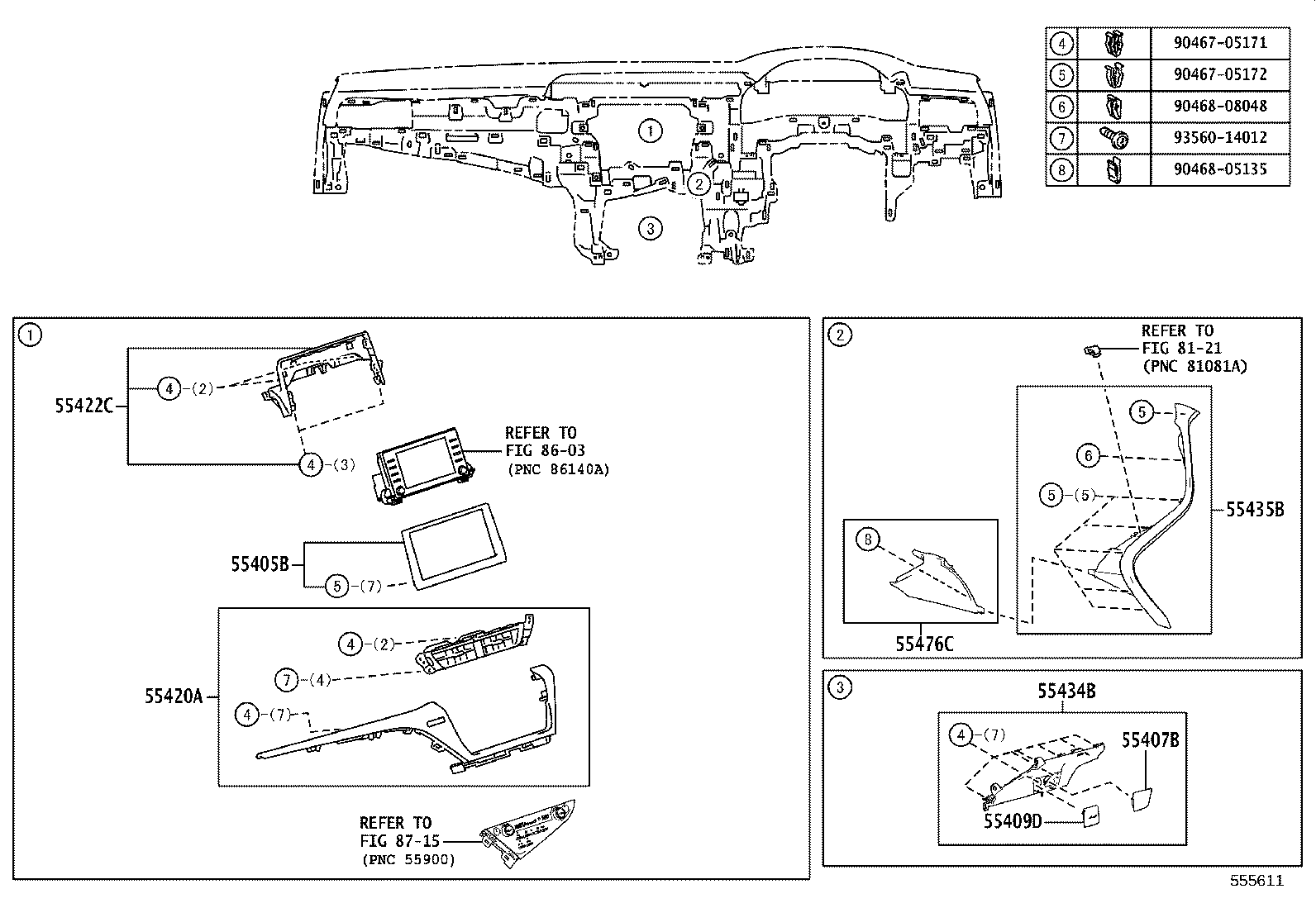

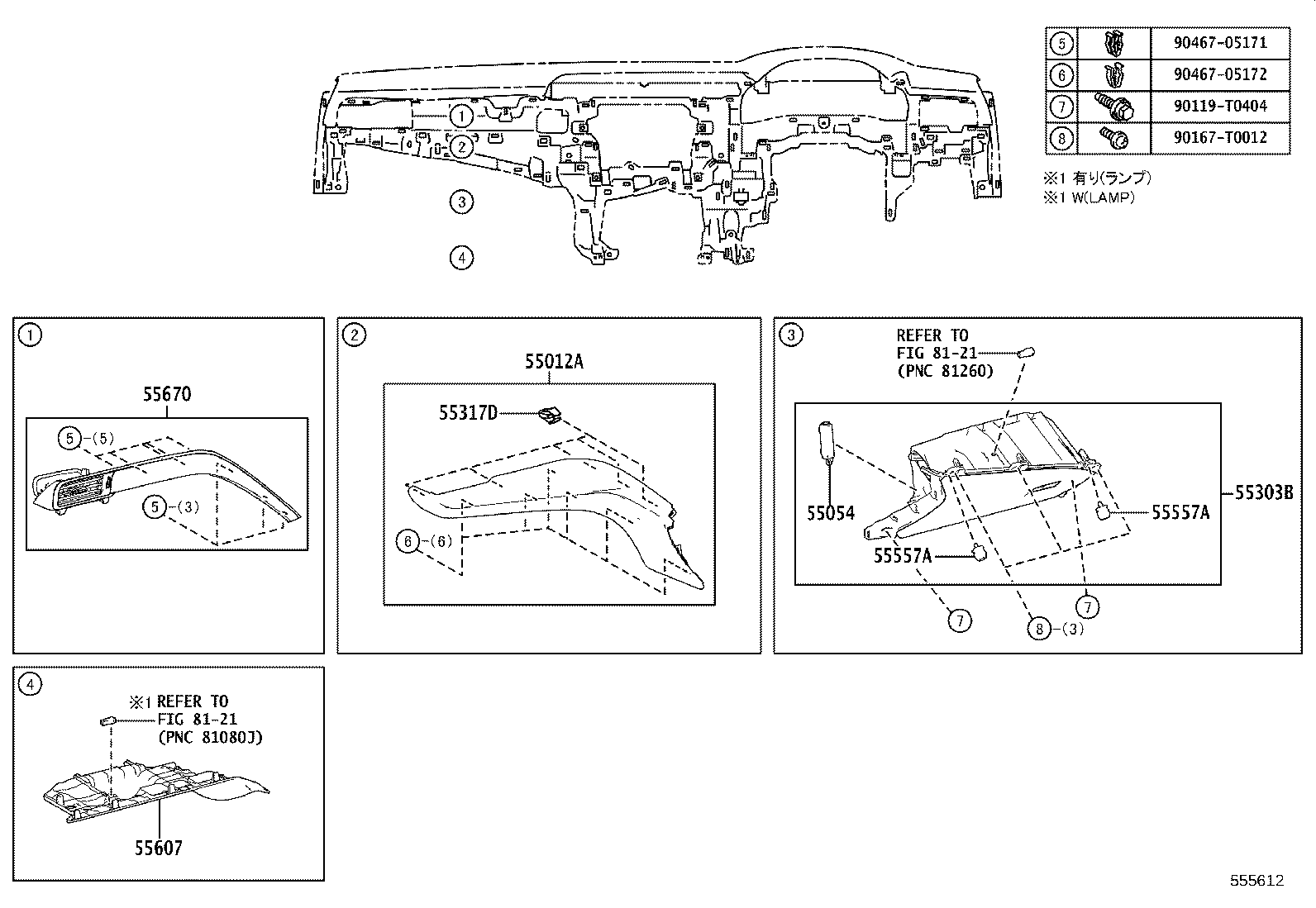

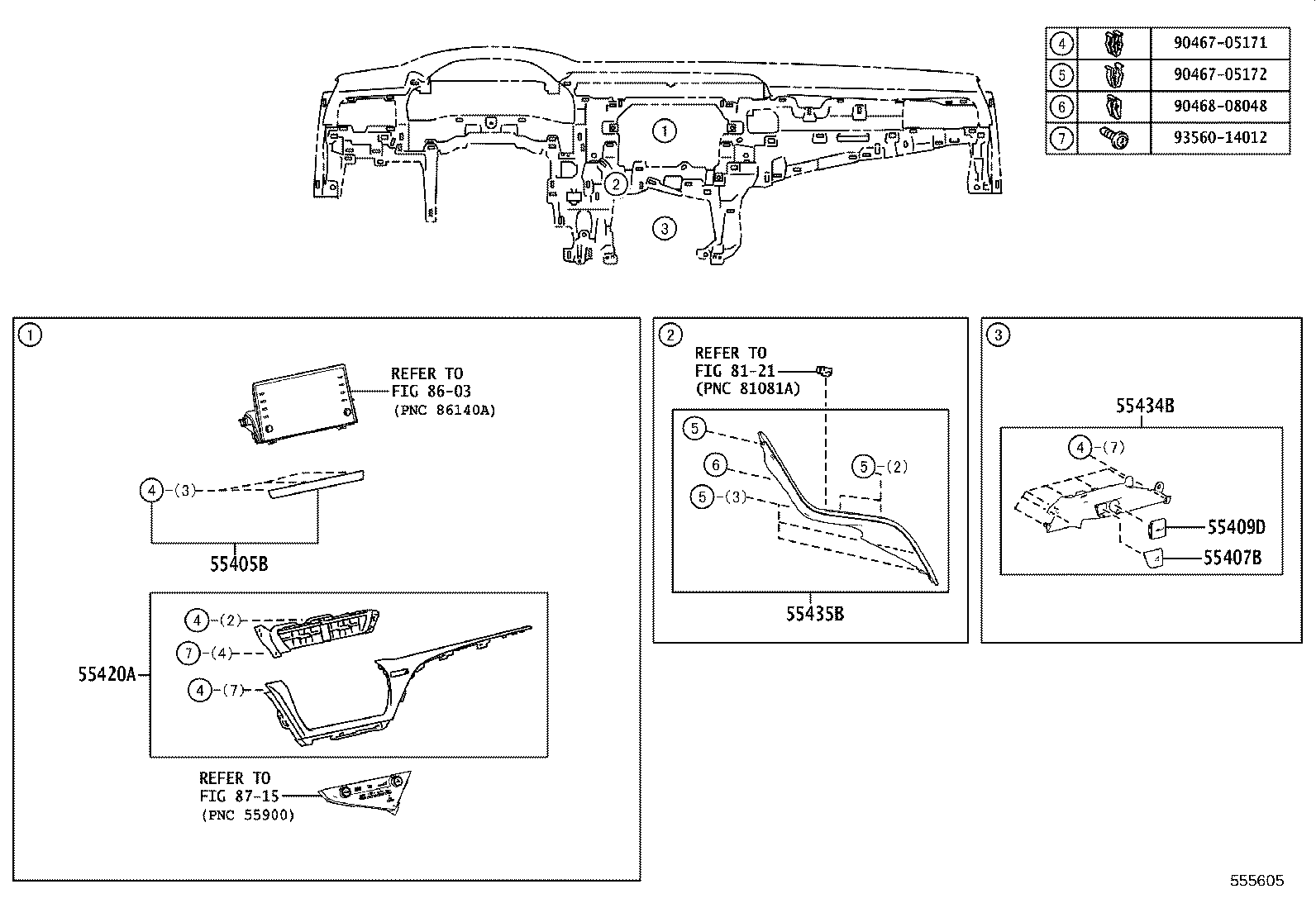

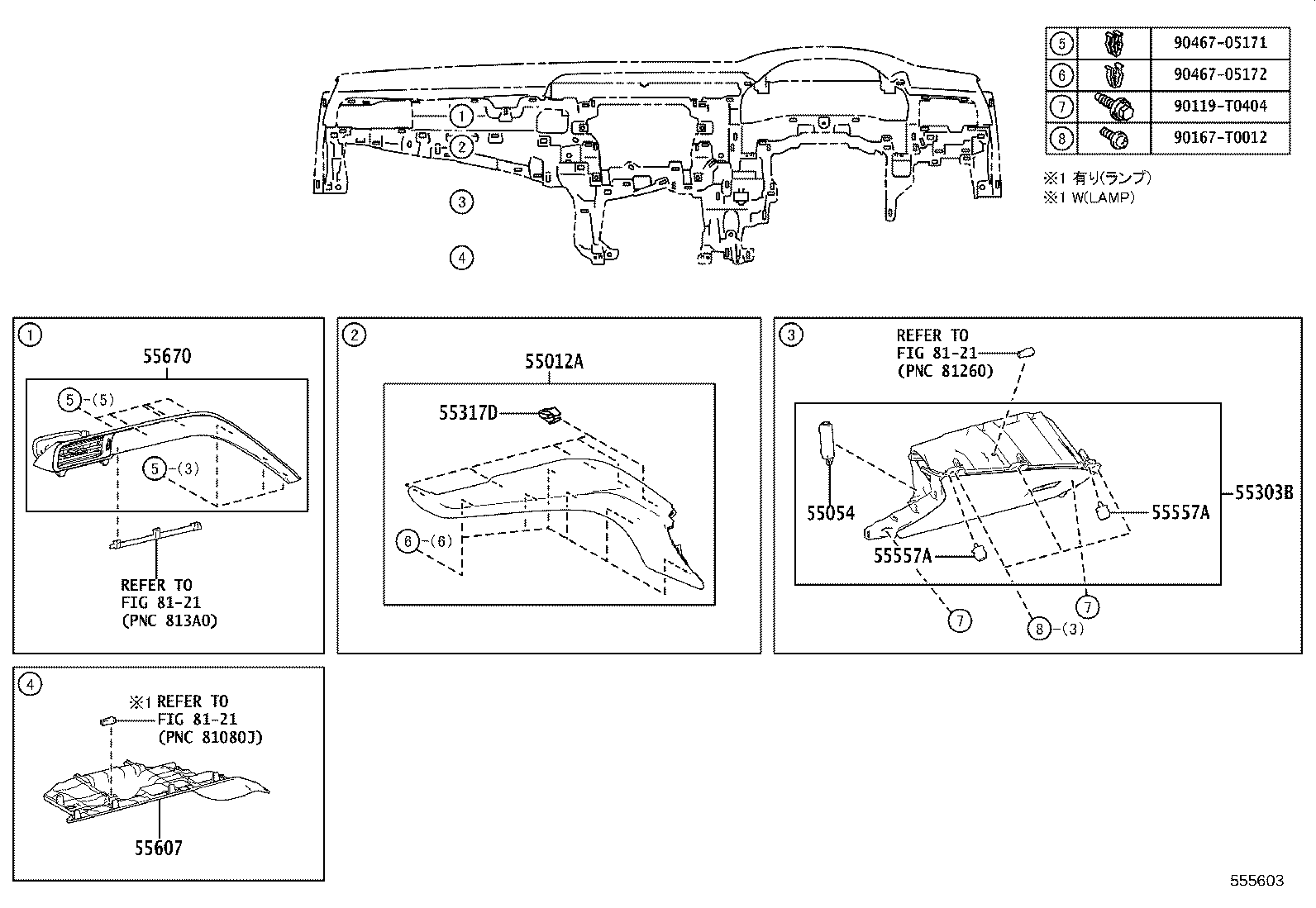

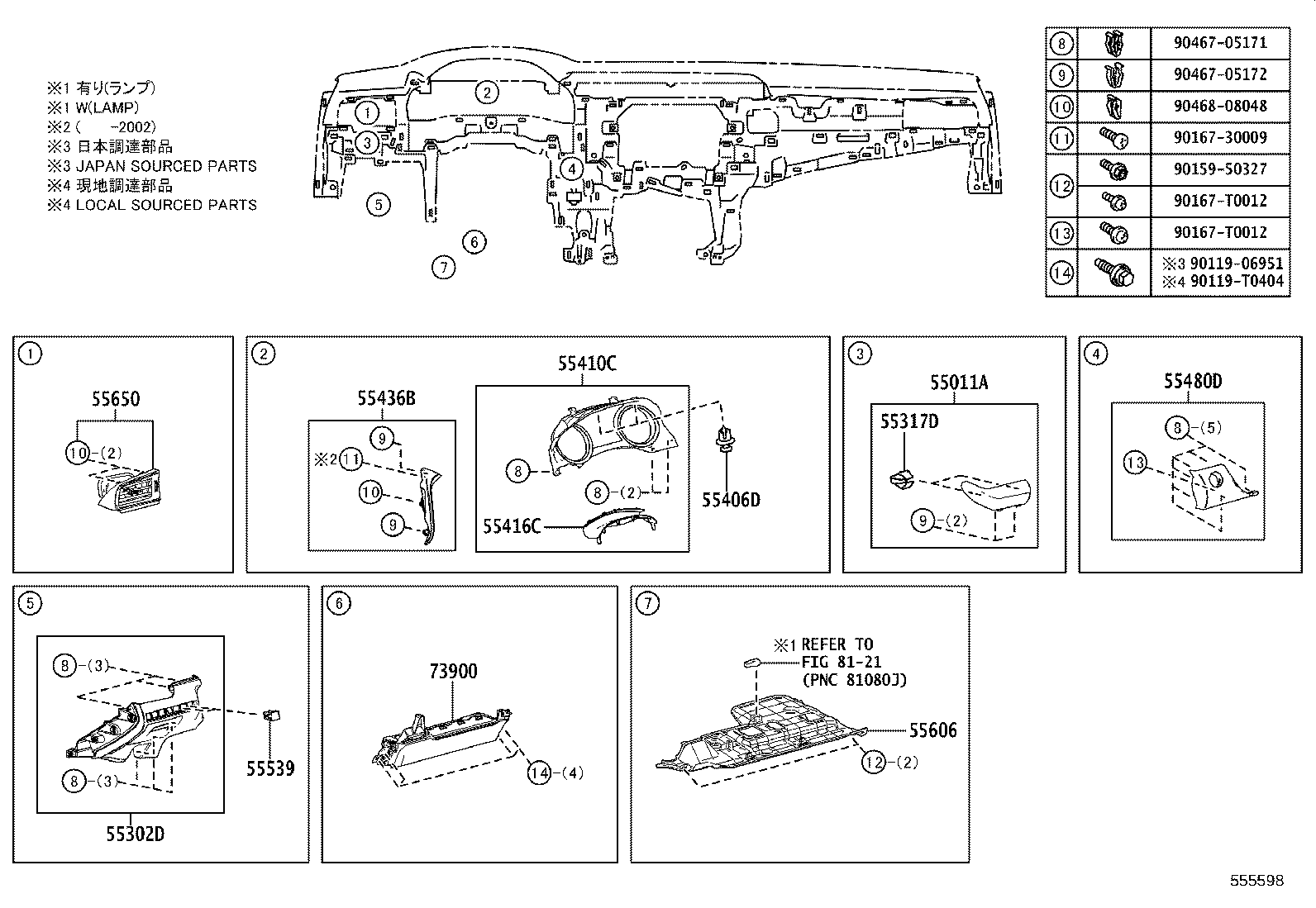

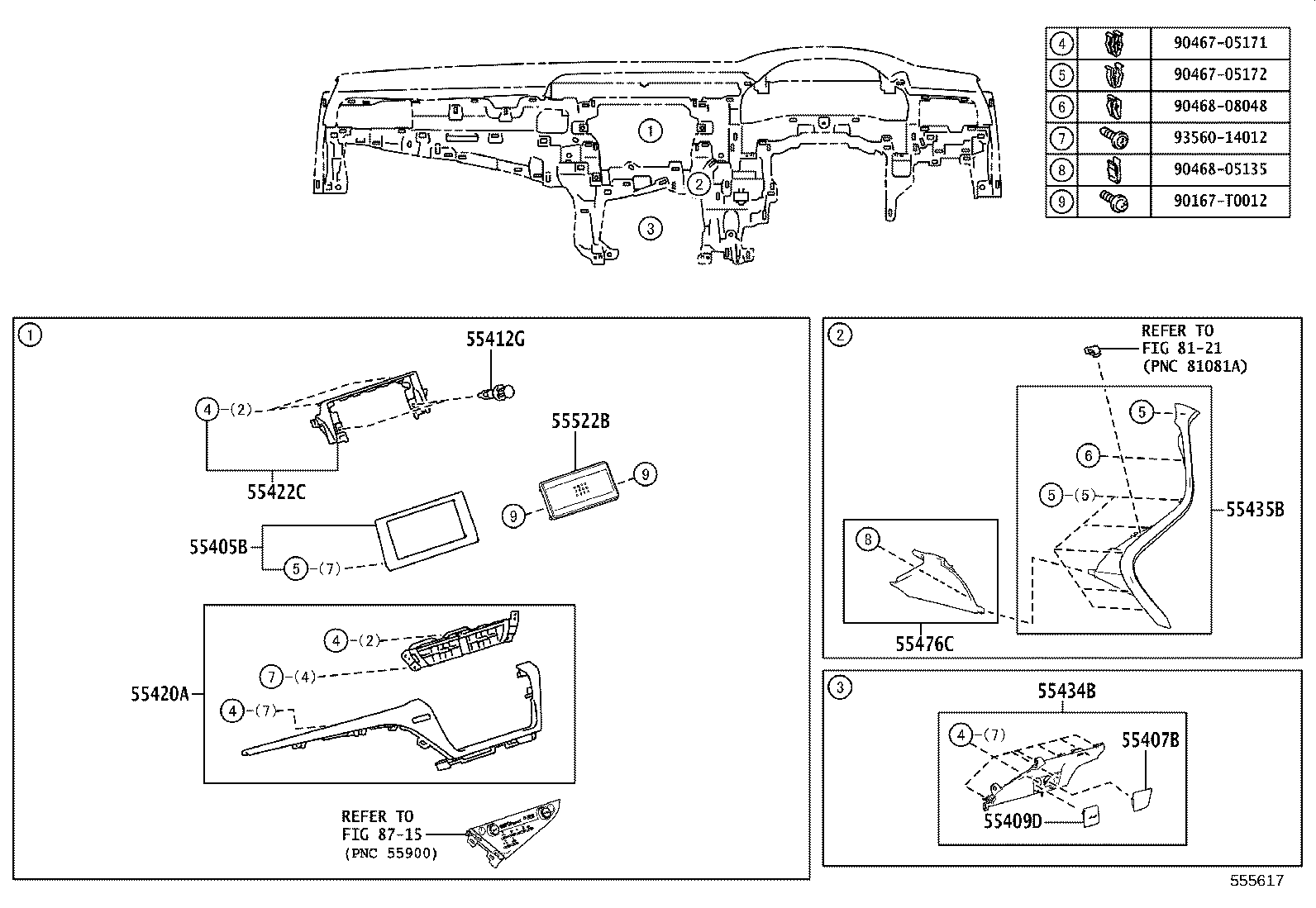

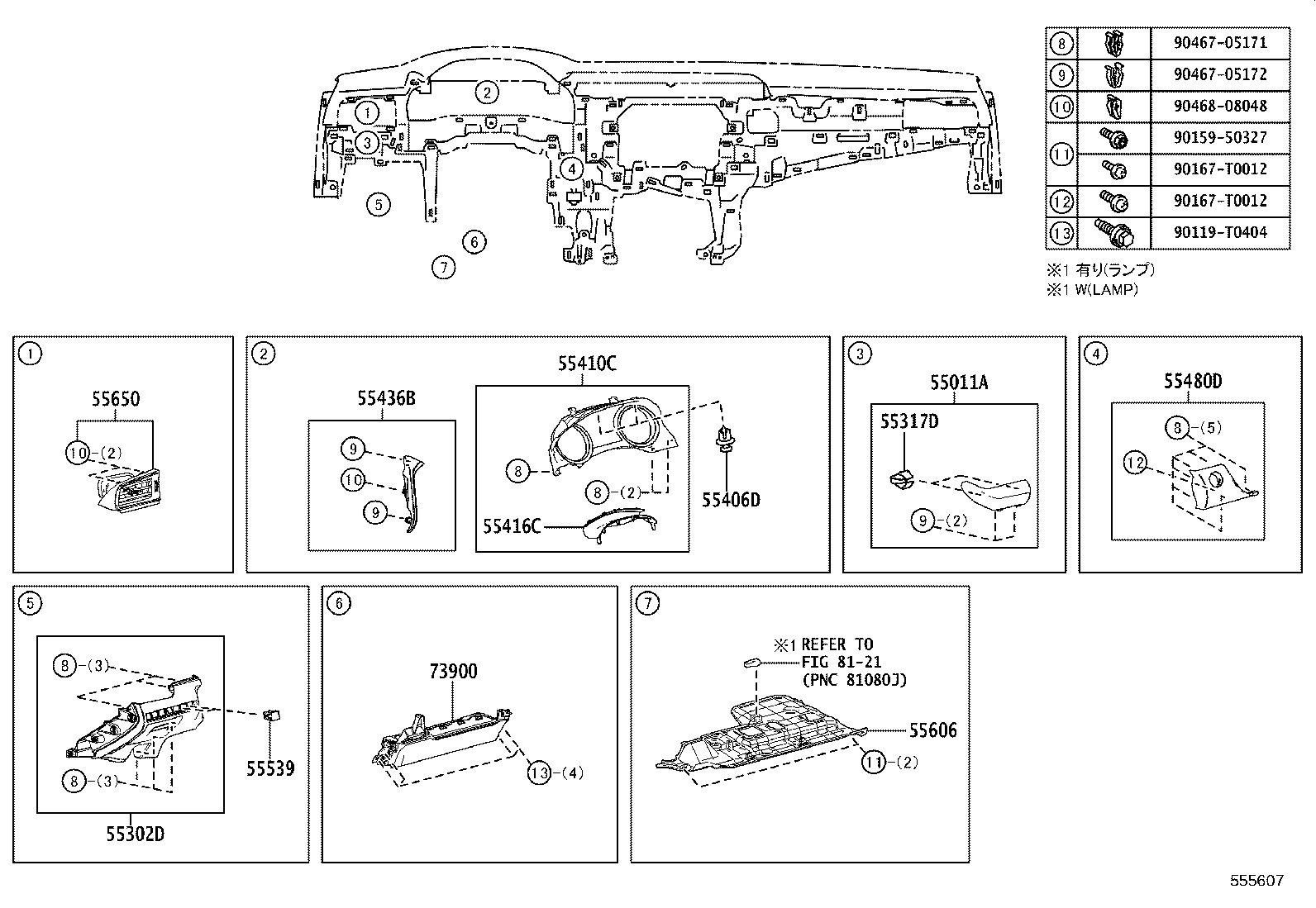

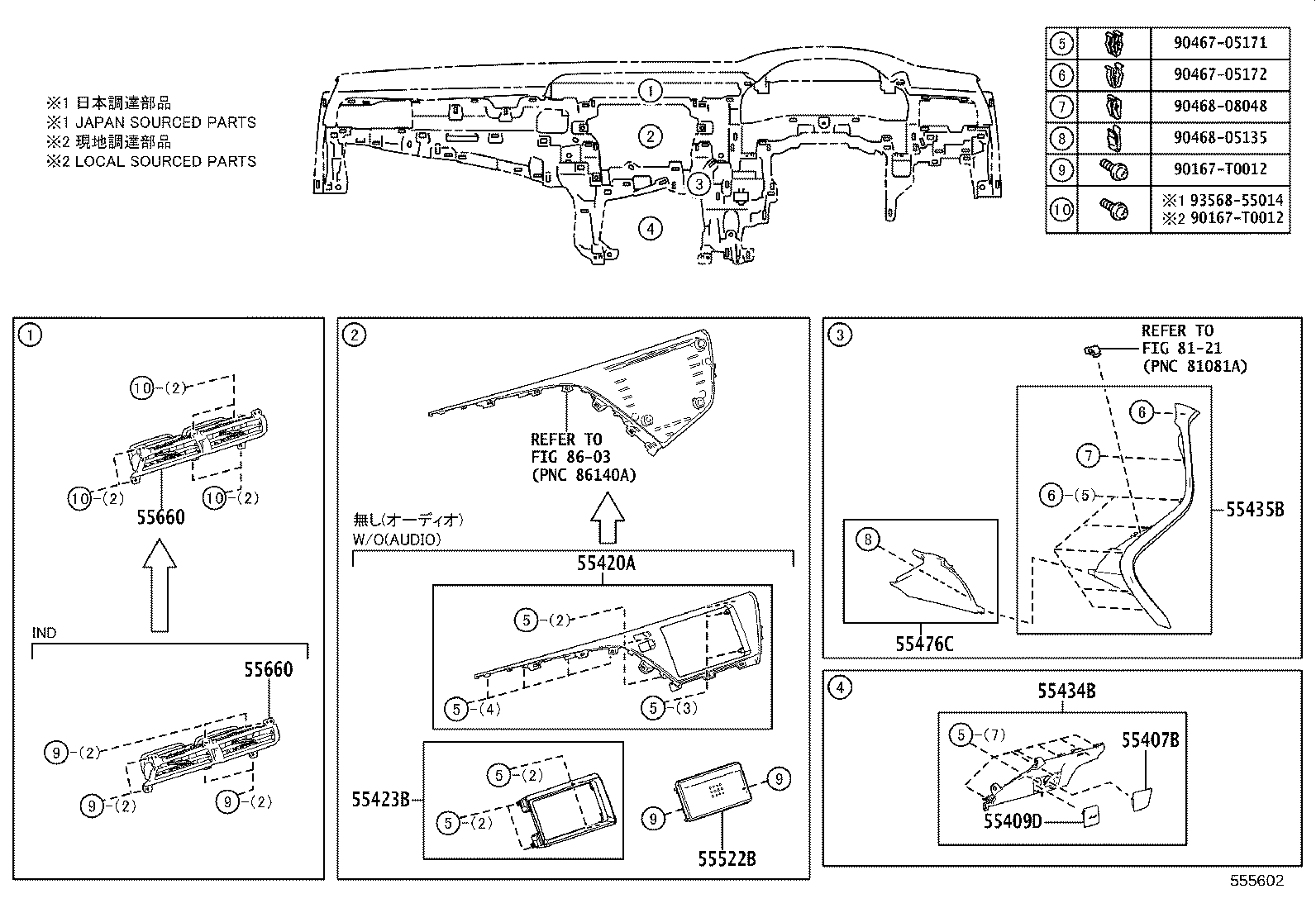

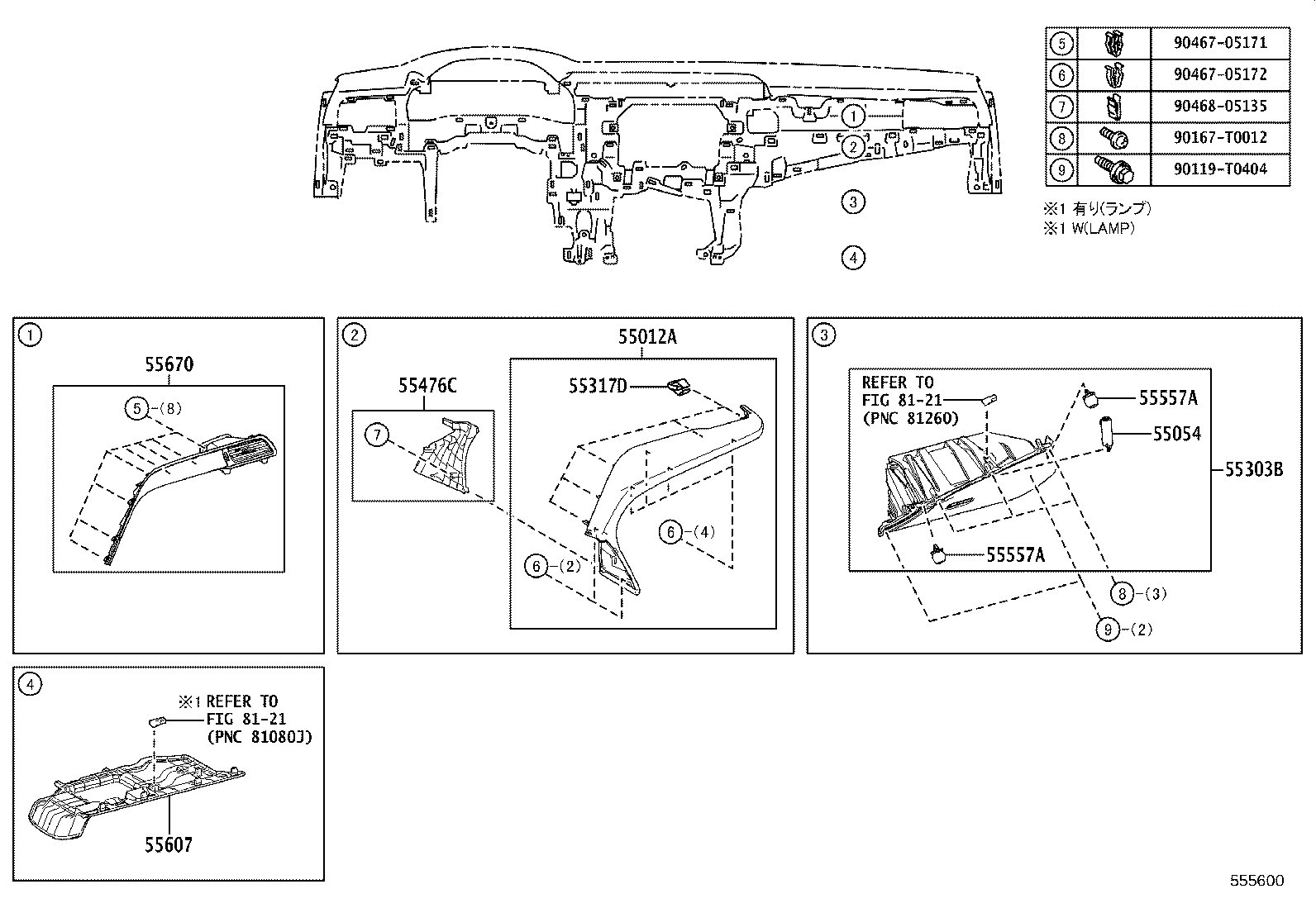

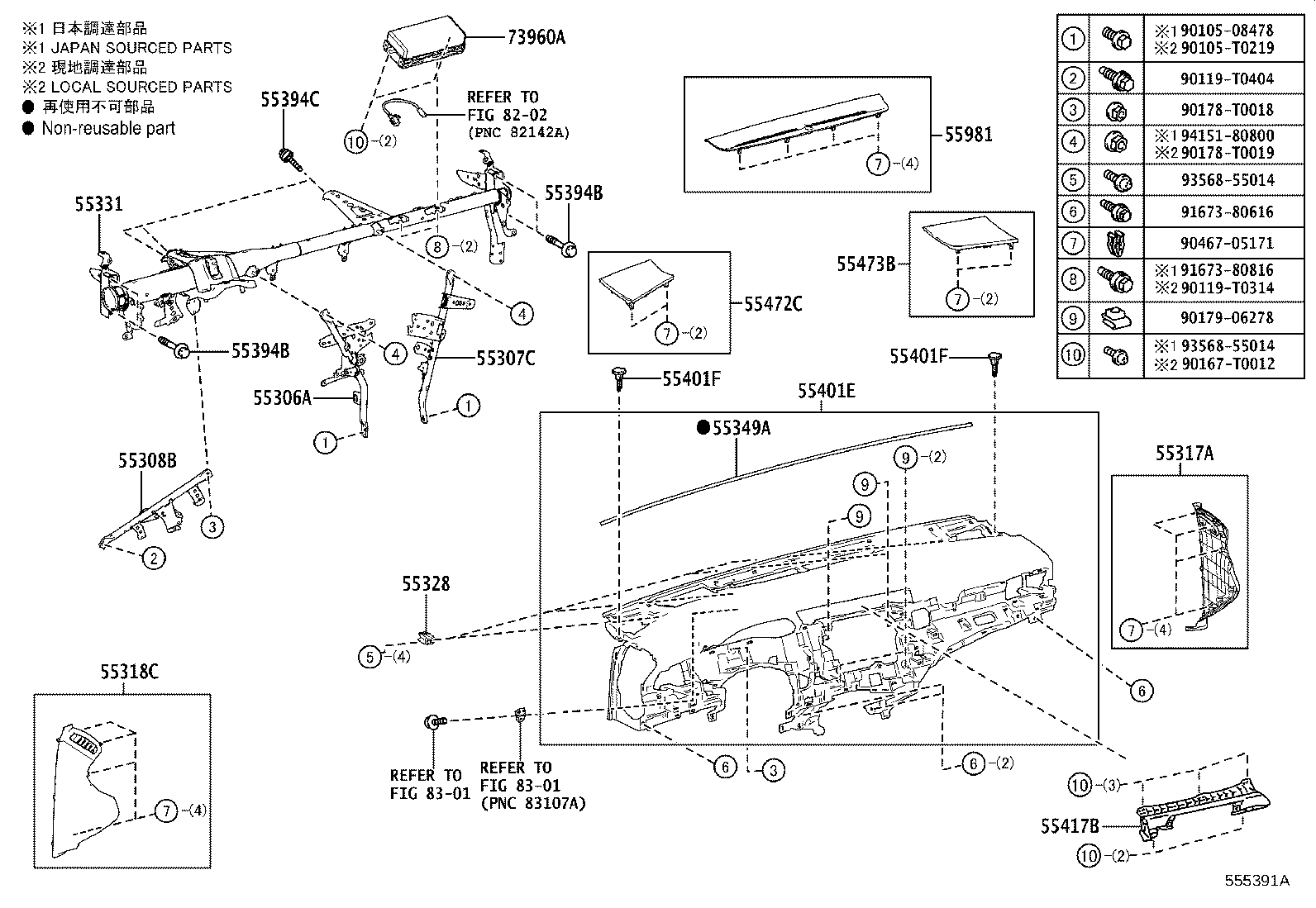

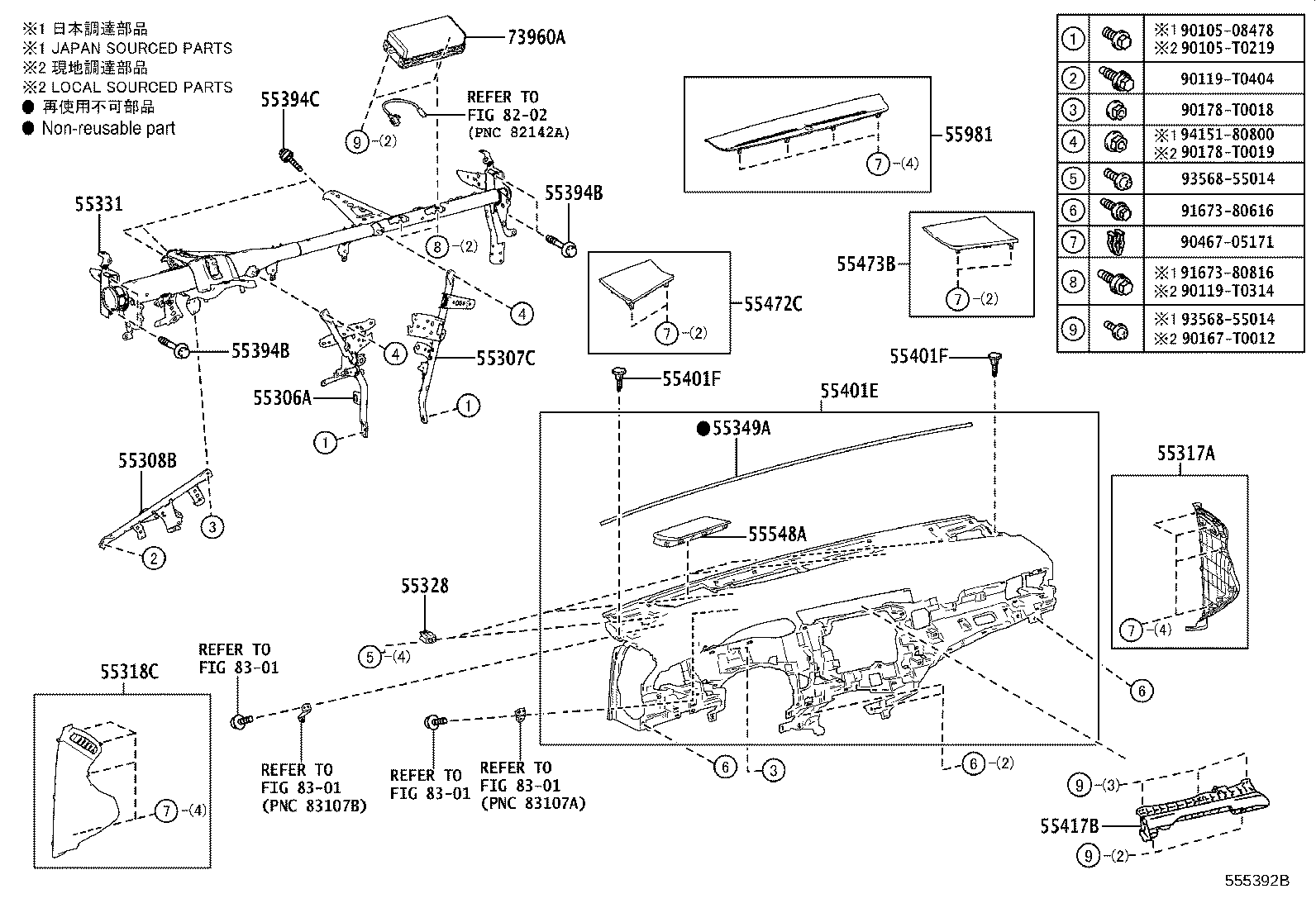

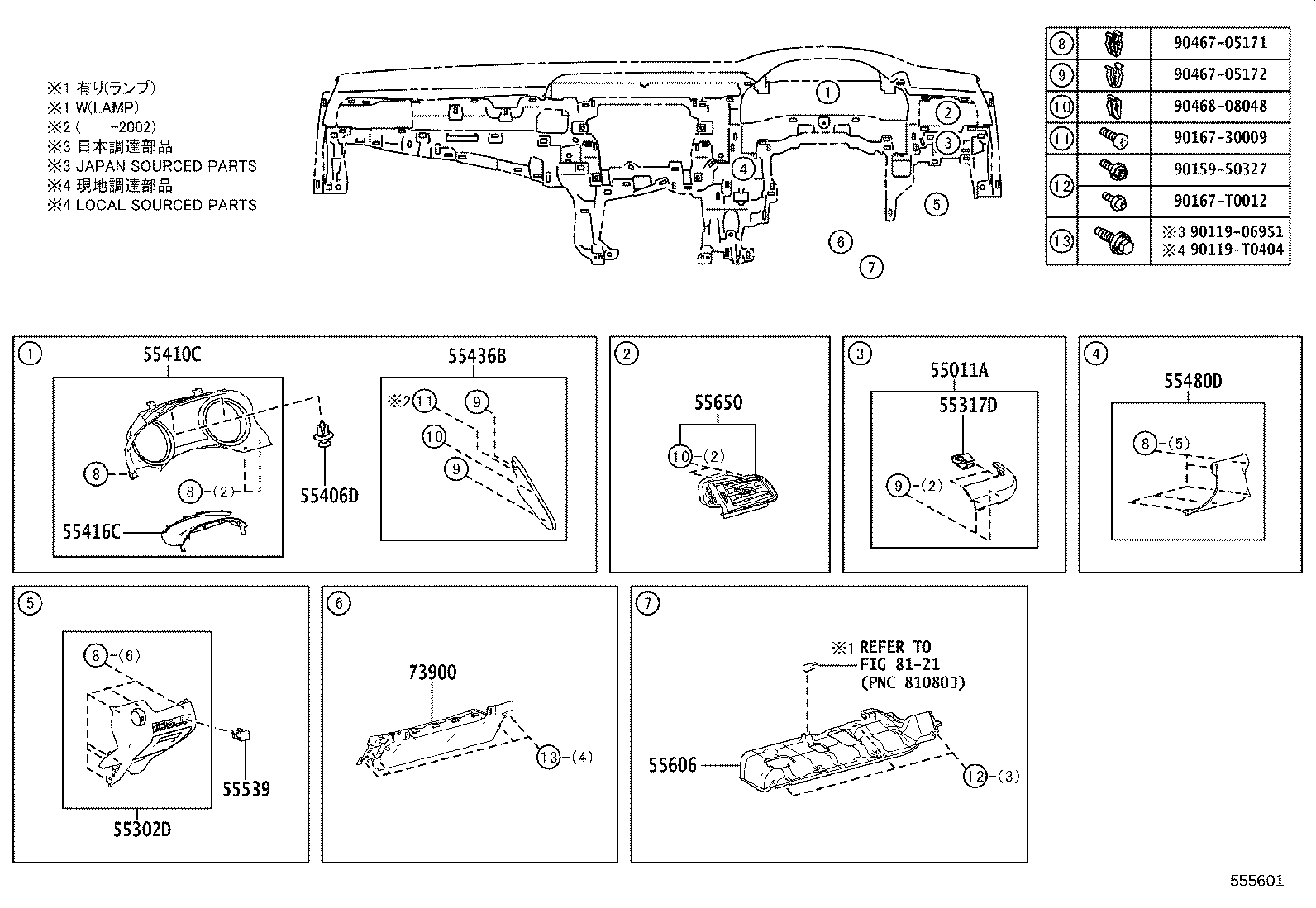

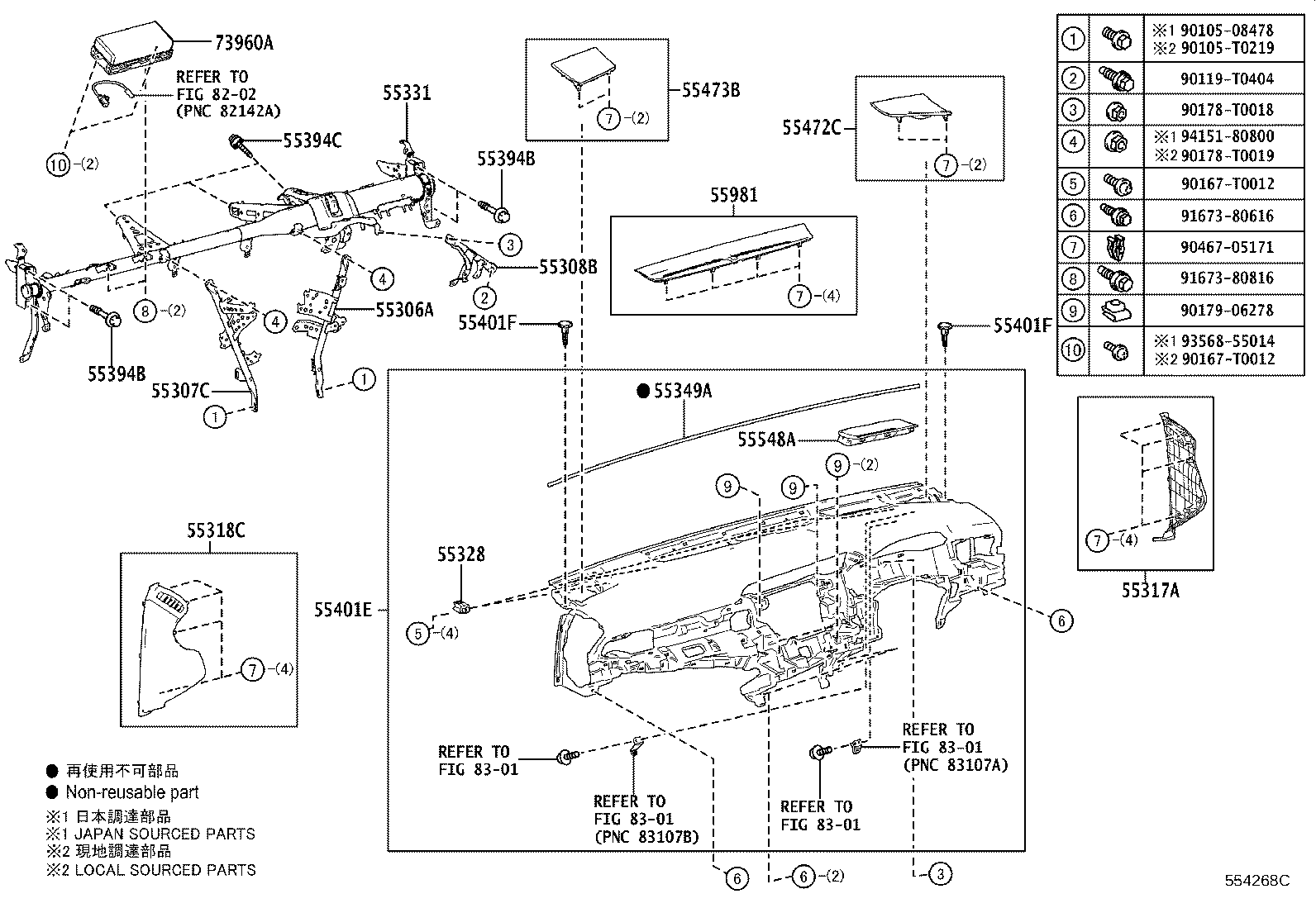

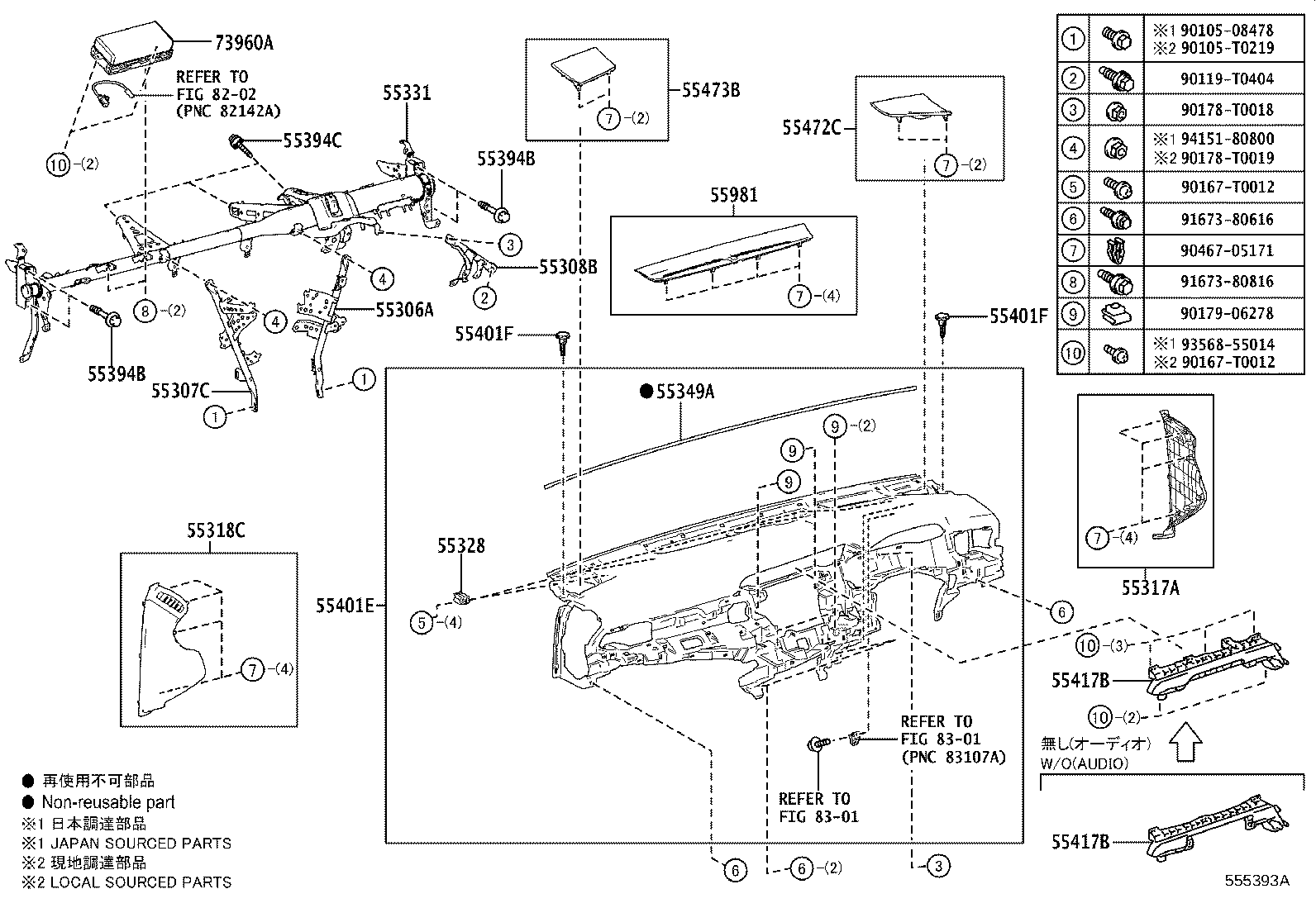

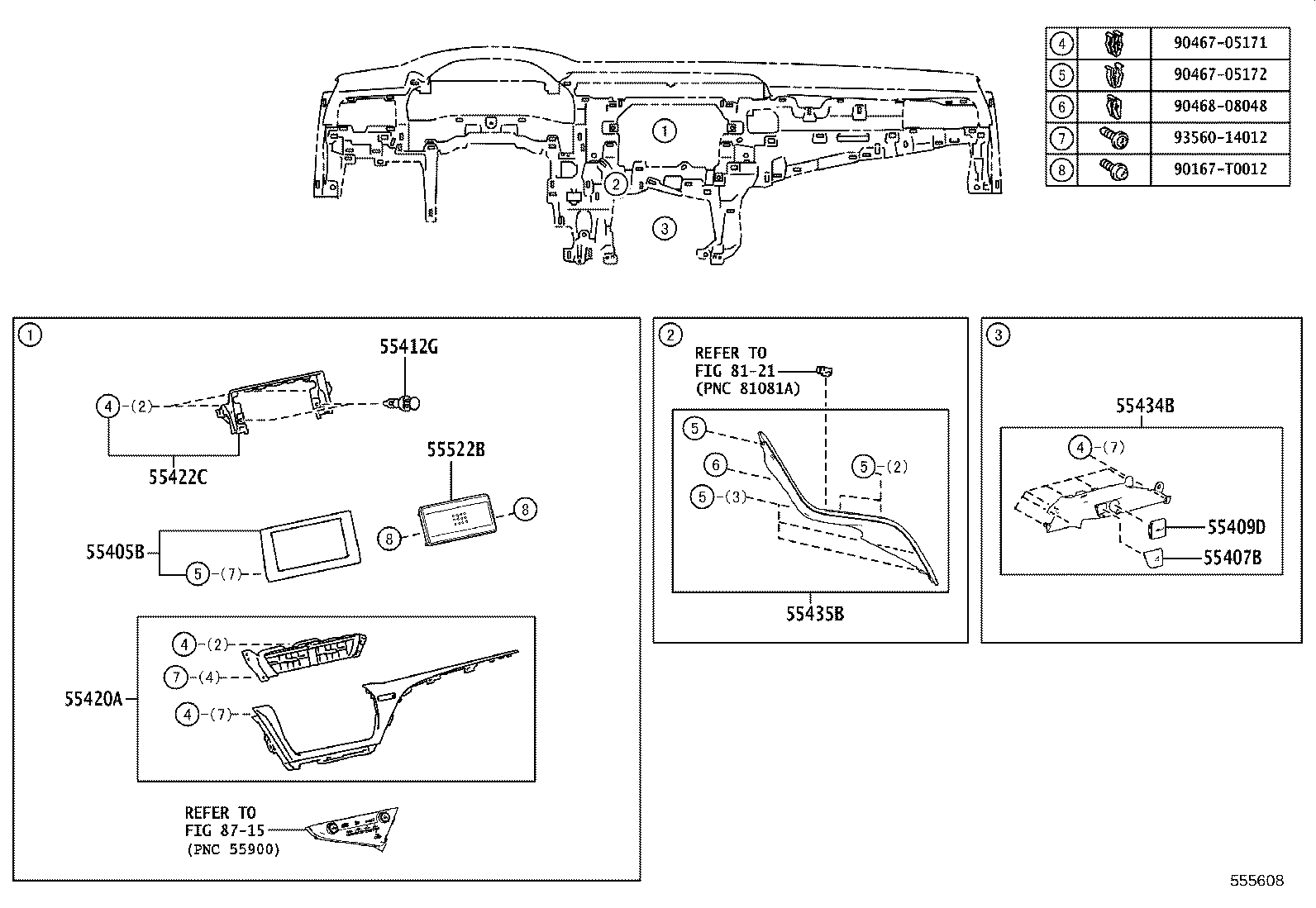

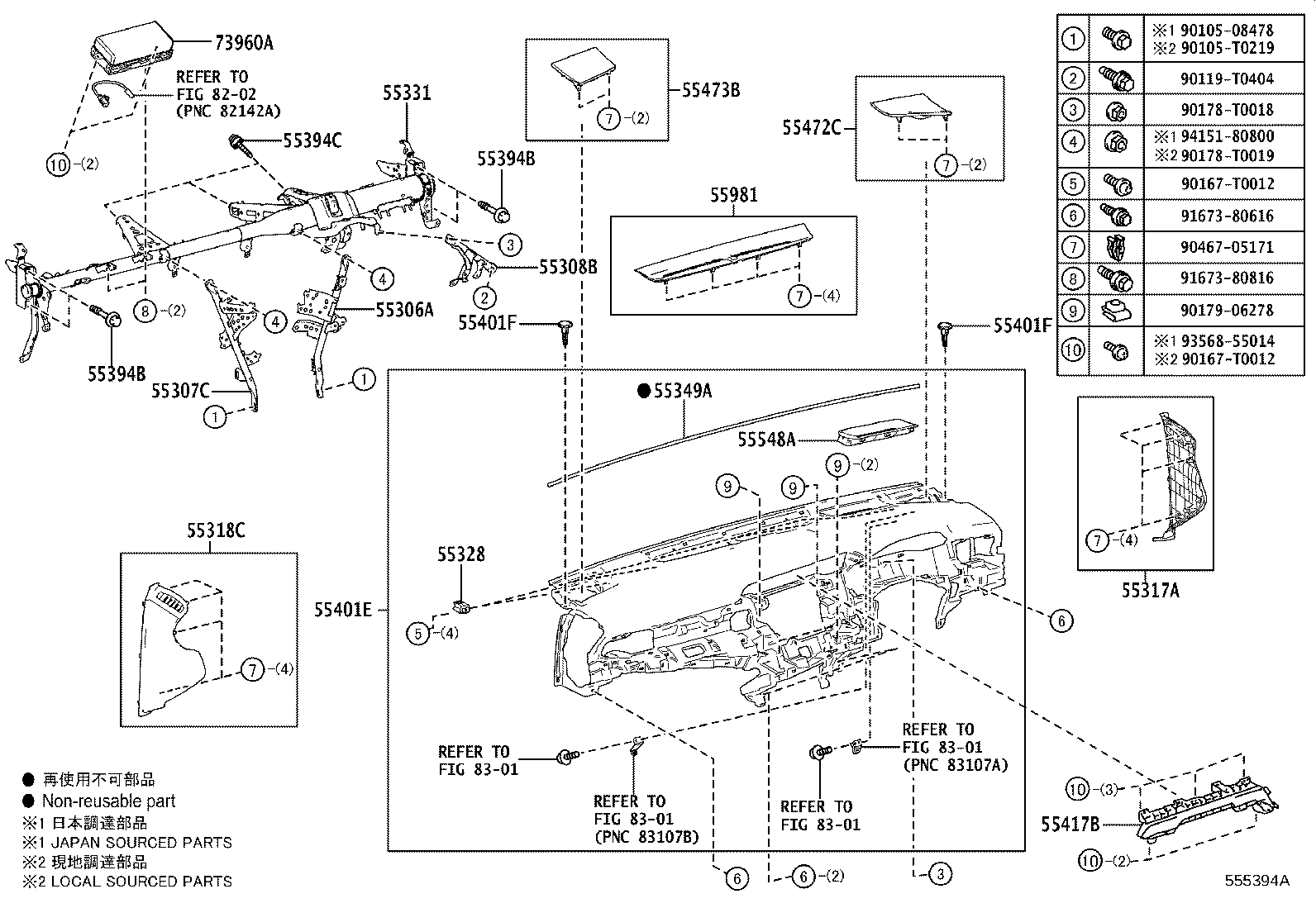

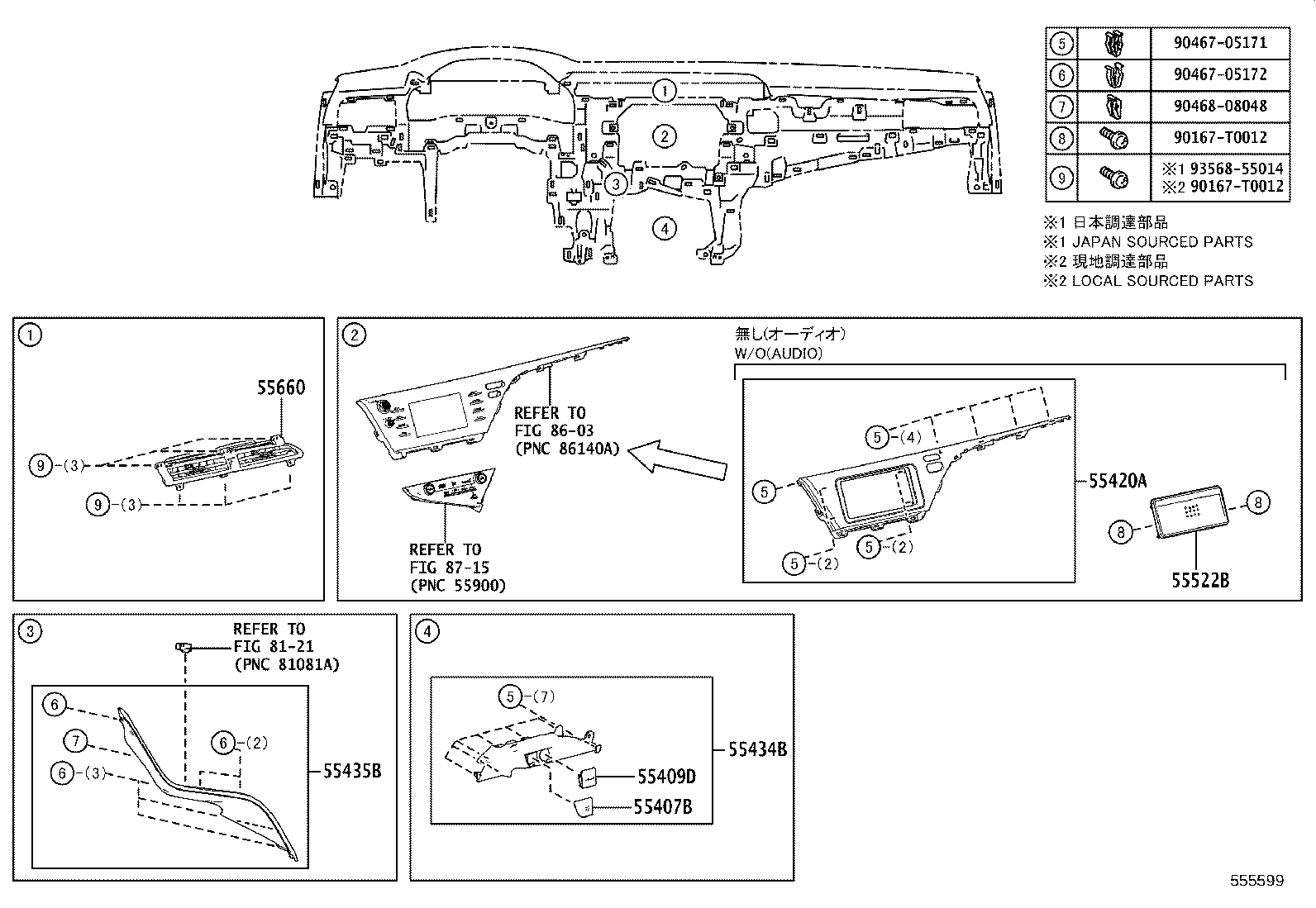

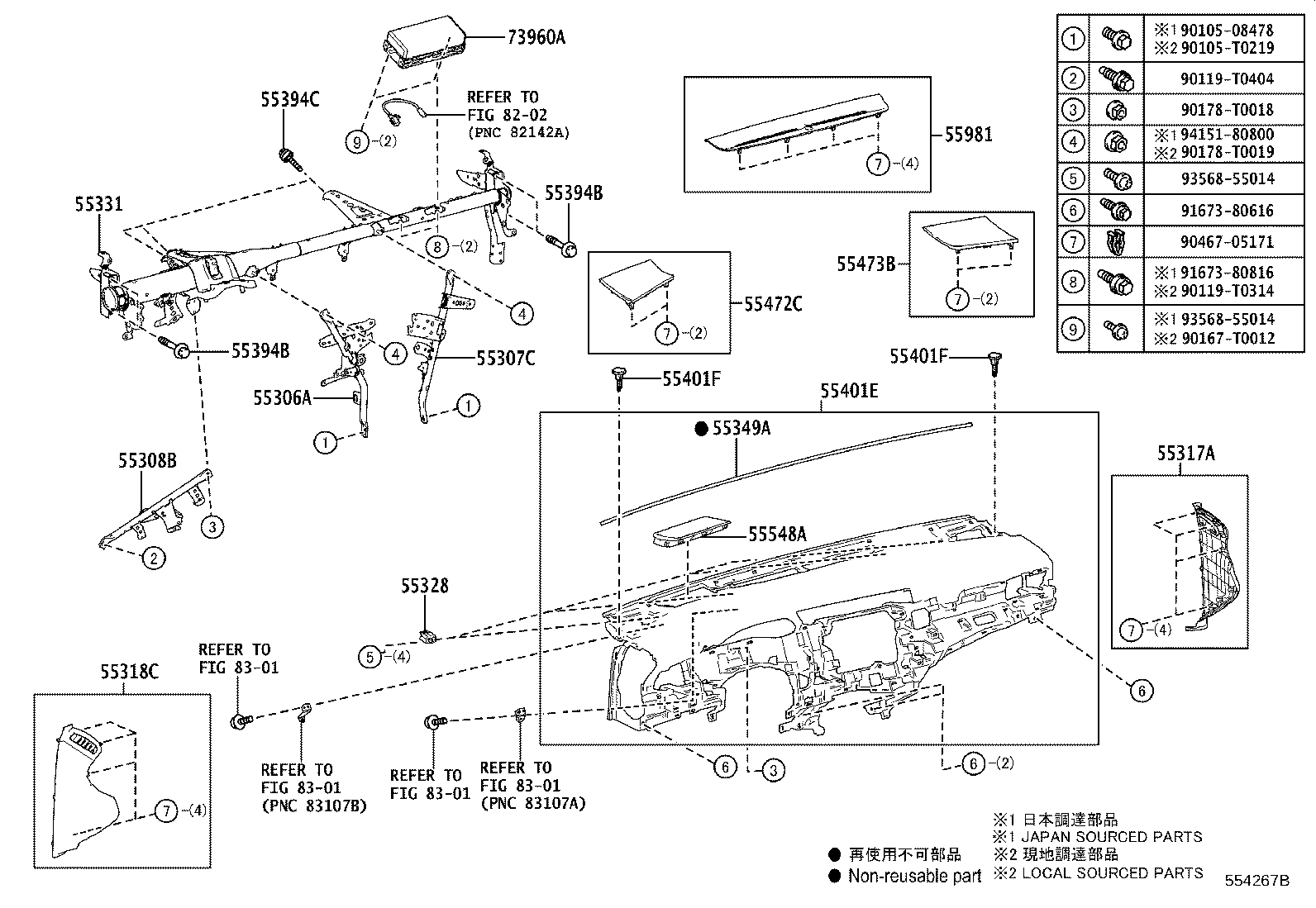

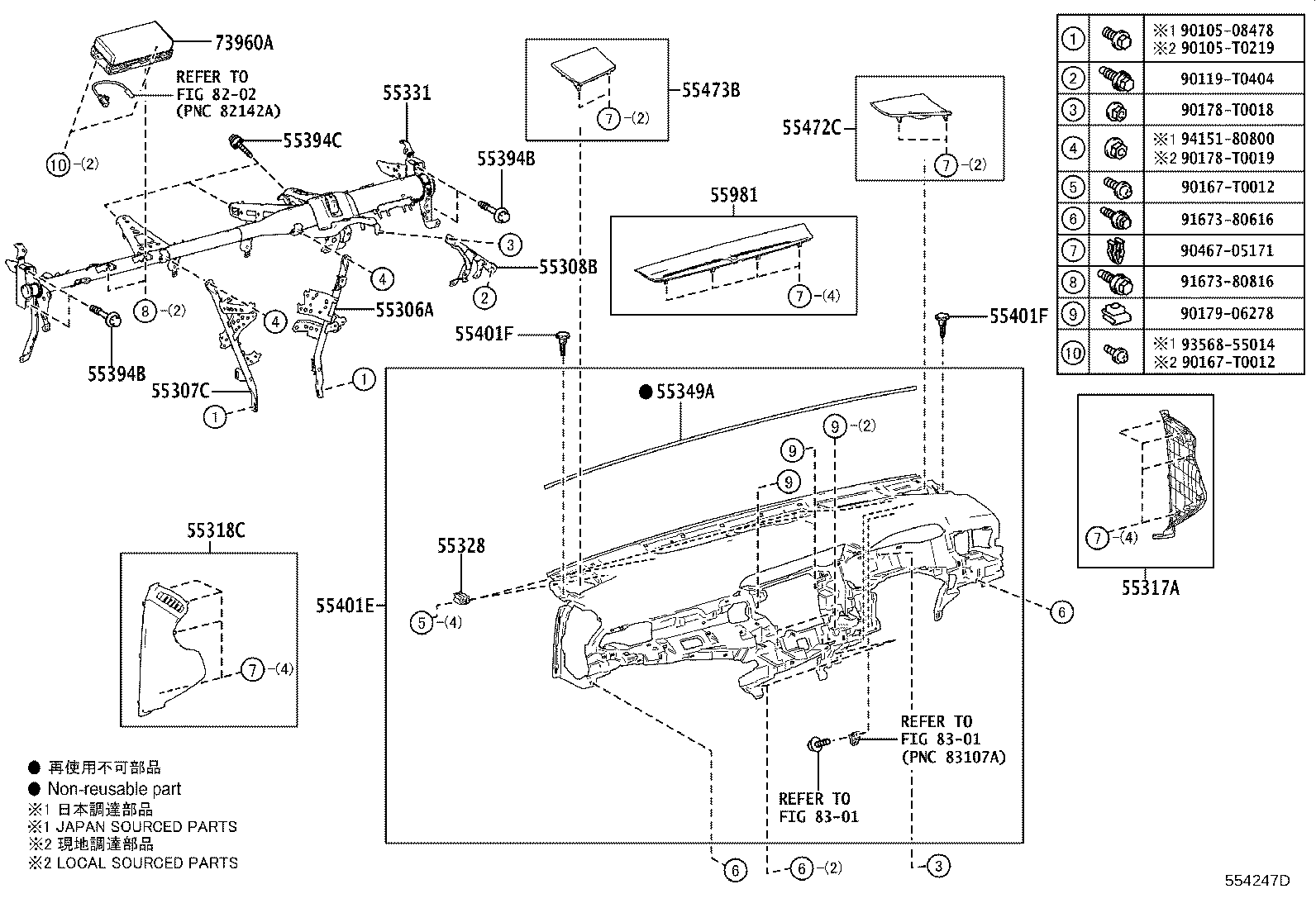

Figure 554246D 554246D 2018-10 → — Figure 554267C 554267C 2018-10 → — Figure 554247D 554247D 2018-10 → 2021-10 Figure 554247D 554247D 2018-10 → — Figure 554268C 554268C 2018-10 → 2021-10 Figure 554268C 554268C 2018-10 → 2021-12 Figure 554268C 554268C 2018-10 → — Figure 555391A 555391A 2021-11 → — Figure 555392A 555392A 2021-11 → — Figure 555393A 555393A 2021-11 → — Figure 555394A 555394A 2021-11 → — Figure 555394A 555394A 2021-12 → — Figure 555598 555598 2018-10 → — Figure 555599 555599 2018-10 → — Figure 555600 555600 2018-10 → — Figure 555601 555601 2018-10 → 2021-10 Figure 555601 555601 2018-10 → — Figure 555601 555601 2018-12 → 2021-12 Figure 555602 555602 2018-10 → 2021-10 Figure 555602 555602 2018-10 → — Figure 555602 555602 2018-12 → 2021-12 Figure 555603 555603 2018-10 → 2021-10 Figure 555603 555603 2018-10 → — Figure 555603 555603 2018-12 → 2021-12 Figure 555604 555604 2021-11 → — Figure 555605 555605 2021-11 → — Figure 555606 555606 2021-11 → — Figure 555607 555607 2021-11 → — Figure 555608 555608 2021-11 → — Figure 555609 555609 2021-11 → — Figure 555610 555610 2021-11 → — Figure 555611 555611 2021-11 → — Figure 555612 555612 2021-11 → — Figure 555613 555613 2021-11 → — Figure 555613 555613 2021-12 → — Figure 555614A 555614A 2021-11 → — Figure 555614A 555614A 2021-12 → — Figure 555615 555615 2021-11 → — Figure 555615 555615 2021-12 → — Figure 555616 555616 2021-11 → — Figure 555617 555617 2021-11 → — Figure 555618 555618 2021-11 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302D Panel Sub-assy, Instrument, Lower, NO.1
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55317A Panel, Instrument Side, RH
55317D Clip, Instrument Side Panel
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55407B Base Sub-assy, Switch Hole
55409D Base Sub-assy, Cigar Lighter
55410C Panel Assy, Instrument Cluster Finish
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55416C Retainer, Instrument Cluster Finish Panel
55417B Retainer, Radio Tuner Finish
55420A Panel Assy, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55423B Cover, Instrument Cluster Finish Panel
55434B Panel, Instrument Panel Finish, Lower Center
55435B Cluster, Meter Hood, NO.1
55436B Cluster, Meter Hood, NO.2
55472C Panel, Instrument Panel Speaker, NO.1
55473B Panel, Instrument Panel Speaker, NO.2
55476C Garnish, Instrument Panel Finish Plate
55480D Panel Assy, Instrument Panel Finish, Lwr
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
