Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 6 illustrations

Illustrations

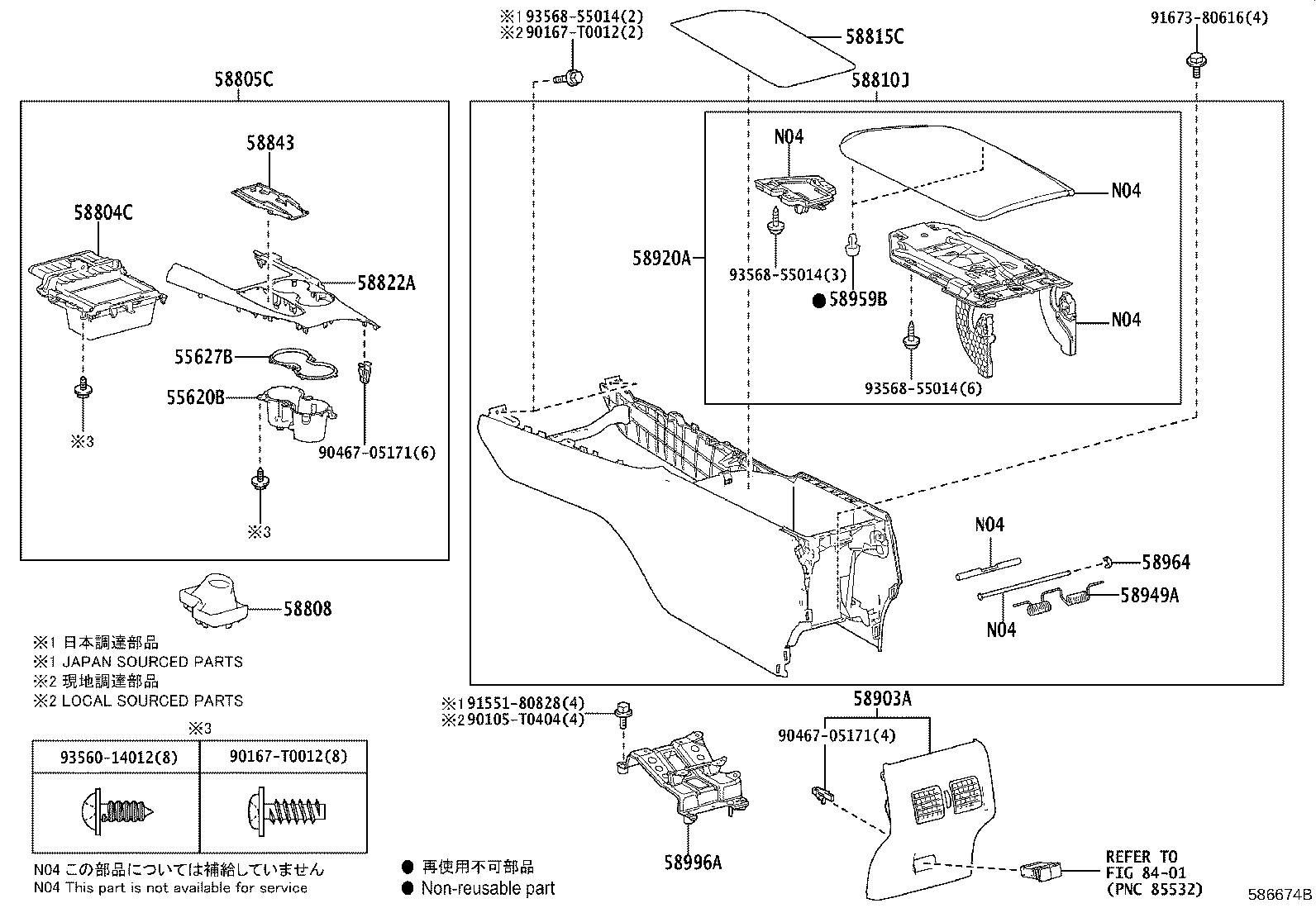

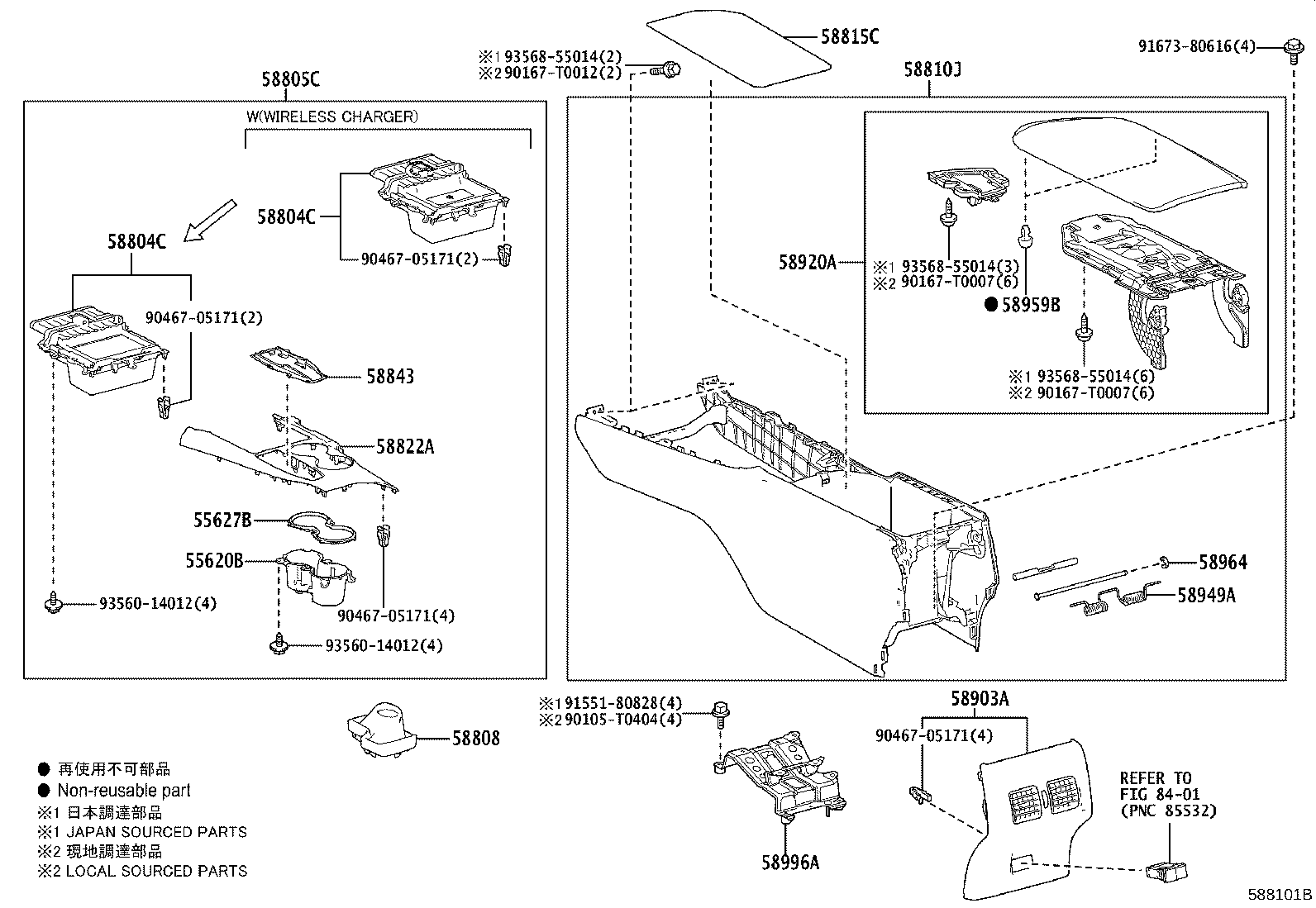

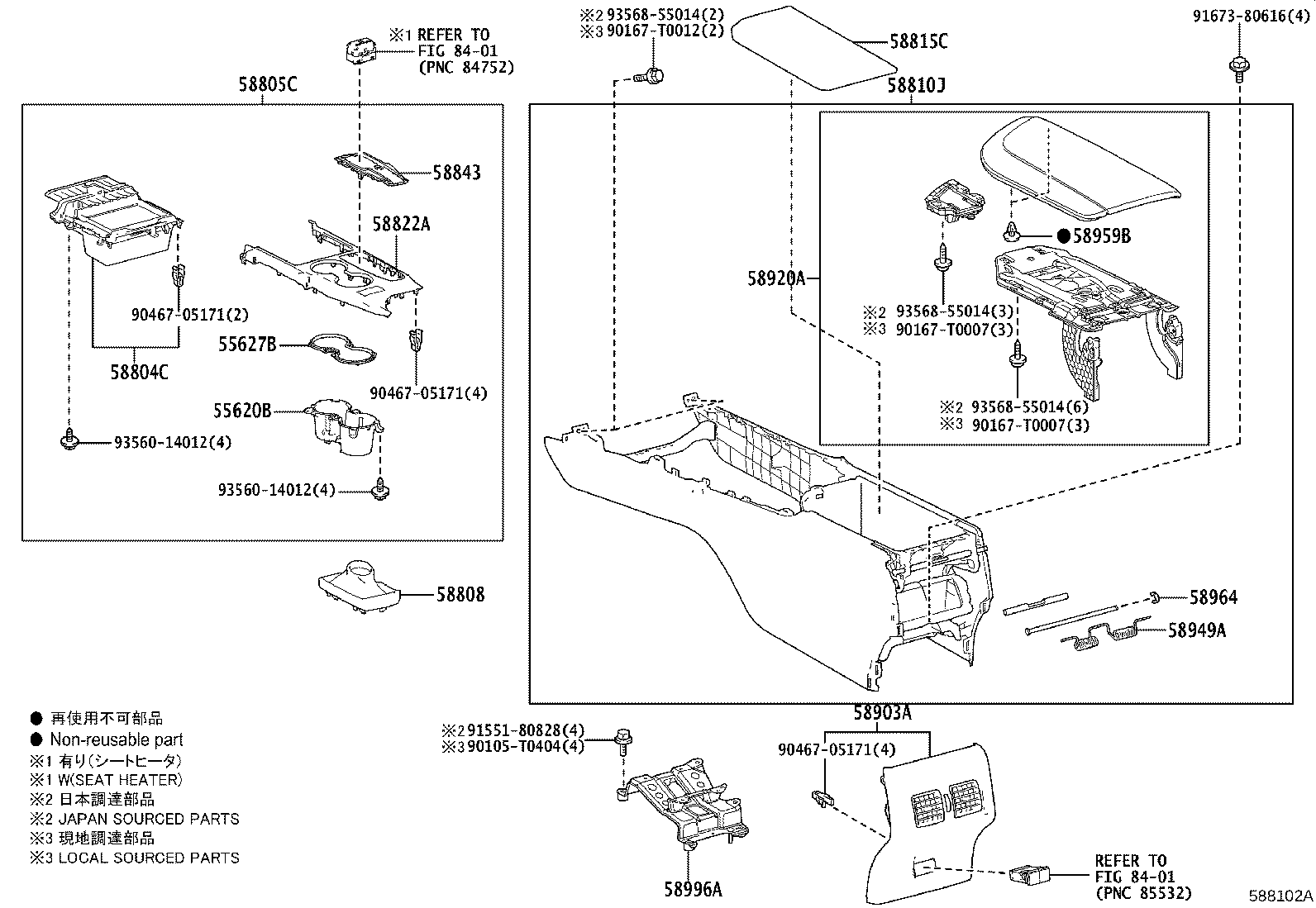

Figure 586675B 586675B 2018-10 → 2021-10 Figure 586675B 586675B 2018-10 → 2021-12 Figure 586675B 586675B 2018-10 → — Figure 586674B 586674B 2018-10 → — Figure 588101B 588101B 2021-10 → — Figure 588102A 588102A 2021-10 → —

Part groups

PNCDescription
55620B Holder, Instrument Panel Cup
55627B Rail, Console Box Cup Holder
58804C Insert Sub-assy, Console Box, Front
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58815C Carpet, Console Box
58822A Panel, Console, Upper Rear
58843 Bezel, Shifting Hole
58903A Panel Sub-assy, Console Rear End
58920A Armrest Assy, Rear Console
58949A Spring, Console Box Mounting Bracket
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
