Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 4 illustrations

Illustrations

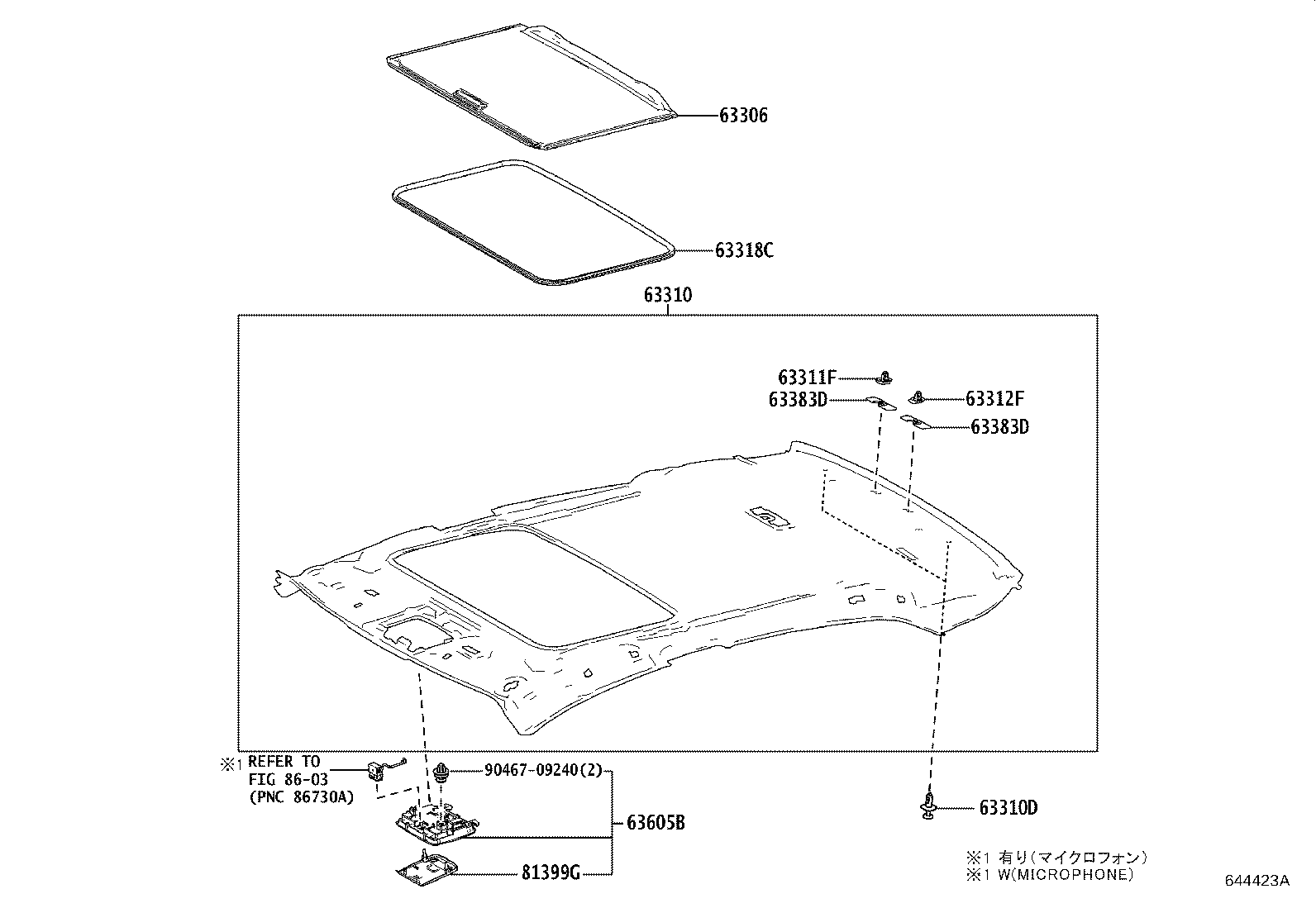

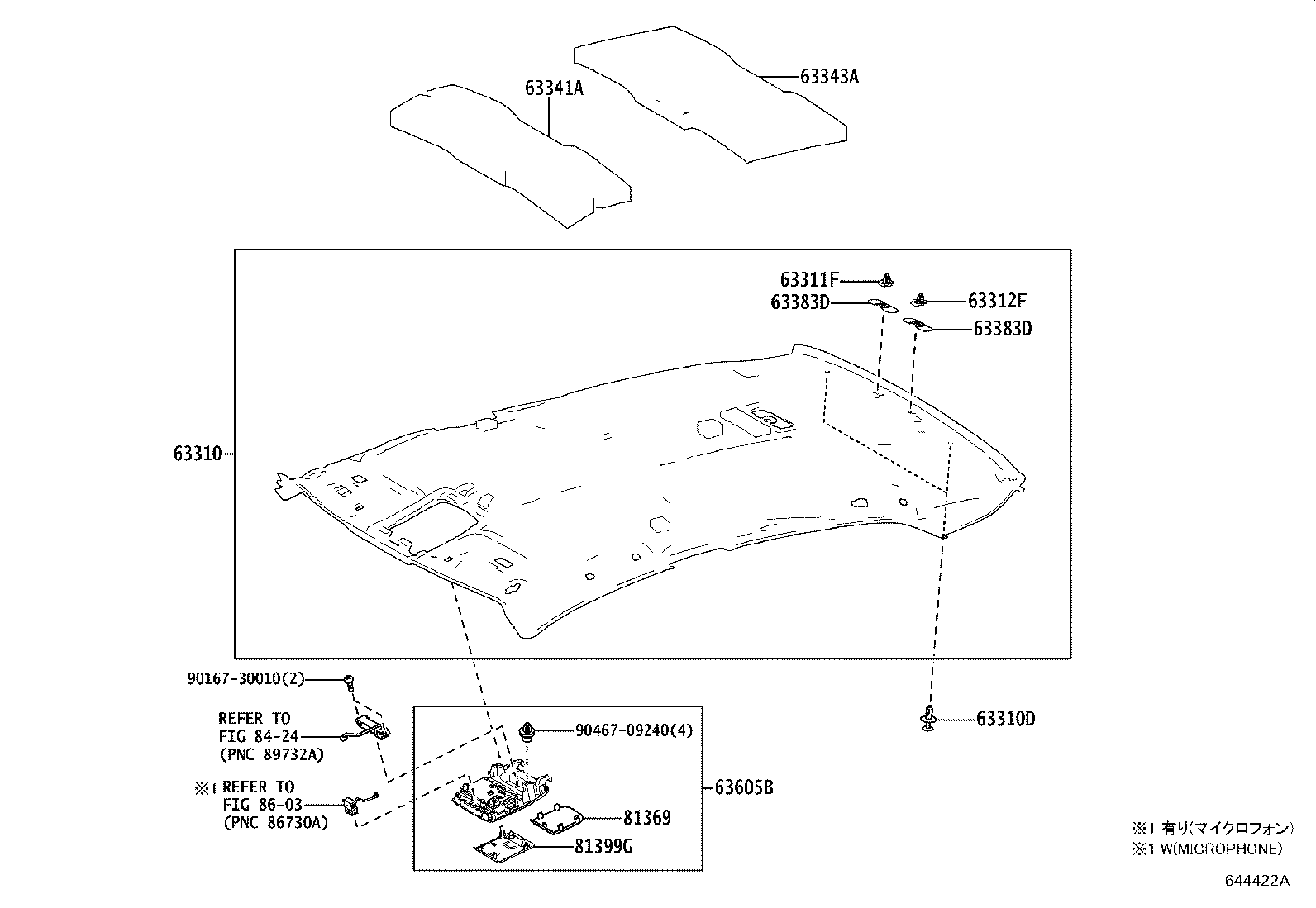

Figure 644421A 644421A 2018-10 → — Figure 644422A 644422A 2018-10 → — Figure 644422A 644422A 2021-10 → — Figure 644423A 644423A 2018-10 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63341A Silencer, Roof, NO.1
63343A Silencer, Roof, NO.3
63383D Retainer, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
63665C Mat, Roof Console Box
81369 Cover, Spot Lamp
81399G Cover, Lens
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
