Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

89 part groups · 22 illustrations

Illustrations

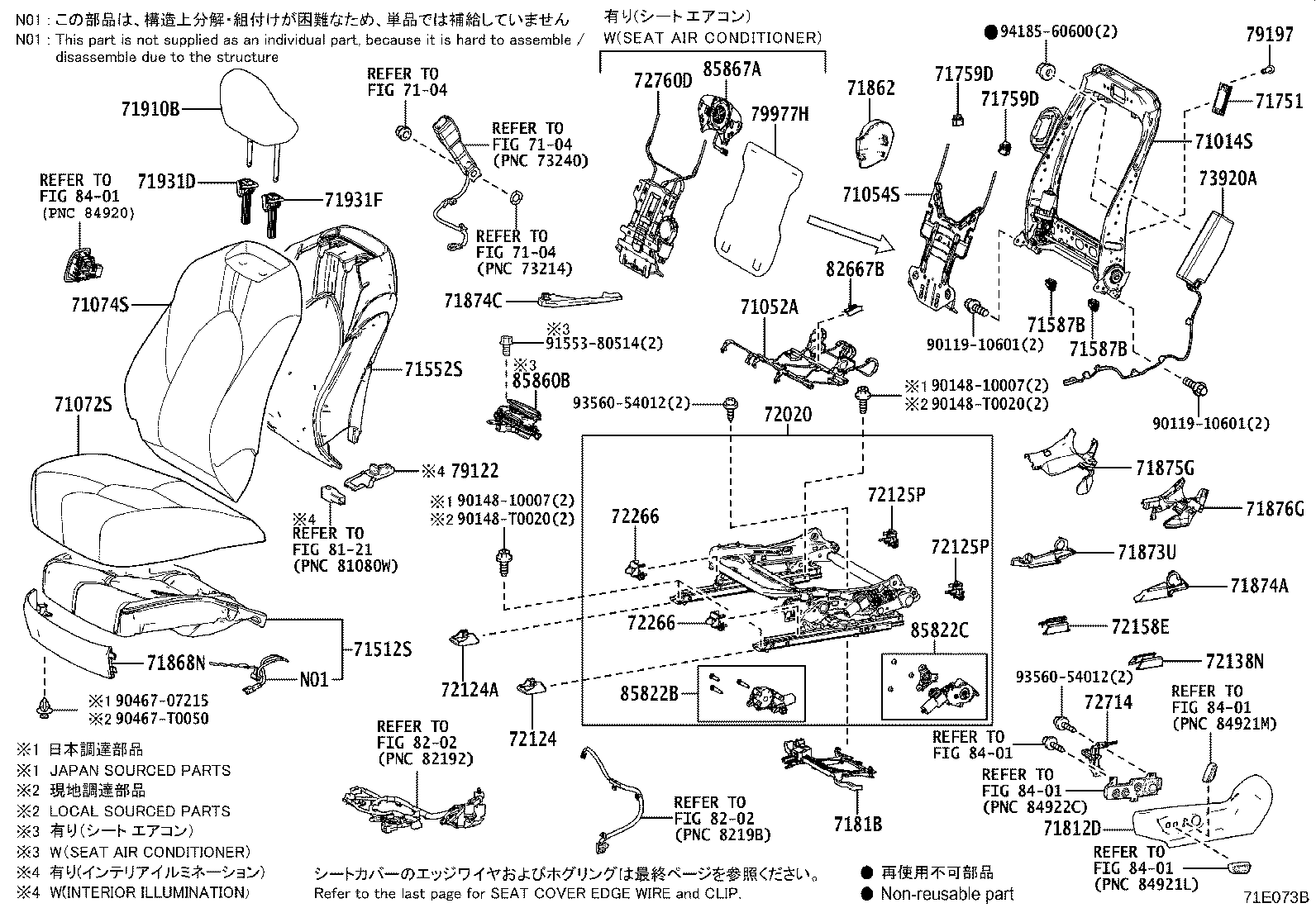

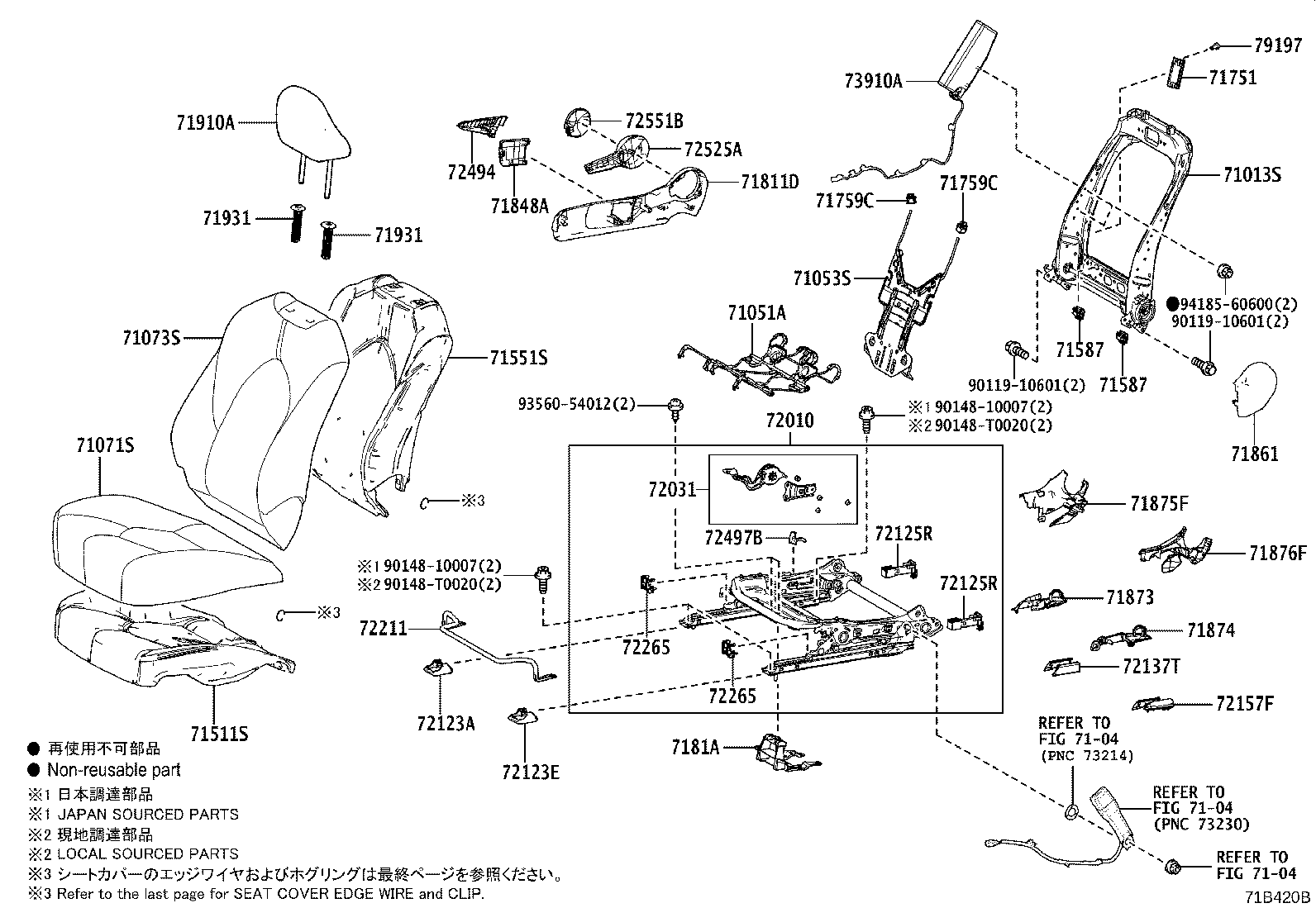

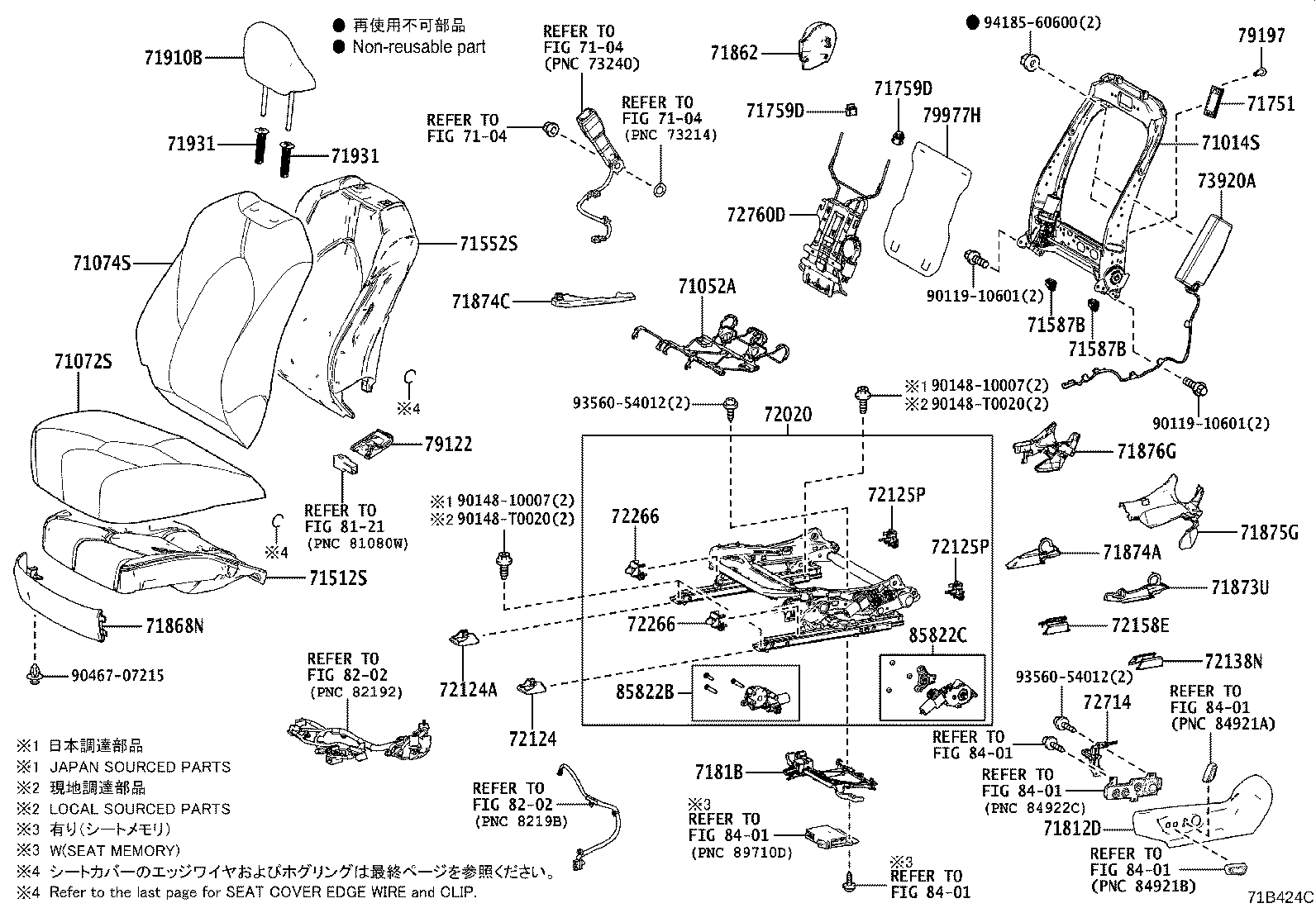

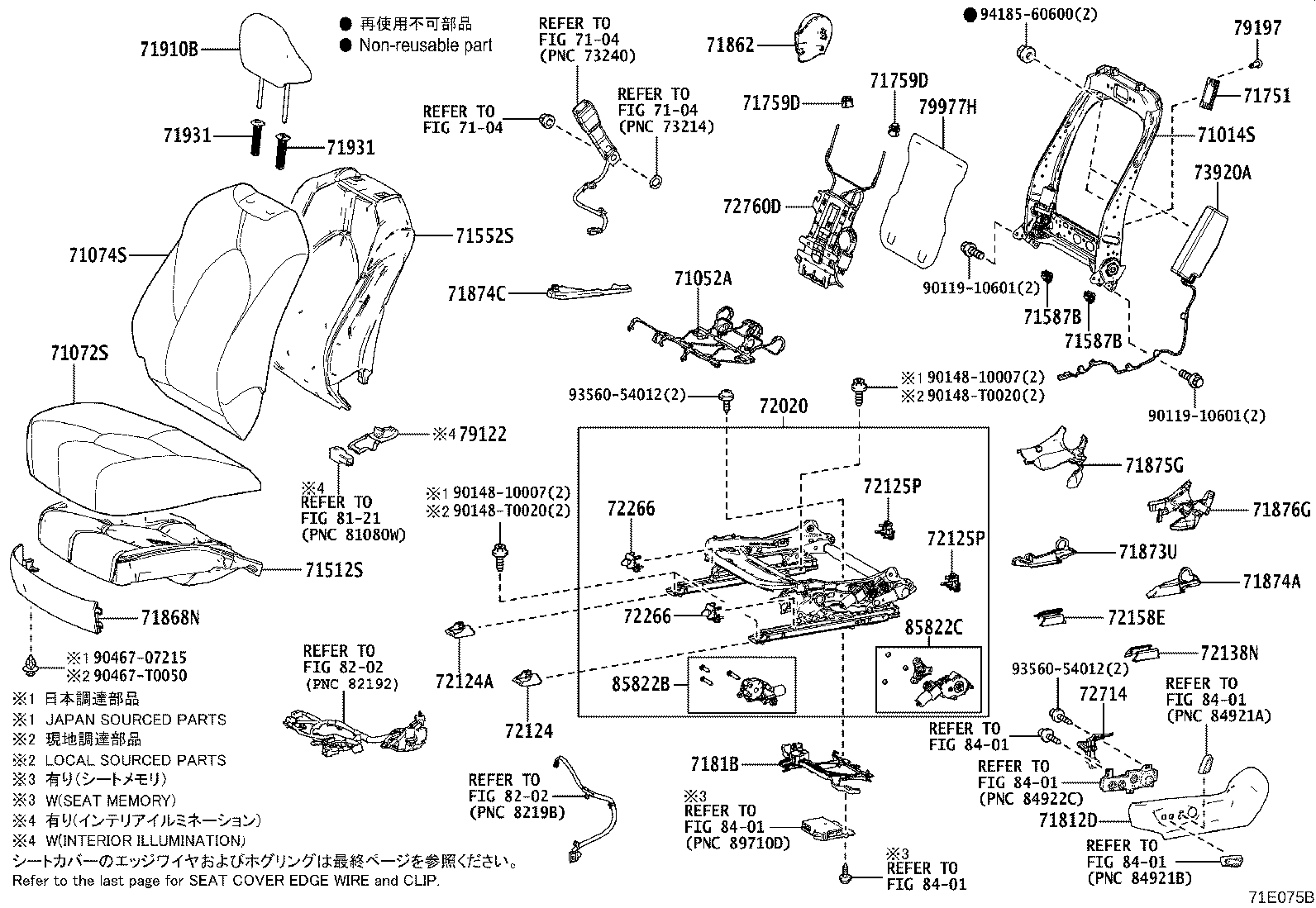

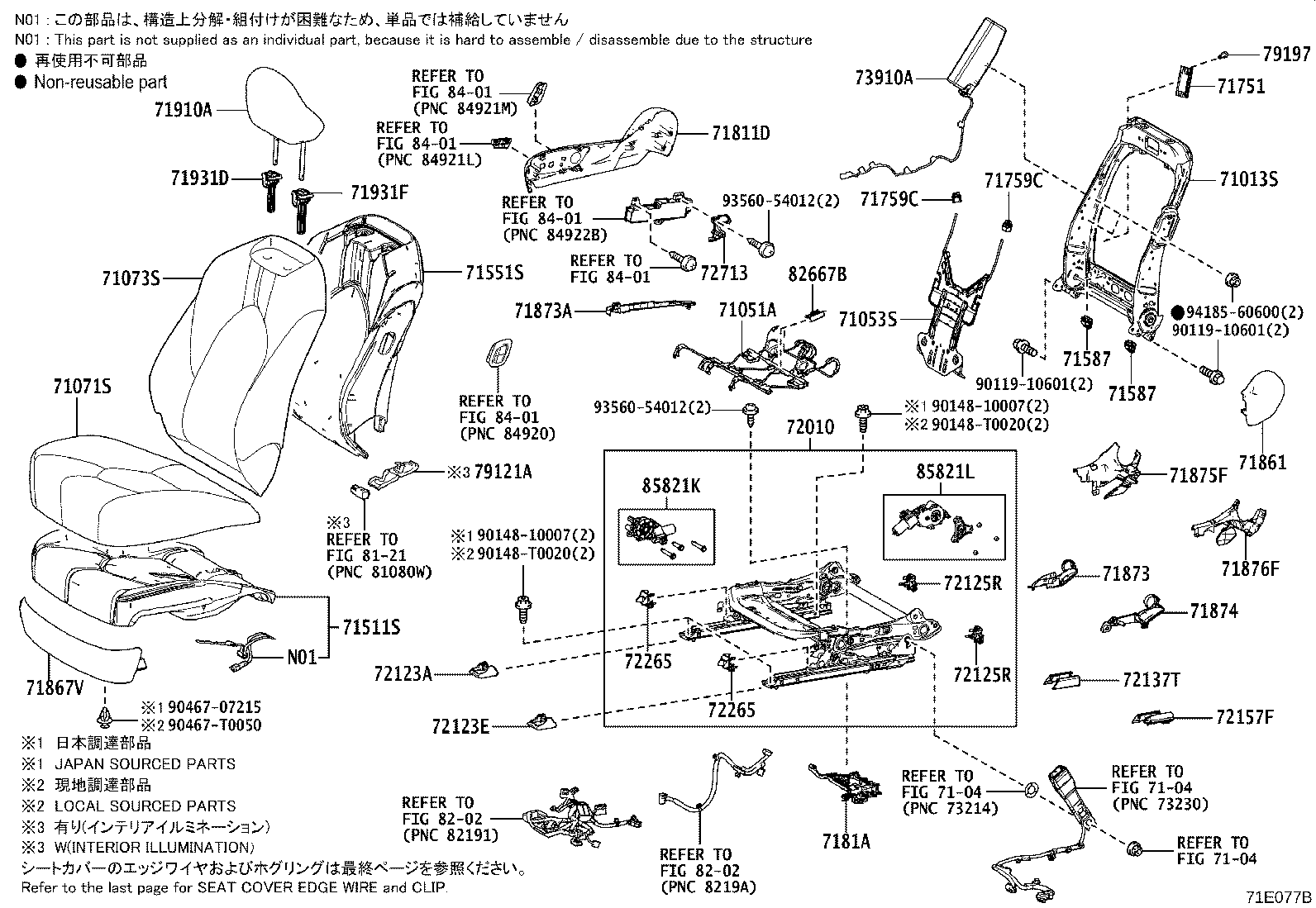

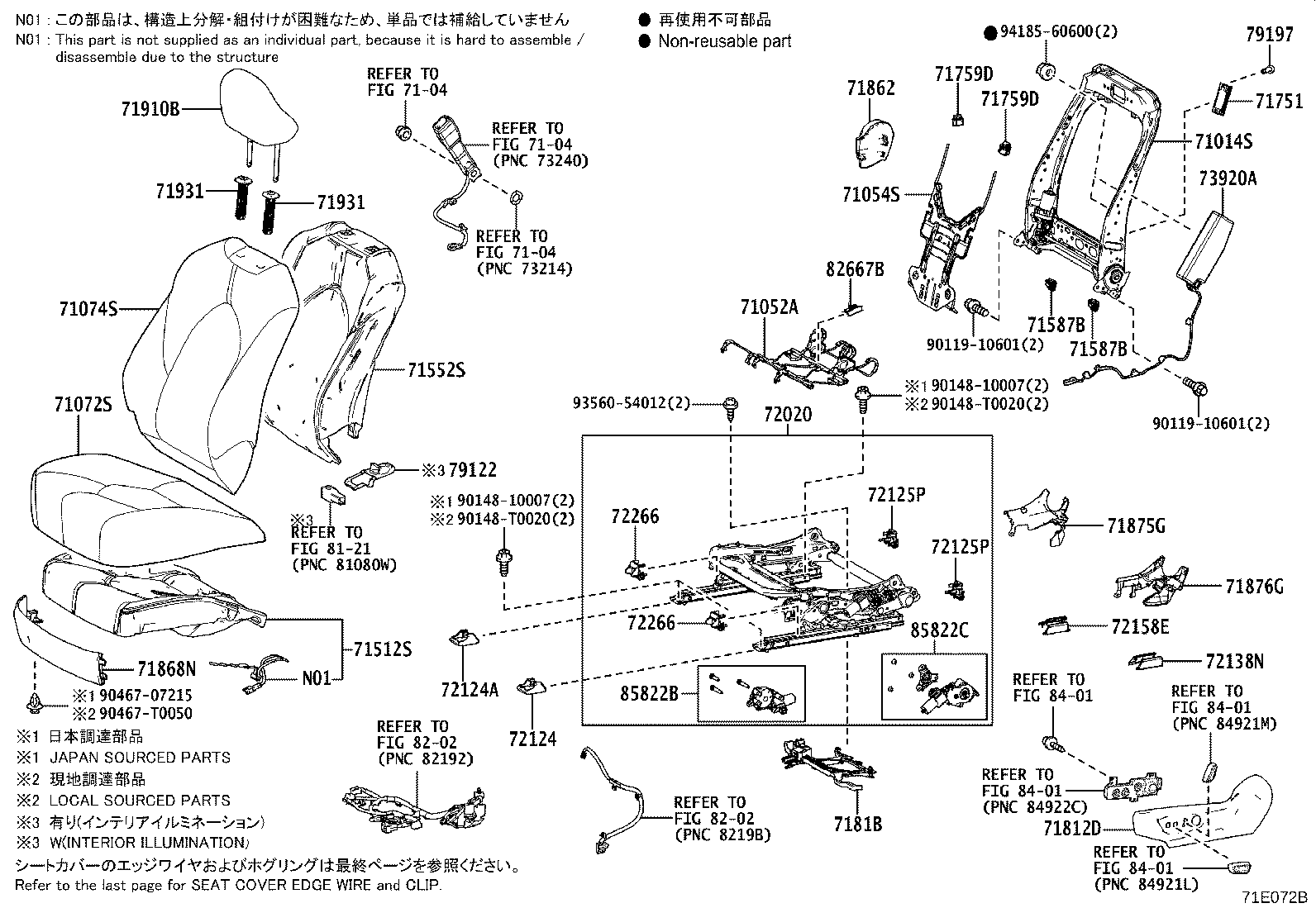

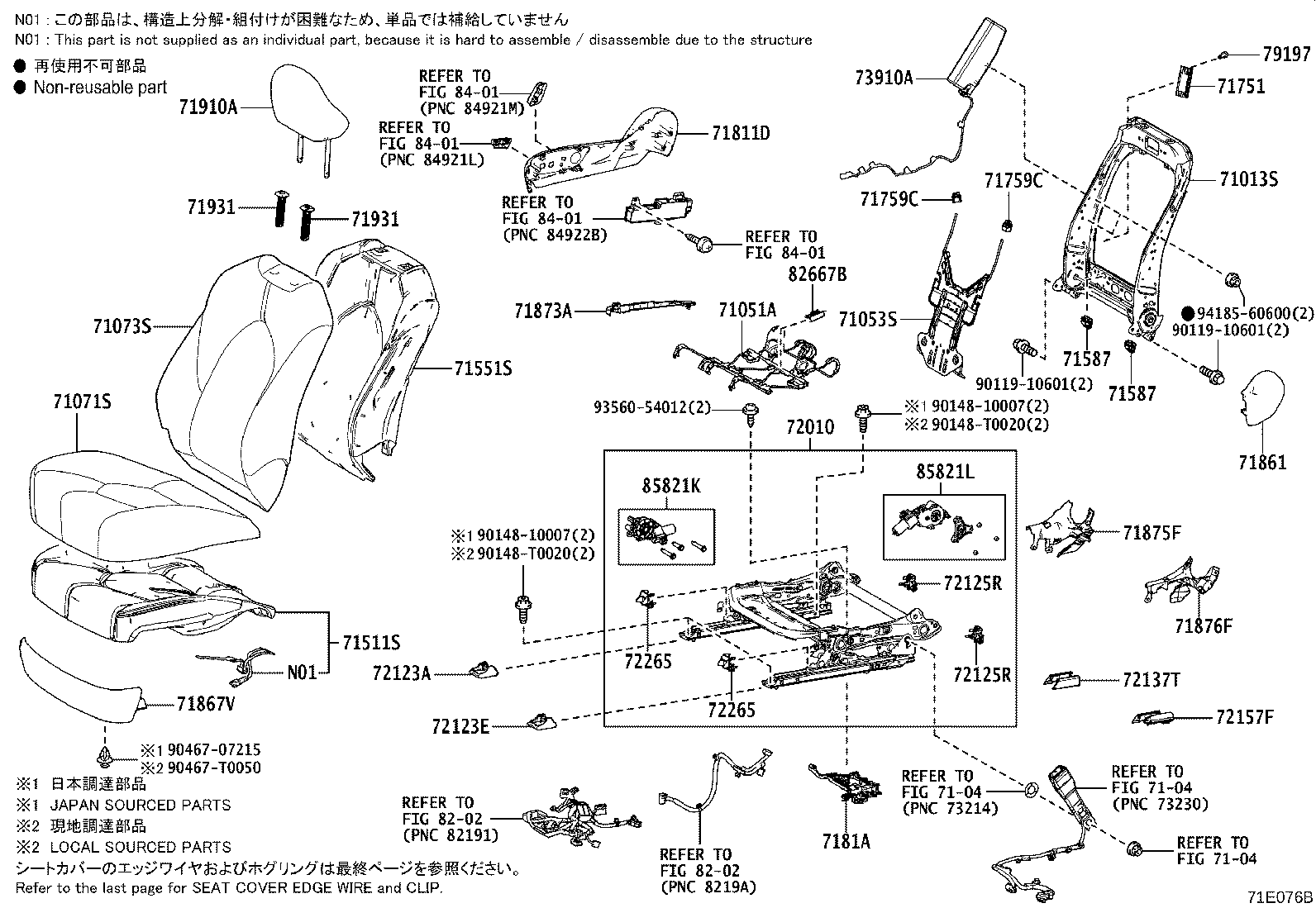

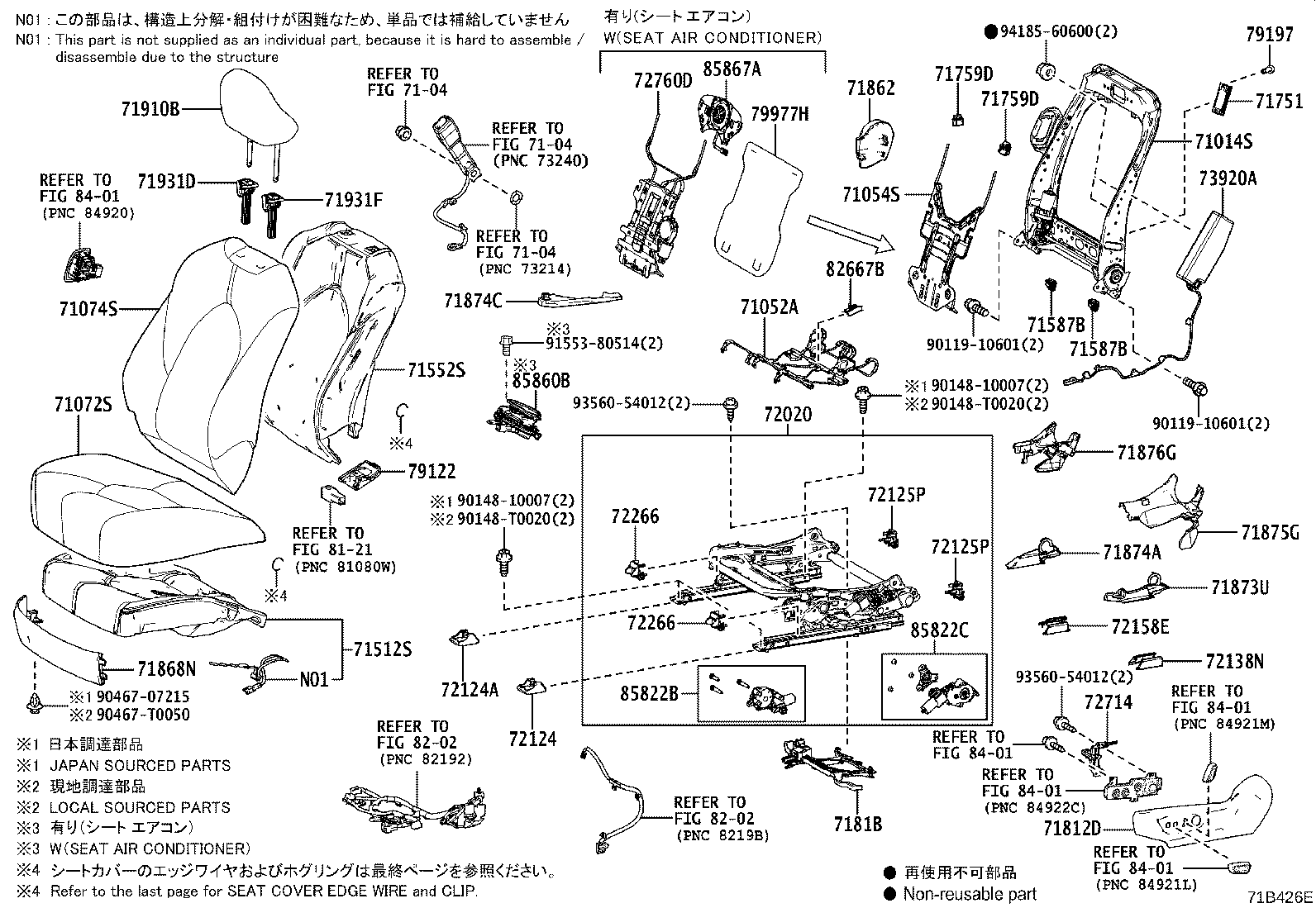

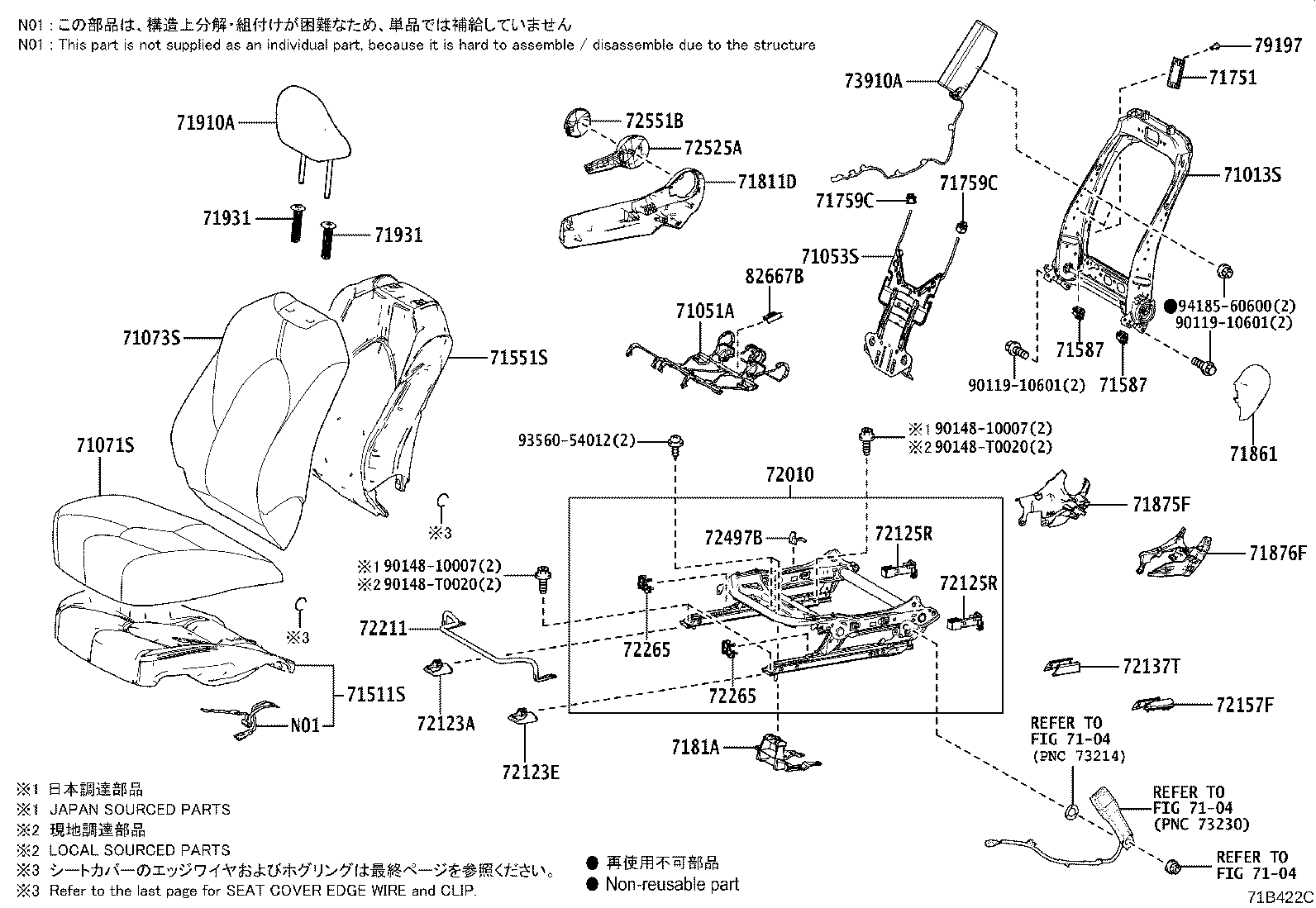

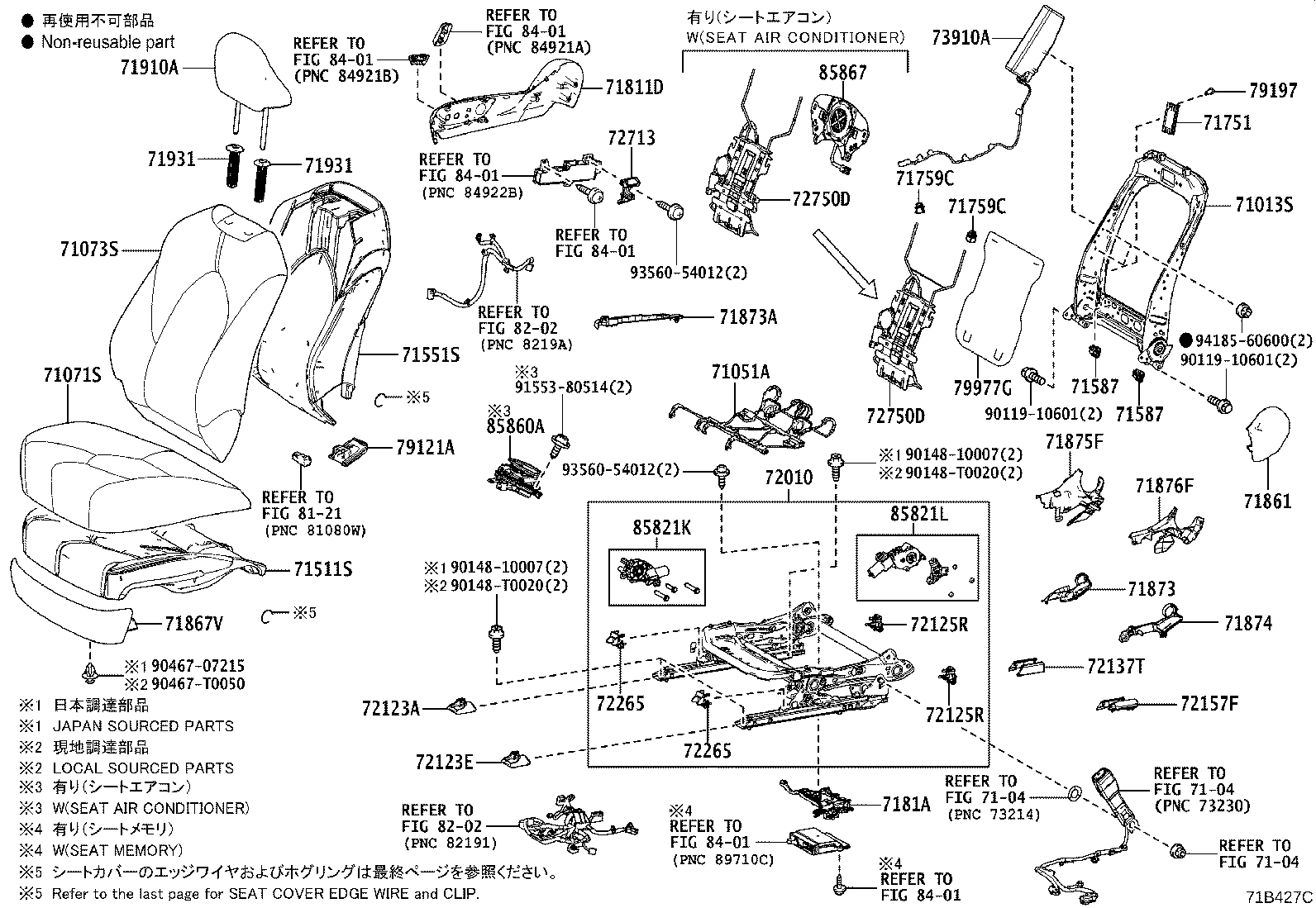

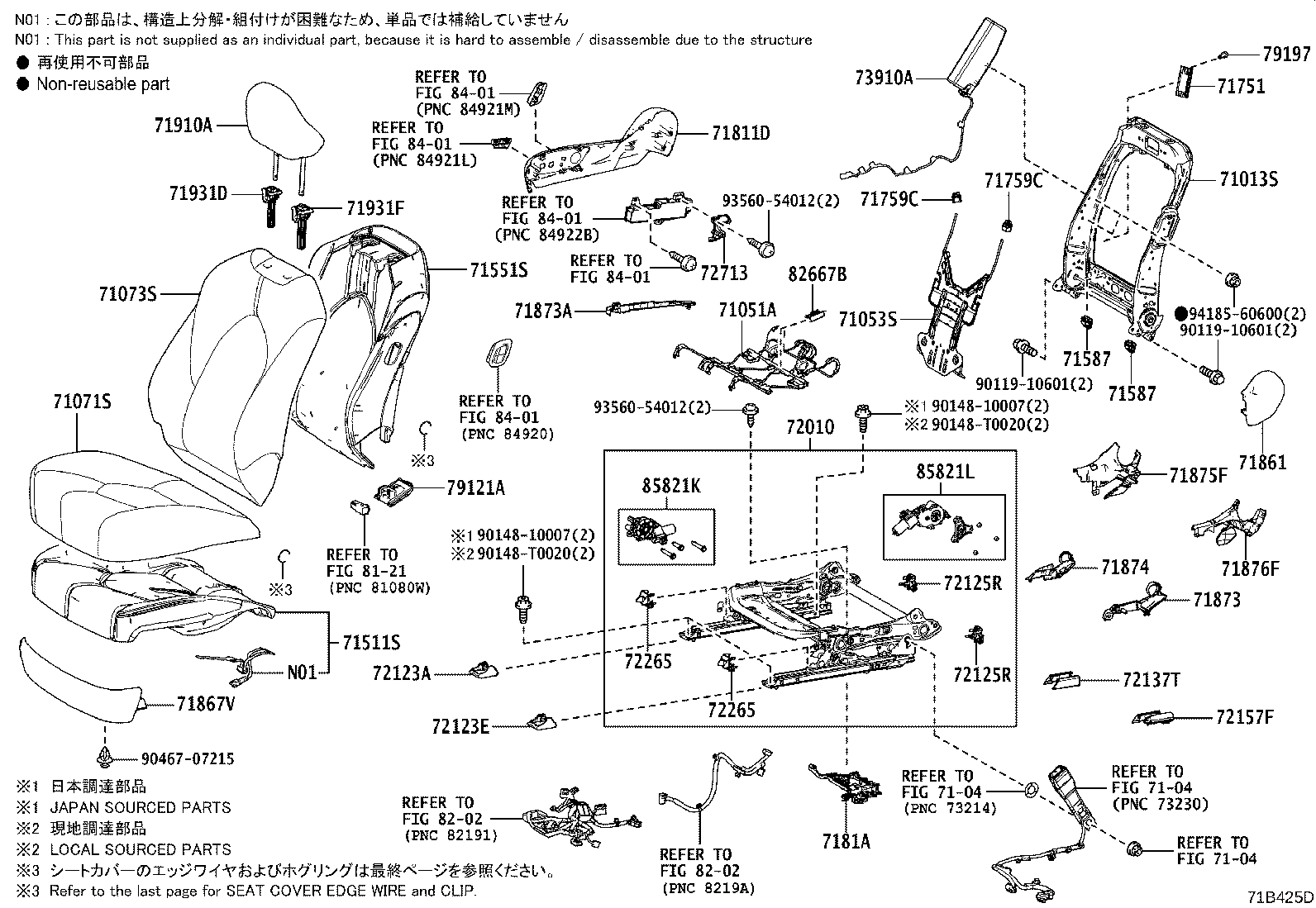

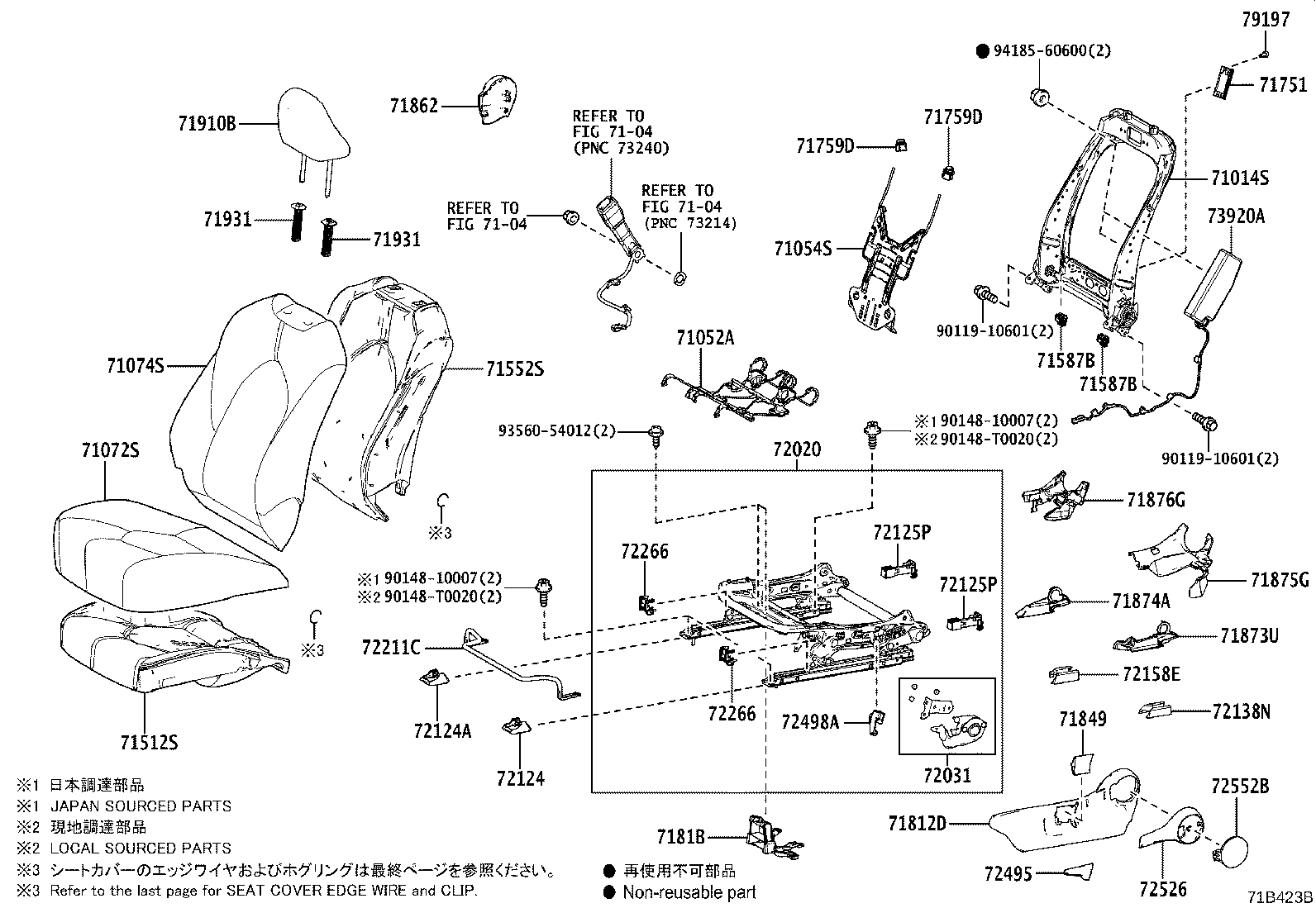

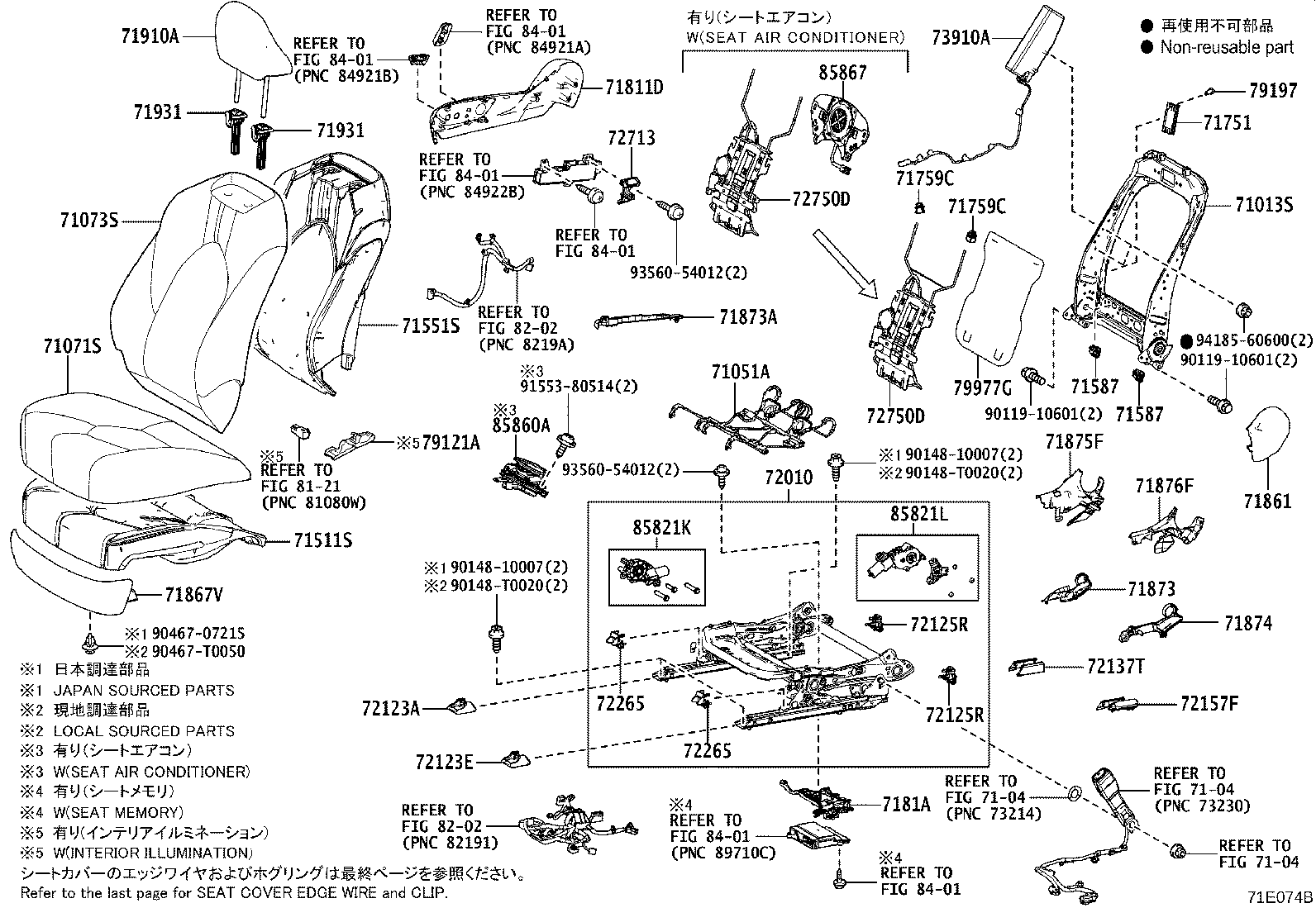

Figure 71B421B 71B421B 2018-10 → — Figure 71B423B 71B423B 2018-10 → — Figure 71B424D 71B424D 2018-10 → — Figure 71B426E 71B426E 2018-10 → 2021-10 Figure 71B426E 71B426E 2018-10 → — Figure 71B426E 71B426E 2021-10 → 2021-12 Figure 71B420B 71B420B 2018-10 → — Figure 71B422C 71B422C 2018-10 → — Figure 71B425D 71B425D 2018-10 → — Figure 71B427C 71B427C 2018-10 → 2021-10 Figure 71B427C 71B427C 2018-10 → — Figure 71B427C 71B427C 2021-10 → 2021-12 Figure 71E072B 71E072B 2021-11 → — Figure 71E072B 71E072B 2021-12 → — Figure 71E073B 71E073B 2021-11 → — Figure 71E073B 71E073B 2021-12 → — Figure 71E074B 71E074B 2021-11 → — Figure 71E074B 71E074B 2021-12 → — Figure 71E075B 71E075B 2021-11 → — Figure 71E076B 71E076B 2021-11 → — Figure 71E077B 71E077B 2021-11 → — Figure 71A647 71A647 2018-10 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71751 Hanger, Seat Cover
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71910B Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931D Support, Front Seat Headrest, RH
71931F Support, Front Seat Headrest, LH
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72031 Adjuster Assy, Front Seat Vertical
72123A Cover, Seat Track Bracket, Outer Front RH
72123E Cover, Seat Track Bracket, Inner Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72124A Cover, Seat Track Bracket, Inner Front LH
72125P Cover, Seat Track, Upper Rear NO.3
72125R Cover, Seat Track, Upper Rear NO.1
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72497B Cover, Vertical Adjuster Bracket, RH
72498A Cover, Vertical Adjuster Bracket, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79121A Bracket, Front Seat Cushion, RH
79122 Bracket, Front Seat Cushion, LH
79197 Hook, Seatback Cover
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
82667B Holder, Connector
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
