Factory parts data · Europe

Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

4 part groups · 3 illustrations

Illustrations

Figure 818680B

818680B 2018-10 → —

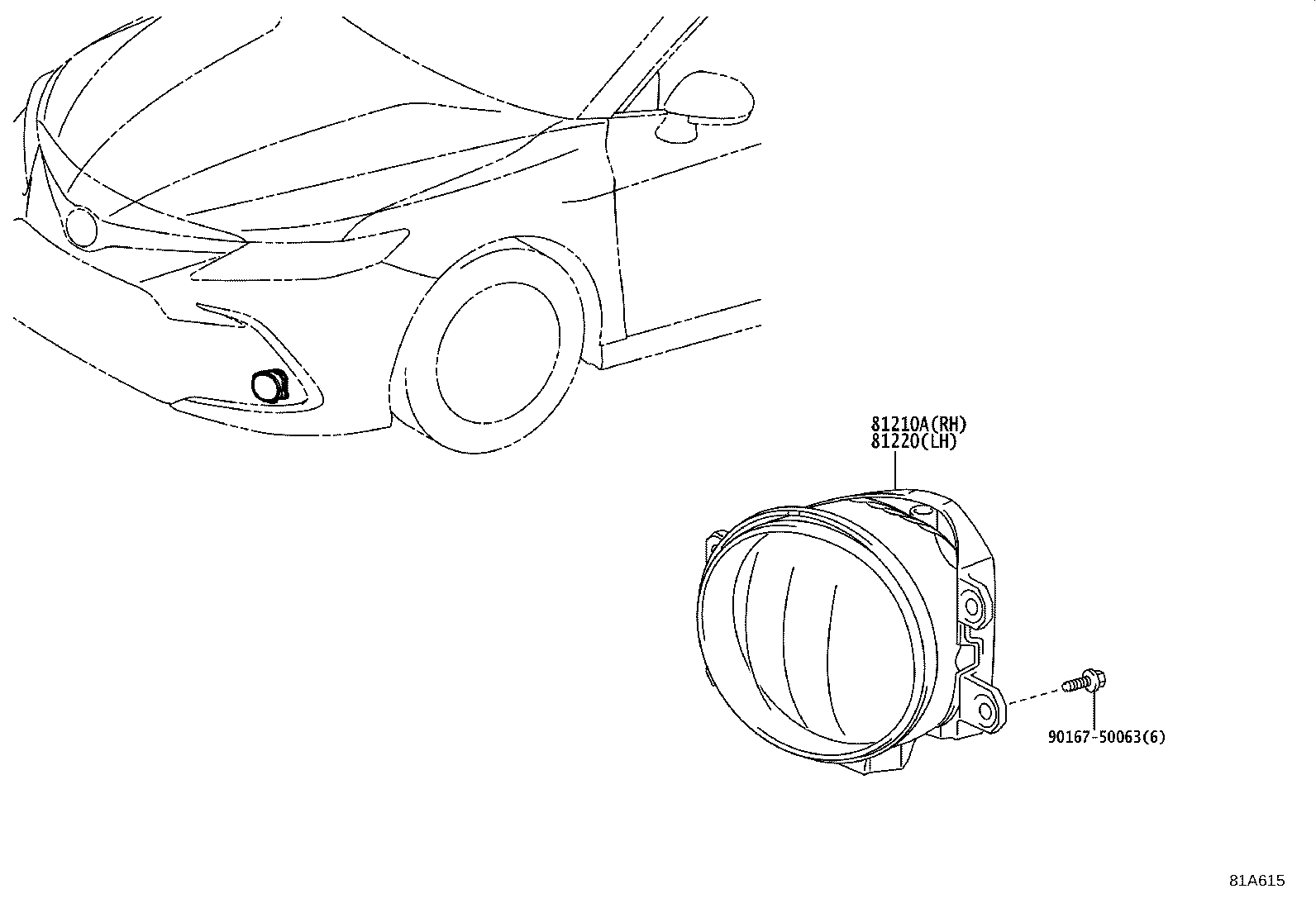

Figure 81A615

81A615 2021-11 → —

Figure 81A615

81A615 2021-12 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81219A	Bracket, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
