Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 4 illustrations

Illustrations

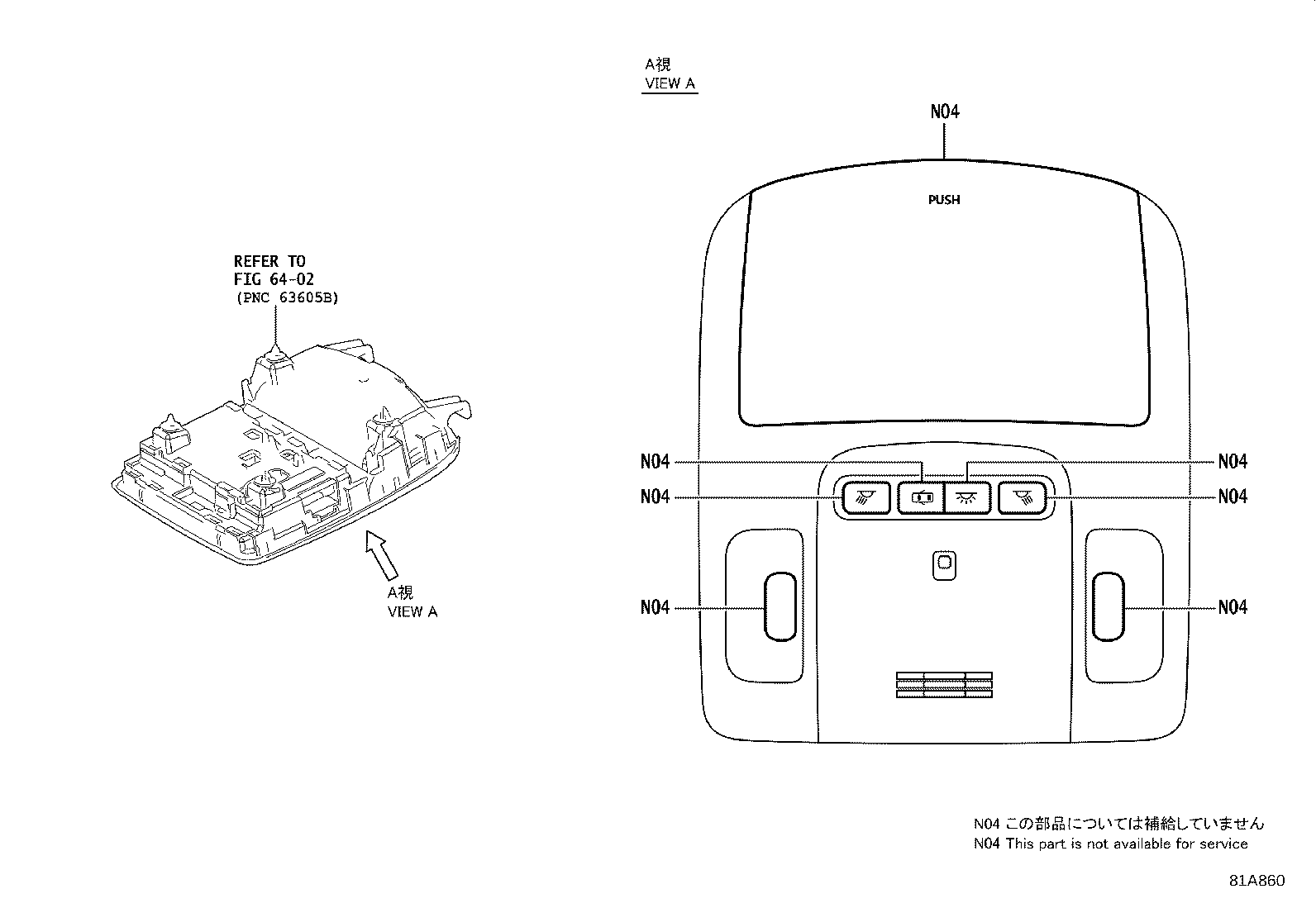

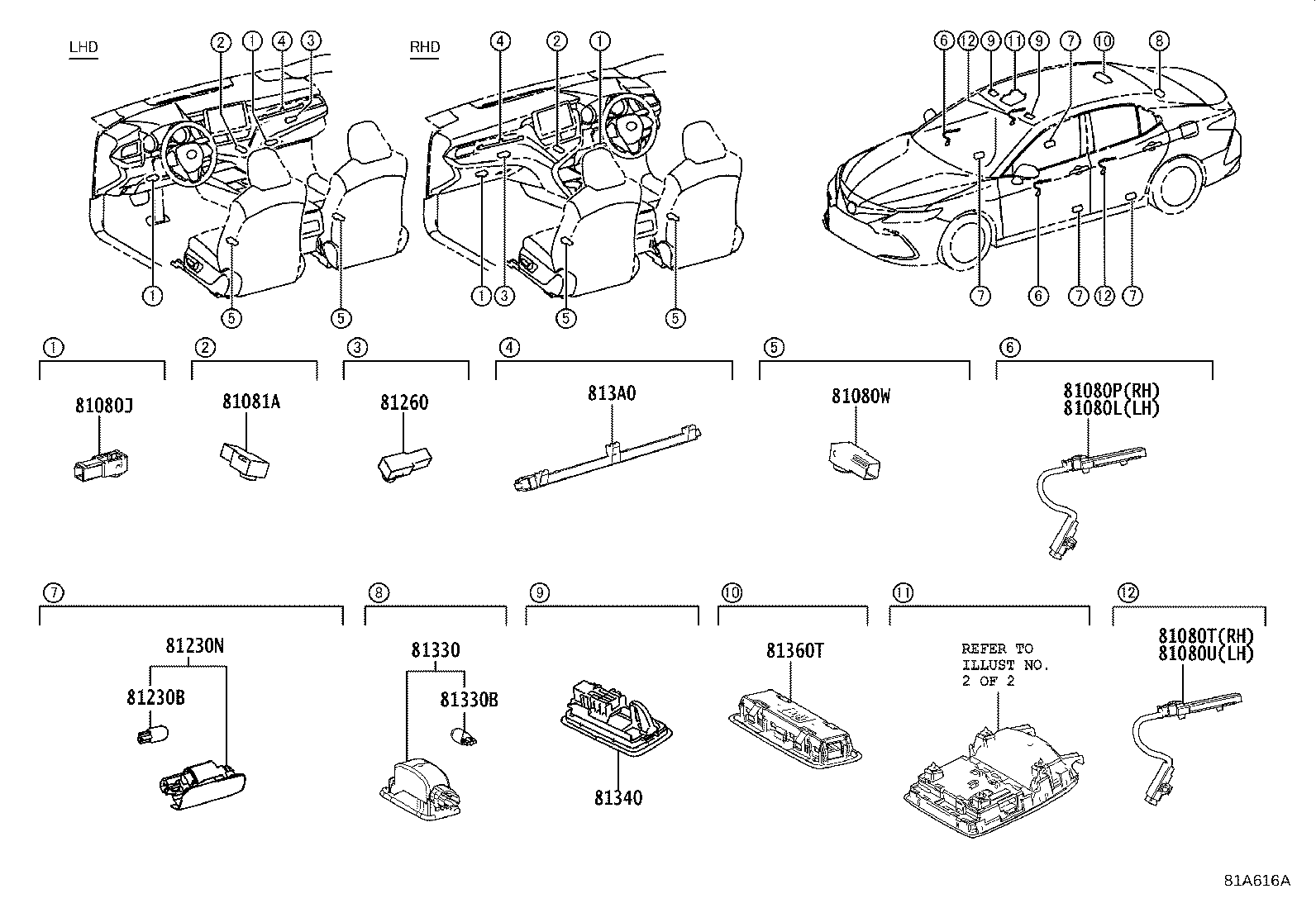

Figure 818688A 818688A 2018-10 → — Figure 81A616A 81A616A 2021-11 → — Figure 81A616A 81A616A 2021-12 → — Figure 81A860 81A860 2018-10 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81080W Lamp Assy, Interior Illumination, NO.3
81081A Lamp Sub-assy, Interior Illumination, NO.2
81230B Bulb(FOR COURTESY LAMP)
81230N Lamp Assy, Courtesy, LH
81260 Lamp Assy, Glove Box
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
813A0 Lamp Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
