Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

9 part groups · 6 illustrations

Illustrations

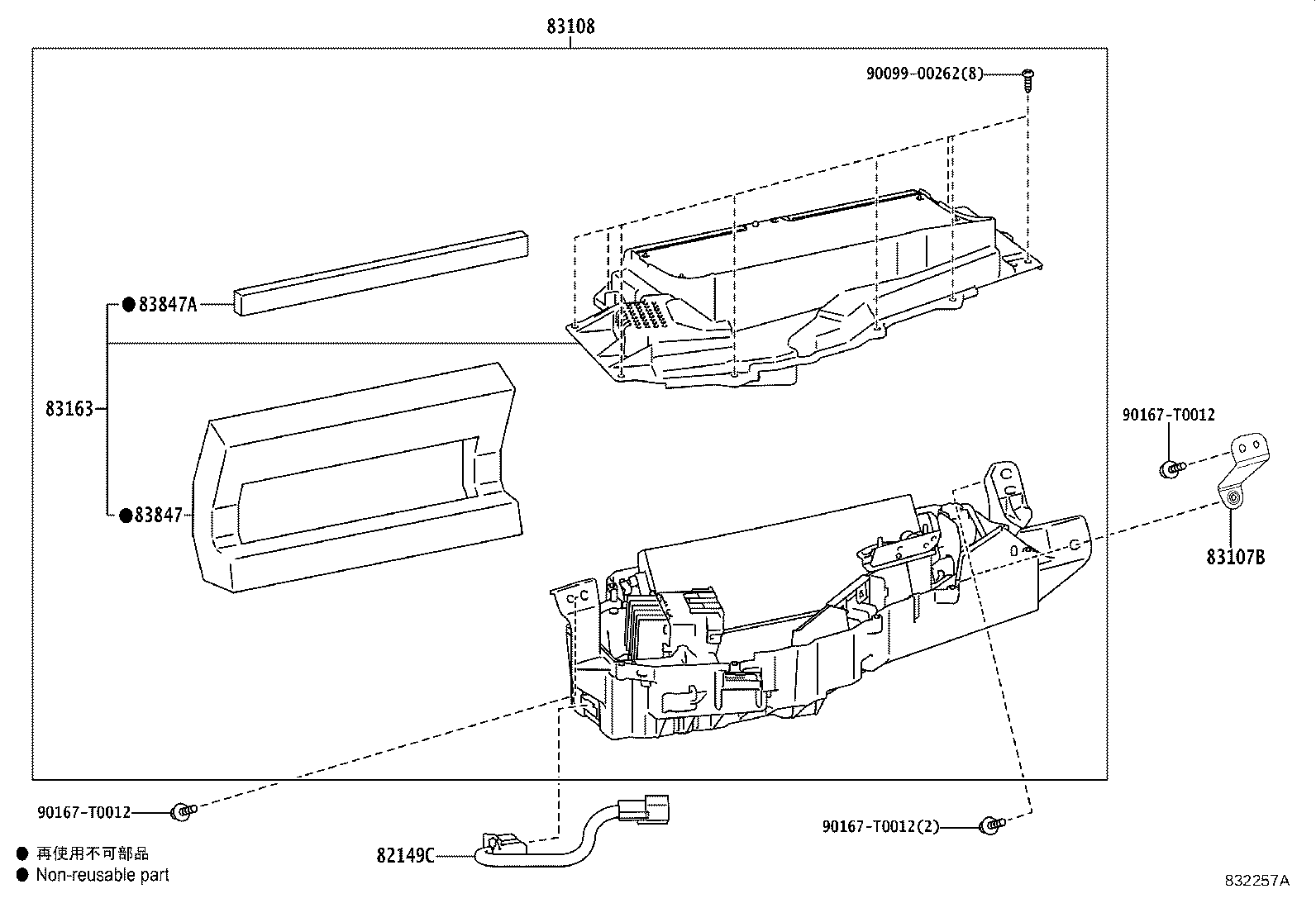

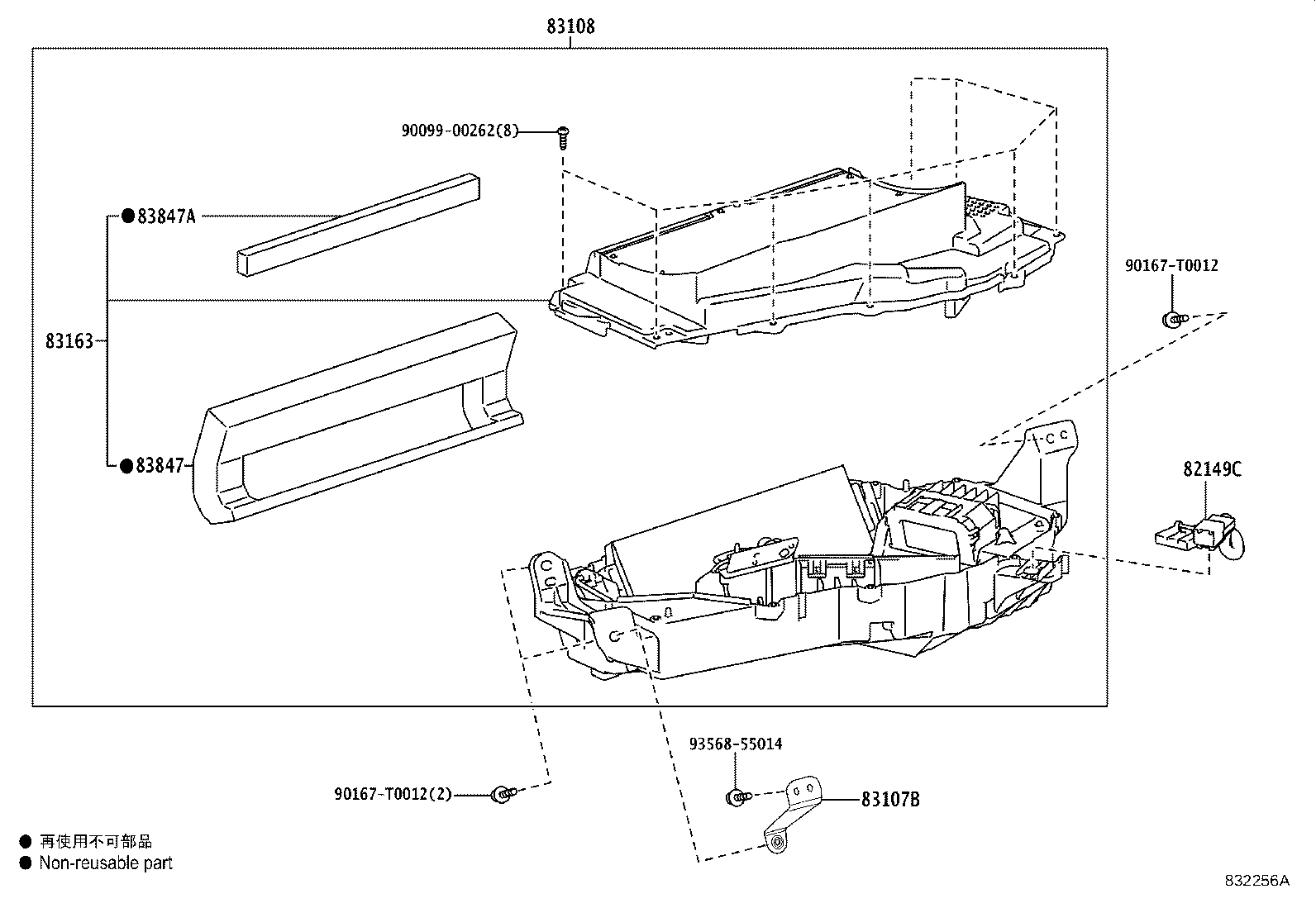

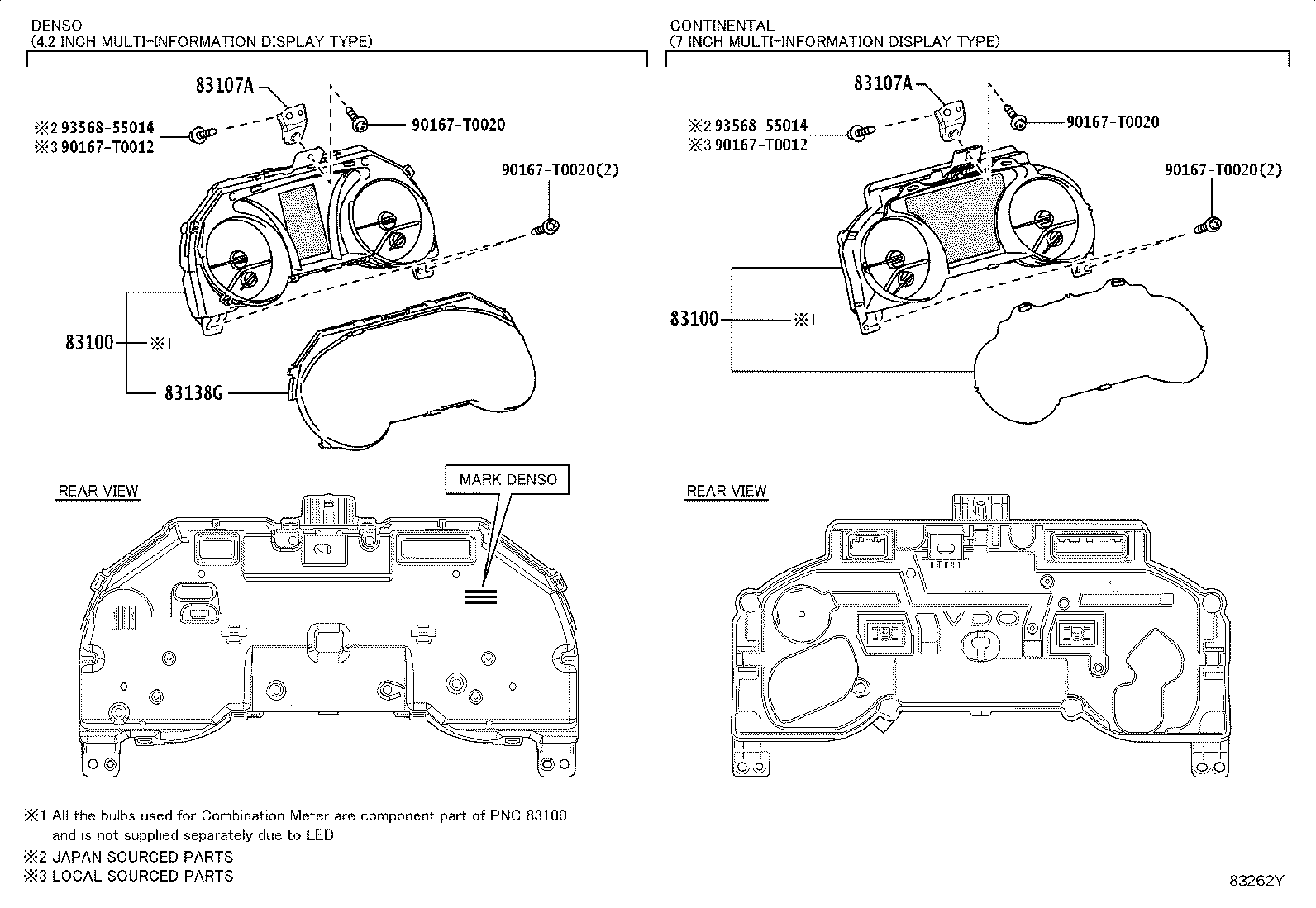

Figure 832255B 832255B 2018-10 → 2021-10 Figure 832255B 832255B 2018-12 → 2021-12 Figure 83262Y 83262Y 2021-10 → — Figure 83262Y 83262Y 2021-12 → — Figure 832256A 832256A 2018-10 → — Figure 832257A 832257A 2018-10 → —

Part groups

PNCDescription
82149C Wire, Meter Mirror
83100 Meter Assy, Combination
83107A Bracket Sub-assy, Meter, NO.1
83107B Bracket Sub-assy, Meter, NO.2
83108 Mirror Sub-assy, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
83847 Cushion, Combination Speedometer, NO.1
83847A Cushion, Combination Speedmeter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
