Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

8 part groups · 3 illustrations

Illustrations

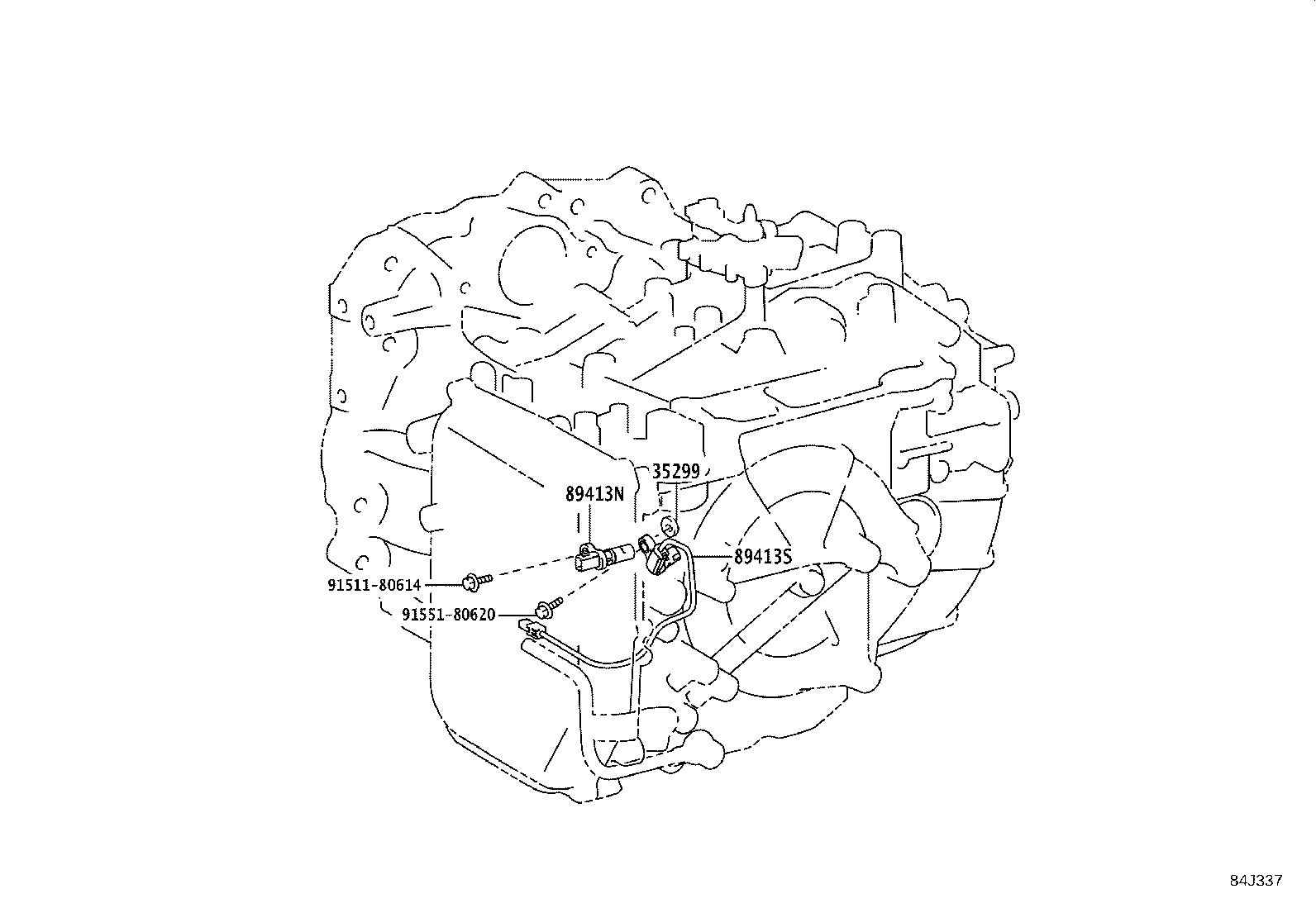

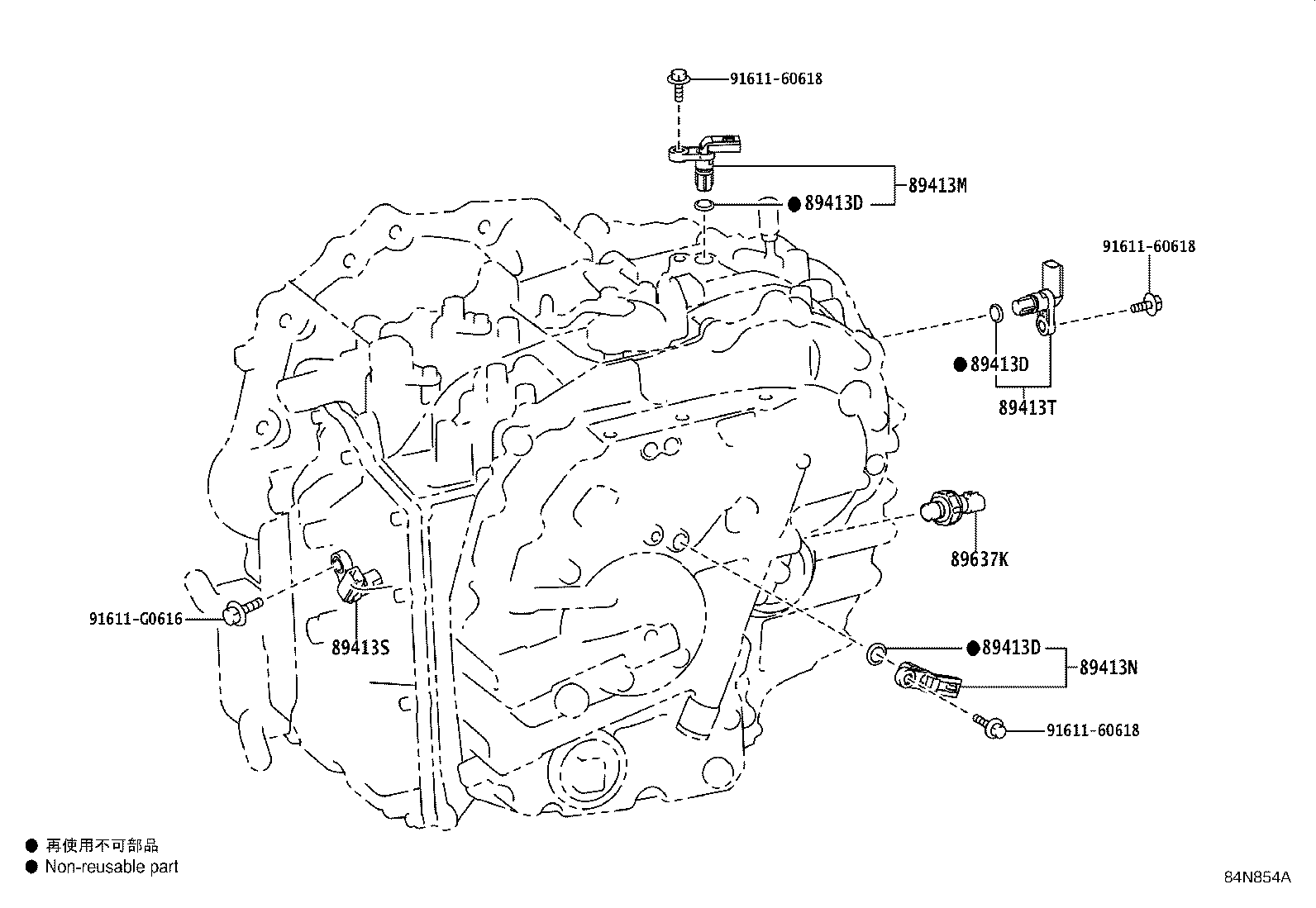

Figure 84J338 84J338 2018-10 → — Figure 84J337 84J337 2018-10 → — Figure 84N854A 84N854A 2021-10 → —

Part groups

PNCDescription
35299 Spacer, Transmission Revolution Sensor
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413S Sensor, Transmission Revolution (NC)
89413T Sensor, Transmission Revolution (NSS)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
