Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 2 illustrations

Illustrations

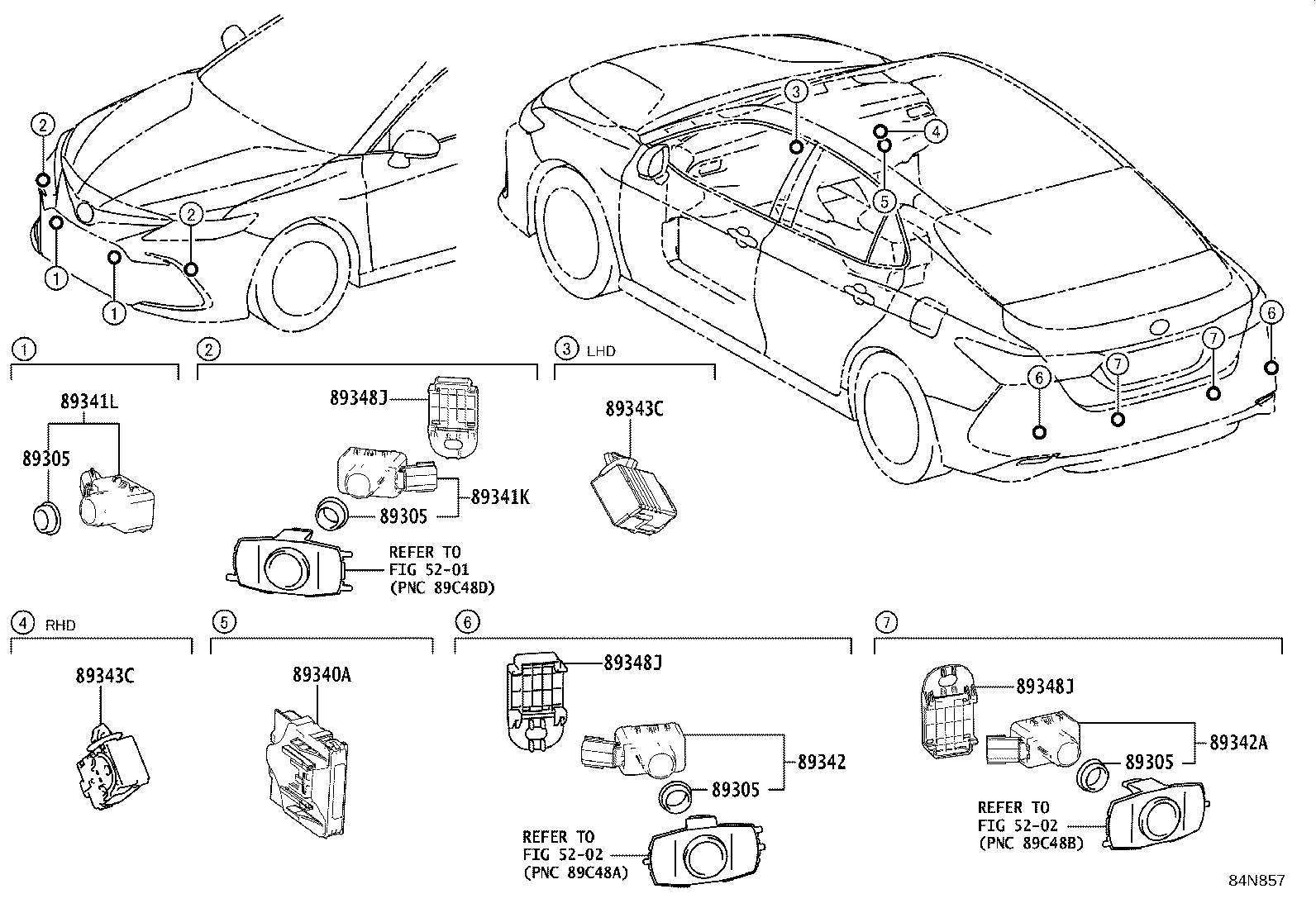

Figure 84J349B 84J349B 2018-10 → — Figure 84N857 84N857 2021-10 → —

Part groups

PNCDescription
89305 Cushion Set, Ultrasonic Sensor
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
