Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 5 illustrations

Illustrations

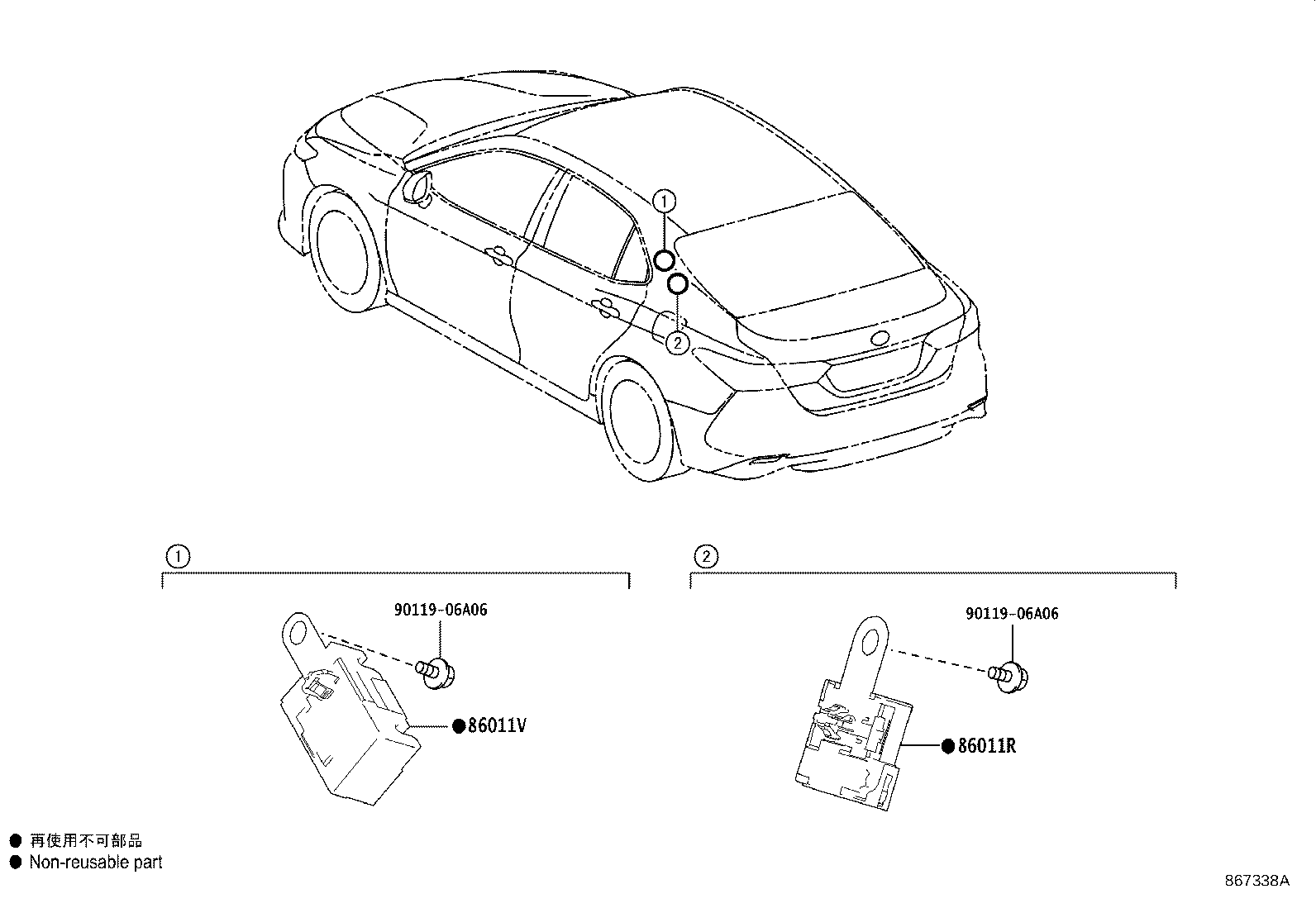

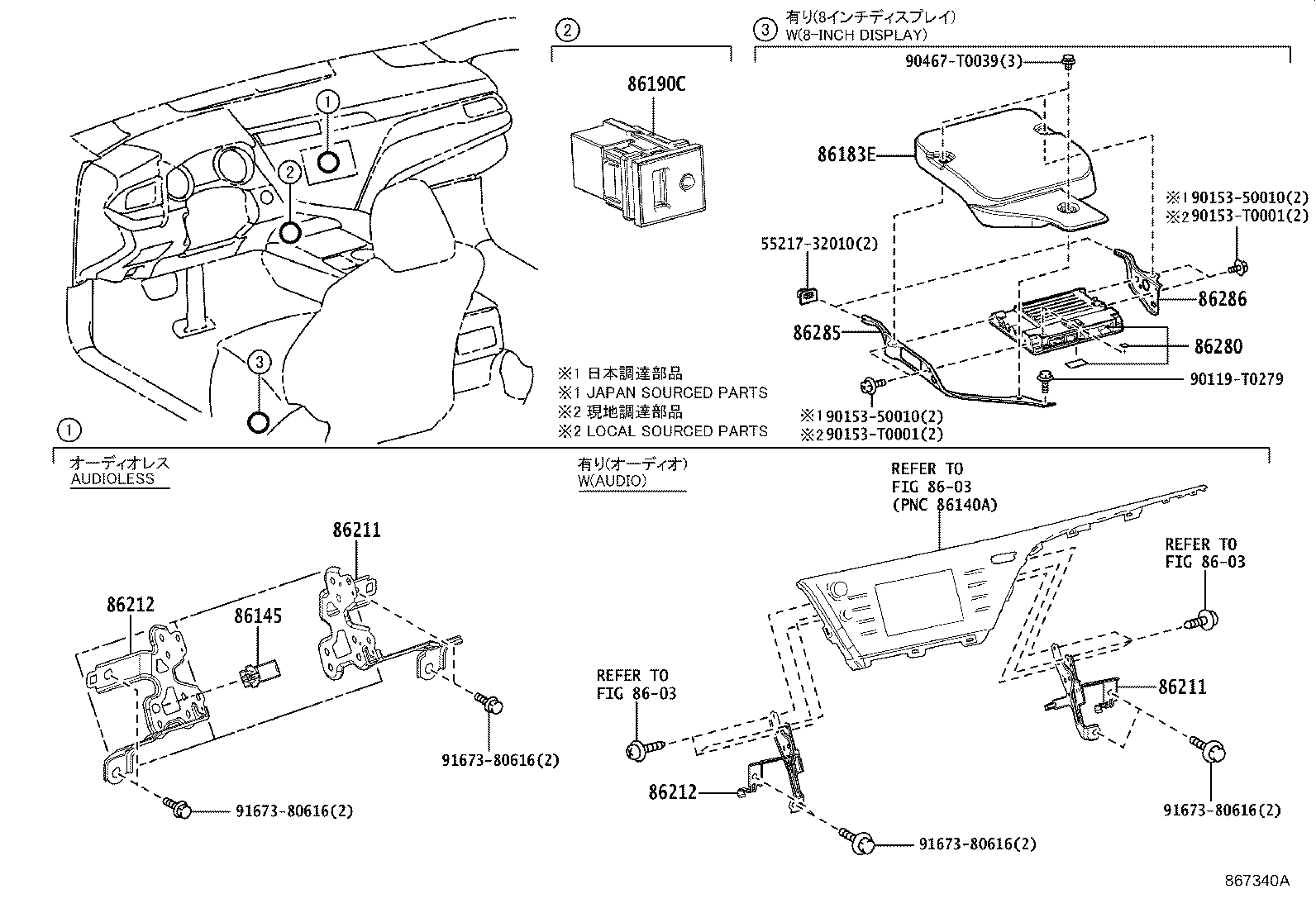

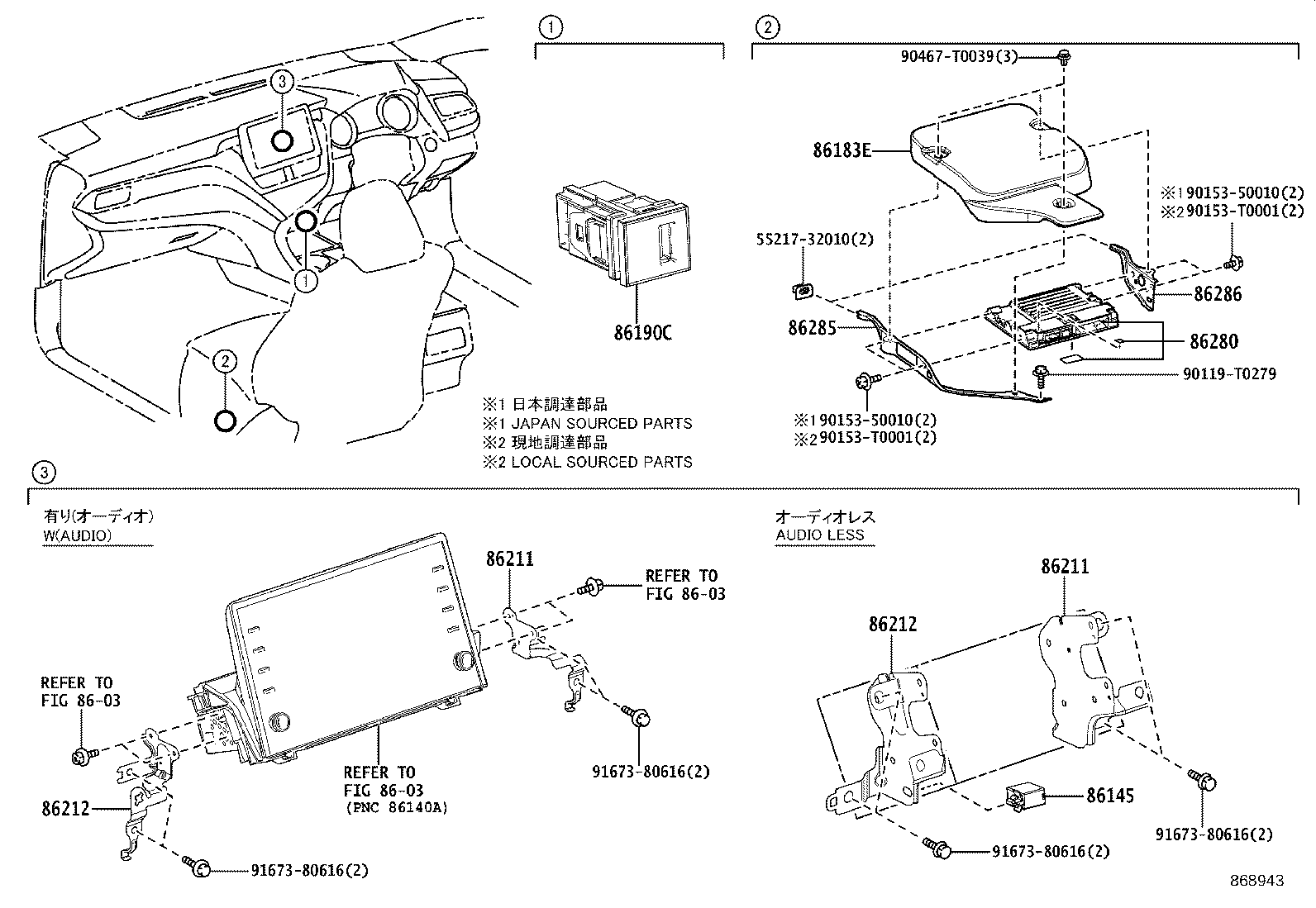

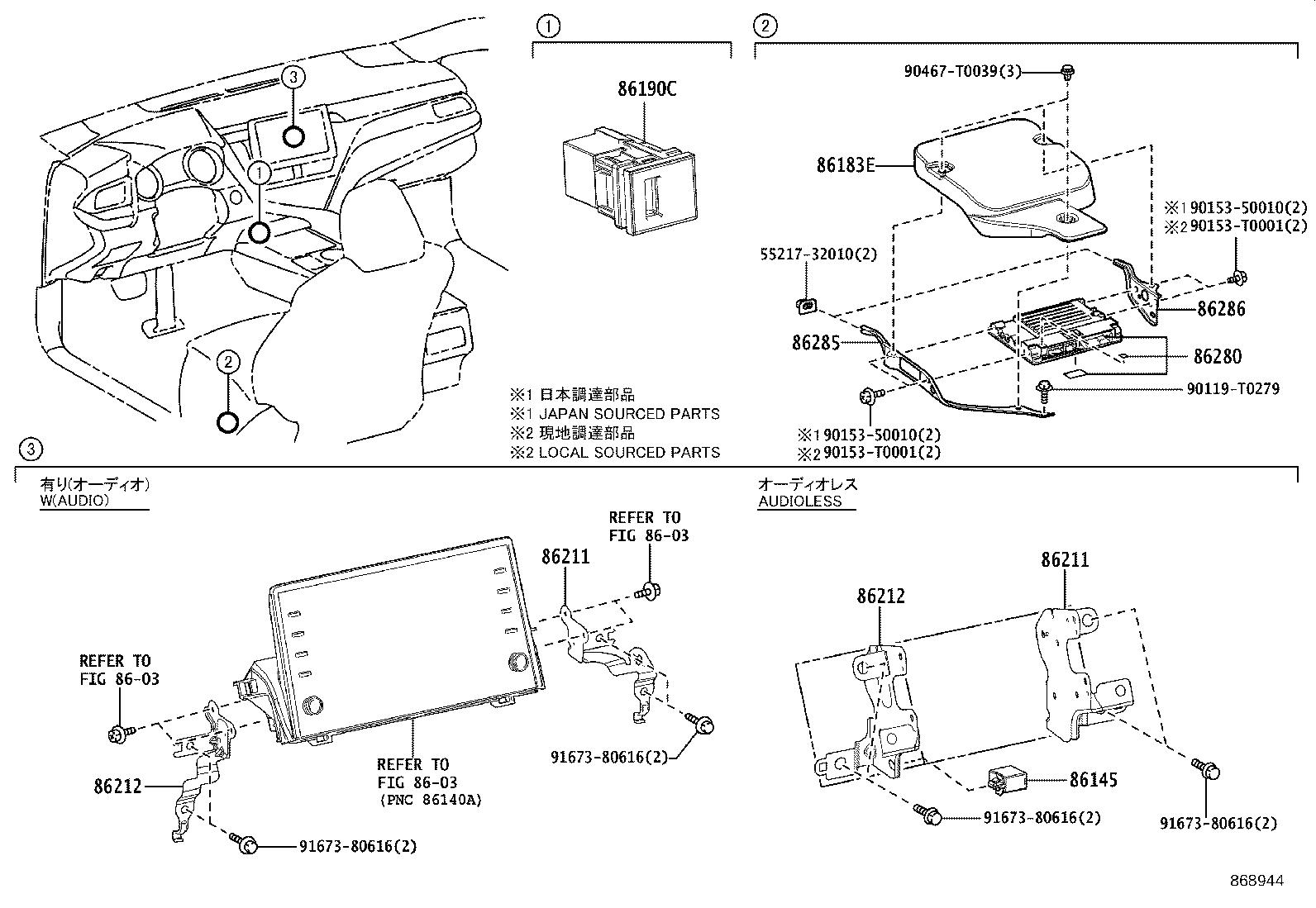

Figure 867339A 867339A 2018-10 → — Figure 867340A 867340A 2018-10 → — Figure 868943 868943 2021-10 → — Figure 868944 868944 2021-10 → — Figure 867338A 867338A 2018-10 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86145 Connector, Antenna Male
86183E Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
