Toyota Camry/Hybrid (ASIA)

2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General

Supported model Data version 2021-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 4 illustrations

Illustrations

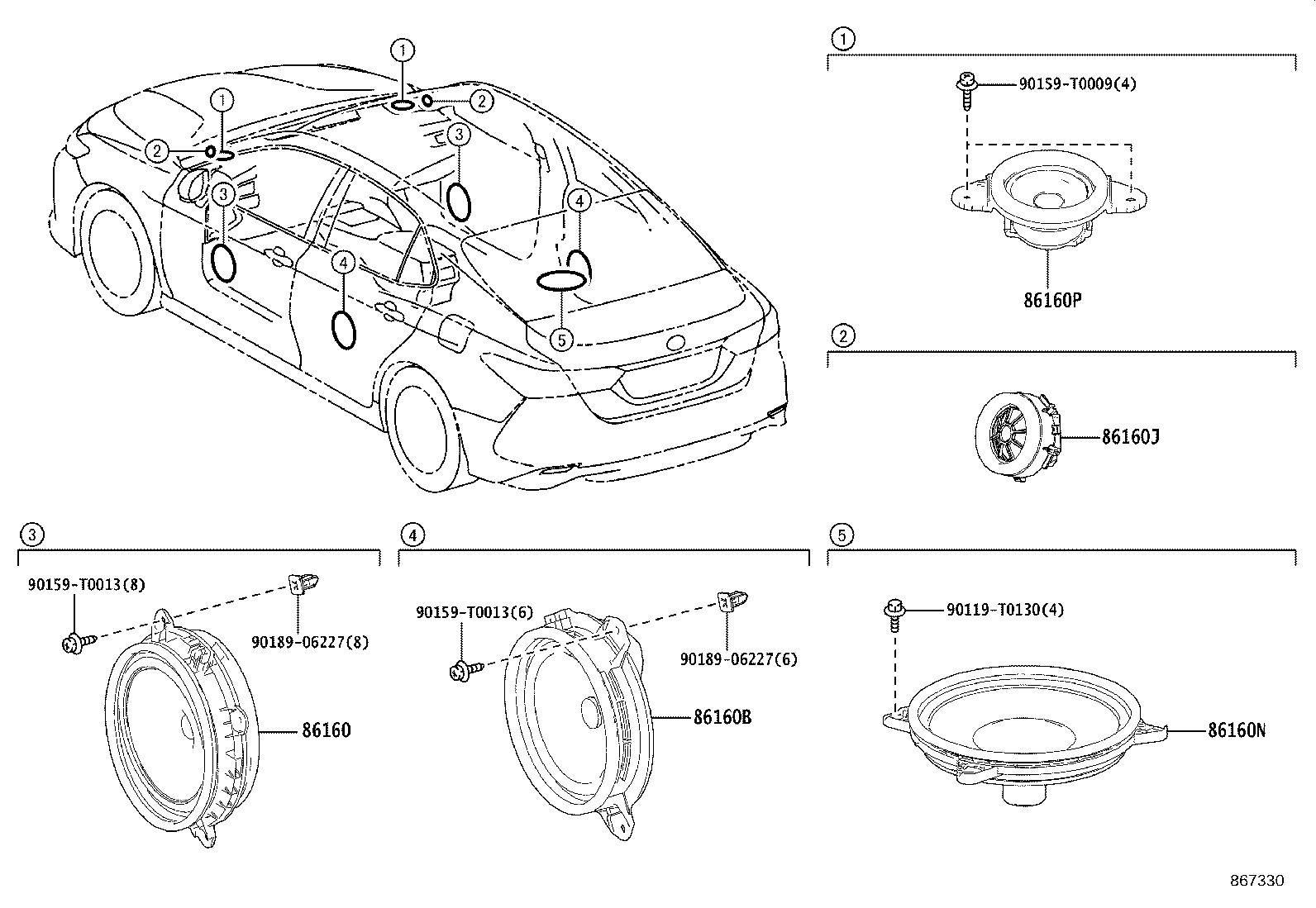

Figure 867331 867331 2018-10 → — Figure 867331 867331 2021-10 → — Figure 867330 867330 2018-10 → — Figure 867330 867330 2021-10 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160N Speaker Assy, Stereo Component, Rear
86160P Speaker Assy, Front NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
