Toyota Camry/Hybrid (ASIA)
2018-10 → present · chassis ASV7#,AXVA70,AXVH71,MXVA71 · catalogue 287320 · General
Supported model
Data version 2021-11

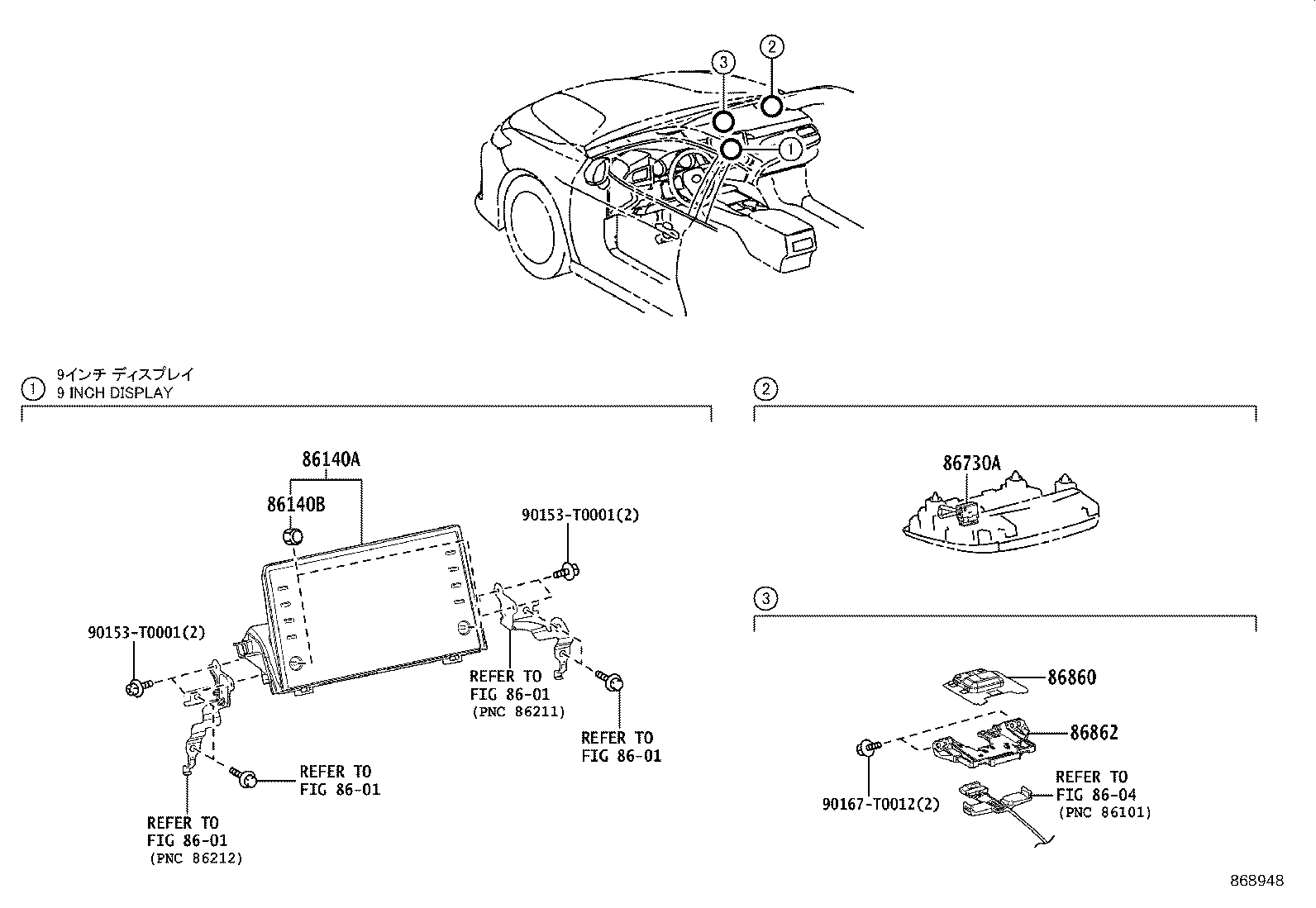

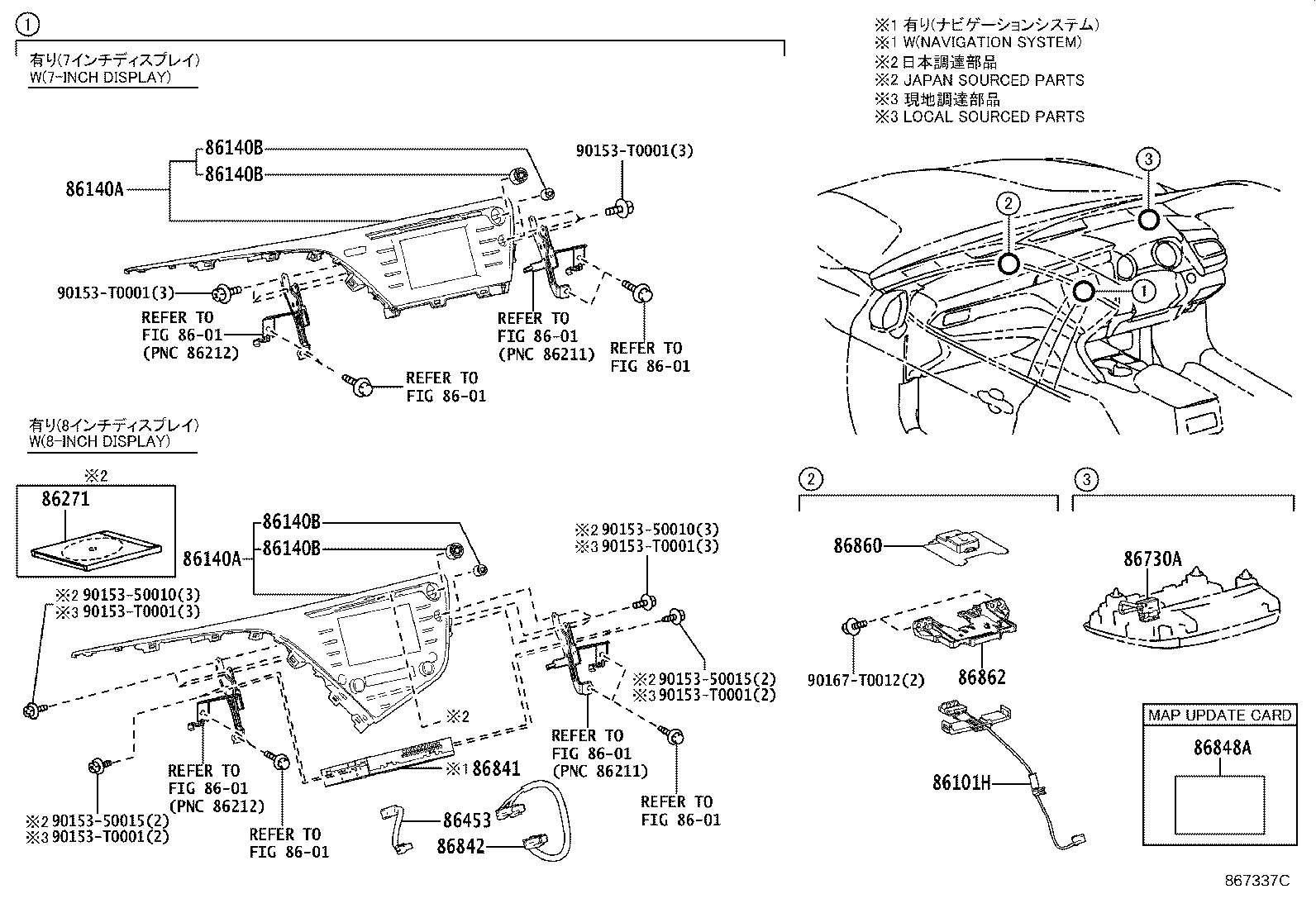

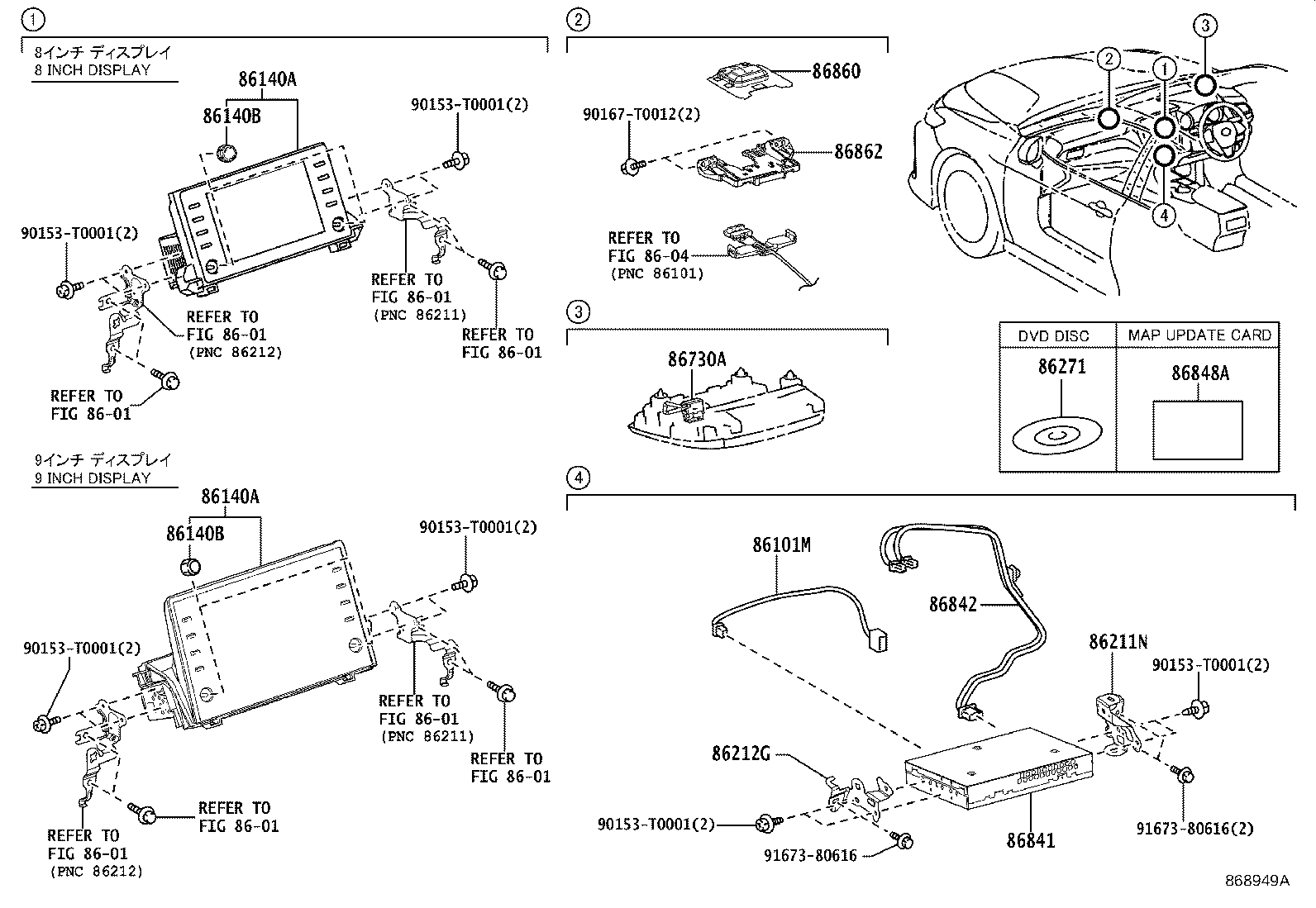

Navigation & Front Monitor Display
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86101M | Cord Sub-assy, Antenna |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211N | Bracket, Navigation Computer, NO.1 |
| 86212G | Bracket, Navigation Computer, NO.2 |
| 86271 | Disc, Disc Player |
| 86453 | Wire, Multi-media Module |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
