Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure 87H351A

87H351A 2018-10 → —

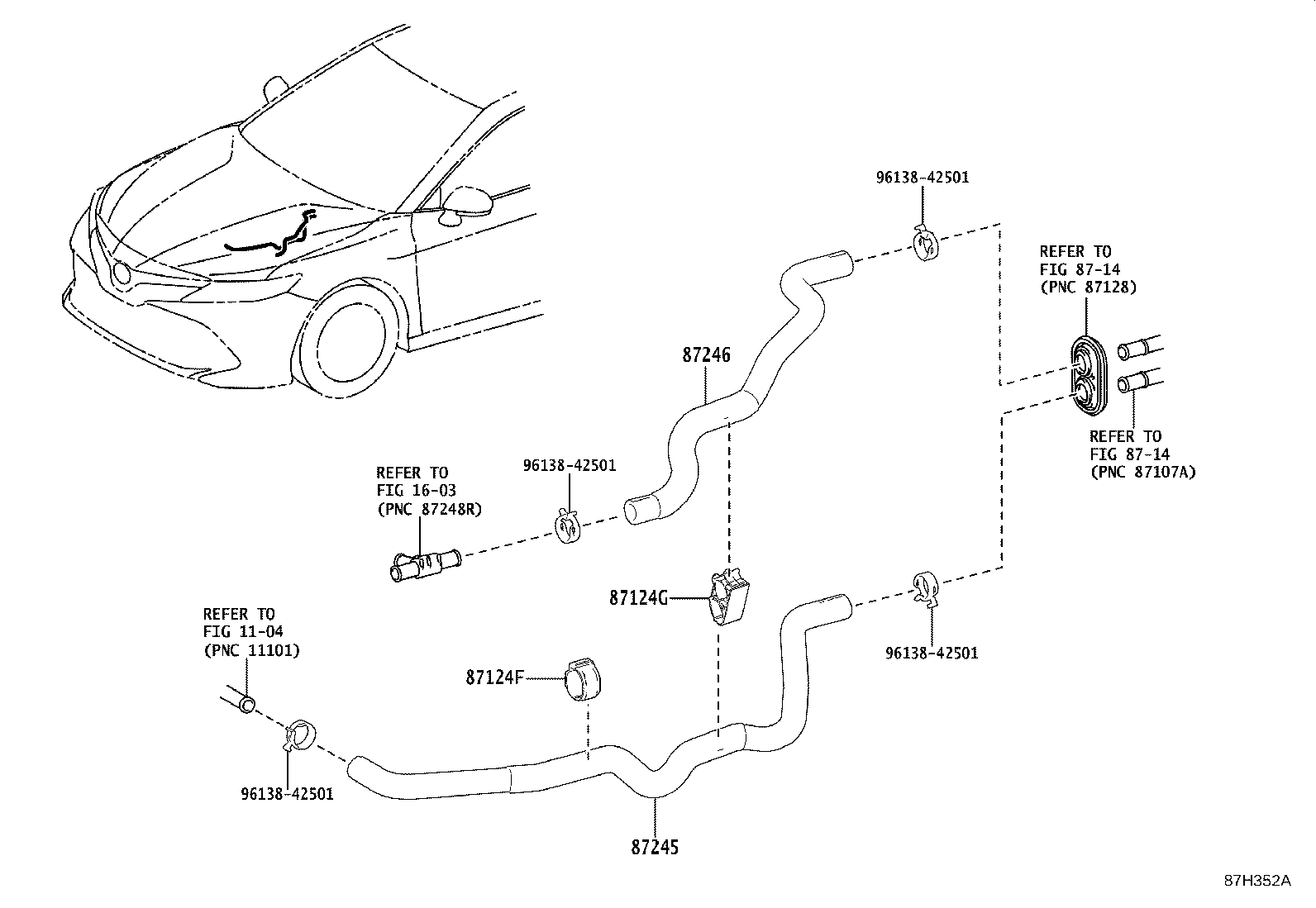

Figure 87H352A

87H352A 2018-10 → —

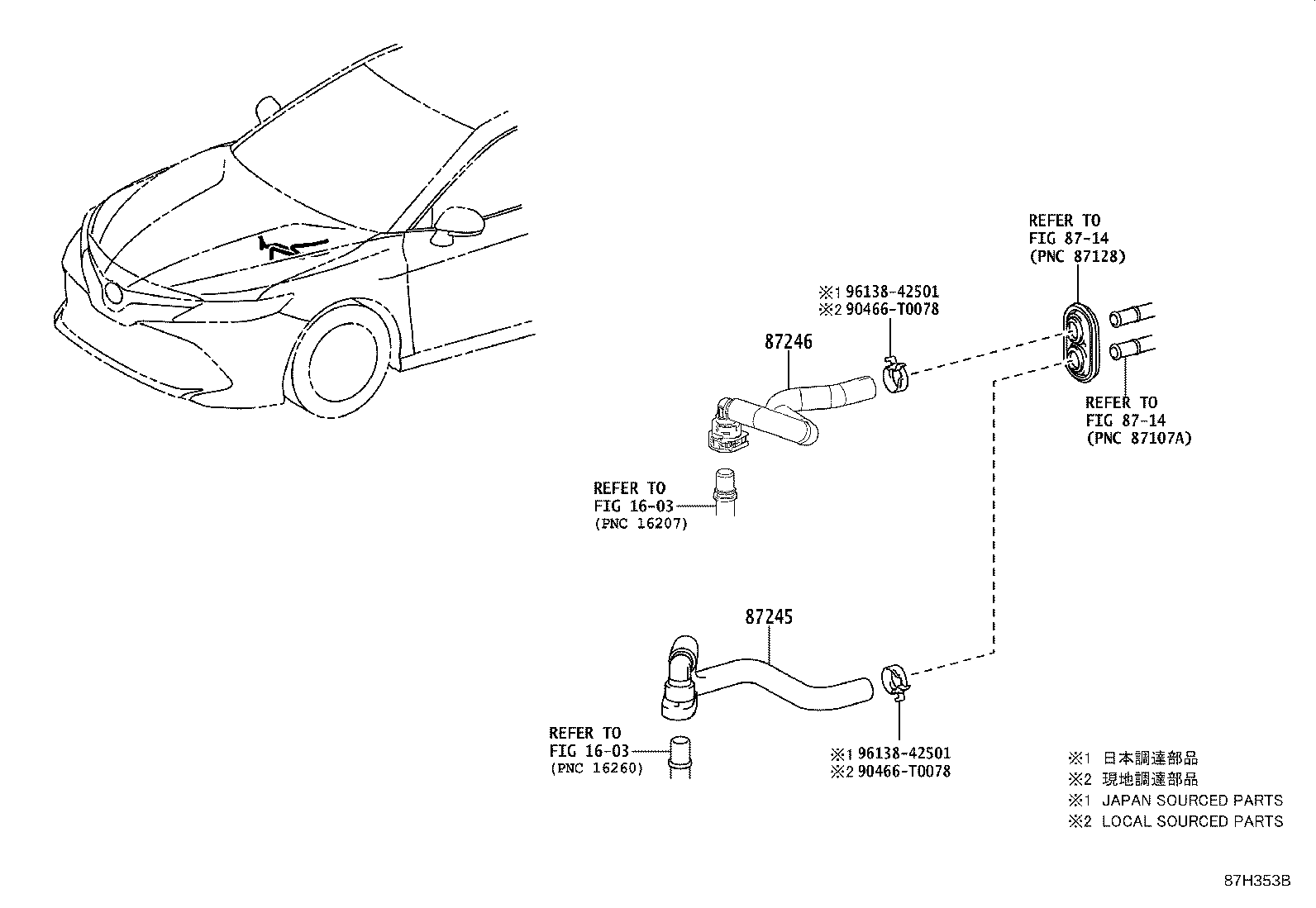

Figure 87H353B

87H353B 2018-10 → —

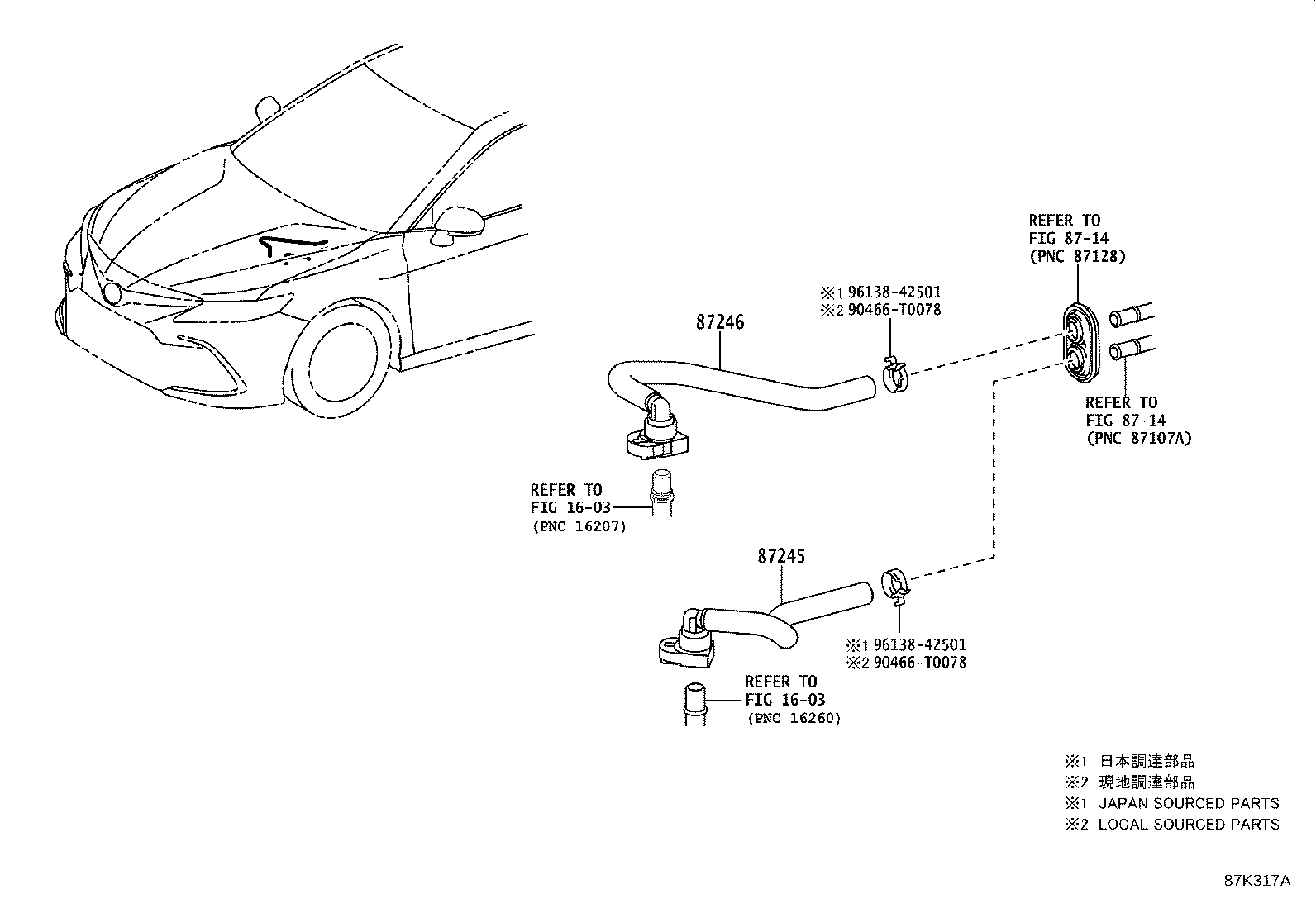

Figure 87K317A

87K317A 2021-10 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87124H	Clamp, Heater Hose, NO.3
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
