Toyota Mirai
2021-08 → present · chassis JPD20 · catalogue 28B320 · General
Supported model
Data version 2024-11
Transaxle Assy(HEV OR BEV OR FCEV)

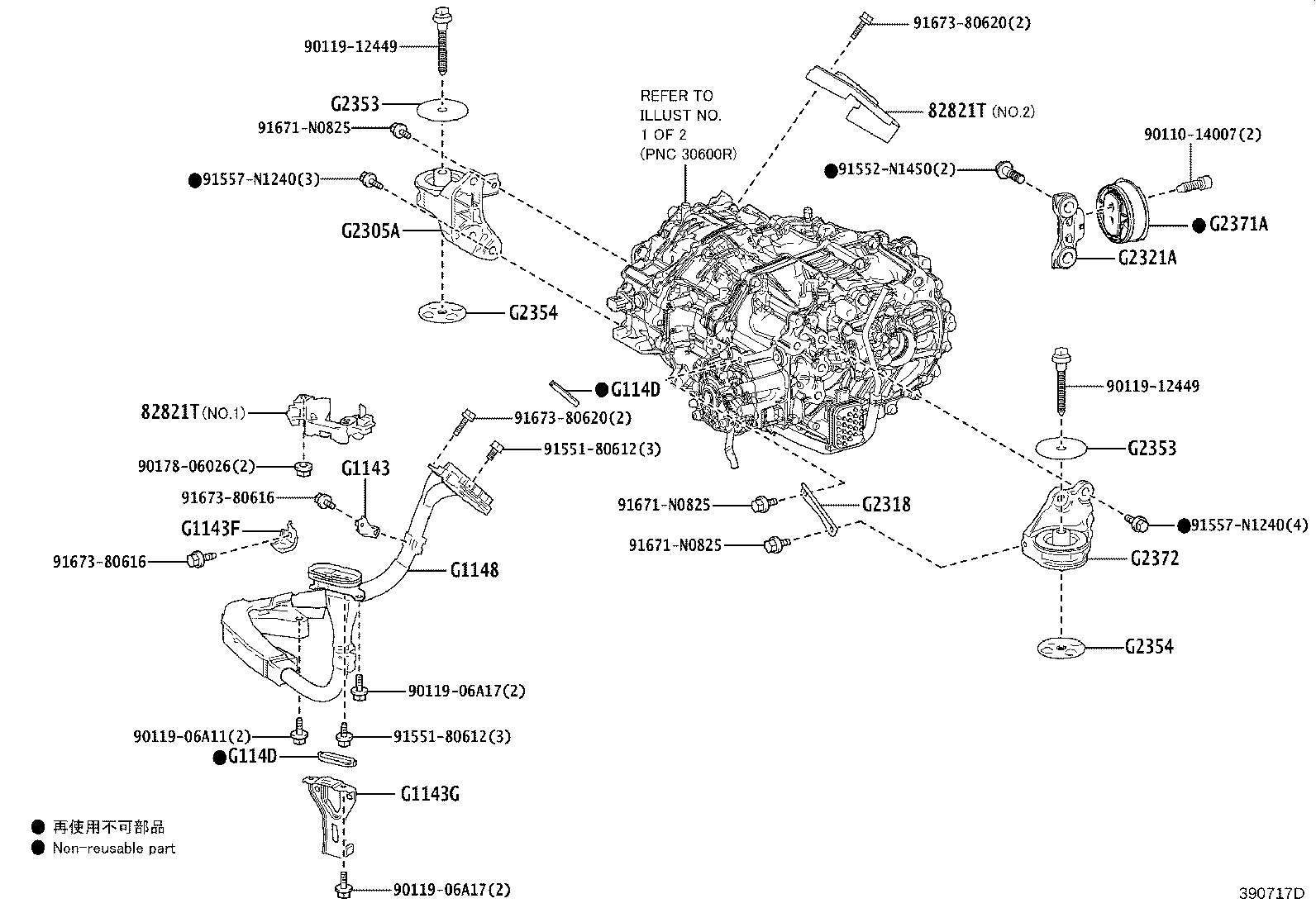

41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30600R | Transaxle Assy, Fcv W/Motor |
| 30600T | O Ring, Transaxle Case, NO.1 |
| 30600U | O Ring, Transaxle Case, NO.2 |
| 30600V | O Ring, Transaxle Case, NO.3 |
| 30900D | Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) |
| 30900E | Gasket(FOR TRANSAXLE HOUSING & CASE) |
| 30900F | Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE) |
| 30900G | Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE) |
| 30900H | Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE) |
| 30900N | Plug, Breather(FOR TRANSAXLE) |
| 30900W | Plug, W/Head Straight Screw, NO.4(TRANSAXLE HOUSING & CASE) |
| 30900X | Plug, W/Head Straight Screw, NO.5(TRANSAXLE HOUSING & CASE) |
| 30J00 | Plug, Drain(FCEV) |
| 30J00A | Plug, Filler(FCEV) |
| 30J00B | Gasket, Drain Plug(FCEV) |
| 30J00C | Gasket, Filler Plug(FCEV) |
| 35300 | Pump Assy, Oil W/Motor |
| 35300E | Bolt(FOR TRANSMISSION OIL PUMP) |
| 35300F | O Ring(FOR TRANSMISSION OIL PUMP) |
| 35308D | Cover Sub-assy, Transmission Oil Pump |
| 35308F | Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308G | Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) |
| 35308H | Plug (FOR TRANSMISSION OIL PUMP COVER) |
| 35308J | Bolt(FOR TRANSMISSION OIL PUMP COVER) |
| 35351B | Rotor, Transaxle Oil Pump Drive |
| 35352A | Rotor, Transmission Oil Pump Driven |
| 35563 | Seal, Shift Control Actuator |
| 35580 | Actuator Assy, Shift Control |
| 82821T | Cover, Connector |
| G1143 | Bracket, Motor Cable |
| G1143F | Bracket, Motor Cable, NO.2 |
| G1143G | Bracket, Motor Cable, NO.3 |
| G1148 | Cable, Motor |
| G114D | Cap, Motor Cable Terminal |
| G2305A | Insulator Sub-assy, Motor Mounting, RH |
| G2318 | Stay, Motor Mounting, LH |
| G2321A | Bracket, Motor Mounting, Rear |
| G2353 | Stopper, Motor Mounting, Upper |
| G2354 | Stopper, Motor Mounting, Lower |
| G2371A | Insulator, Motor Mounting, Rear |
| G2372 | Insulator, Motor Mounting, LH |
