Toyota Mirai

2021-08 → present · chassis JPD20 · catalogue 28B320 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

30 part groups · 2 illustrations

Illustrations

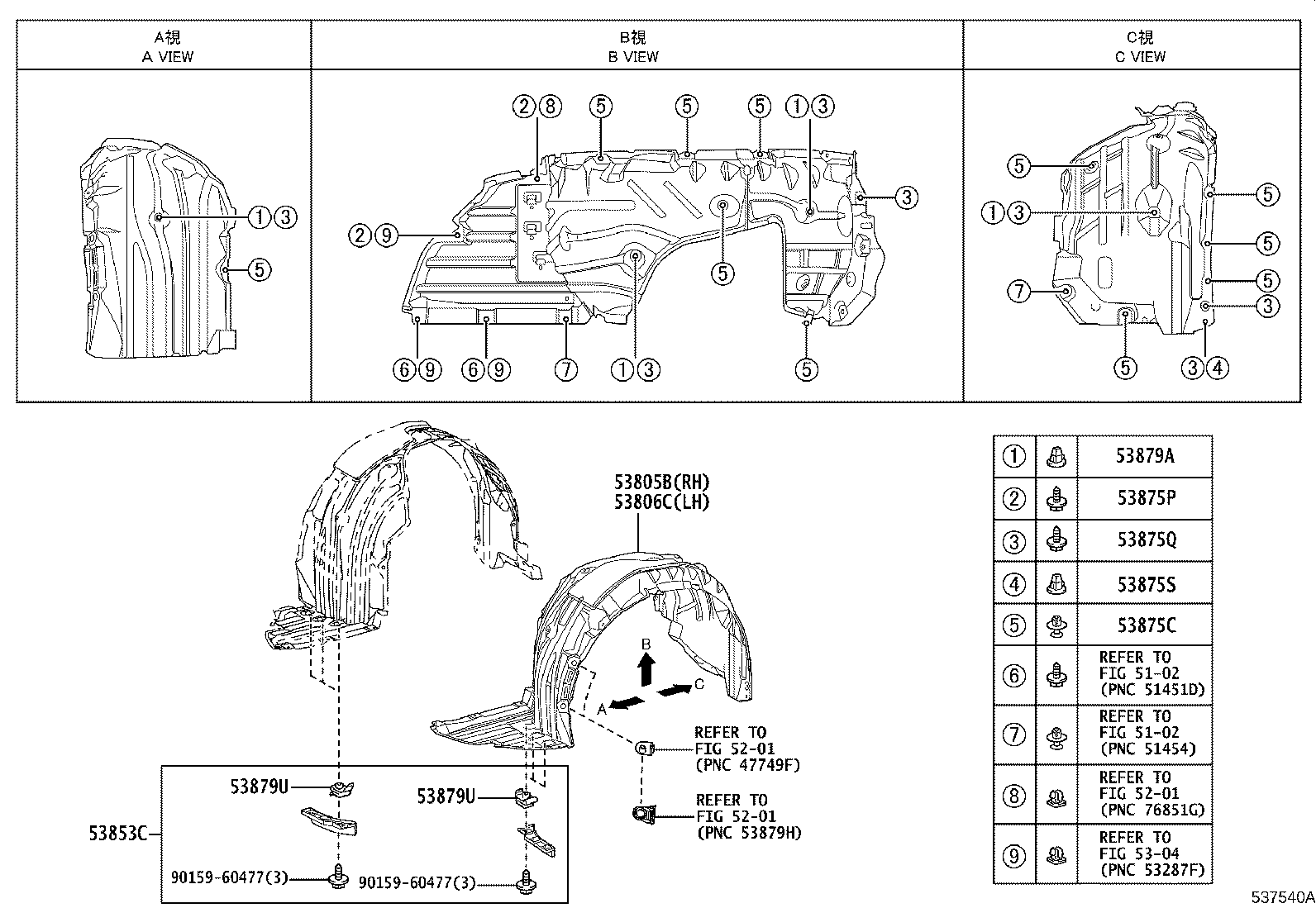

Figure 537895B 537895B 2021-08 → — Figure 537540A 537540A 2021-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381E Seal, Hood TO Radiator Support
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805B Shield Sub-assy, Fender Splash, Front RH
53806C Shield Sub-assy, Fender Splash, Front LH
53823E Protector, Front Side Panel, NO.2 RH
53824B Protector, Front Side Panel, NO.2 LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53828N Clip, Front Fender Side Panel Protector, NO.1
53853C Pad, Front Wheel Opening Extension, NO.3
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53875S Grommet, NO.1
53879A Retainer, Front Fender Liner
53879U Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53883B Seal, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
