Toyota Mirai
2021-08 → present · chassis JPD20 · catalogue 28B320 · General
Supported model
Data version 2024-11

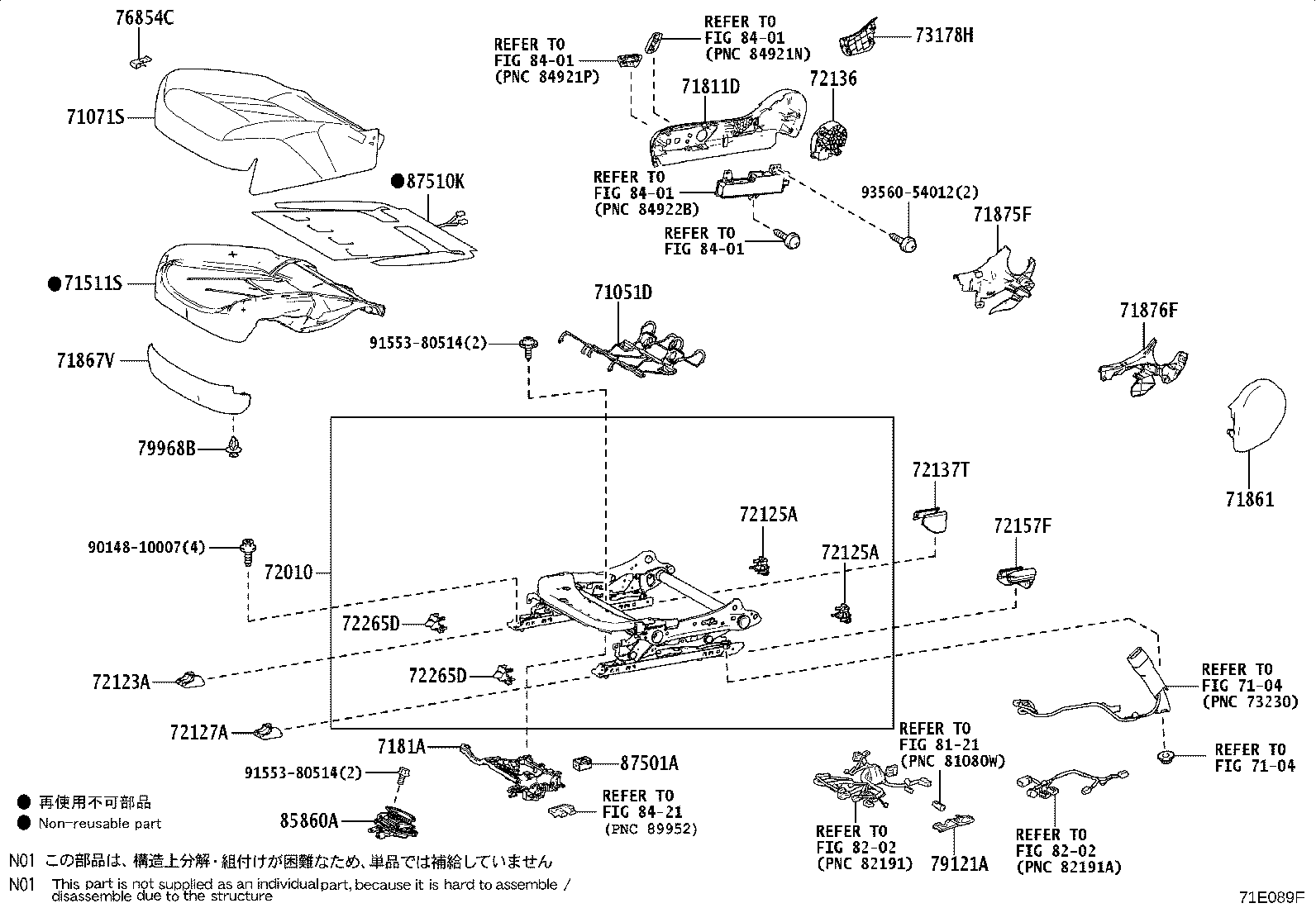

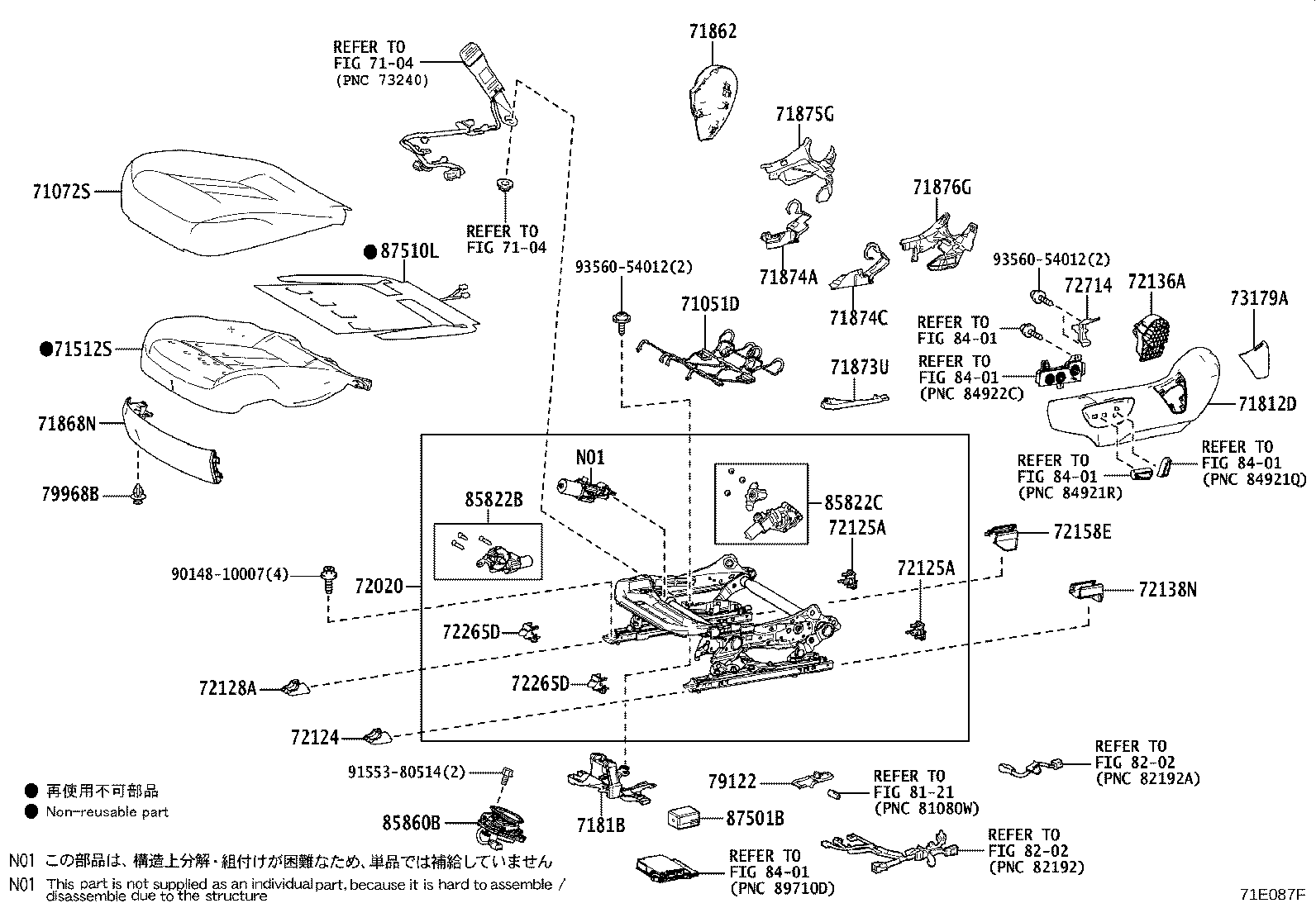

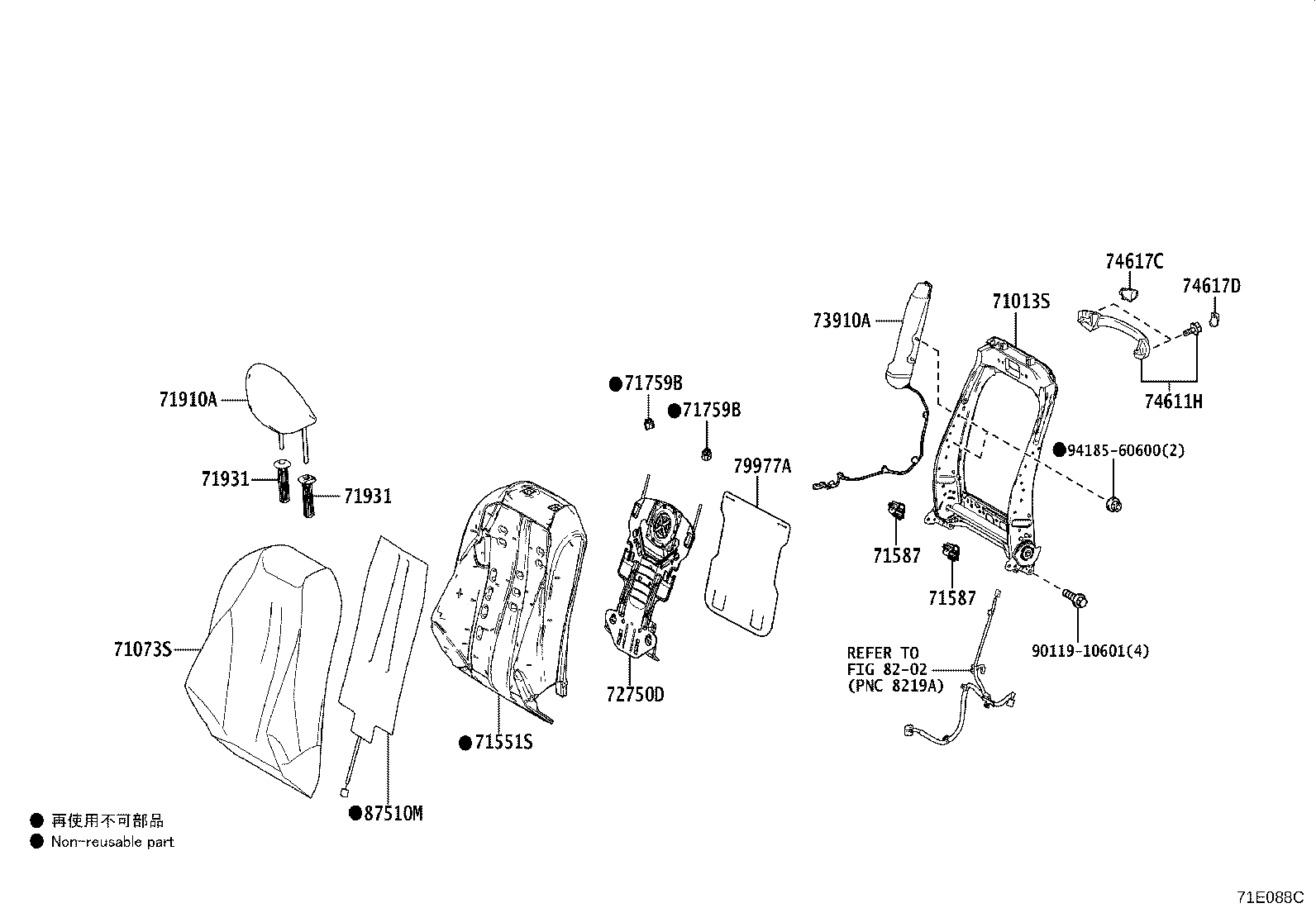

Front Seat & Seat Track
72 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051D | Spring Sub-assy, Front Seat Cushion |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867V | Shield, Front Seat Cushion, Front RH |
| 71868N | Shield, Front Seat Cushion, Front LH |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71910B | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71956A | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72136 | Spacer, Seat Track, Lower NO.1 |
| 72136A | Spacer, Seat Track, Lower NO.2 |
| 72137T | Cover, Seat Track Bracket, Outer Rear RH |
| 72138N | Cover, Seat Track Bracket, Outer Rear LH |
| 72157F | Cover, Seat Track Bracket, Inner Rear RH |
| 72158E | Cover, Seat Track Bracket, Inner Rear LH |
| 72265D | Cover, Seat Track Upper Rail |
| 72714 | Bracket, Seat Adjuster Shield Clamp, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73178H | Cap, Seat Belt Anchor Cover, RH |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 74611H | Grip, Assist |
| 74617C | Plug, Assist Grip |
| 74617D | Plug, Assist Grip |
| 76854C | Retainer, Front Seat Cushion Cover |
| 79121A | Bracket, Front Seat Cushion, RH |
| 79122 | Bracket, Front Seat Cushion, LH |
| 79968B | Clip |
| 79977A | Felt, Seatback |
| 85822B | Motor Assy, Power Seat Tilt, LH |
| 85822C | Motor Assy, Power Seat Lifter, LH |
| 85860A | Blower Assy, Seat Cushion Climate Control, RH |
| 85860B | Blower Assy, Seat Cushion Climate Control, LH |
| 85867A | Blower, Seatback Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
