Toyota Mirai

2021-08 → present · chassis JPD20 · catalogue 28B320 · General

Supported model Data version 2024-11

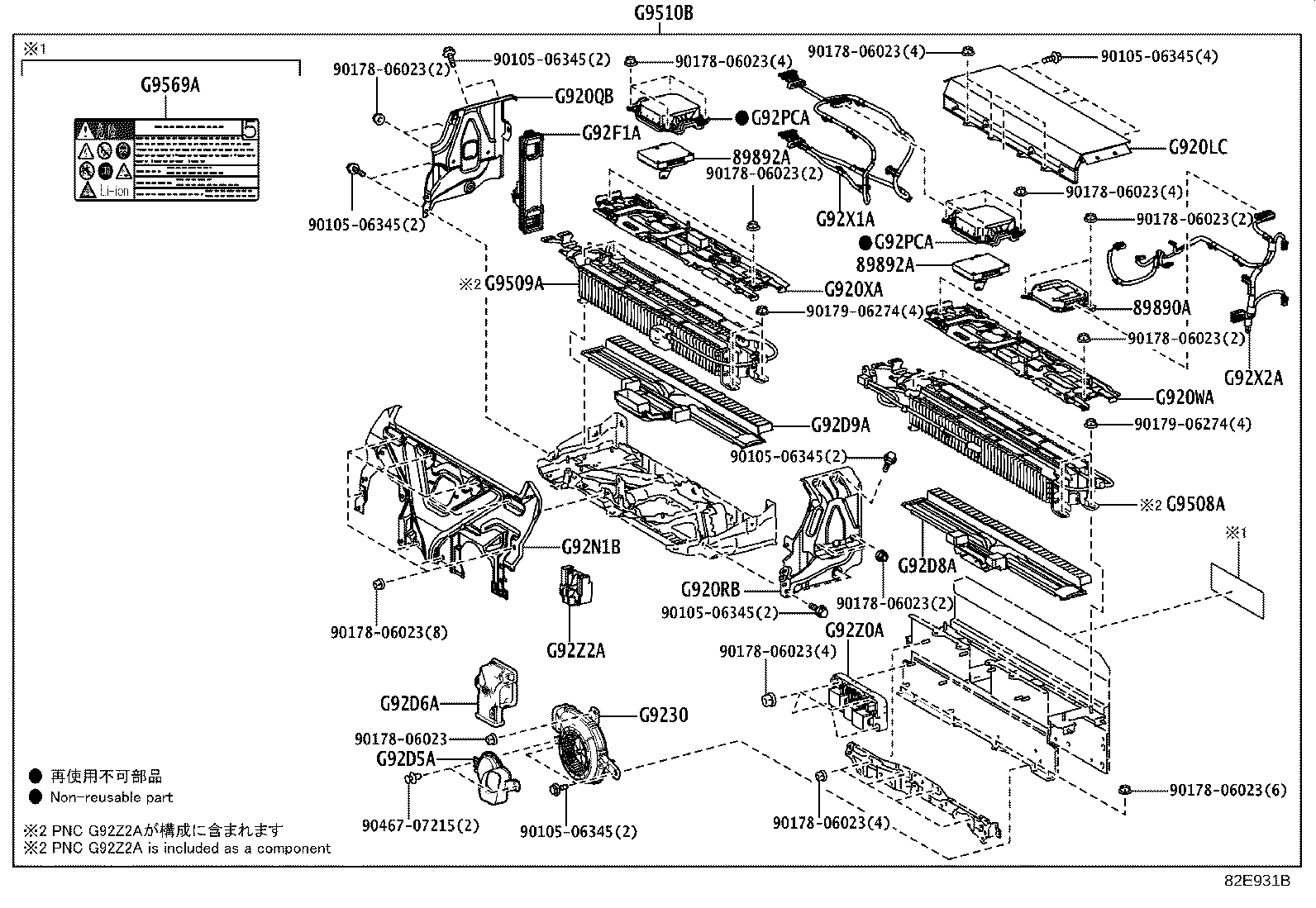

Battery & Battery Cable

42 part groups · 3 illustrations

PNC	Description
28800	Battery
28800D	Cover, Connector(FOR BATTERY TERMINAL)
28885B	Hose, Battery
28897	Plate, Battery Caution
821H4C	Wire, Socket Inverter
82651E	Block, Terminal
89890A	Computer Assy, Battery
89892A	Sensor, Battery Voltage
G3834	Grip, Service Plug
G9209C	Duct Sub-assy, EV Battery
G920LC	Cover Sub-assy, EV Battery, Upper NO.1
G920QB	Shield Sub-assy, EV Battery, NO.1
G920RB	Shield Sub-assy, EV Battery, NO.2
G920WA	Shield Sub-assy, EV Battery, NO.7
G920XA	Shield Sub-assy, EV Battery, NO.8
G9230	Blower Assy, Battery Cooling
G9289F	Label, Battery Caution, NO.3
G928AA	Bracket, EV Battery, RH
G928BA	Bracket, EV Battery, LH
G9295B	Striker, Battery Cover Lock
G92D2A	Duct, EV Battery Intake, NO.2
G92D4A	Duct, EV Battery Intake, NO.4
G92D5A	Duct, EV Battery Intake, NO.5
G92D6A	Duct, EV Battery Intake, NO.6
G92D8A	Duct, EV Battery Intake, NO.8
G92D9A	Duct, EV Battery Intake, NO.9
G92F1A	Duct, EV Battery Exhaust, NO.1
G92F4A	Duct, EV Battery Exhaust, NO.4
G92N1B	Panel, EV Battery Upper Cover
G92P6A	Cover, EV Battery Clamp, NO.2
G92PCA	Protector, EV Battery, NO.1
G92QAA	Panel, EV Battery Shield, NO.8
G92QBA	Panel, EV Battery Shield, NO.9
G92QCA	Panel, EV Battery Shield, NO.10
G92X1A	Wire, EV Battery Pack, NO.1
G92X2A	Wire, EV Battery Pack, NO.2
G92Z0A	Block Assy, EV Battery Junction, NO.1
G92Z2A	Block, EV Battery Terminal
G9508A	Stack Sub-assy, EV Supply, NO.1
G9509A	Stack Sub-assy, EV Supply, NO.2
G9510B	Battery Assy, EV Supply
G9569A	Label, Lithium Ion Battery Caution

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
