Toyota Mirai

2021-08 → present · chassis JPD20 · catalogue 28B320 · General

Supported model Data version 2024-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

150 part groups · 13 illustrations

Illustrations

84N742B 2021-08 → —

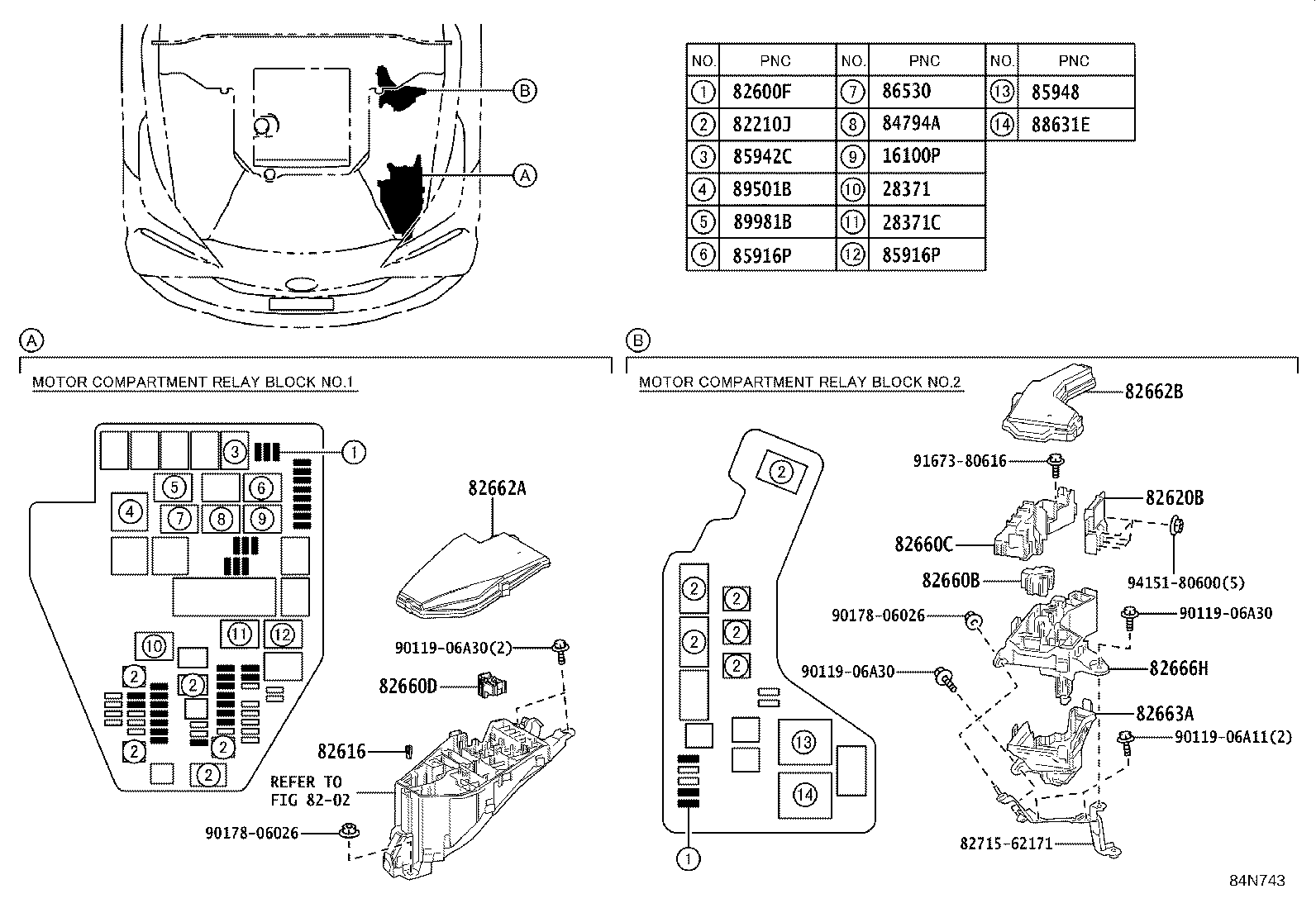

84N743 2021-08 → 2024-01

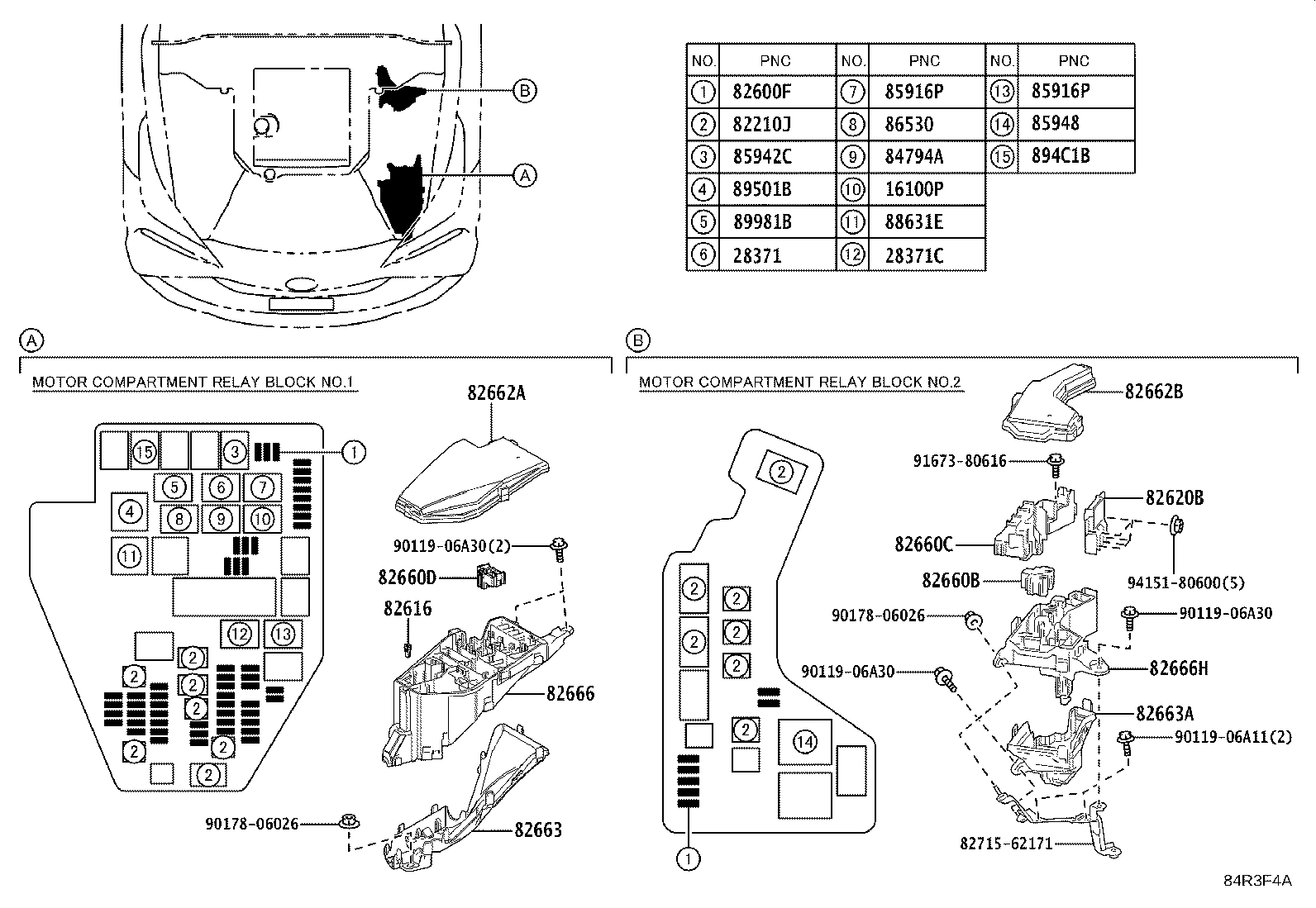

84R3F4A 2024-01 → —

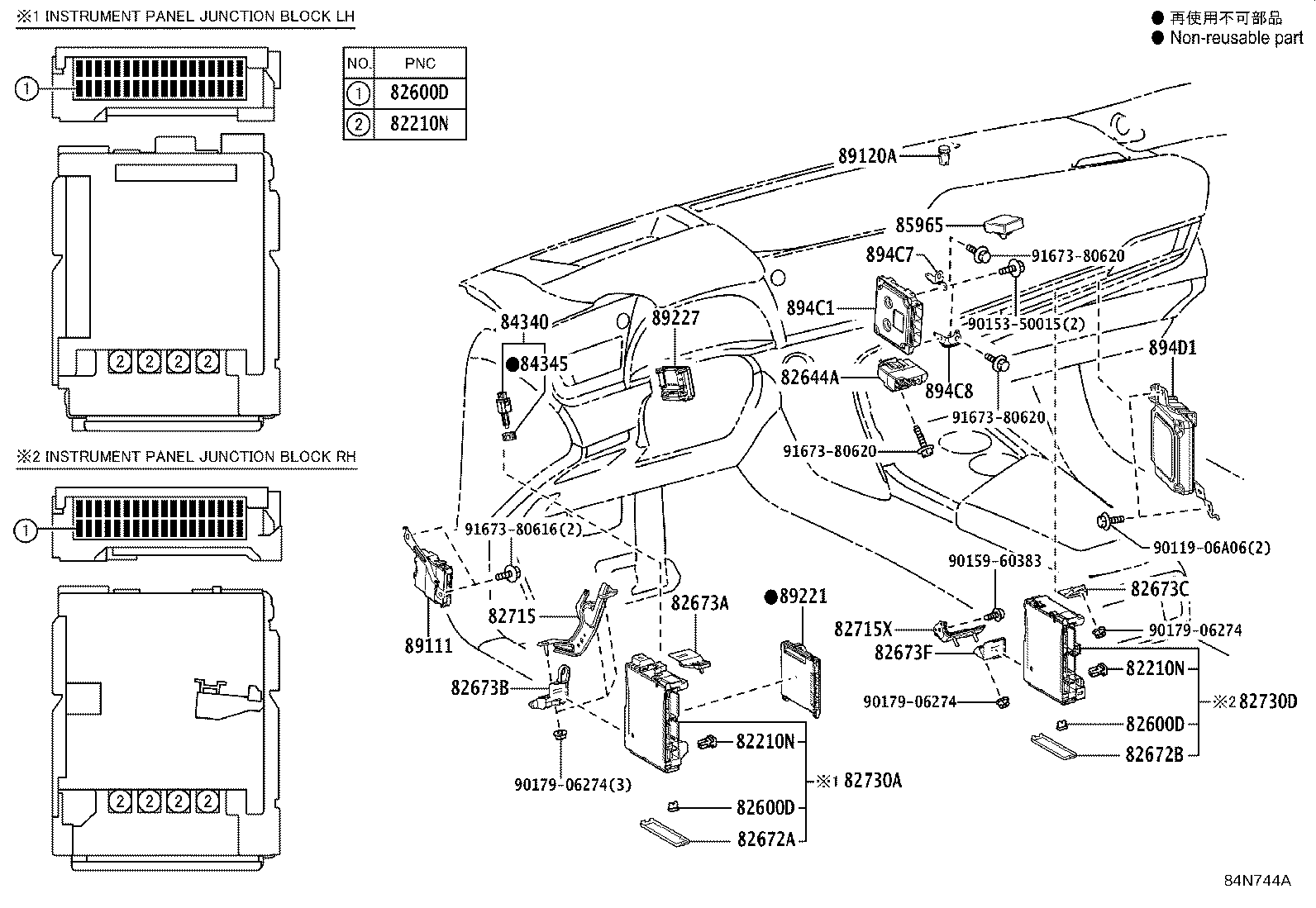

84N744A 2021-08 → 2024-01

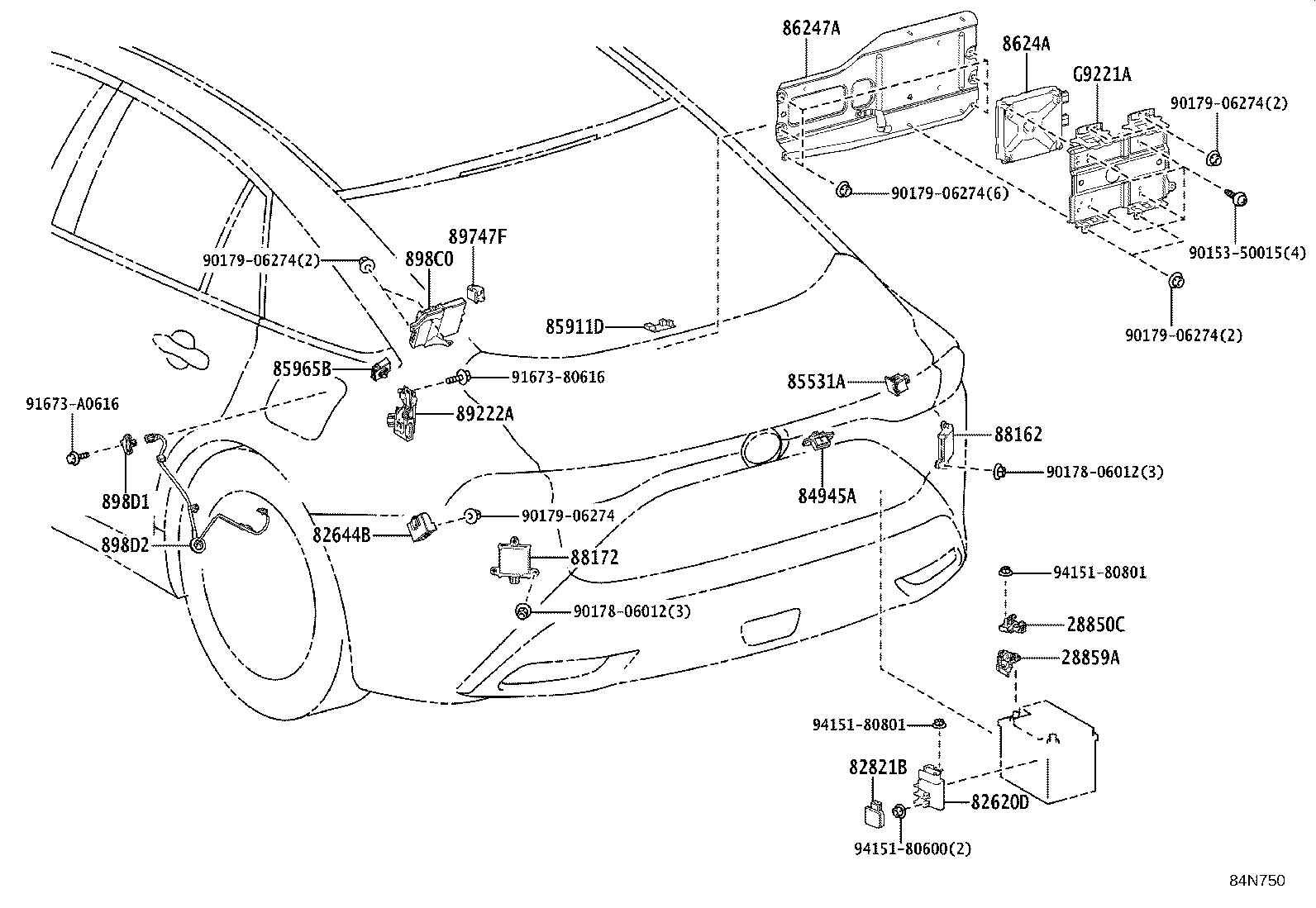

84N750 2021-08 → 2024-01

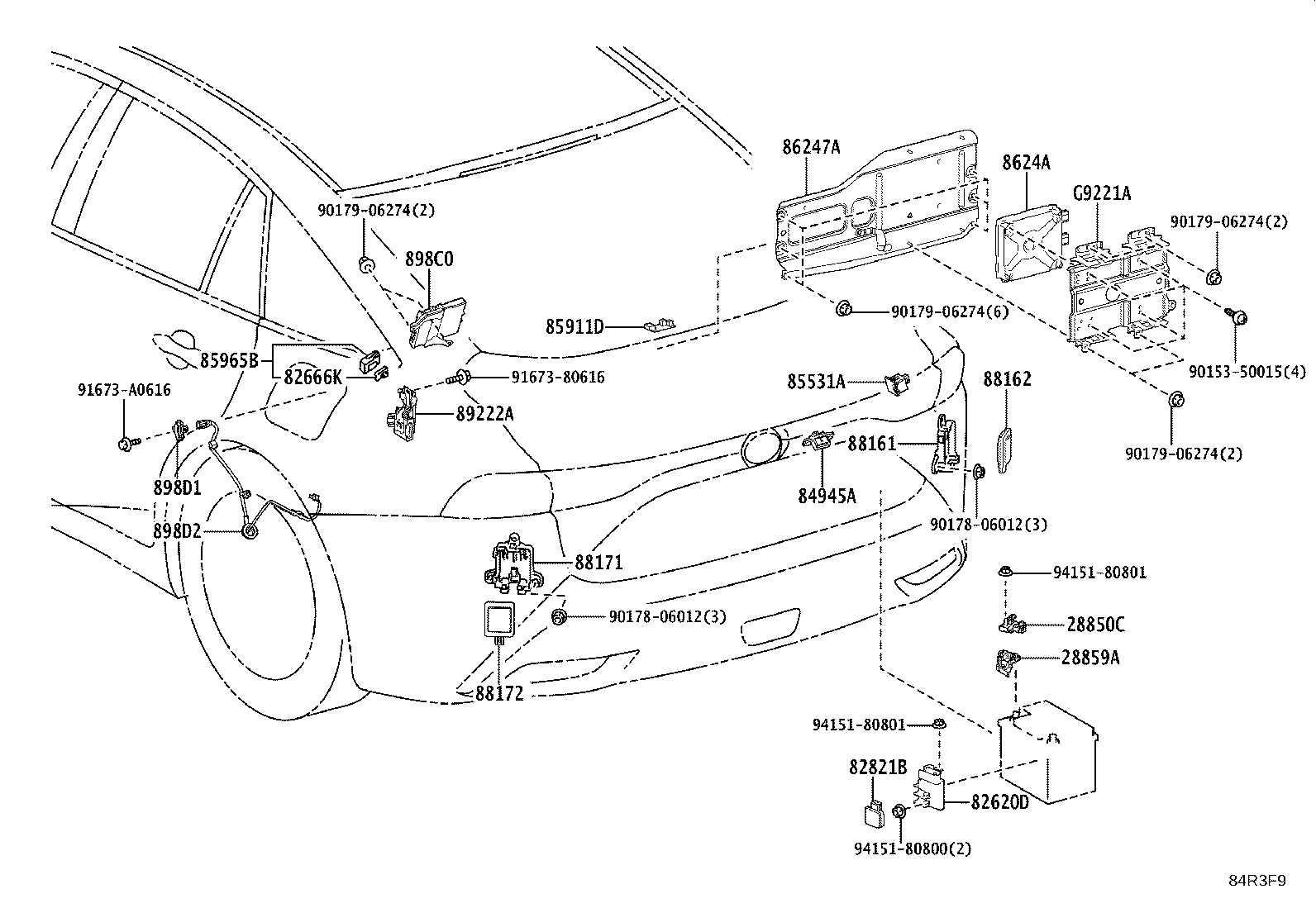

84R3F9 2024-01 → —

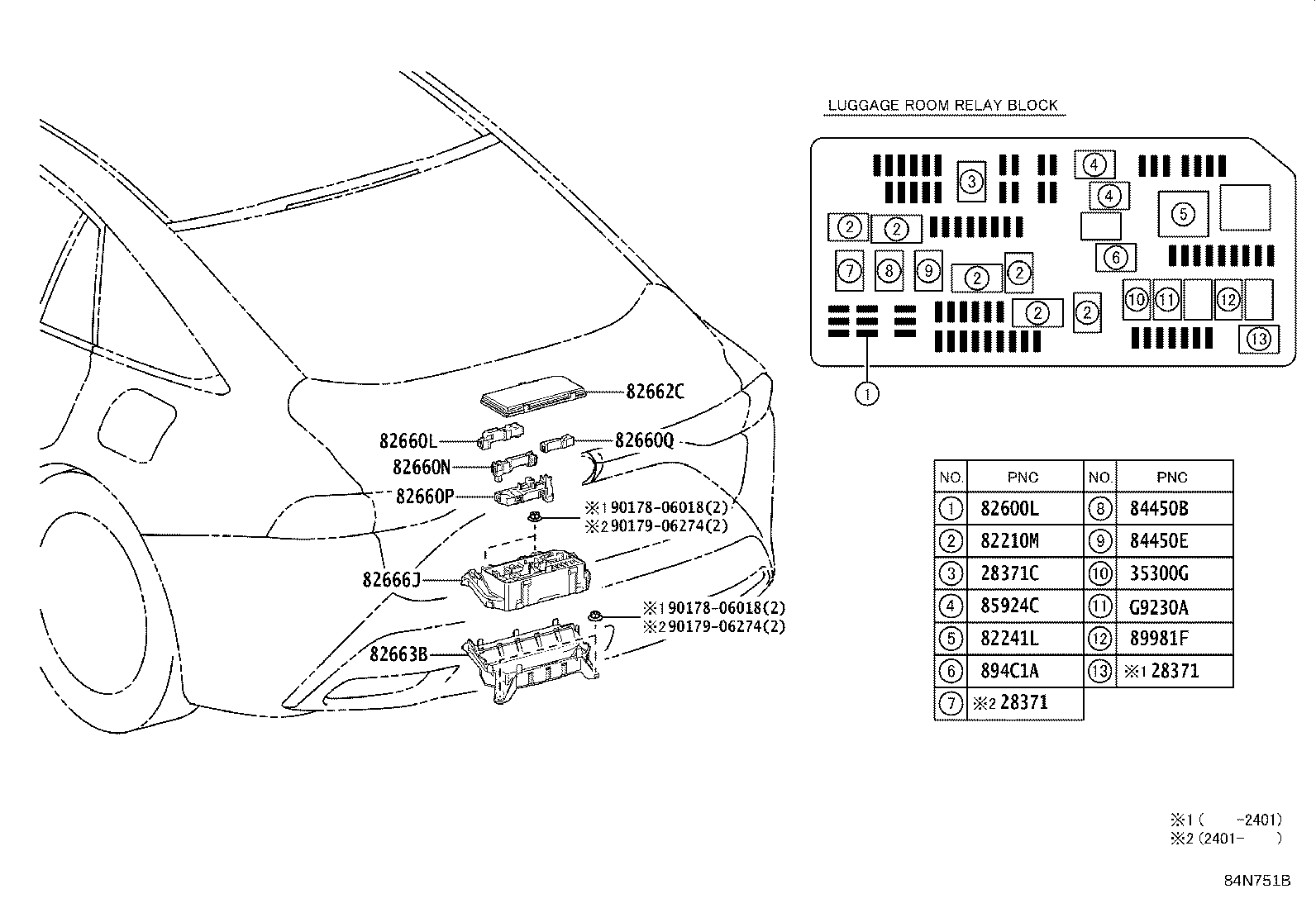

84N751B 2021-08 → —

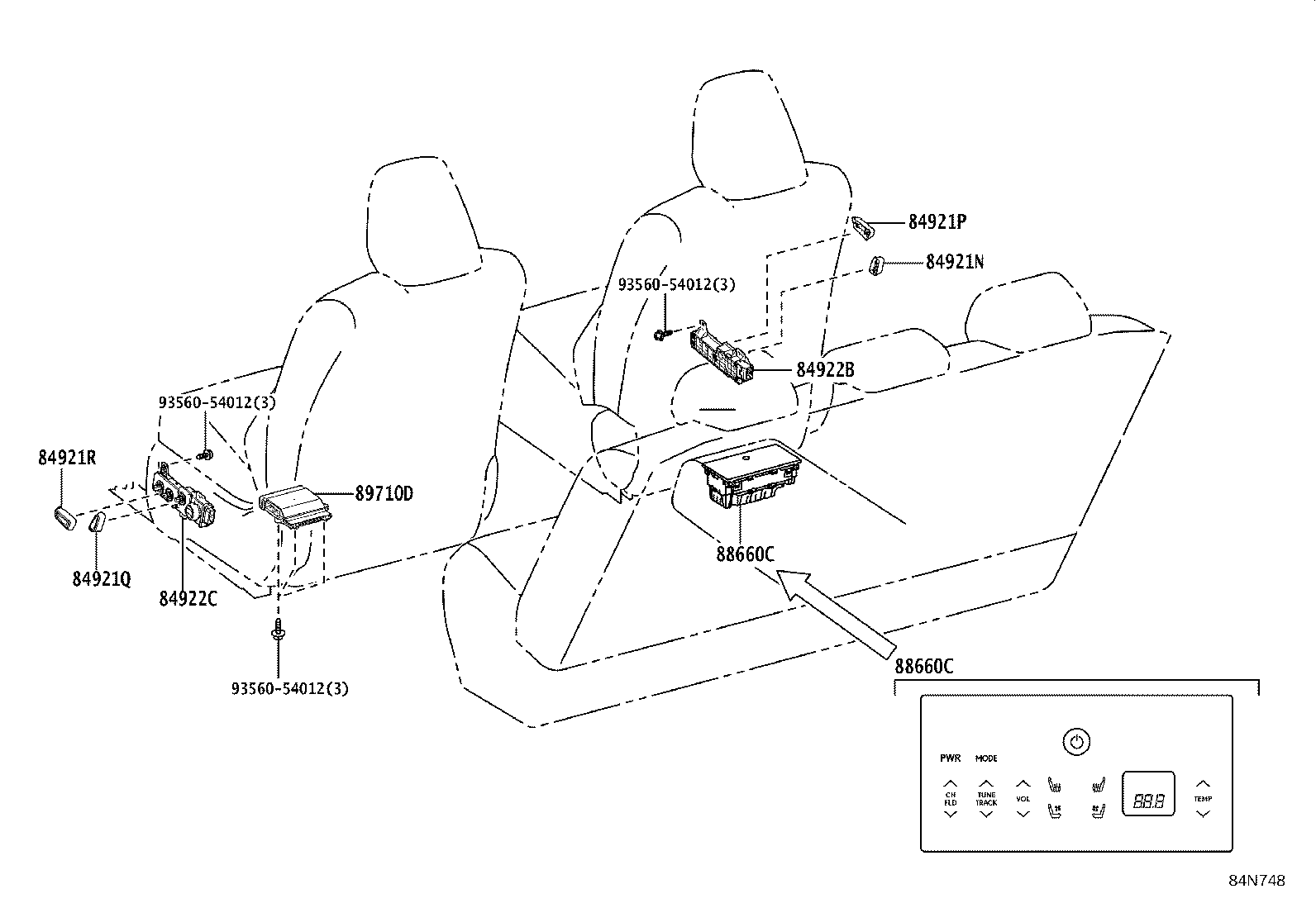

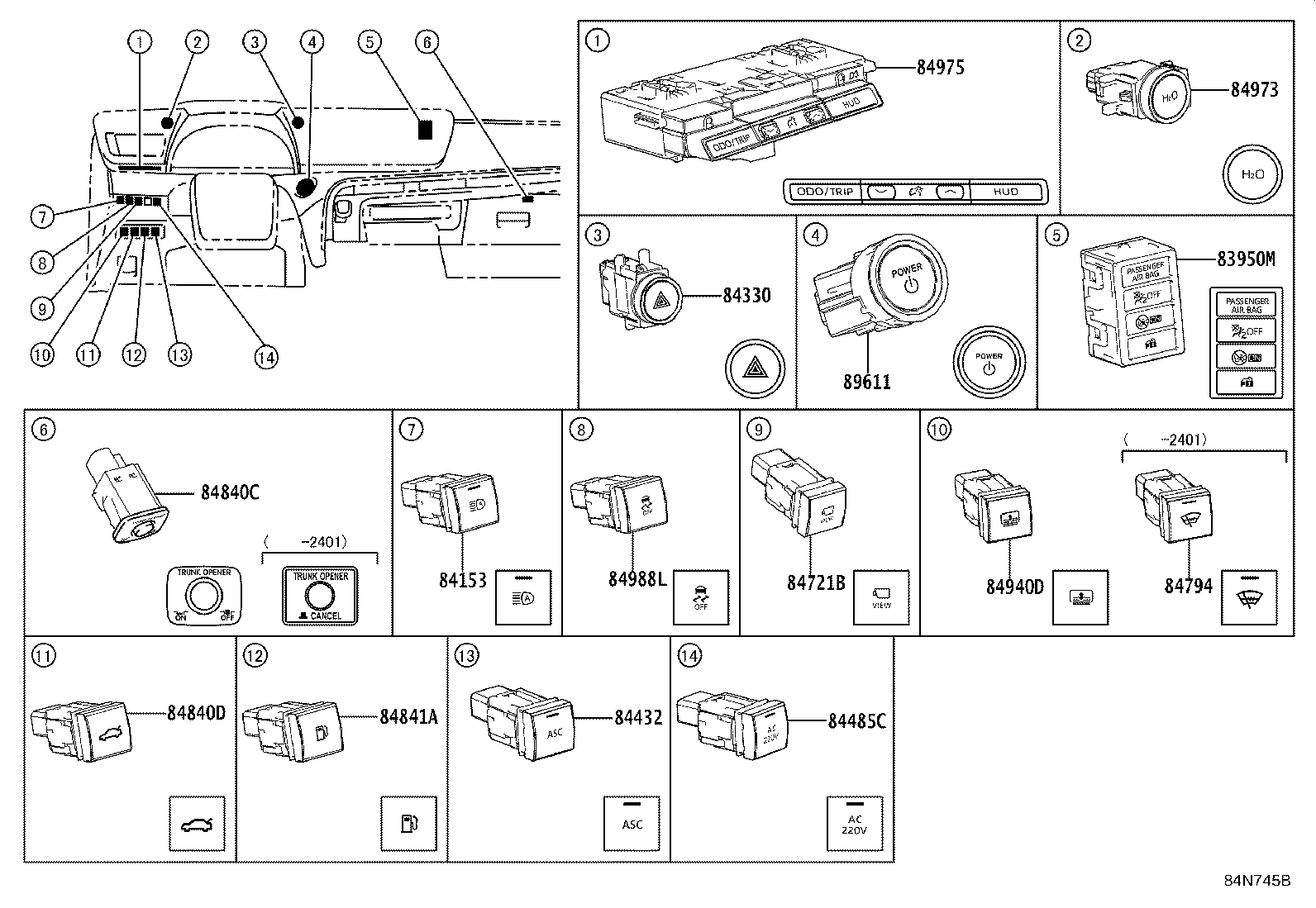

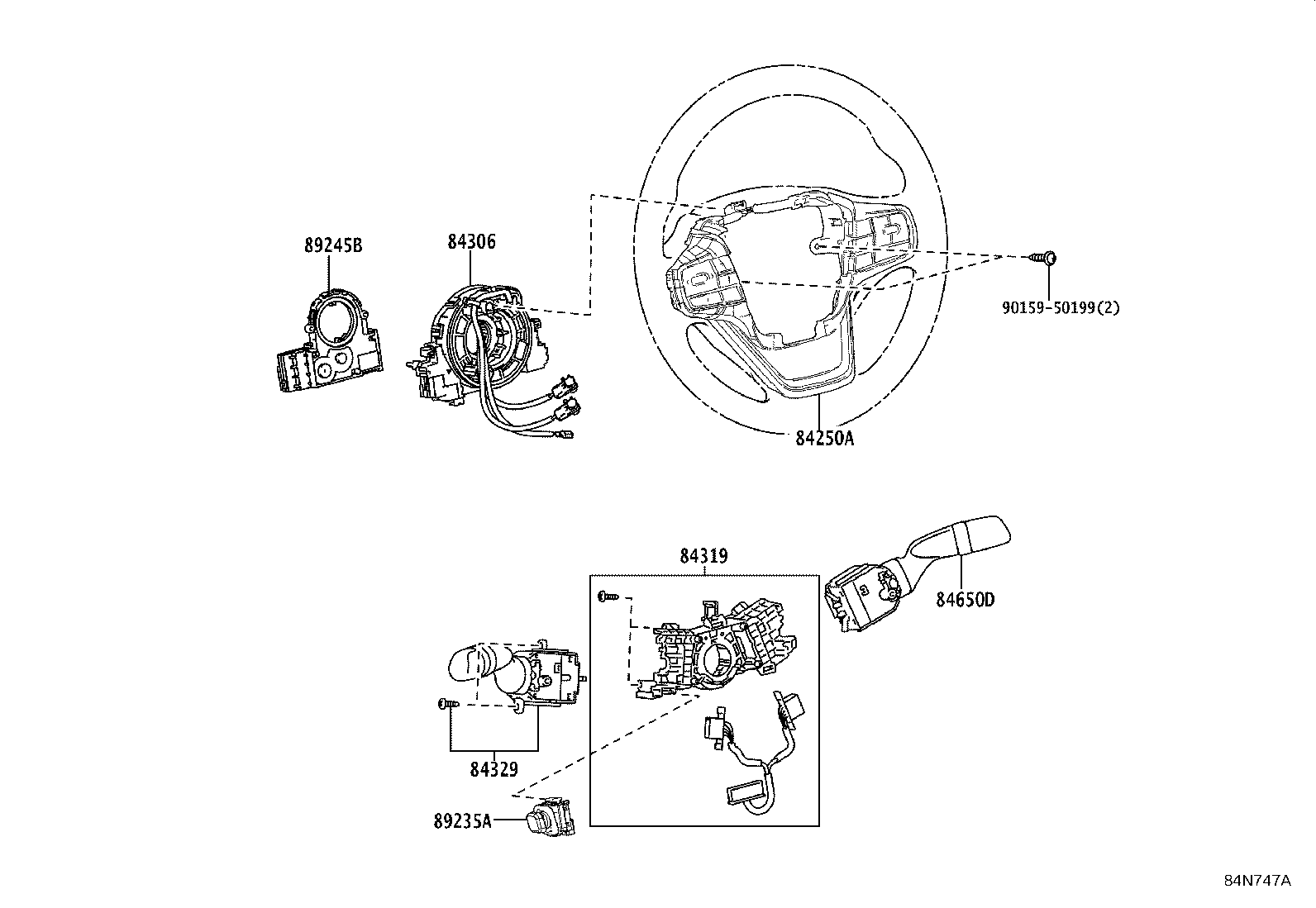

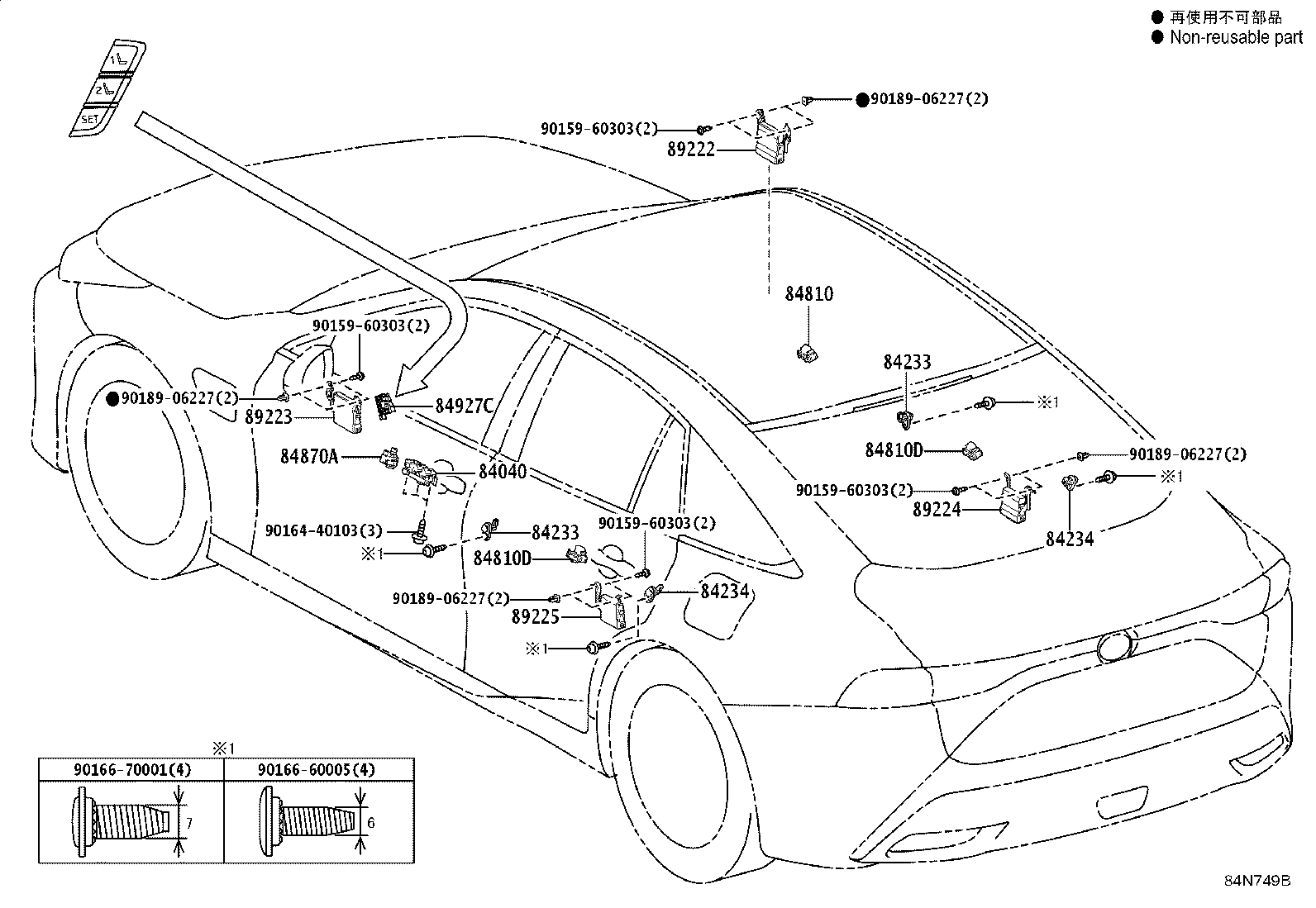

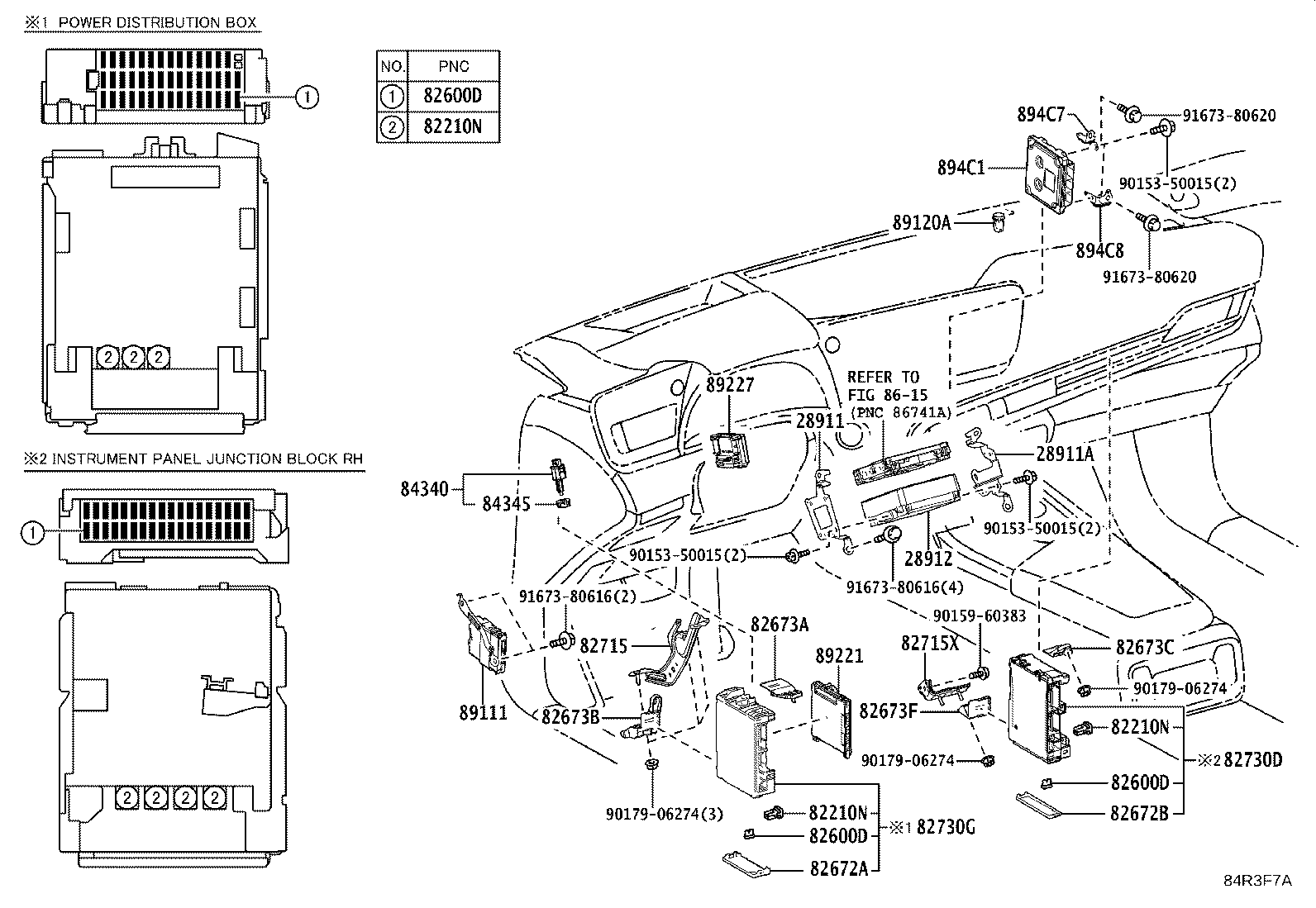

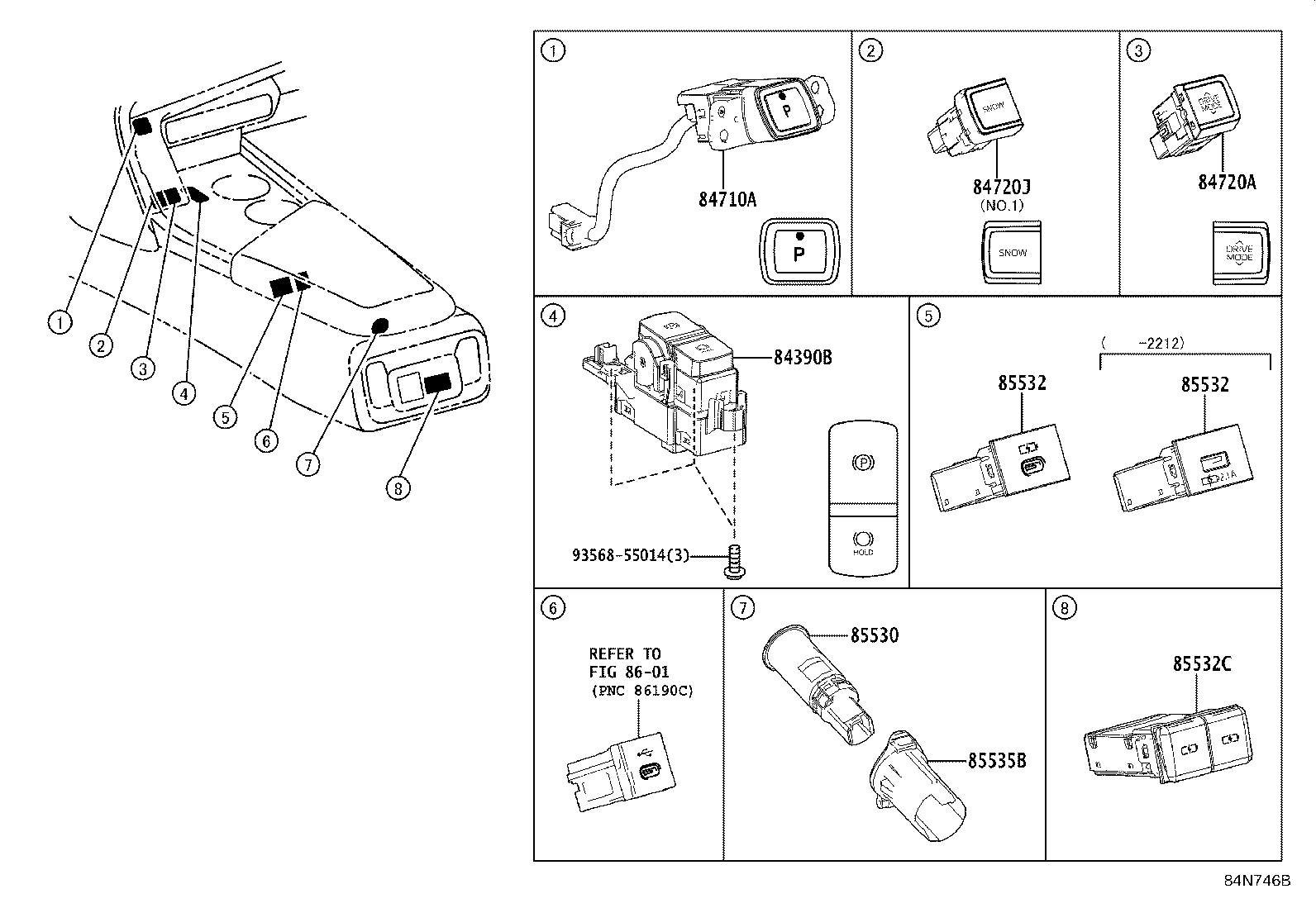

Part groups

PNC	Description
16100P	Relay, Water Pump
28371	Relay, Ignition, NO.1
28371C	Relay, Ignition, NO.2
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
28911	Bracket, Integration Control Supply, NO.1
28911A	Bracket, Integration Control Supply, NO.2
28912	Supply, Integration Control
35300G	Relay, Oil Pump
82210J	Fusible Link
82210M	Fusible Link
82210N	Instrument Panel Fusible Link
82241L	Wire, Relay
82600D	Instrument Panel Fuse
82600F	Fuse, Fuse Block
82600L	Luggage Room Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82644A	Computer, Semiconductor Power Integration, NO.1
82644B	Computer, Semiconductor Power Integration, NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660L	Block Assy, Relay
82660N	Block Assy, Relay
82660P	Block Assy, Relay
82660Q	Block Assy, Relay
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82662C	Cover, Relay Block, Upper, NO.3
82662D	Cover, Relay Block, Upper, NO.4
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82663B	Cover, Relay Block, Lower, NO.3
82666	Holder, Connector
82666H	Holder, Connector, NO.2
82666J	Holder, Connector, NO.3
82666K	Holder, Connector, NO.4
82672A	Cover, Junction Block
82672B	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block
82673F	Bracket, Junction Block
82715	Bracket,Wiring Harness Clamp
82715X	Bracket, Wiring Harness Clamp, NO.2
82730A	Block Assy, Driver Side Junction
82730D	Block Assy, Passenger Side Junction
82730G	Box Assy, Power Distribution
82821B	Cover, Connector
83950M	Lamp Assy, Telltale
84040	Master Switch Assy,Multiplex Network
84153	Switch, Auto High Beam
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84306	Cable Sub-assy, Spiral
84319	Housing, Steering Wheel Switch
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84390B	Switch Assy, Electric Parking Brake
84432	Switch, Vehicle Sound
84450B	Relay, Luggage Accessory
84450E	Relay, Luggage Ignition 1, NO.1
84485C	Switch, Power Outlet
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84710A	Switch, Parking
84720A	Switch Assy, Pattern Select, NO.1
84720J	Switch Assy, Pattern Select
84721B	Switch, Panoramic View Monitor
84794	Switch, FR Wiper Deicer
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840C	Switch Assy, Luggage Door Opening, Cancel
84840D	Switch Assy, Luggage Door Opening
84841A	Switch, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84921N	Knob, Power Seat Switch, RH (FOR RECLINING)
84921P	Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84921Q	Knob, Power Seat Switch, LH (FOR RECLINING)
84921R	Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84927C	Switch, Seat Memory, LH
84940D	Switch Assy, Rear Sun Shade
84945A	Switch, Luggage Electrical Key
84973	Switch, FC Water Release
84975	Switch, Trip
84988L	Switch, Vsc Off
85530	Socket Assy, Power Outlet, NO.1
85531A	Socket, Power Outlet, NO.2
85532	Socket, Usb Charger
85532C	Socket, Usb Charger, NO.2
85535B	Cover, Power Outlet Socket, NO.1
85911D	Relay, Rear Sunshade
85916P	Relay, Headlamp
85924C	Relay, Igct
85942C	Relay, Camera Cleaner
85948	Relay, Windshield Wiper
85965	Relay, Room Lamp Control
85965B	Relay, Room Lamp Control (REAR)
86247A	Bracket, Voltage Inverter
8624A	Inverter, Voltage
86530	Relay Assy, Horn
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
88631E	Relay, Airconditioner
88660C	Switch Assy, Cooler Control
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89222A	Computer, Multiplex Network Door
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89422A	Sensor, Water Temperature
894C1	Computer, Shift Control
894C1A	Relay, Parking Control Motor, NO.1
894C1B	Relay, Parking Control Motor, NO.2
894C7	Bracket, Shift Control Computer, NO.1
894C8	Bracket, Shift Control Computer, NO.2
894D1	Supply, Shift Control
89501B	Relay, FC Power, NO.1
89611	Switch, Push Start
89669H	Bracket, FC Control Computer, NO.3
89710D	Computer Assy, Position Control, LH
89747F	Buzzer, Blind Spot Monitor
898A1	Computer, FC Control
898A7	Bracket, FC Control Computer, NO.1
898A8	Bracket, FC Control Computer, NO.2
898C0	Computer Assy, Hydrogen Fuel Control
898D1	Transmitter, Hydrogen Fuel Control
898D2	Wire, Hydrogen Fuel Control
89981B	Relay, Tank Shut Valve
89981F	Relay, Hf-b
G4132	Sensor, Hydrogen Primary Pressure
G4133	Sensor, Hydrogen Secondary Pressure
G9221A	Cover, Inverter, Upper
G9230A	Relay, Battery Fan, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
