Toyota Mirai

2021-08 → present · chassis JPD20 · catalogue 28B320 · General

Supported model Data version 2024-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

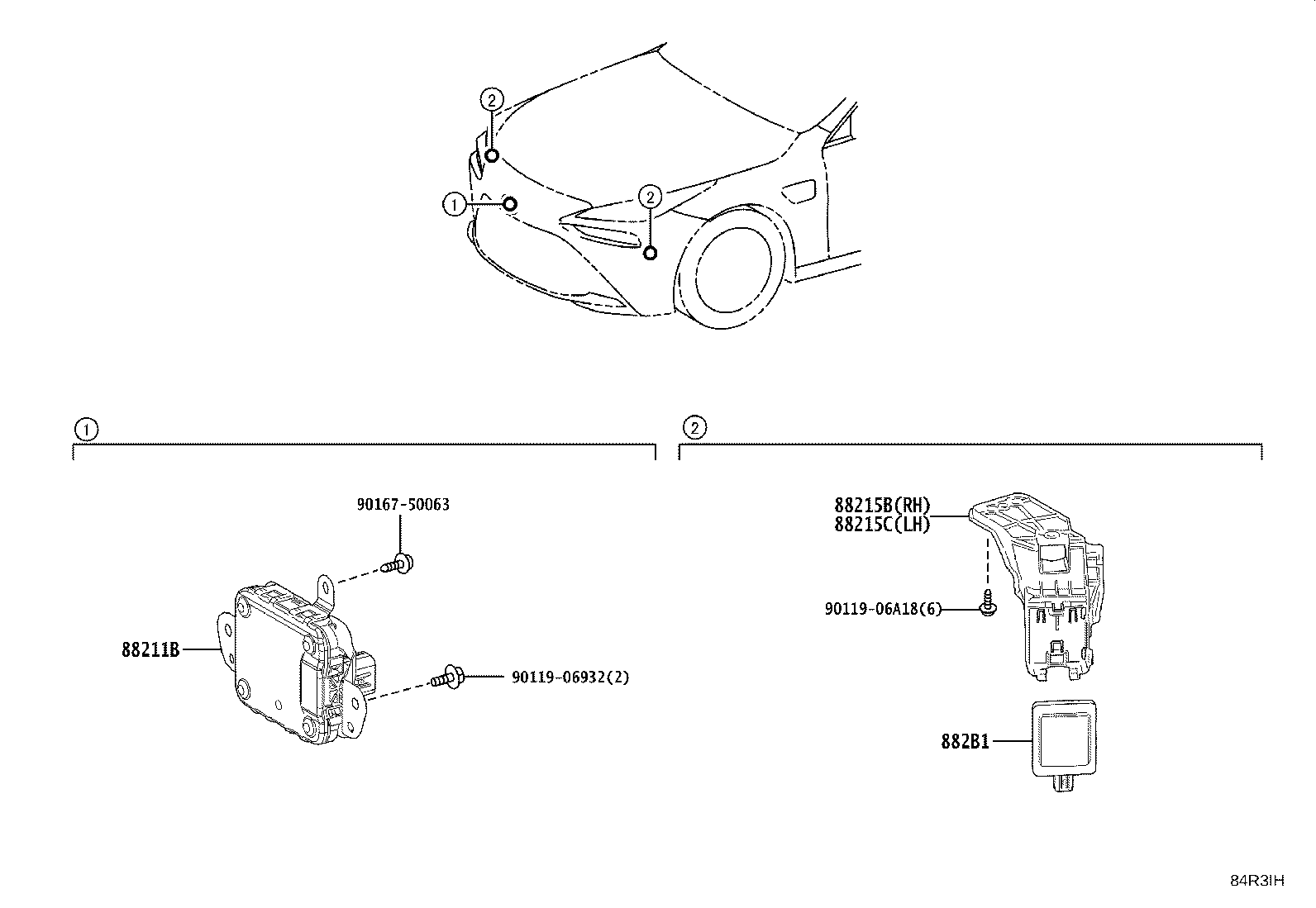

Figure 84M624 84M624 2021-08 → 2024-01 Figure 84R3IH 84R3IH 2024-01 → —

Part groups

PNCDescription
88211B Sensor Assy, Millimeter Wave Radar
88215B Bracket, Front Side Radar Sensor, RH
88215C Bracket, Front Side Radar Sensor, LH
882B1 Sensor, Front Side Radar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
