Toyota Supra
1993-05 → 1996-05 · chassis JZA80 · catalogue 291230 · General
Discontinued model
Data version 1997-02

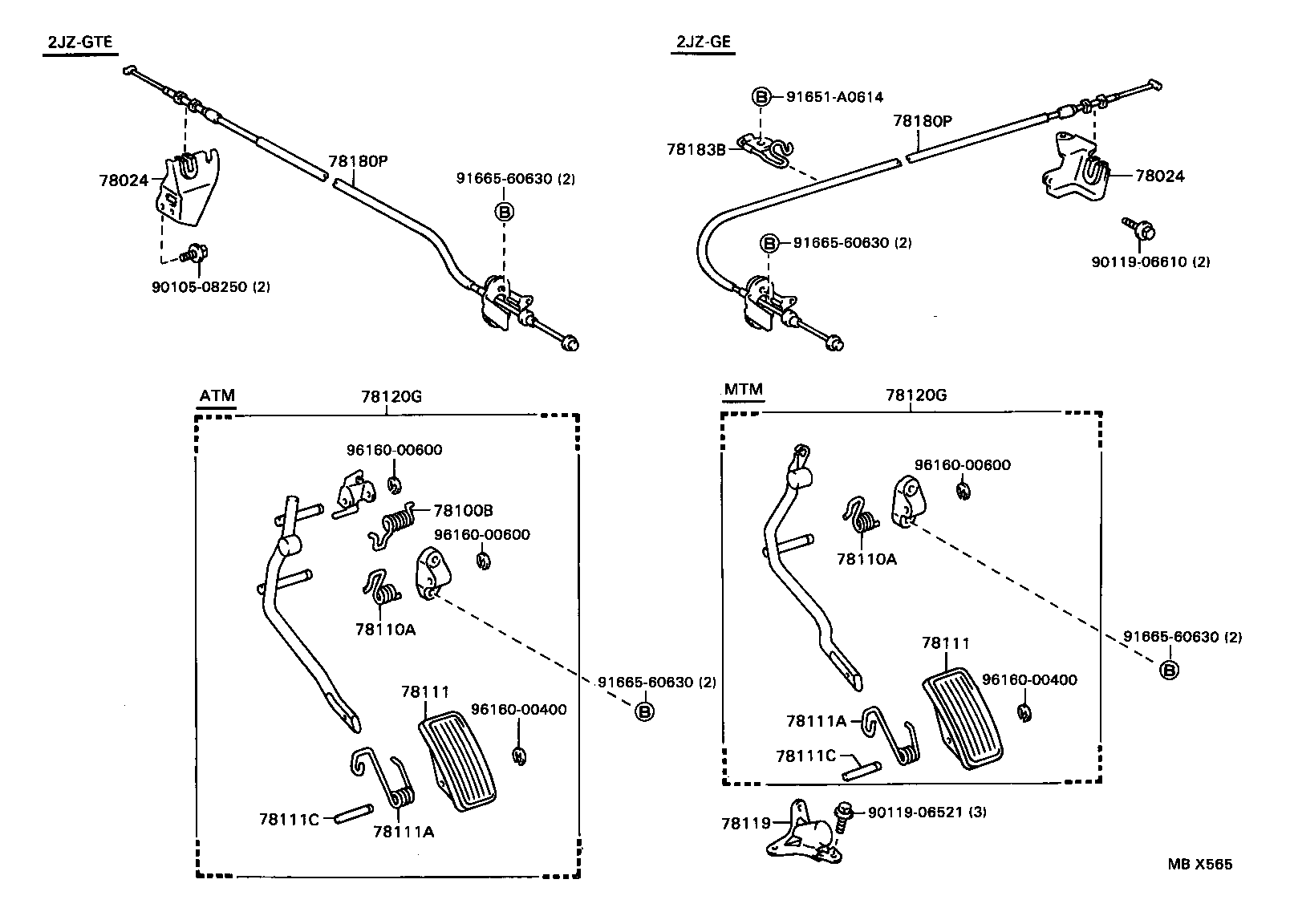

Accelerator Link
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100B | Spring (FOR ACCELERATOR LINK) |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
