Toyota Supra

2019-03 → present · chassis DB01,02,21,22,41,42,81,82 · catalogue 291240 · General

Supported model Data version 2020-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

11 part groups · 2 illustrations

Illustrations

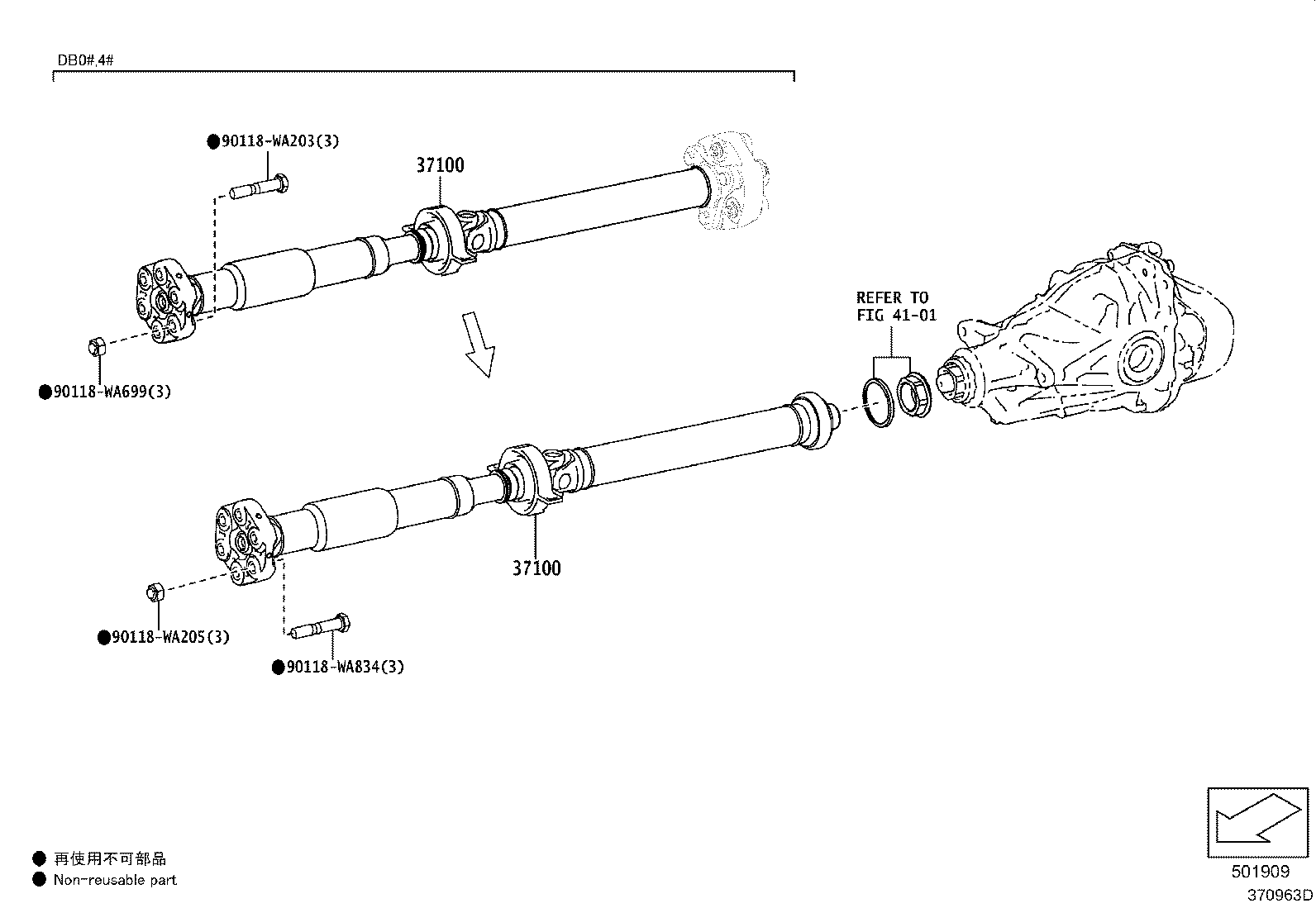

Figure 370962F 370962F 2019-03 → — Figure 370963D 370963D 2019-03 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37205B Damper Ring
37230 Bearing Assy, Center Support, NO.1
37230A Bearing, NO.1 (FOR CENTER SUPPORT)
37334D Boot, Rear Propeller Shaft
37381 Sleeve, Propeller Shaft Spline
37511 Coupling, Flexible
37511A Bolt (FOR FLEXIBLE COUPLING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
