Toyota Supra

2022-07 → present · chassis DB05,06,25,26,45,46,85 · catalogue 291250 · General

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

2 part groups · 2 illustrations

Illustrations

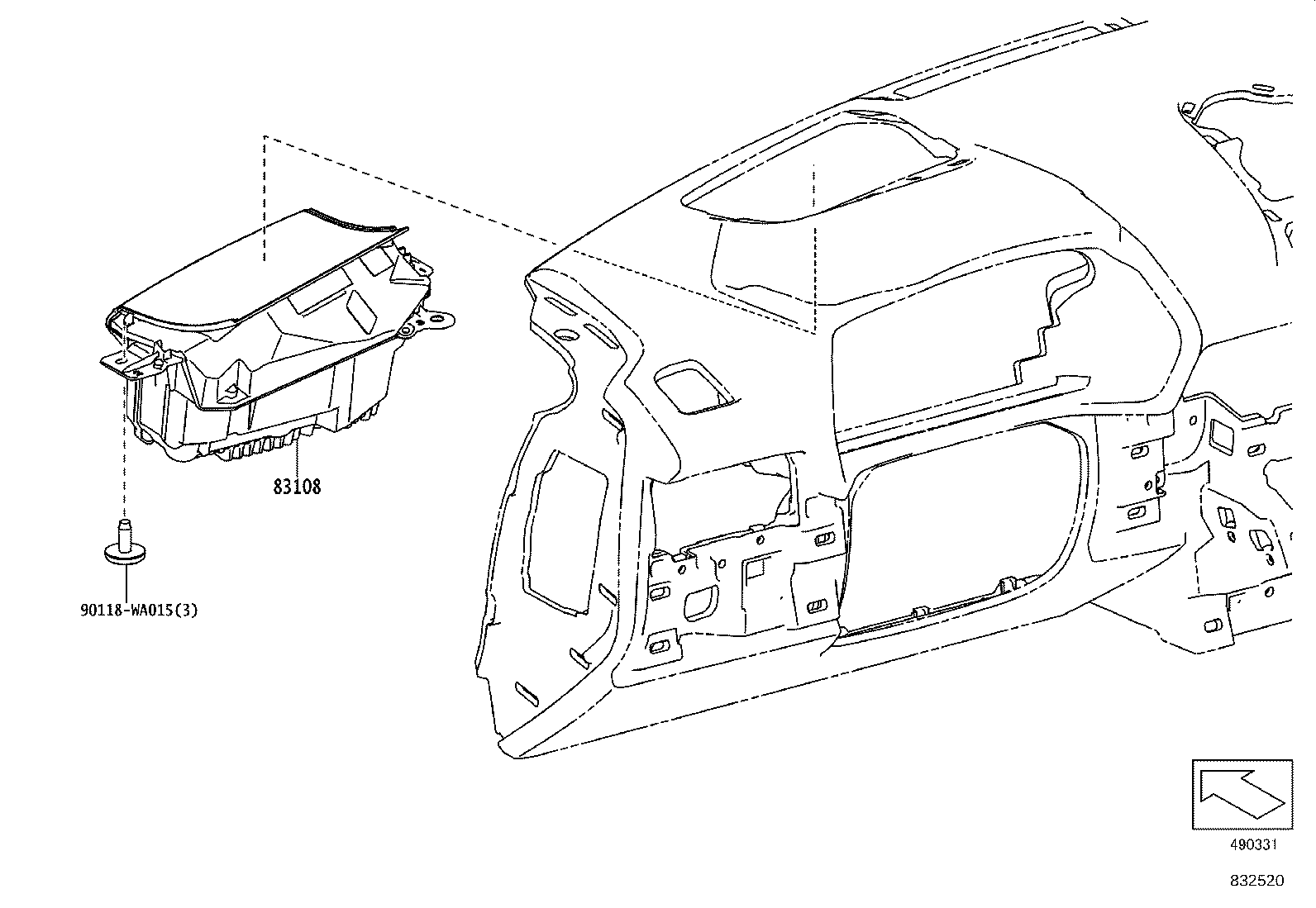

Figure 832519A 832519A 2022-07 → — Figure 832520 832520 2022-07 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
