Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · General

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 3 illustrations

Illustrations

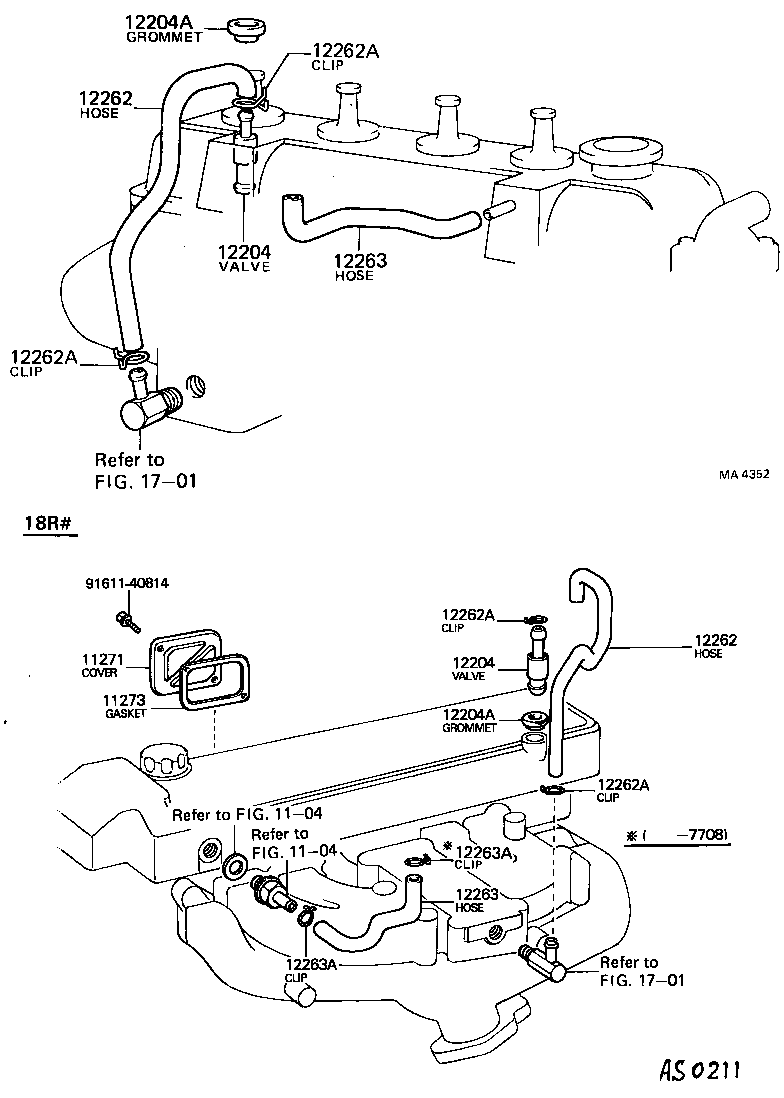

Figure MA2861E MA2861E 1976-12 → 1980-08 Figure AS0211 AS0211 1976-12 → 1980-08 Figure AS0211 AS0211 1980-01 → 1980-08

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
11273 Gasket, Cylinder Block Side Cover
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12253 Plug, Ventilation Hole
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
