Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · General

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

18 part groups · 5 illustrations

Illustrations

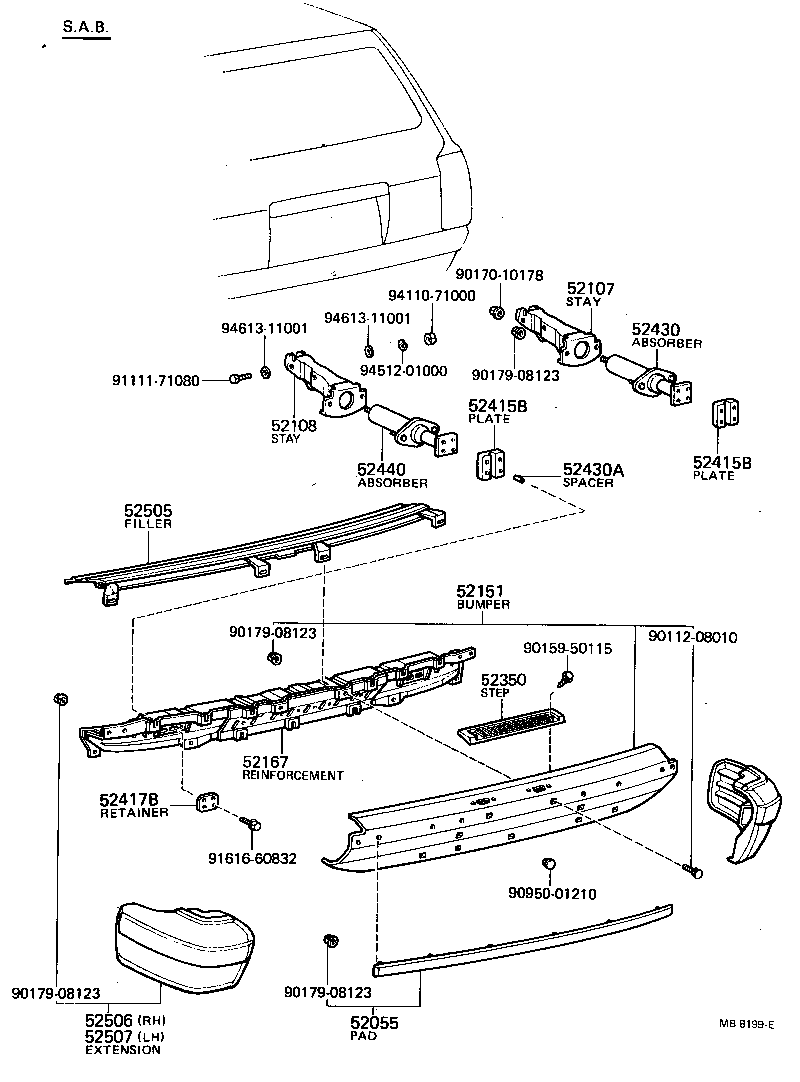

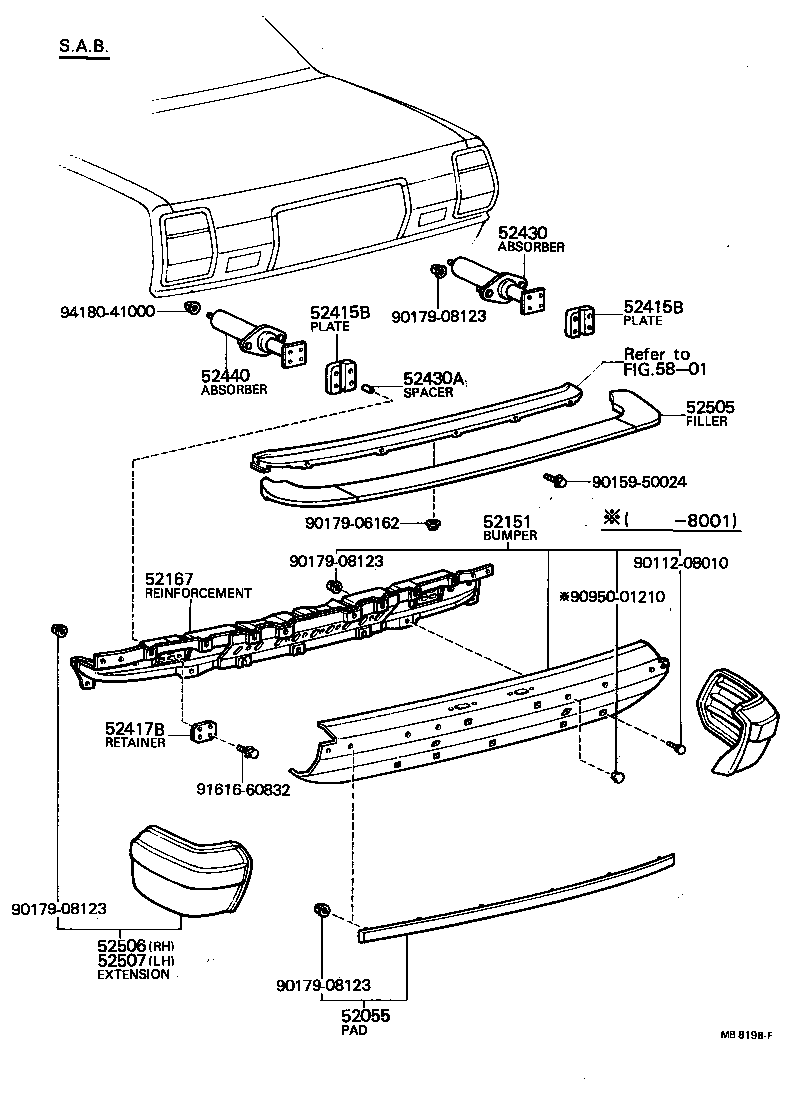

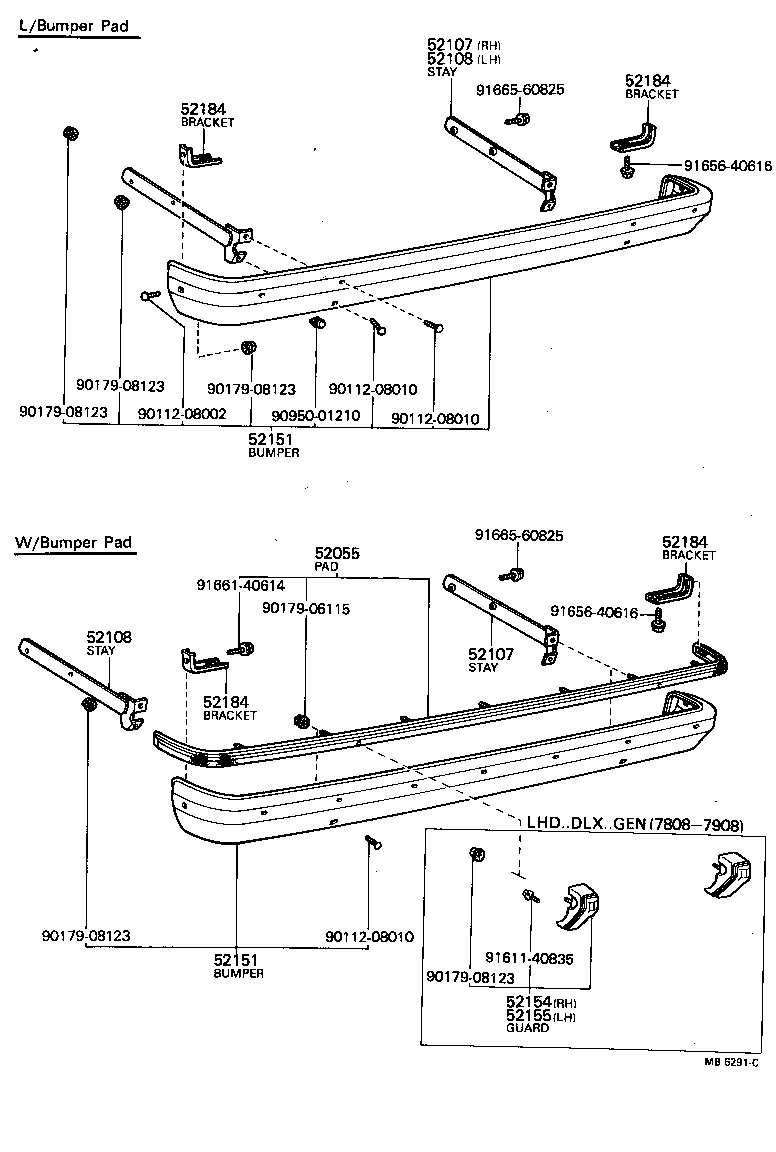

Figure MB6391E MB6391E 1976-12 → 1980-08 Figure MB6291C MB6291C 1976-12 → 1980-08 Figure MB8198F MB8198F 1979-08 → 1980-08 Figure MB8198F MB8198F 1980-01 → 1980-08 Figure MB8199E MB8199E 1979-08 → 1980-08

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52154 Guard, Bumper, Rear RH
52155 Guard, Bumper, Rear LH
52167 Reinforcement, Rear Bumper
52184 Bracket, Rear Bumper Side Mounting
52191 Packing, Rear Bumper Stay
52350 Step Assy, Rear Bumper
52415B Plate, Rear Absorber Mounting
52417B Retainer, Rear Absorber Mounting
52430 Absorber, Rear Bumper, RH
52430A Spacer, Rear Bumper Absorber
52440 Absorber, Rear Bumper, LH
52505 Filler Sub-assy, Rear Bumper
52506 Extension Sub-assy, Rear Bumper, RH
52507 Extension Sub-assy, Rear Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
