Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · General

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

21 part groups · 5 illustrations

Illustrations

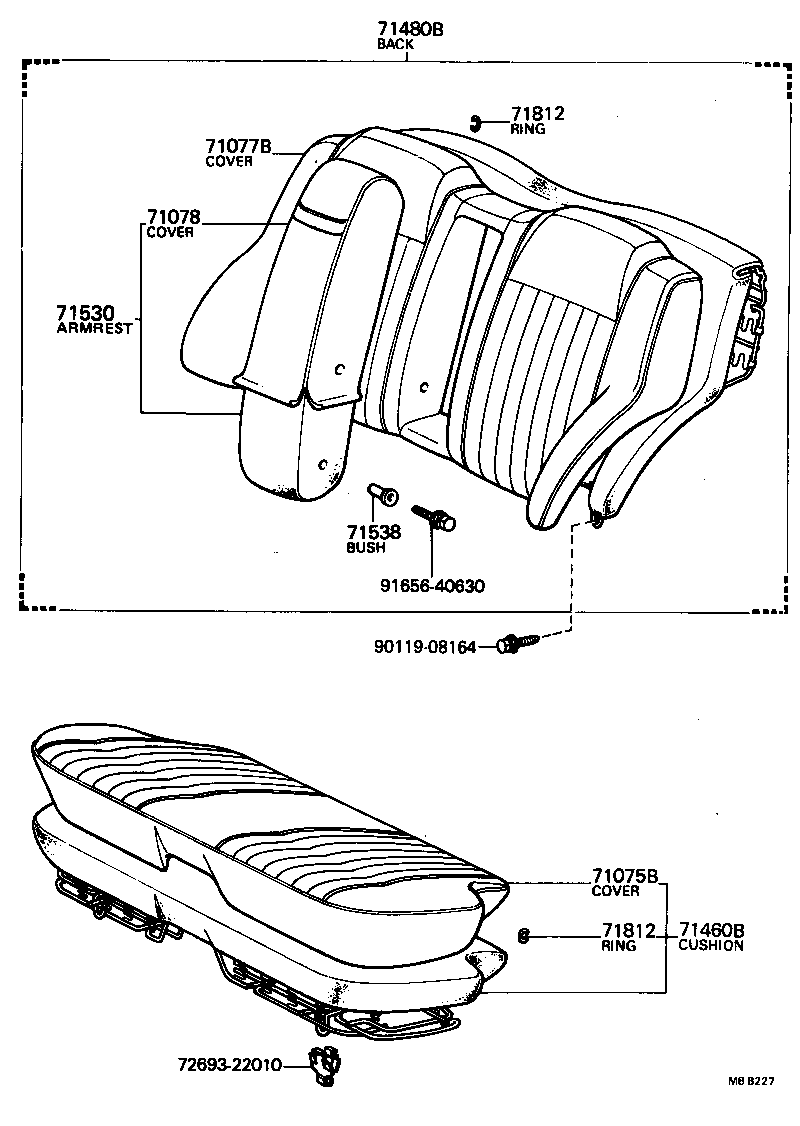

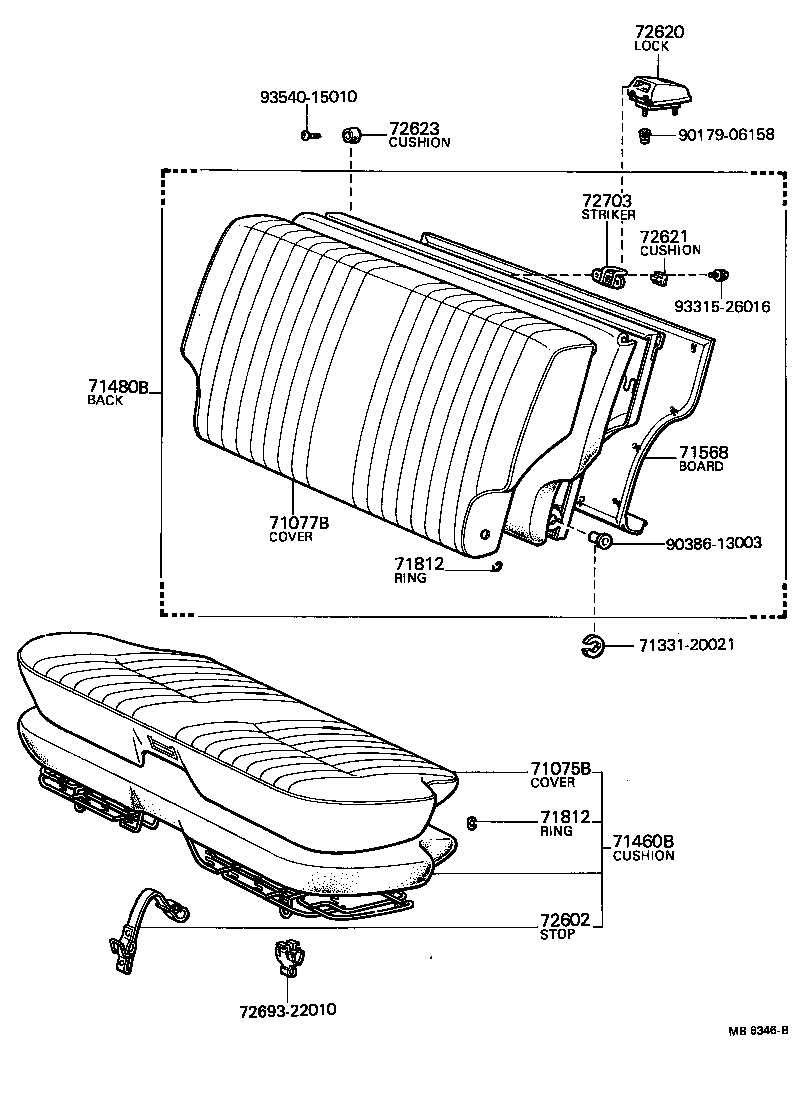

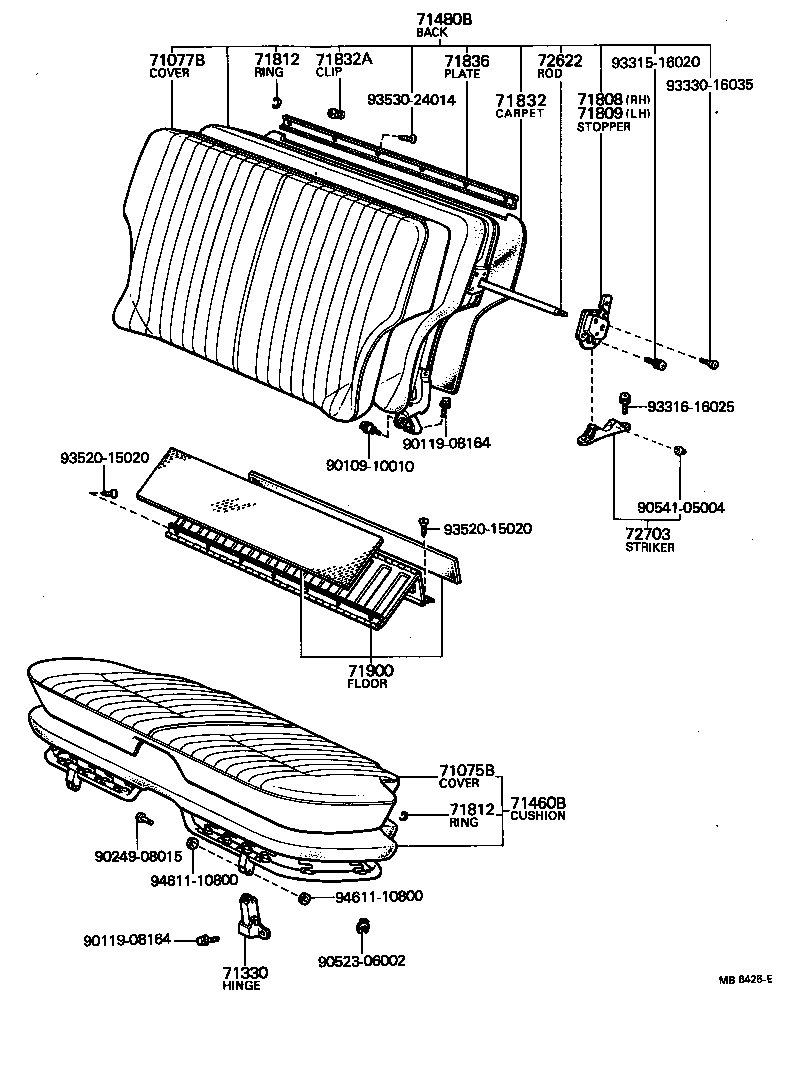

Figure MB6425A MB6425A 1976-12 → 1980-08 Figure MBB227 MBB227 1978-08 → 1980-08 Figure MBB227 MBB227 1979-08 → 1980-08 Figure MB6346B MB6346B 1976-12 → 1980-08 Figure MB6426E MB6426E 1976-12 → 1980-08

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078 Cover Sub-assy, Rear Seat Center Armrest
71330 Hinge Assy, Rear Seat Cushion
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71530 Armrest Assy, Rear Seatback, Center
71538 Bush, Rear Seat Armrest, RH
71568 Board, Rear Seatback
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71832 Carpet OR Mat, Rear Seatback
71832A Clip, Rear Seatback Carpet OR Mat
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71900 Floor Assy, Rear Seat
72602 Stop Sub-assy, Rear Seatback, Lower
72620 Lock Assy, Rear Seatback
72621 Cushion, Rear Seatback, NO.1
72622 Rod, Rear Seatback Stopper Connecting
72623 Cushion, Rear Seatback, NO.2
72703 Striker Sub-assy, Rear Seatback Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
