Toyota Cressida

1976-12 → 1980-08 · chassis RX3#,MX3# · catalogue 311230 · General

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 3 illustrations

Illustrations

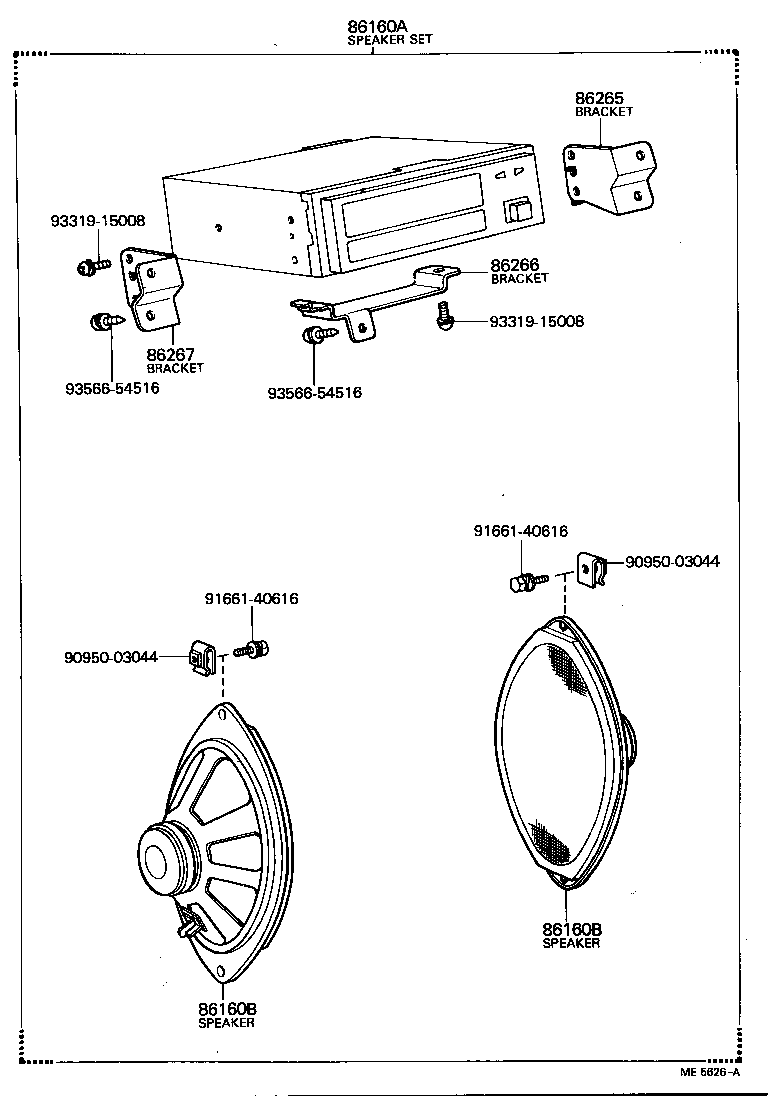

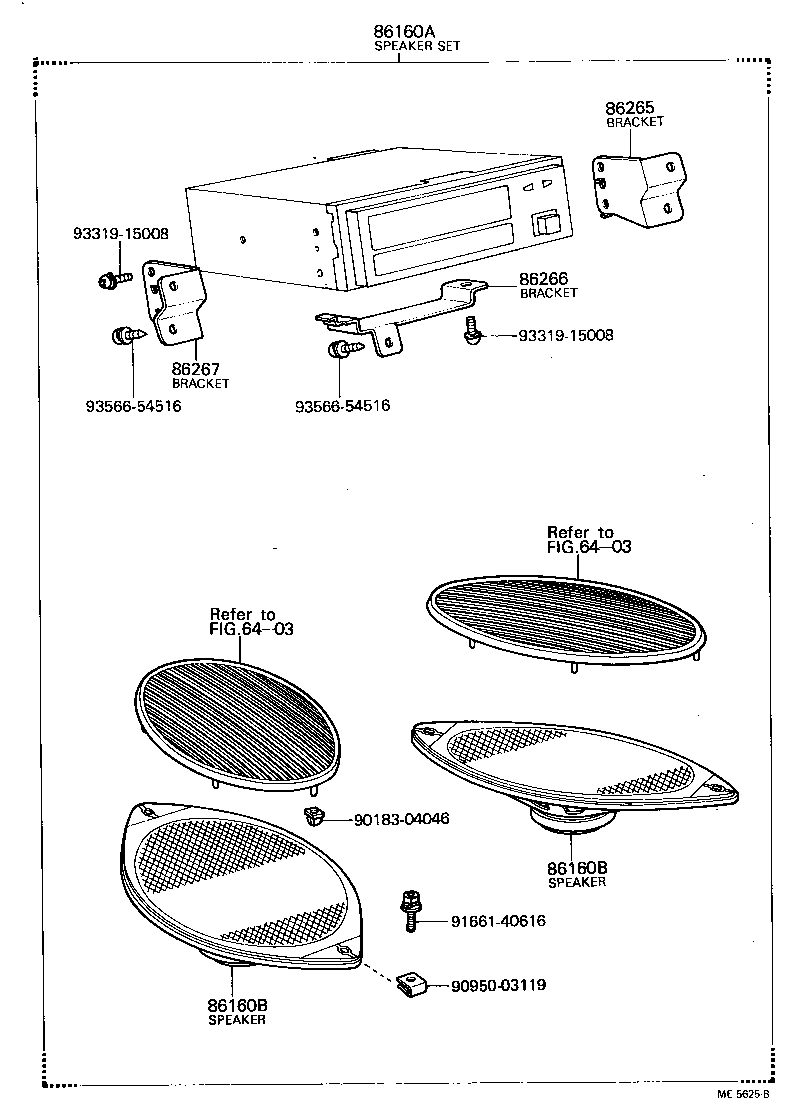

Figure ME5624C ME5624C 1976-12 → 1980-08 Figure ME5625B ME5625B 1976-12 → 1980-08 Figure ME5626A ME5626A 1976-12 → 1980-08

Part groups

PNCDescription
86022 Parts Set, Tape Player Setting
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86202B Wire, Tape Player
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
86268 Bracket, Tape Player, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
