Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · General

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

58 part groups · 9 illustrations

Illustrations

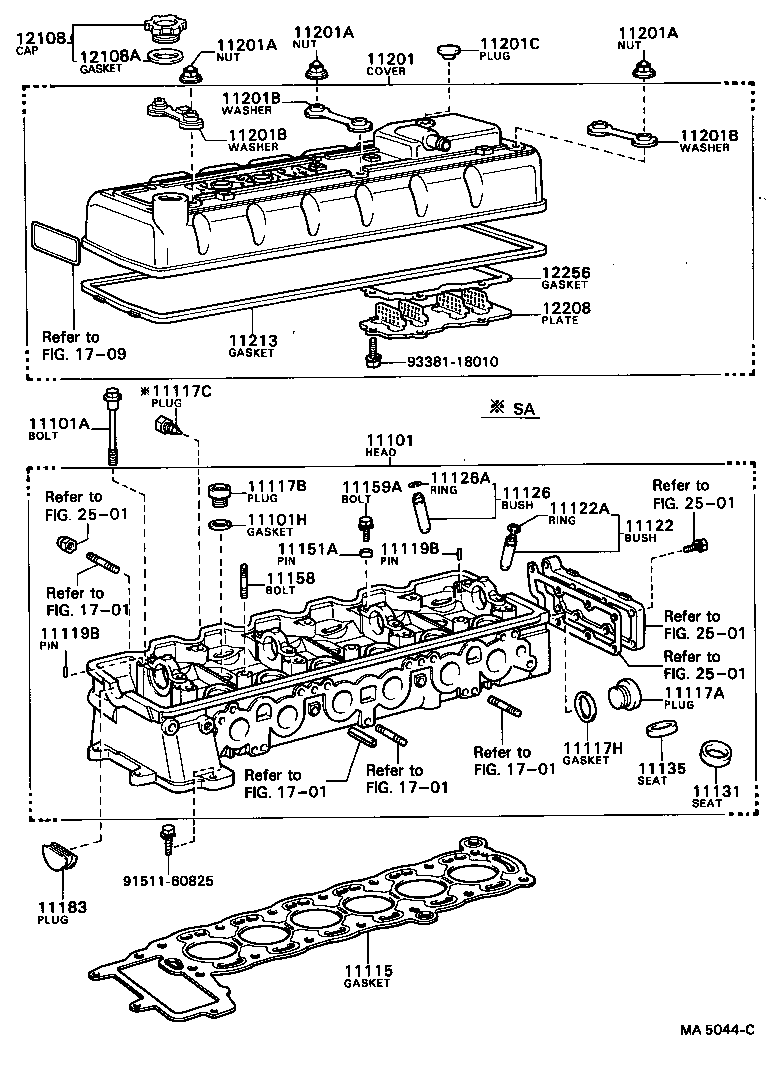

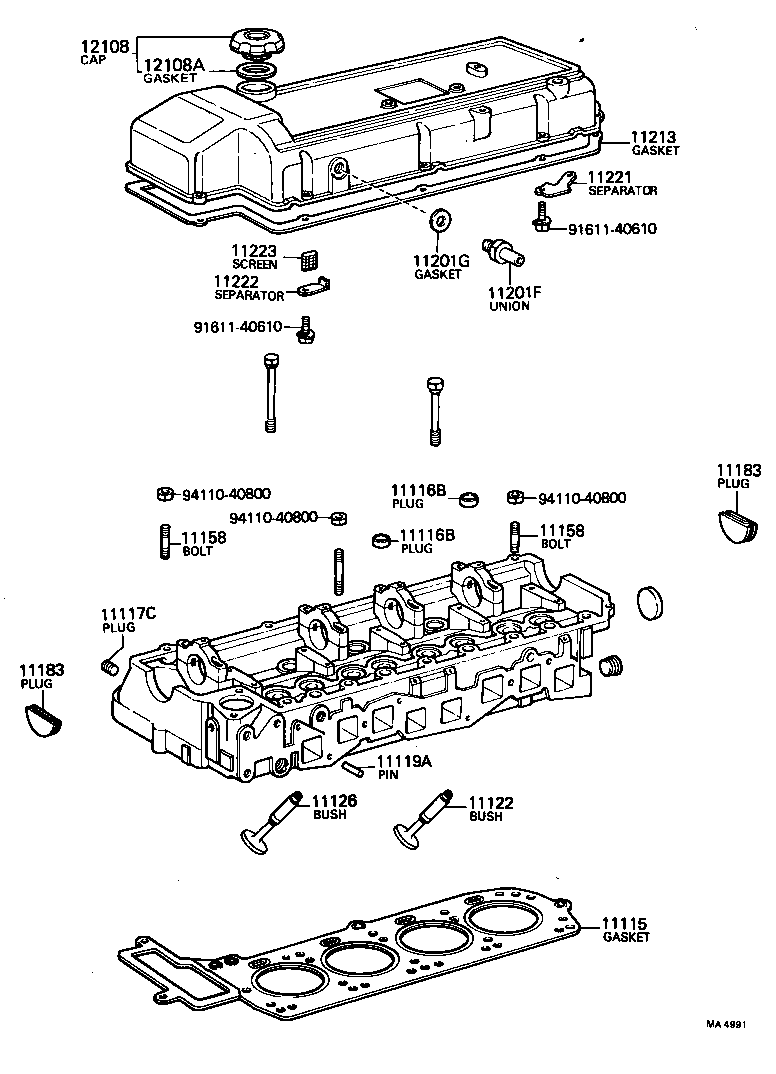

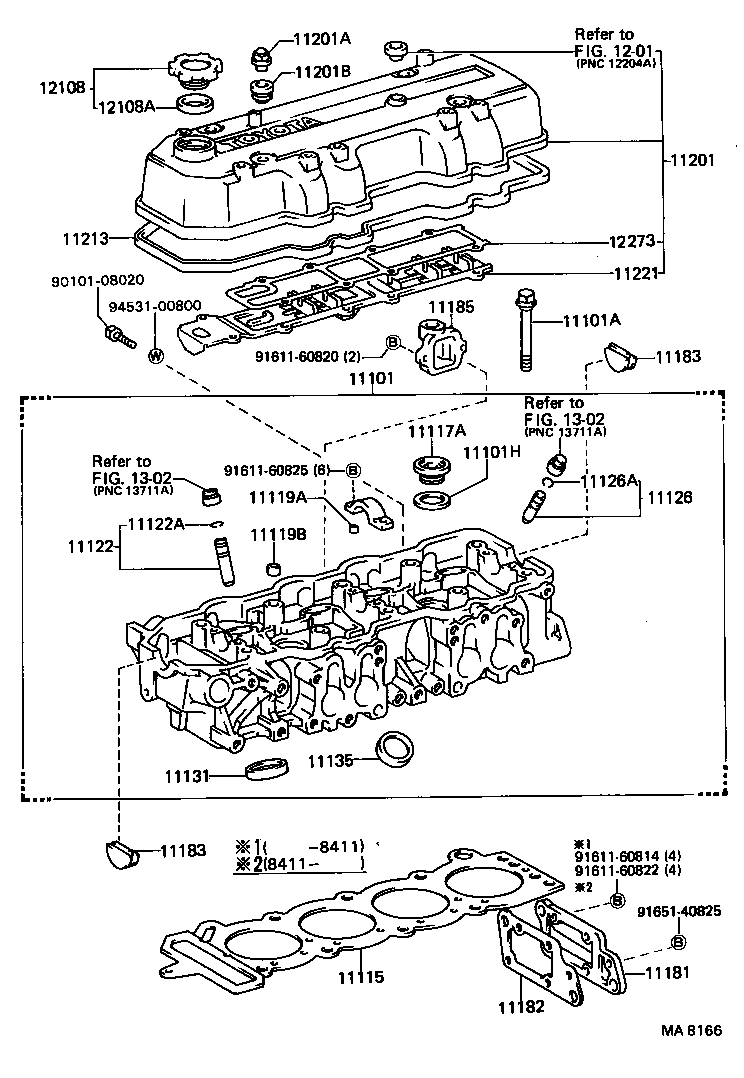

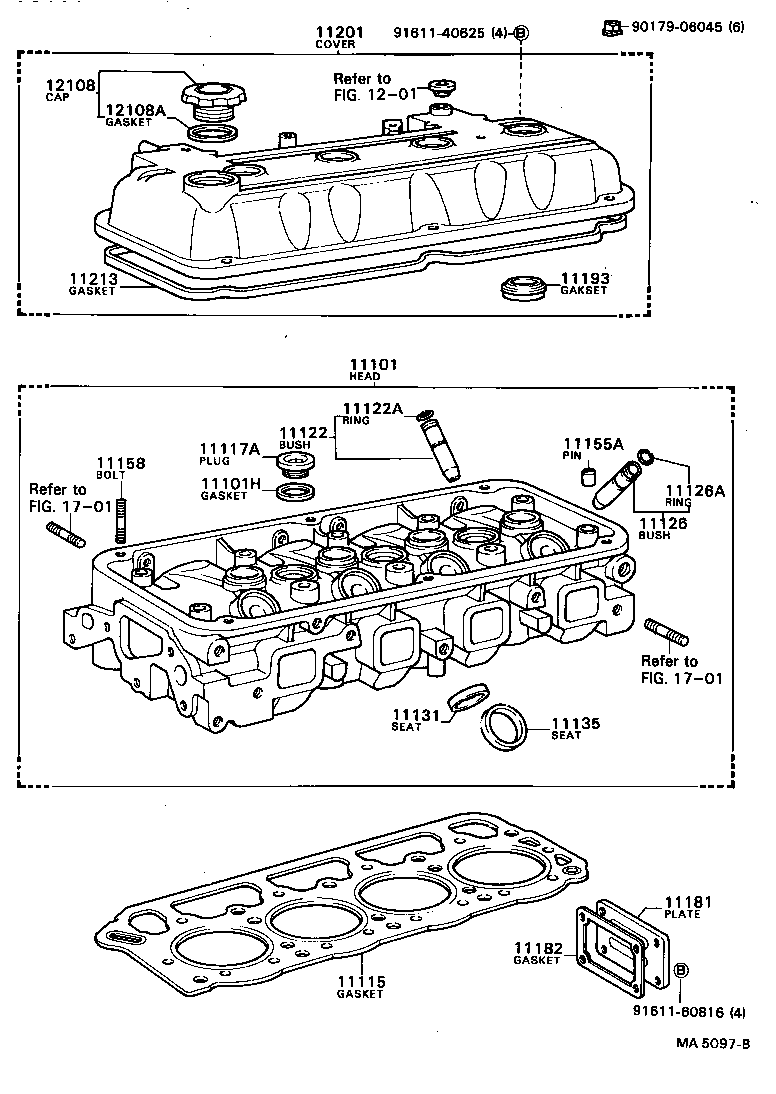

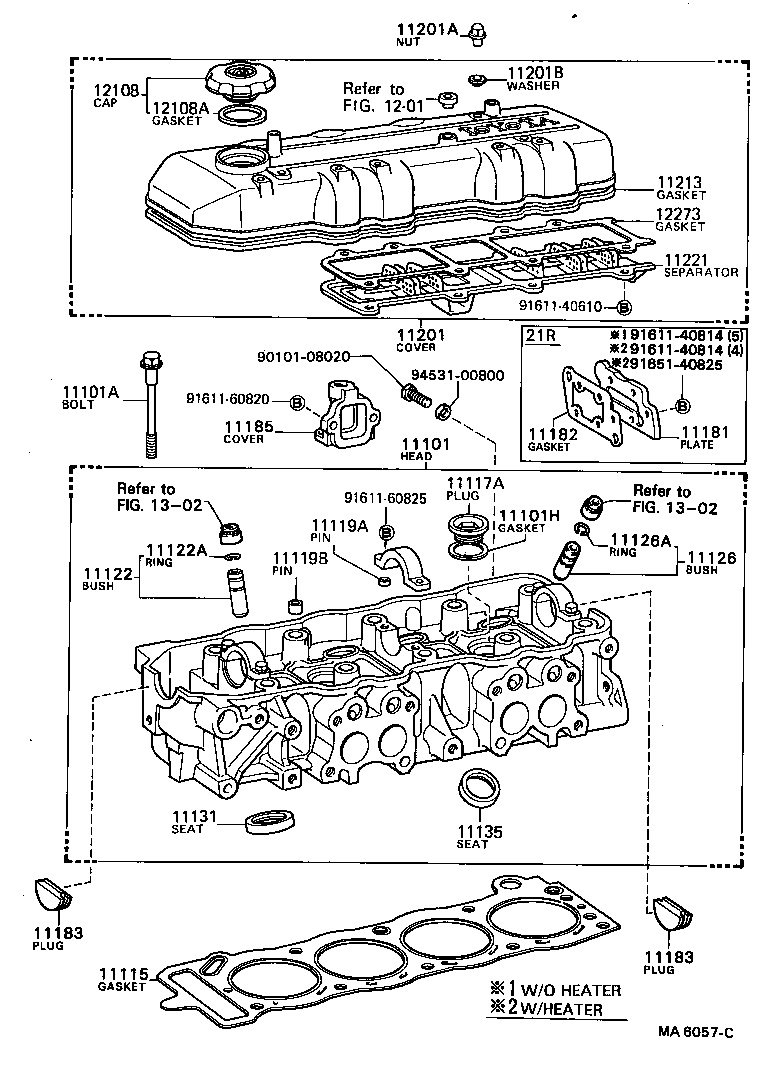

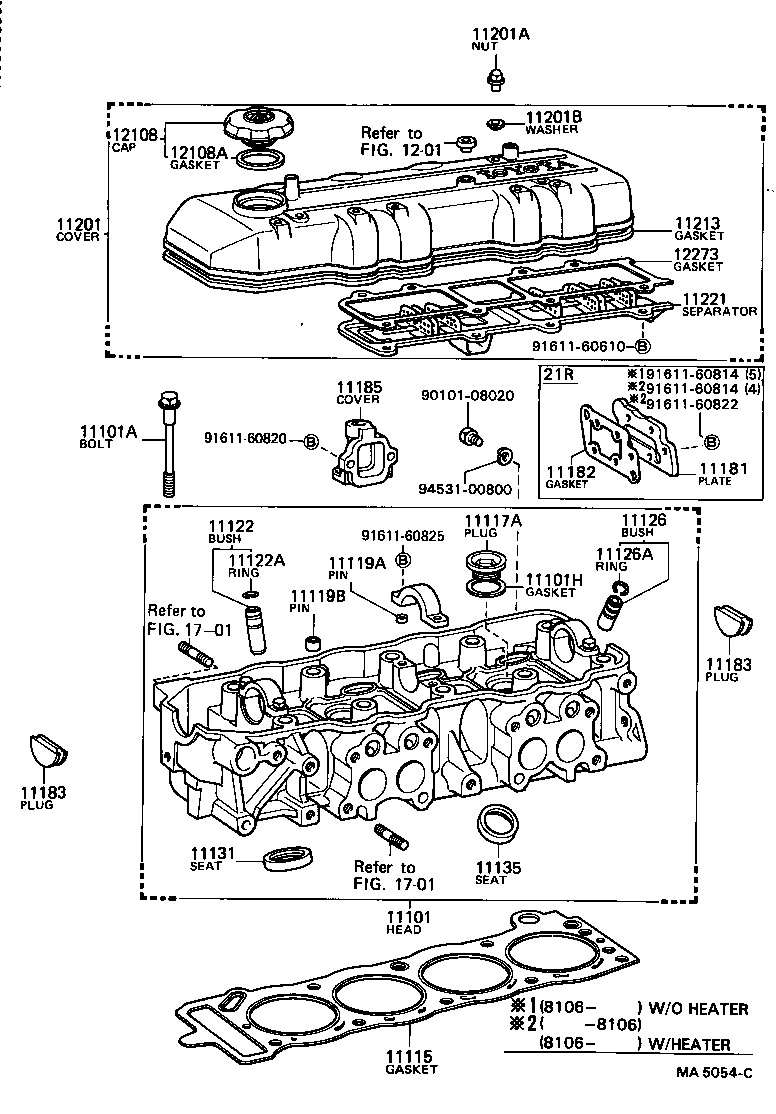

Figure MA5970 MA5970 1982-08 → — Figure MA3735F MA3735F 1980-09 → 1982-04 Figure MA6003 MA6003 1982-04 → — Figure MA5044C MA5044C 1980-09 → — Figure MA4991 MA4991 1981-07 → 1982-08 Figure MA5054C MA5054C 1980-09 → 1982-06 Figure MA6057C MA6057C 1982-06 → 1984-07 Figure MA8166 MA8166 1984-08 → — Figure MA5097B MA5097B 1981-07 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117C Plug, W/Head Taper Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11118B Plug, Straight, NO.2
11118C Plug, Straight, NO.3
11118G Pin, Slotted Spring, NO.1
11118H Pin, Slotted Spring, NO.2
11119A Pin, Straight, NO.1
11119B Pin, Straight, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11153 Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155 Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11185 Cover, Cylinder Head Side
11187 Cover, Camshaft Housing, Rear
11189 Gasket, Camshaft Housing Rear Cover
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201C Plug(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
11201F Union(FOR POSITIVE CRANKCASE VENTILATION)
11201G Gasket(FOR POSITIVE CRANKCASE VENTILATION)
11213 Gasket, Cylinder Head Cover
11221 Separator, Cylinder Head Cover, NO.1
11222 Separator, Cylinder Head Cover, NO.2
11223 Screen,Cylinder Head Cover
11273 Gasket, Cylinder Block Side Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12208 Plate Sub-assy, Ventilation Baffle
12256 Gasket, Ventilation Baffle
12273 Gasket, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
