Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · General

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

30 part groups · 7 illustrations

Illustrations

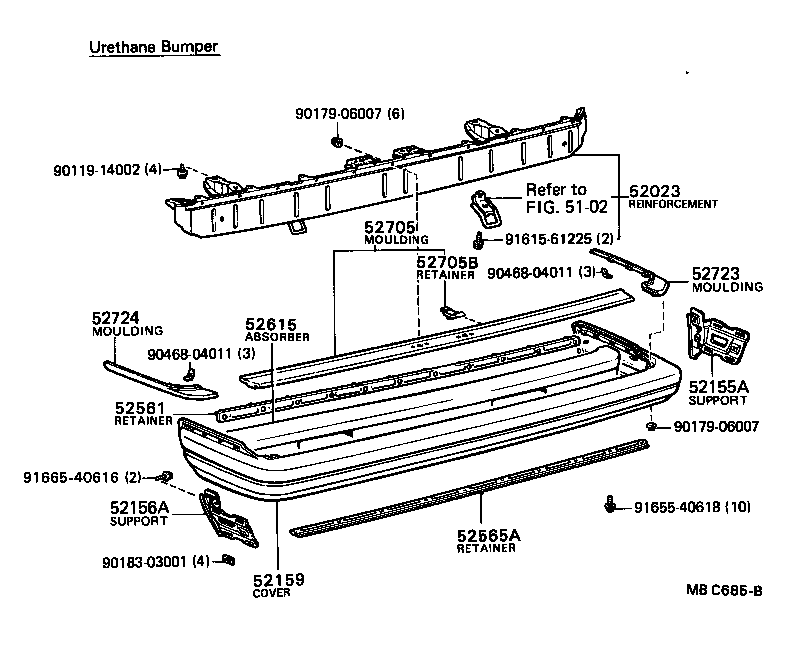

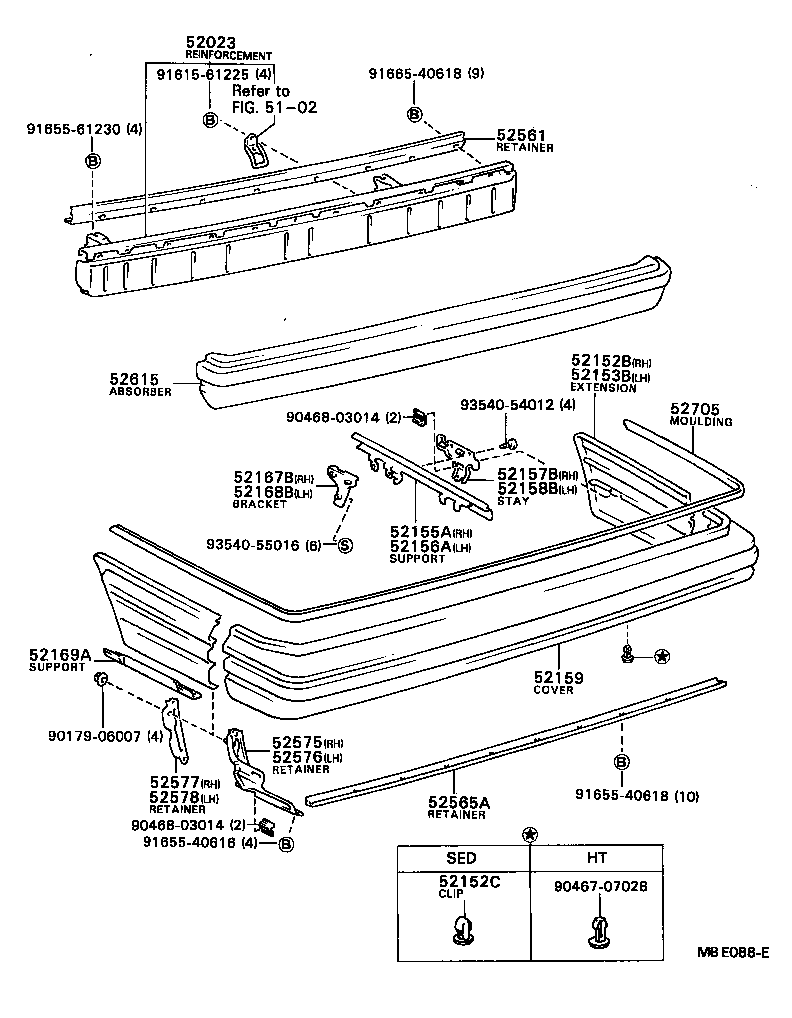

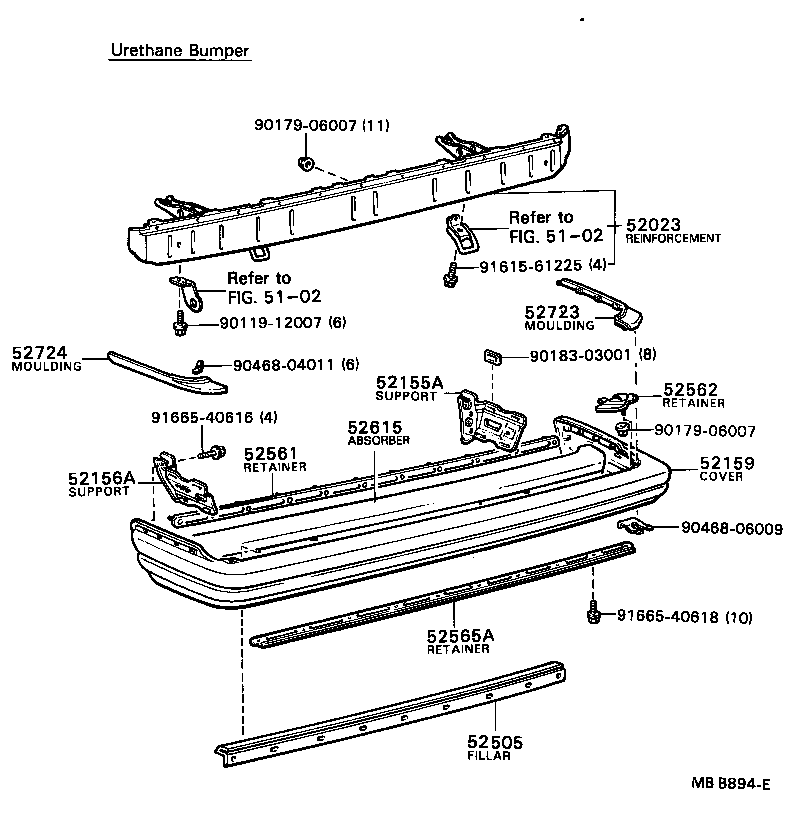

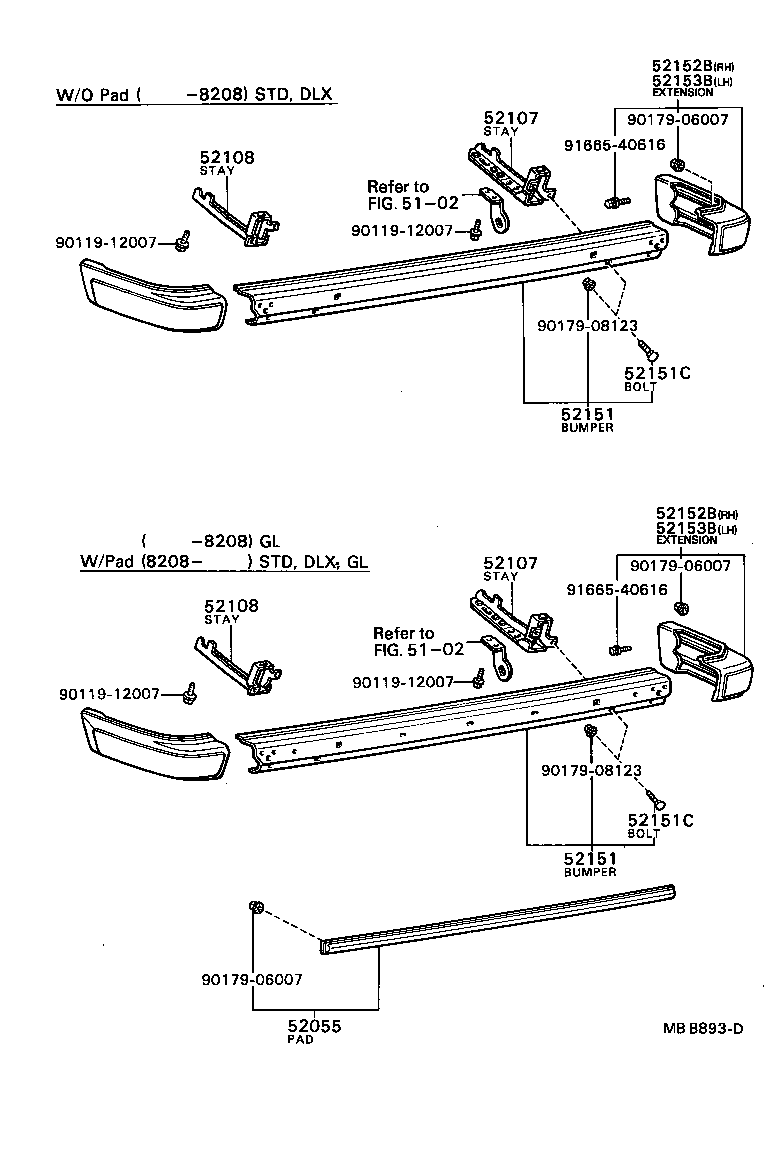

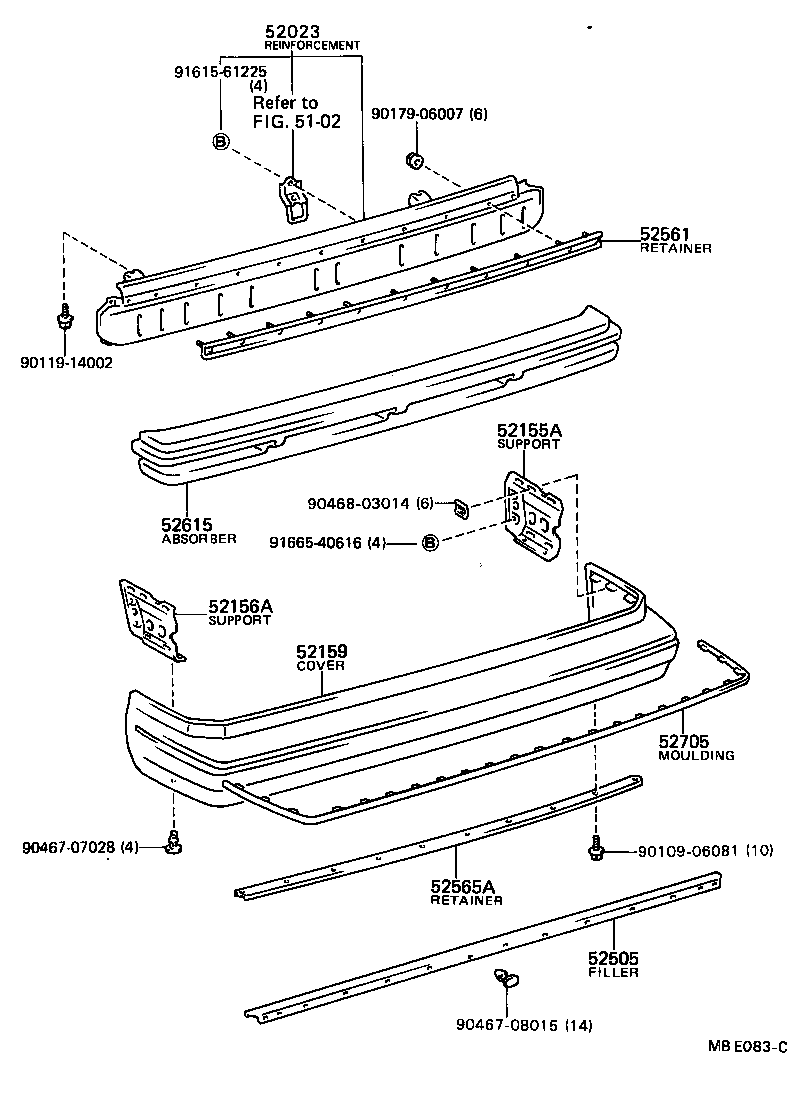

Figure MBC160B MBC160B 1980-09 → 1982-08 Figure MBC160B MBC160B 1982-09 → — Figure MBC685B MBC685B 1980-09 → 1982-08 Figure MBE088E MBE088E 1982-08 → — Figure MBE083C MBE083C 1982-08 → — Figure MBB893D MBB893D 1980-09 → 1982-08 Figure MBB894E MBB894E 1980-09 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52152B Extension, Rear Bumper, RH
52152C Clip, Rear Bumper Side
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157B Stay, Rear Bumper Side, NO.2 RH
52158B Stay, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167B Bracket, Rear Bumper Extension Mounting, RH
52168B Bracket, Rear Bumper Extension Mounting, LH
52169A Support, Rear Bumper Side, NO.3
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52562 Retainer, Rear Bumper, Upper Side
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52705B Retainer, Rear Bumper Moulding
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
