Toyota Cressida

1980-09 → 1985-04 · chassis TX62,RX6#,MX6#,LX60 · catalogue 311240 · General

Discontinued model Data version 1985-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

3 part groups · 2 illustrations

Illustrations

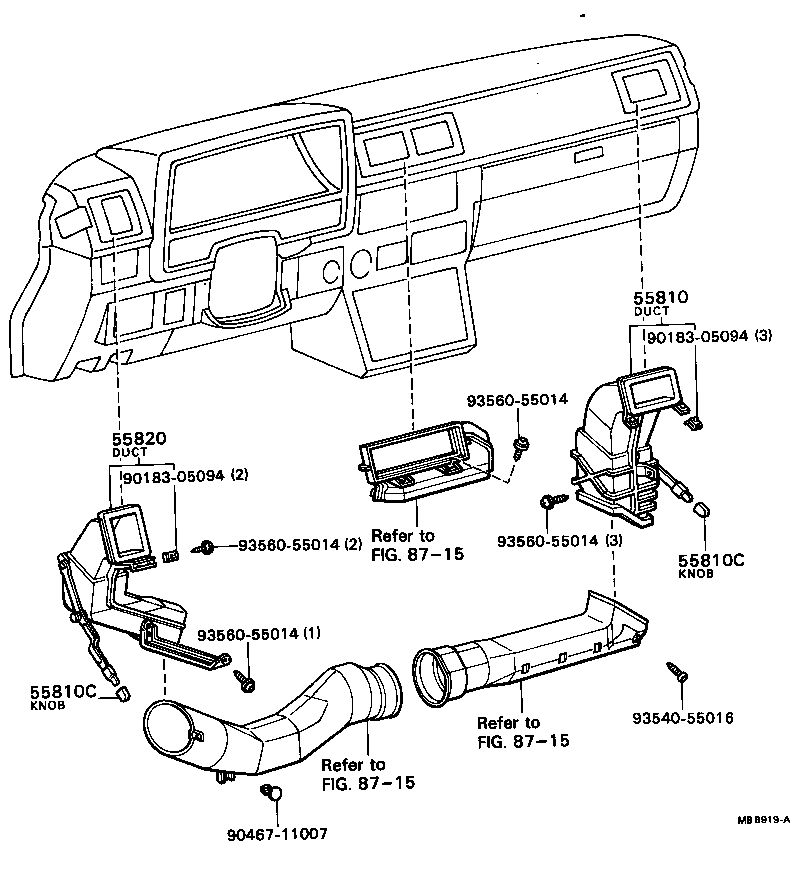

Figure MBB918B MBB918B 1980-09 → — Figure MBB919A MBB919A 1980-09 → —

Part groups

PNCDescription
55810 Duct Assy, Side Ventilator, RH
55810C Knob Sub-assy, Control(FOR VENTILATOR DUCT)
55820 Duct Assy, Side Ventilator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
